| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_121T01_9000004134_28837cztM0_level2.evt | modeM0/AS1A10_121T01_9000004134_28837cztM0_level2_quad_clean.evt |
| Size (bytes) | 728,726,400 | 100,091,520 |
| Size | 695.0 MB | 95.5 MB |
| Events in quadrant A | 2,961,184 | 680,618 |
| Events in quadrant B | 3,117,911 | 700,047 |
| Events in quadrant C | 8,626,968 | 597,317 |
| Events in quadrant D | 6,939,449 | 613,832 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12871 | 1 |
| B | 0 | 13161 | 1 |
| C | 0 | 30101 | 1 |
| D | 0 | 25173 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6280 | 86 | 1.369427% |
| B | 6281 | 117 | 1.862761% |
| C | 6281 | 1846 | 29.390224% |
| D | 6281 | 714 | 11.367617% |

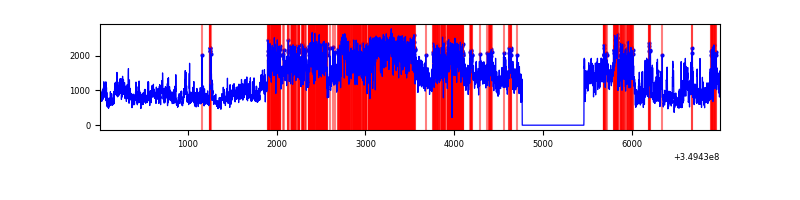

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6975 | 6280 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6976 | 6281 | 28 | 28 | 0.40% | 0.45% |  |
| C | 6976 | 6281 | 964 | 964 | 13.82% | 15.35% |  |
| D | 6976 | 6281 | 590 | 590 | 8.46% | 9.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 27311 | 174.66 | 759 | 743 | 152.1 |
| A | 13 | 254 | 10813 | 66.2 | 759 | 743 | 152.1 |
| A | 3 | 137 | 6913 | 40.56 | 759 | 743 | 152.1 |
| B | 5 | 255 | 76513 | 535.88 | 753 | 735 | 141.4 |
| B | 0 | 156 | 57396 | 400.69 | 753 | 735 | 141.4 |
| B | 12 | 111 | 16933 | 114.55 | 753 | 735 | 141.4 |
| C | 3 | 233 | 5752719 | 36029.26 | 689 | 694 | 159.6 |
| C | 14 | 238 | 131650 | 820.28 | 689 | 694 | 159.6 |
| C | 14 | 254 | 34178 | 209.74 | 689 | 694 | 159.6 |
| D | 1 | 52 | 2186638 | 12651.17 | 721 | 701 | 172.8 |
| D | 8 | 195 | 944143 | 5460.19 | 721 | 701 | 172.8 |
| D | 13 | 104 | 706939 | 4087.37 | 721 | 701 | 172.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

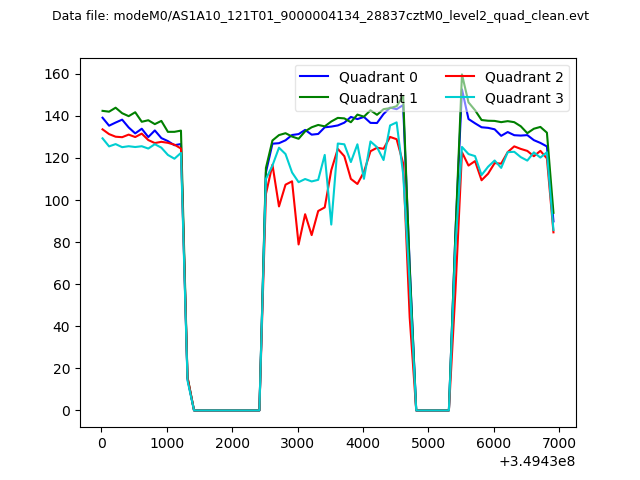

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

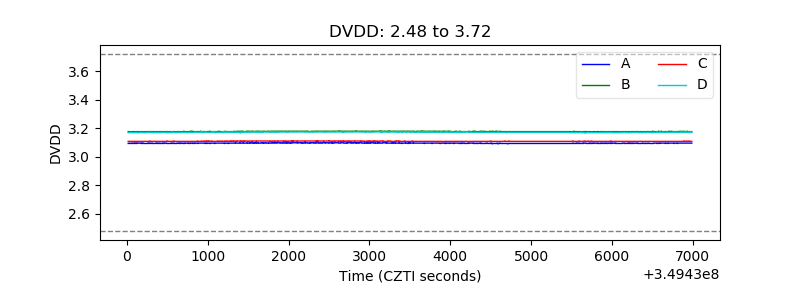

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

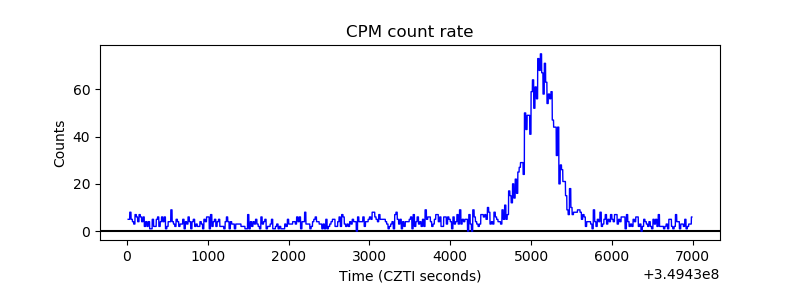

| _CPM_Rate |  |

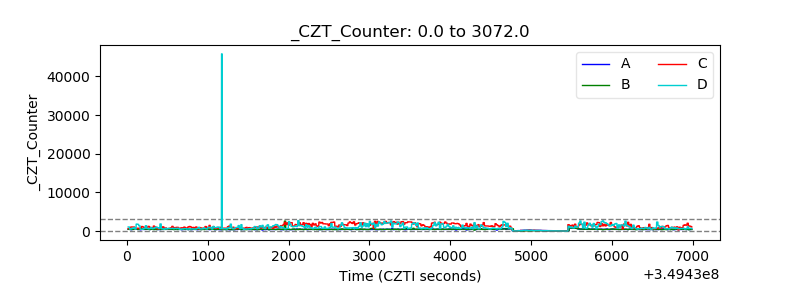

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

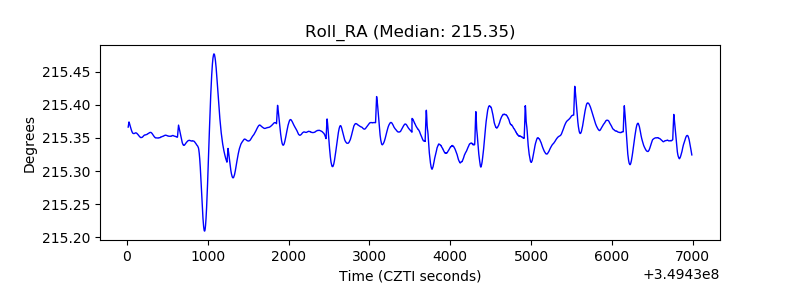

| _Roll_RA |  |
| Veto Counter |  |
