| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_121T01_9000004134_28842cztM0_level2.evt | modeM0/AS1A10_121T01_9000004134_28842cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,207,500,480 | 141,062,400 |
| Size | 1.1 GB | 134.5 MB |
| Events in quadrant A | 4,978,775 | 947,795 |
| Events in quadrant B | 5,763,428 | 959,967 |
| Events in quadrant C | 9,904,882 | 878,167 |
| Events in quadrant D | 15,255,062 | 797,084 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21458 | 1 |
| B | 0 | 23565 | 1 |
| C | 0 | 36346 | 1 |
| D | 0 | 52234 | 5 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 202 | 0 |
| B | 0 | 202 | 0 |
| C | 0 | 202 | 0 |
| D | 0 | 202 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9917 | 148 | 1.492387% |
| B | 9917 | 377 | 3.801553% |
| C | 9917 | 1575 | 15.881819% |
| D | 9916 | 2795 | 28.186769% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

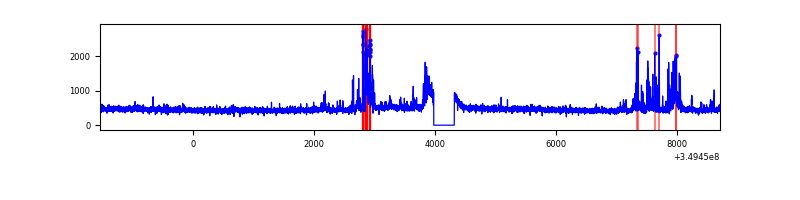

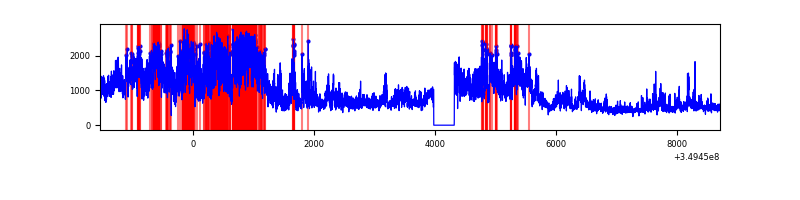

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10257 | 9917 | 30 | 30 | 0.29% | 0.30% |  |
| B | 10257 | 9917 | 194 | 194 | 1.89% | 1.96% |  |
| C | 10257 | 9917 | 580 | 580 | 5.65% | 5.85% |  |
| D | 10256 | 9916 | 3042 | 3042 | 29.66% | 30.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 512417 | 2194.83 | 1153 | 1126 | 233.0 |
| A | 13 | 254 | 19356 | 78.26 | 1153 | 1126 | 233.0 |
| A | 3 | 137 | 10928 | 42.08 | 1153 | 1126 | 233.0 |
| B | 5 | 172 | 507362 | 2345.54 | 1147 | 1118 | 215.8 |
| B | 5 | 255 | 426851 | 1972.52 | 1147 | 1118 | 215.8 |
| B | 10 | 245 | 170283 | 783.78 | 1147 | 1118 | 215.8 |
| C | 3 | 233 | 5243940 | 21069.39 | 1065 | 1071 | 248.8 |
| C | 14 | 238 | 279291 | 1118.08 | 1065 | 1071 | 248.8 |
| C | 14 | 254 | 163999 | 654.75 | 1065 | 1071 | 248.8 |
| D | 8 | 195 | 7437555 | 29801.2 | 1044 | 1012 | 249.5 |
| D | 1 | 52 | 2064185 | 8267.96 | 1044 | 1012 | 249.5 |
| D | 13 | 104 | 1119324 | 4481.52 | 1044 | 1012 | 249.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

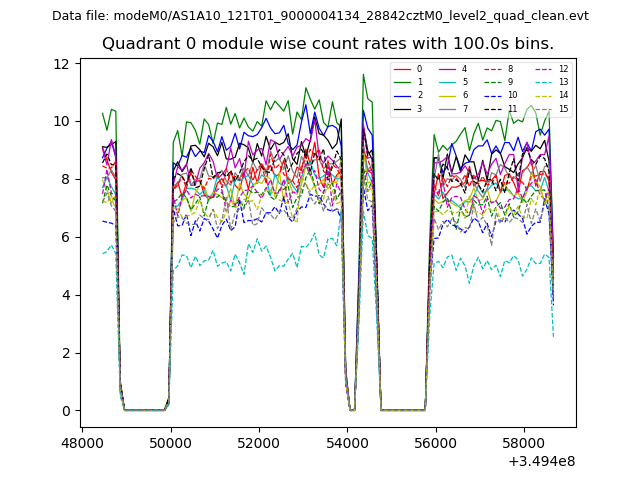

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

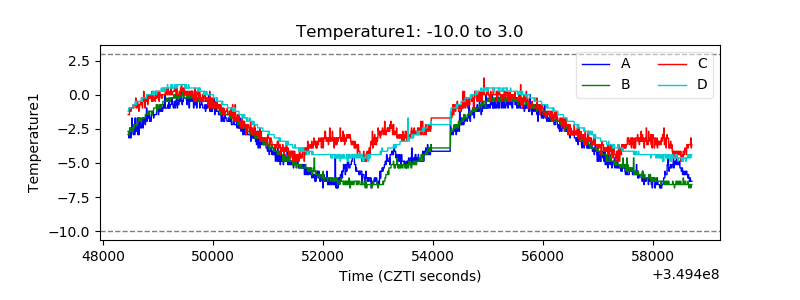

| Temperature 1 |  |

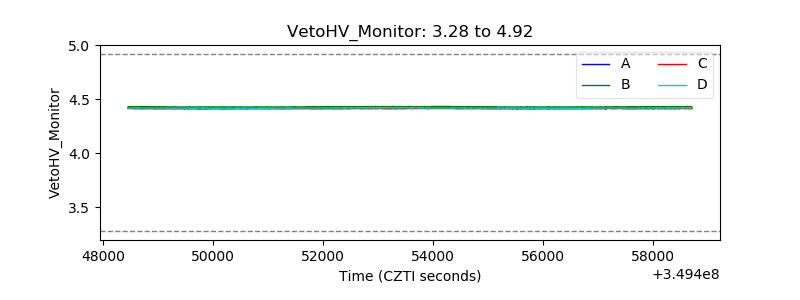

| Veto HV Monitor |  |
| Veto LLD |  |

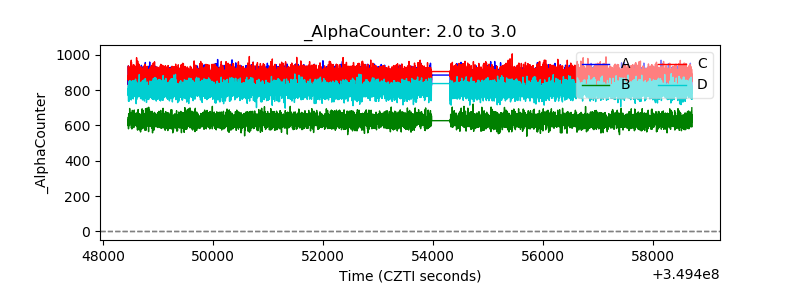

| Alpha Counter |  |
| _CPM_Rate |  |

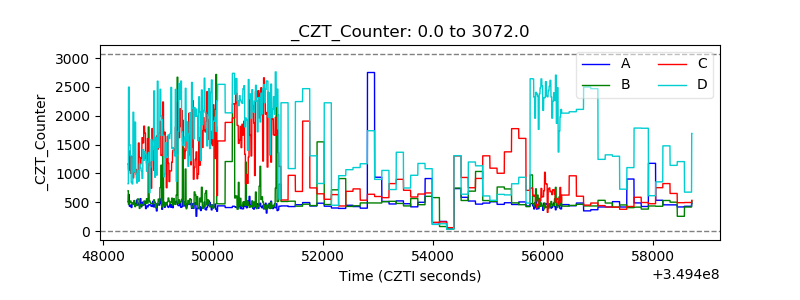

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

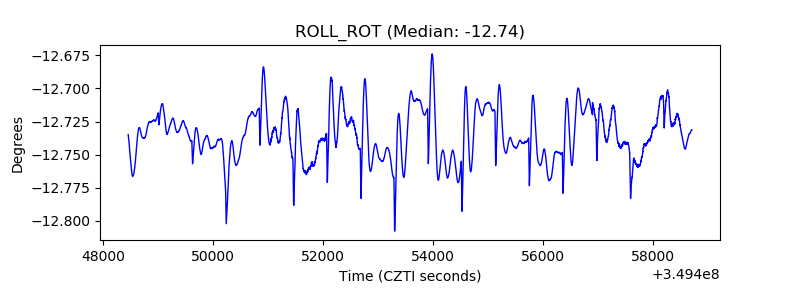

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
