| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_103T08_9000004136_28851cztM0_level2.evt | modeM0/AS1A10_103T08_9000004136_28851cztM0_level2_quad_clean.evt |
| Size (bytes) | 817,398,720 | 116,458,560 |
| Size | 779.5 MB | 111.1 MB |
| Events in quadrant A | 2,942,380 | 852,971 |
| Events in quadrant B | 3,455,273 | 859,015 |
| Events in quadrant C | 3,835,663 | 829,237 |
| Events in quadrant D | 14,101,661 | 550,333 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12636 | 1 |
| B | 0 | 14149 | 1 |
| C | 0 | 15427 | 1 |
| D | 0 | 46098 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6205 | 18 | 0.290089% |
| B | 6206 | 181 | 2.916532% |
| C | 6206 | 132 | 2.126974% |
| D | 6206 | 5271 | 84.933935% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7155 | 6206 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7156 | 6207 | 120 | 120 | 1.68% | 1.93% |  |
| C | 7156 | 6207 | 19 | 19 | 0.27% | 0.31% |  |
| D | 7155 | 6205 | 5299 | 5299 | 74.06% | 85.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 20878 | 134.24 | 755 | 740 | 150.0 |
| A | 13 | 254 | 11425 | 71.23 | 755 | 740 | 150.0 |
| A | 3 | 137 | 6681 | 39.6 | 755 | 740 | 150.0 |
| B | 10 | 246 | 458301 | 3341.99 | 741 | 724 | 136.9 |
| B | 5 | 255 | 30029 | 214.03 | 741 | 724 | 136.9 |
| B | 12 | 111 | 16026 | 111.76 | 741 | 724 | 136.9 |
| C | 3 | 233 | 853137 | 5066.17 | 730 | 736 | 168.3 |
| C | 14 | 238 | 122276 | 722.36 | 730 | 736 | 168.3 |
| C | 14 | 254 | 8602 | 46.75 | 730 | 736 | 168.3 |
| D | 8 | 195 | 10389927 | 78389.62 | 560 | 545 | 132.5 |
| D | 1 | 52 | 1502056 | 11329.15 | 560 | 545 | 132.5 |
| D | 7 | 69 | 40083 | 298.32 | 560 | 545 | 132.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

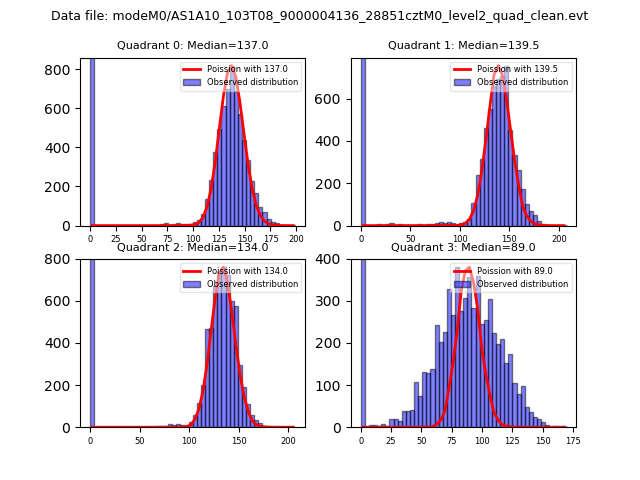

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

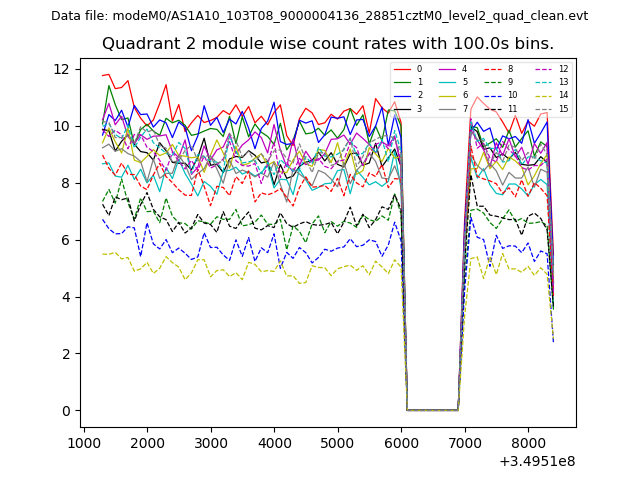

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

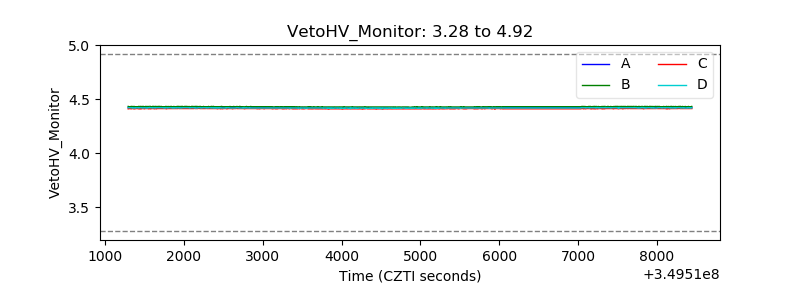

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

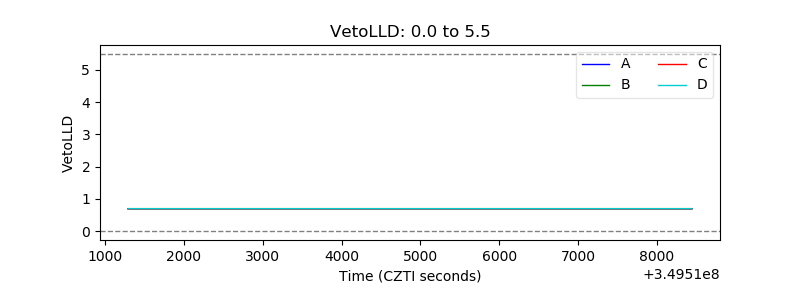

| Veto LLD |  |
| Alpha Counter |  |

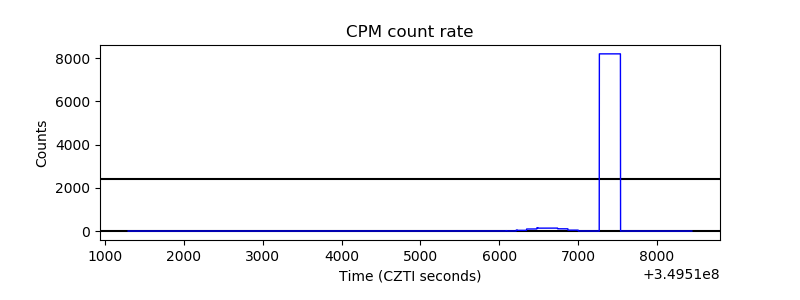

| _CPM_Rate |  |

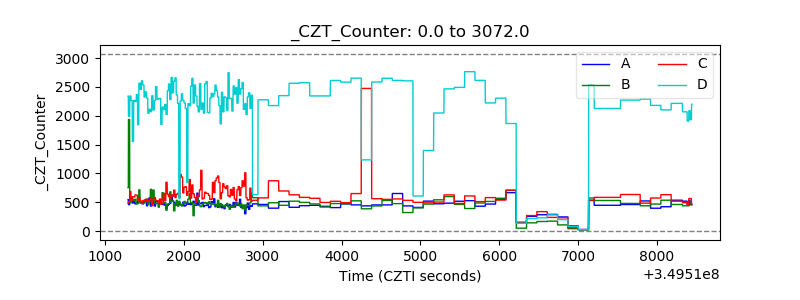

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

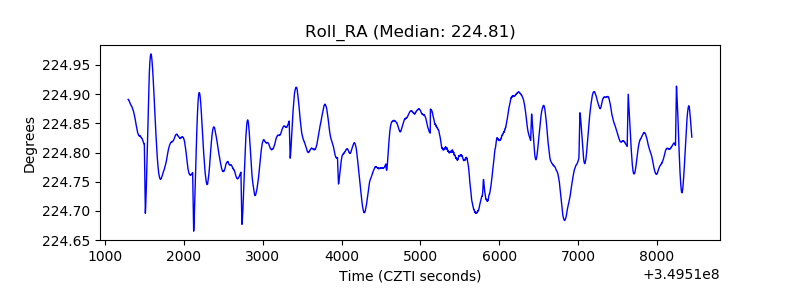

| _Roll_RA |  |

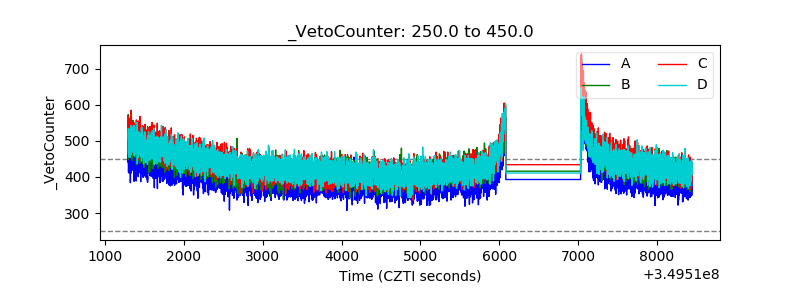

| Veto Counter |  |
