| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_103T08_9000004136_28854cztM0_level2.evt | modeM0/AS1A10_103T08_9000004136_28854cztM0_level2_quad_clean.evt |
| Size (bytes) | 840,706,560 | 123,220,800 |
| Size | 801.8 MB | 117.5 MB |
| Events in quadrant A | 3,699,920 | 872,004 |
| Events in quadrant B | 3,929,738 | 879,484 |
| Events in quadrant C | 3,897,968 | 853,387 |
| Events in quadrant D | 13,465,444 | 642,656 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15593 | 1 |
| B | 0 | 16202 | 1 |
| C | 0 | 15979 | 1 |
| D | 0 | 44723 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6929 | 178 | 2.568913% |
| B | 6929 | 331 | 4.777024% |
| C | 6929 | 177 | 2.554481% |
| D | 6929 | 3662 | 52.850339% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7203 | 6928 | 68 | 68 | 0.94% | 0.98% |  |
| B | 7204 | 6929 | 146 | 146 | 2.03% | 2.11% |  |
| C | 7204 | 6929 | 7 | 7 | 0.10% | 0.10% |  |
| D | 7204 | 6929 | 3892 | 3892 | 54.03% | 56.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 504885 | 3048.36 | 823 | 805 | 165.4 |
| A | 13 | 254 | 14036 | 80.01 | 823 | 805 | 165.4 |
| A | 0 | 13 | 10896 | 61.02 | 823 | 805 | 165.4 |
| B | 5 | 172 | 386949 | 2525.16 | 809 | 789 | 152.9 |
| B | 10 | 246 | 177709 | 1156.91 | 809 | 789 | 152.9 |
| B | 5 | 255 | 117018 | 760.04 | 809 | 789 | 152.9 |
| C | 3 | 233 | 617167 | 3364.9 | 788 | 791 | 183.2 |
| C | 14 | 238 | 134291 | 728.8 | 788 | 791 | 183.2 |
| C | 15 | 208 | 58411 | 314.56 | 788 | 791 | 183.2 |
| D | 8 | 195 | 8661694 | 55399.1 | 662 | 643 | 156.3 |
| D | 1 | 52 | 1968453 | 12586.8 | 662 | 643 | 156.3 |
| D | 2 | 250 | 229987 | 1466.96 | 662 | 643 | 156.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

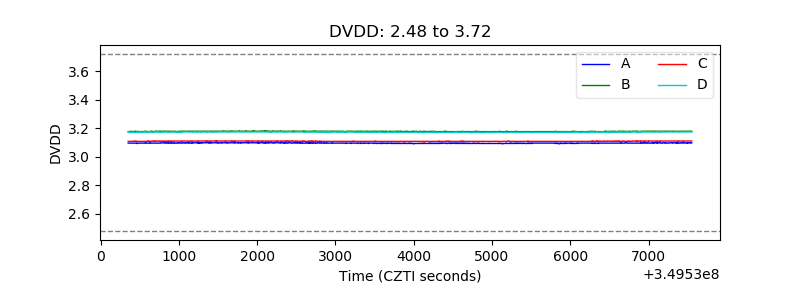

| D_VDD |  |

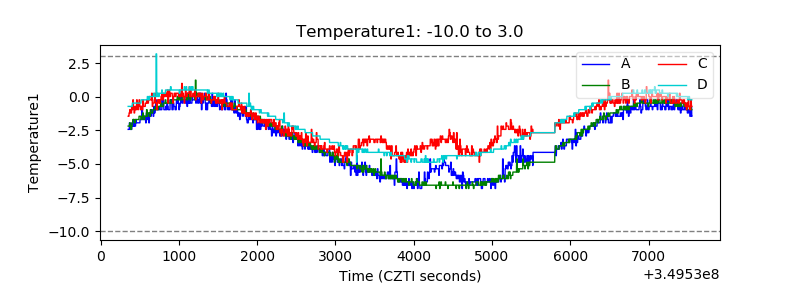

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

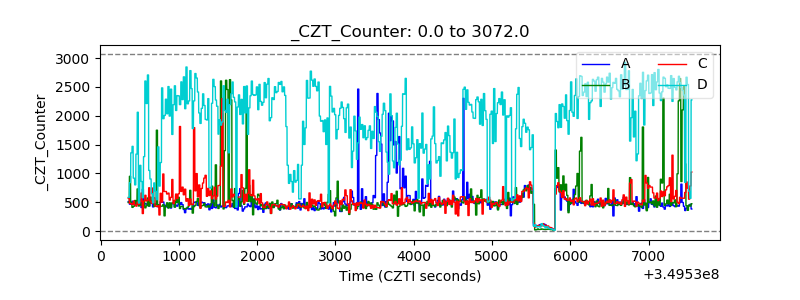

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

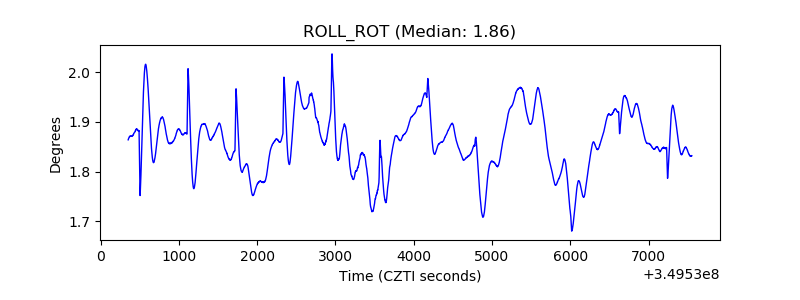

| _ROLL_ROT |  |

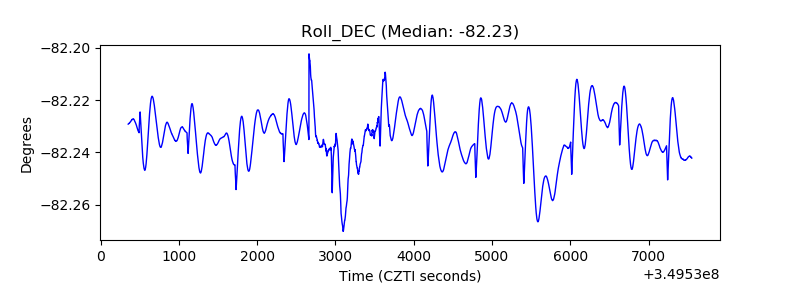

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
