| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_103T08_9000004136_28861cztM0_level2.evt | modeM0/AS1A10_103T08_9000004136_28861cztM0_level2_quad_clean.evt |
| Size (bytes) | 769,737,600 | 108,803,520 |
| Size | 734.1 MB | 103.8 MB |
| Events in quadrant A | 3,304,198 | 805,768 |
| Events in quadrant B | 3,455,933 | 811,090 |
| Events in quadrant C | 3,138,074 | 773,263 |
| Events in quadrant D | 13,013,172 | 489,934 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13530 | 2 |
| B | 0 | 14130 | 2 |
| C | 0 | 13223 | 2 |
| D | 0 | 42643 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5903 | 93 | 1.575470% |
| B | 5903 | 247 | 4.184313% |
| C | 5903 | 123 | 2.083686% |
| D | 5903 | 4797 | 81.263764% |

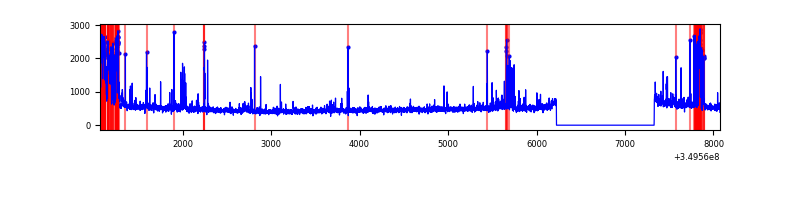

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7008 | 5904 | 79 | 79 | 1.13% | 1.34% |  |
| B | 7008 | 5903 | 148 | 148 | 2.11% | 2.51% |  |
| C | 7008 | 5903 | 9 | 9 | 0.13% | 0.15% |  |
| D | 7007 | 5902 | 4824 | 4824 | 68.85% | 81.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 493037 | 3408.73 | 724 | 710 | 144.4 |
| A | 13 | 254 | 11381 | 73.88 | 724 | 710 | 144.4 |
| A | 10 | 17 | 9798 | 62.92 | 724 | 710 | 144.4 |
| B | 5 | 172 | 446962 | 3322.41 | 713 | 696 | 134.3 |
| B | 5 | 255 | 149742 | 1109.63 | 713 | 696 | 134.3 |
| B | 0 | 244 | 39076 | 285.74 | 713 | 696 | 134.3 |
| C | 3 | 233 | 255192 | 1591.55 | 688 | 692 | 159.9 |
| C | 14 | 238 | 124530 | 774.44 | 688 | 692 | 159.9 |
| C | 4 | 254 | 38656 | 237.41 | 688 | 692 | 159.9 |
| D | 8 | 195 | 9774500 | 82055.45 | 503 | 490 | 119.1 |
| D | 1 | 52 | 1237941 | 10388.73 | 503 | 490 | 119.1 |
| D | 2 | 250 | 32231 | 266.47 | 503 | 490 | 119.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

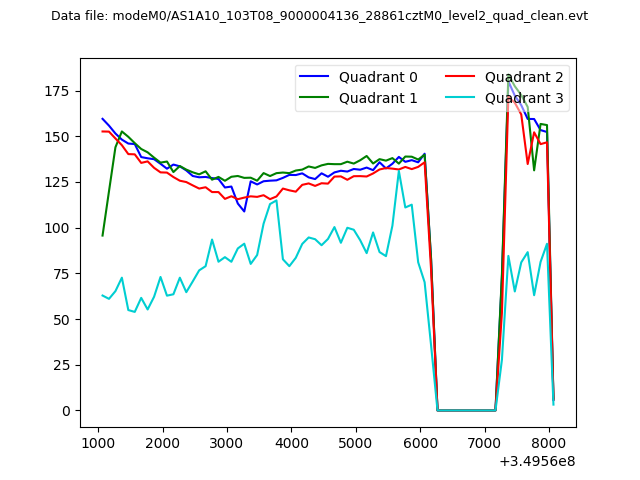

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

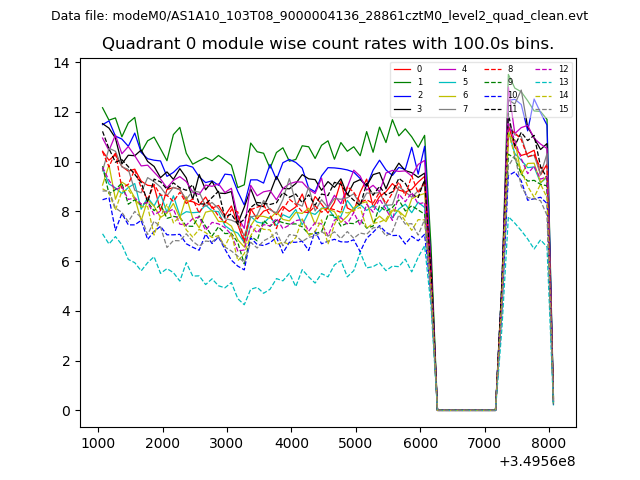

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

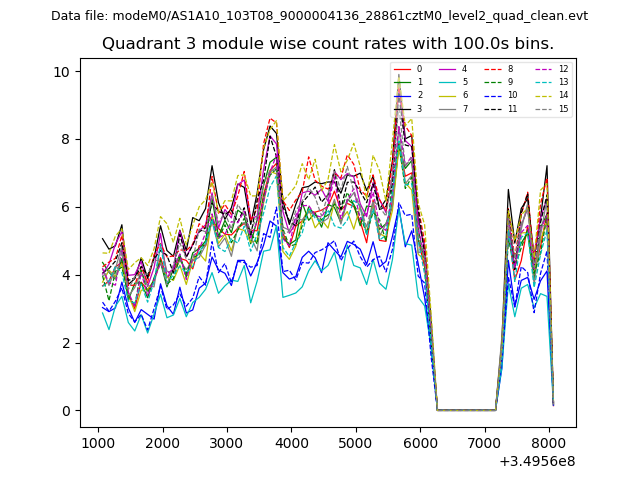

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

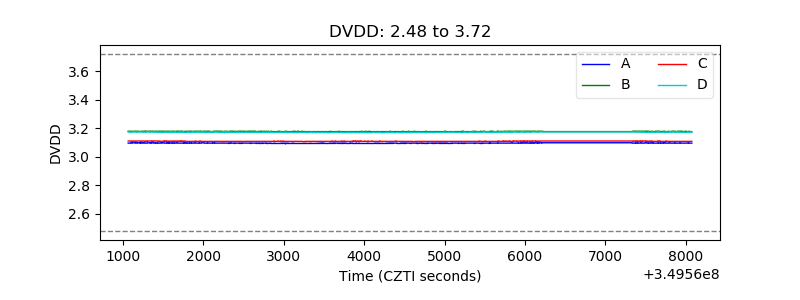

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

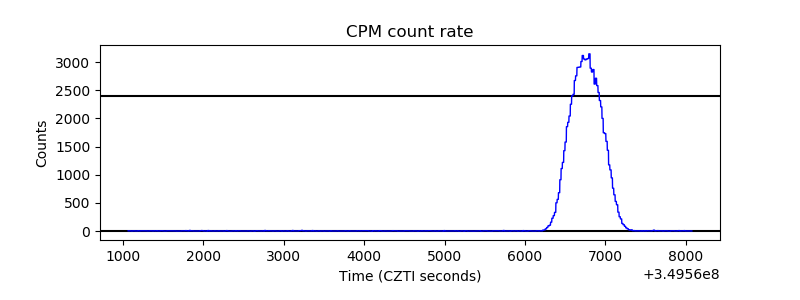

| _CPM_Rate |  |

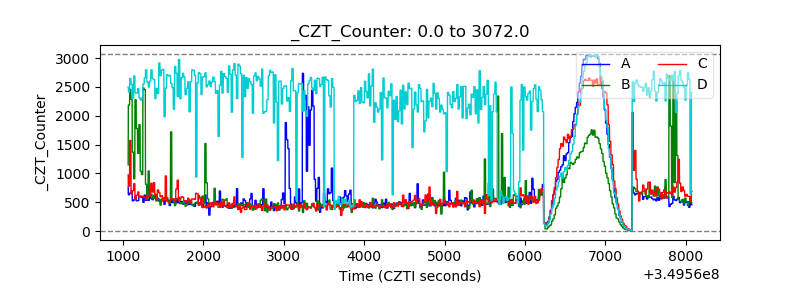

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

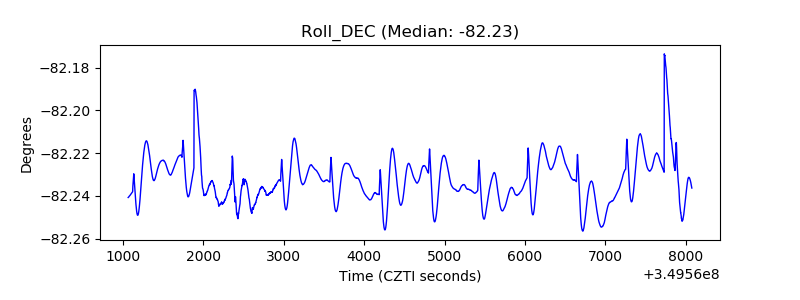

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
