| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T06_9000004138_28861cztM0_level2.evt | modeM0/AS1A10_123T06_9000004138_28861cztM0_level2_quad_clean.evt |
| Size (bytes) | 405,763,200 | 60,085,440 |
| Size | 387.0 MB | 57.3 MB |
| Events in quadrant A | 2,263,063 | 392,403 |
| Events in quadrant B | 2,163,230 | 408,856 |
| Events in quadrant C | 2,211,704 | 389,812 |
| Events in quadrant D | 5,358,462 | 325,586 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9504 | 4 |
| B | 0 | 9143 | 1 |
| C | 0 | 9276 | 1 |
| D | 0 | 18962 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 86 | 0 |
| B | 0 | 86 | 0 |
| C | 0 | 86 | 0 |
| D | 0 | 86 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4299 | 18 | 0.418702% |
| B | 4299 | 20 | 0.465224% |
| C | 4299 | 72 | 1.674808% |
| D | 4299 | 1071 | 24.912770% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

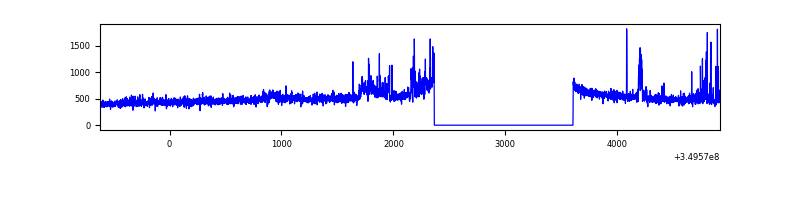

| A | 5539 | 4300 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5539 | 4299 | 4 | 4 | 0.07% | 0.09% |  |

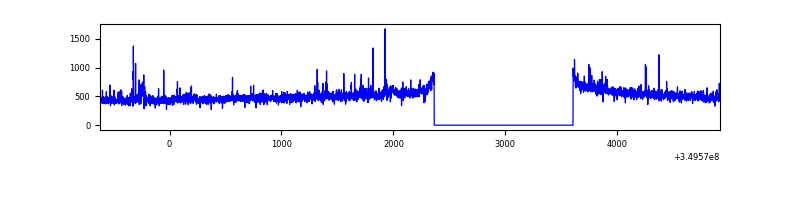

| C | 5539 | 4299 | 0 | 0 | 0.00% | 0.00% |  |

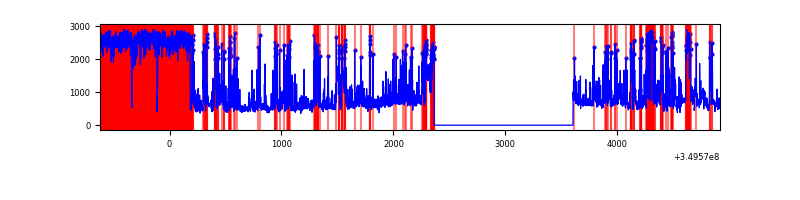

| D | 5539 | 4299 | 1084 | 1084 | 19.57% | 25.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 152072 | 1385.11 | 542 | 532 | 109.4 |
| A | 5 | 98 | 15046 | 132.66 | 542 | 532 | 109.4 |
| A | 13 | 254 | 7850 | 66.89 | 542 | 532 | 109.4 |
| B | 5 | 172 | 17941 | 169.85 | 544 | 532 | 102.5 |
| B | 12 | 111 | 11891 | 110.82 | 544 | 532 | 102.5 |
| B | 11 | 111 | 10579 | 98.02 | 544 | 532 | 102.5 |
| C | 14 | 238 | 92849 | 772.3 | 522 | 526 | 119.5 |
| C | 3 | 233 | 44491 | 367.77 | 522 | 526 | 119.5 |
| C | 4 | 254 | 23889 | 195.43 | 522 | 526 | 119.5 |
| D | 8 | 195 | 1678096 | 14479.98 | 485 | 472 | 115.9 |
| D | 1 | 52 | 1553811 | 13407.25 | 485 | 472 | 115.9 |
| D | 7 | 80 | 241585 | 2081.11 | 485 | 472 | 115.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

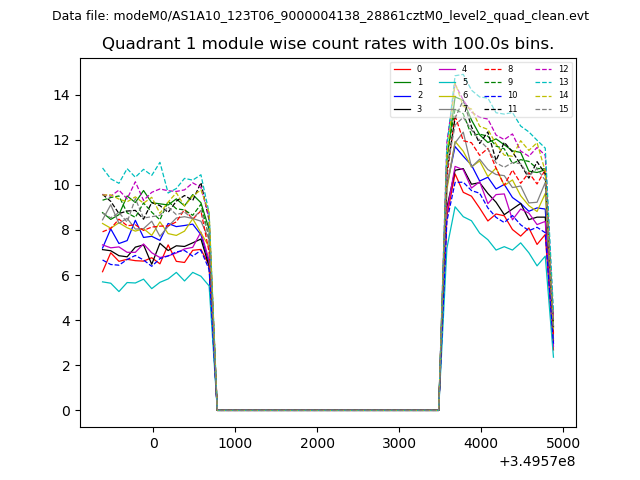

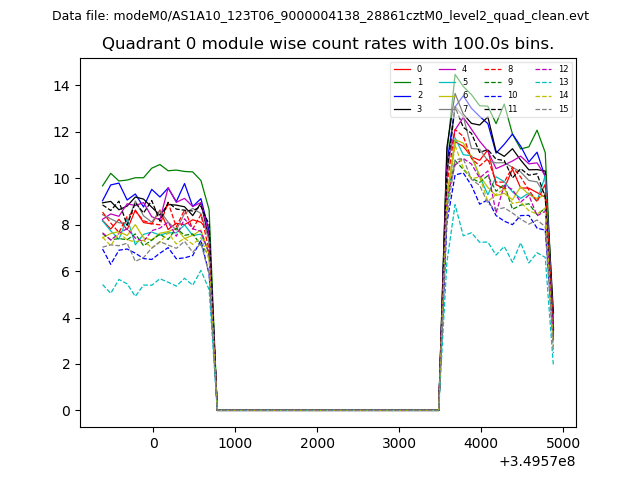

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

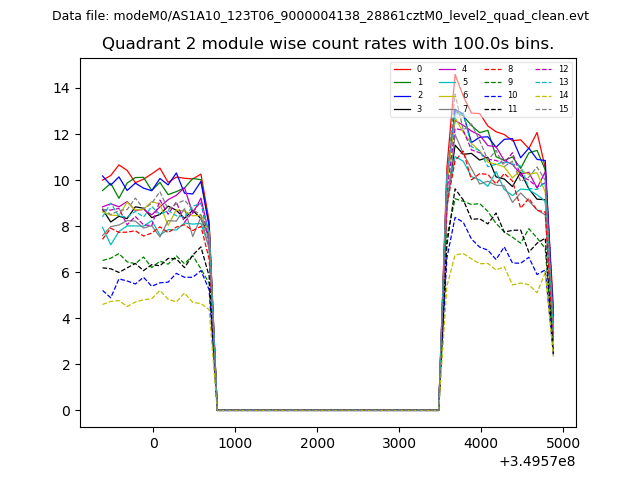

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

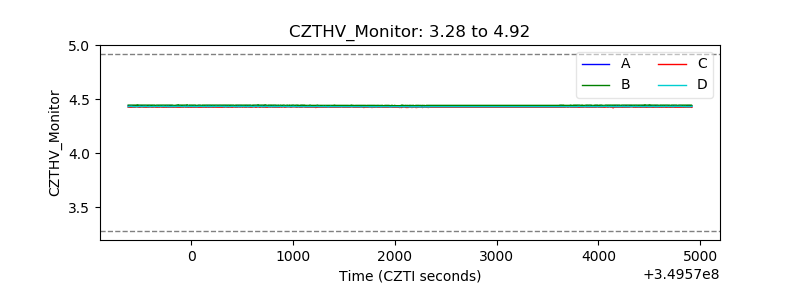

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

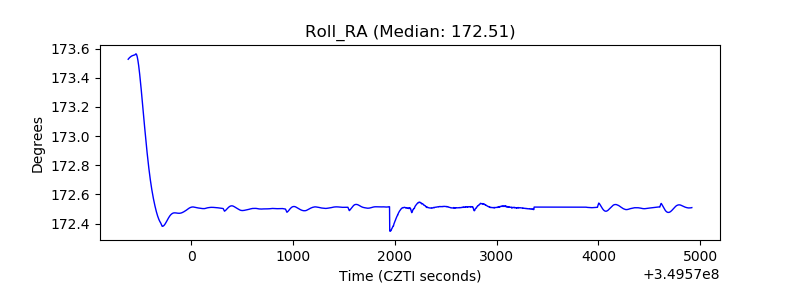

| _Roll_RA |  |
| Veto Counter |  |
