| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T06_9000004138_28865cztM0_level2.evt | modeM0/AS1A10_123T06_9000004138_28865cztM0_level2_quad_clean.evt |
| Size (bytes) | 492,209,280 | 80,020,800 |
| Size | 469.4 MB | 76.3 MB |
| Events in quadrant A | 3,331,759 | 512,149 |
| Events in quadrant B | 2,957,392 | 525,485 |
| Events in quadrant C | 3,215,571 | 501,722 |
| Events in quadrant D | 5,003,225 | 473,032 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13615 | 1 |
| B | 0 | 12364 | 1 |
| C | 0 | 13128 | 1 |
| D | 0 | 18818 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5871 | 156 | 2.657128% |
| B | 5872 | 133 | 2.264986% |
| C | 5872 | 133 | 2.264986% |
| D | 5872 | 466 | 7.935967% |

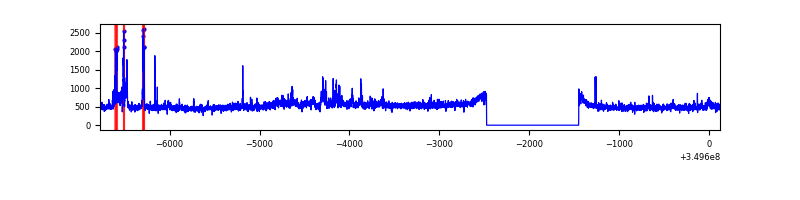

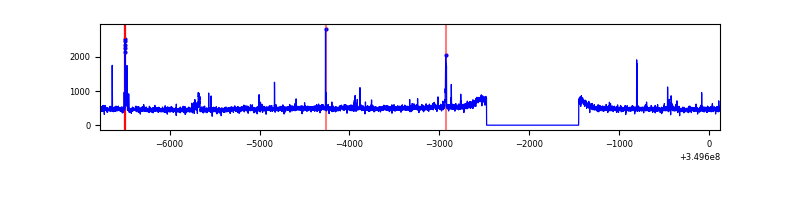

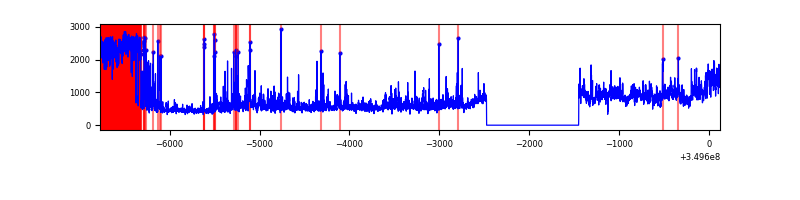

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6896 | 5871 | 36 | 36 | 0.52% | 0.61% |  |
| B | 6897 | 5872 | 7 | 7 | 0.10% | 0.12% |  |
| C | 6897 | 5872 | 13 | 13 | 0.19% | 0.22% |  |
| D | 6897 | 5872 | 440 | 440 | 6.38% | 7.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 452349 | 3061.49 | 738 | 724 | 147.5 |
| A | 1 | 113 | 28660 | 189.37 | 738 | 724 | 147.5 |
| A | 13 | 254 | 9316 | 58.24 | 738 | 724 | 147.5 |
| B | 10 | 246 | 48533 | 342.46 | 730 | 712 | 139.6 |
| B | 5 | 255 | 24196 | 168.17 | 730 | 712 | 139.6 |
| B | 12 | 111 | 16573 | 113.58 | 730 | 712 | 139.6 |
| C | 3 | 233 | 352918 | 2178.84 | 698 | 703 | 161.7 |
| C | 14 | 238 | 115379 | 709.4 | 698 | 703 | 161.7 |
| C | 4 | 254 | 11203 | 64.95 | 698 | 703 | 161.7 |
| D | 8 | 195 | 1854444 | 11216.82 | 702 | 683 | 165.3 |
| D | 1 | 52 | 371519 | 2243.87 | 702 | 683 | 165.3 |
| D | 7 | 80 | 59757 | 357.45 | 702 | 683 | 165.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

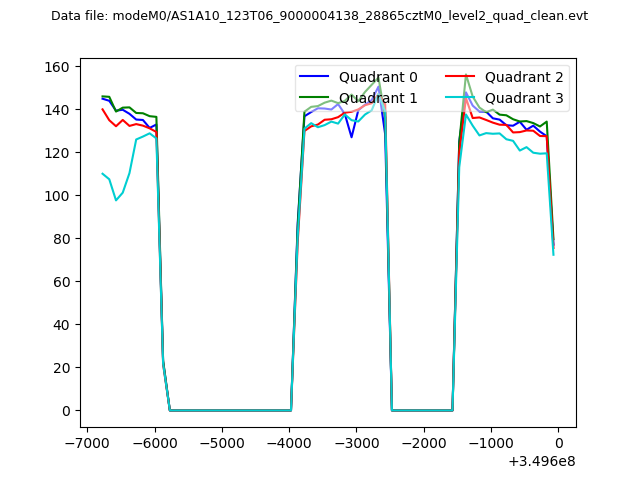

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

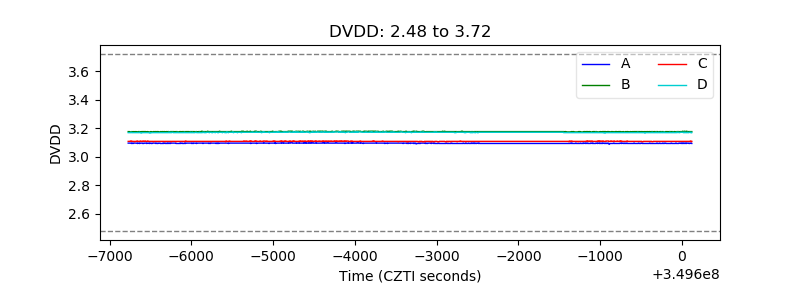

| D_VDD |  |
| Temperature 1 |  |

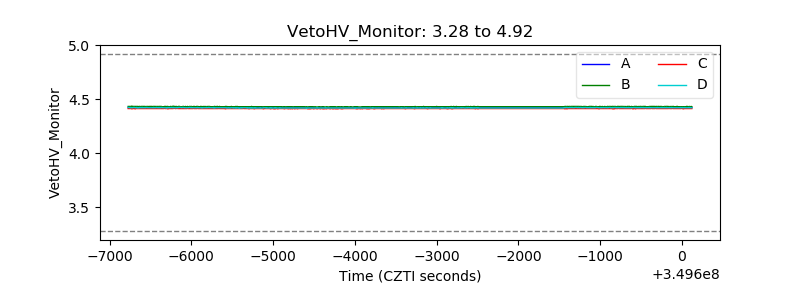

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

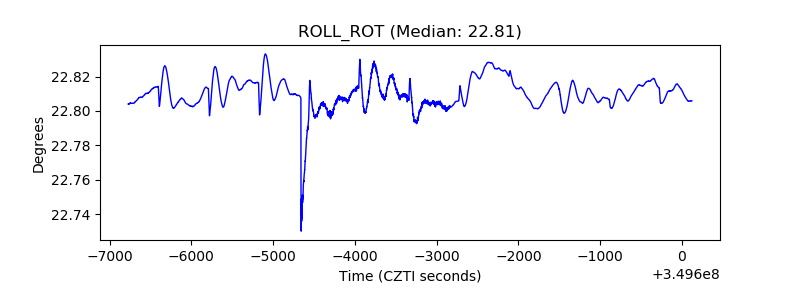

| _ROLL_ROT |  |
| _Roll_DEC |  |

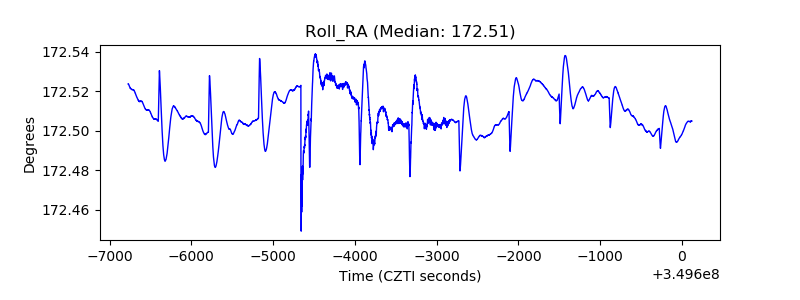

| _Roll_RA |  |
| Veto Counter |  |
