| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T07_9000004140_28876cztM0_level2.evt | modeM0/AS1A10_123T07_9000004140_28876cztM0_level2_quad_clean.evt |
| Size (bytes) | 627,825,600 | 104,489,280 |
| Size | 598.7 MB | 99.6 MB |
| Events in quadrant A | 3,091,503 | 697,781 |
| Events in quadrant B | 3,638,614 | 727,974 |
| Events in quadrant C | 3,188,021 | 690,532 |
| Events in quadrant D | 8,677,057 | 615,285 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13143 | 2 |
| B | 0 | 14875 | 2 |
| C | 0 | 13429 | 2 |
| D | 0 | 30121 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6201 | 21 | 0.338655% |
| B | 6201 | 78 | 1.257862% |
| C | 6201 | 94 | 1.515885% |
| D | 6200 | 669 | 10.790323% |

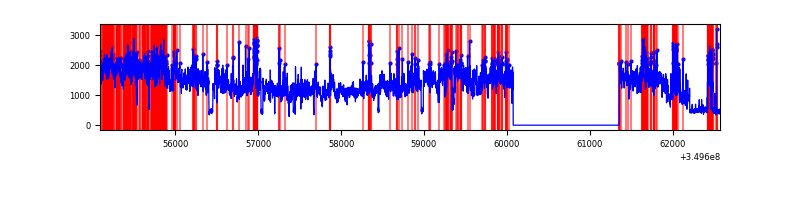

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7481 | 6201 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7481 | 6202 | 21 | 21 | 0.28% | 0.34% |  |
| C | 7481 | 6202 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7480 | 6201 | 547 | 547 | 7.31% | 8.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 6 | 12742 | 74.93 | 794 | 780 | 159.6 |
| A | 5 | 98 | 10754 | 62.48 | 794 | 780 | 159.6 |
| A | 13 | 254 | 10629 | 61.7 | 794 | 780 | 159.6 |
| B | 10 | 246 | 490231 | 3293.23 | 799 | 782 | 148.6 |
| B | 12 | 111 | 17681 | 113.7 | 799 | 782 | 148.6 |
| B | 11 | 111 | 15941 | 102.0 | 799 | 782 | 148.6 |
| C | 14 | 238 | 133720 | 742.76 | 771 | 777 | 179.0 |
| C | 2 | 114 | 14690 | 77.73 | 771 | 777 | 179.0 |
| C | 14 | 254 | 14560 | 77.01 | 771 | 777 | 179.0 |
| D | 8 | 195 | 5068740 | 28746.36 | 741 | 720 | 176.3 |
| D | 1 | 52 | 361193 | 2044.64 | 741 | 720 | 176.3 |
| D | 7 | 80 | 360833 | 2042.6 | 741 | 720 | 176.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

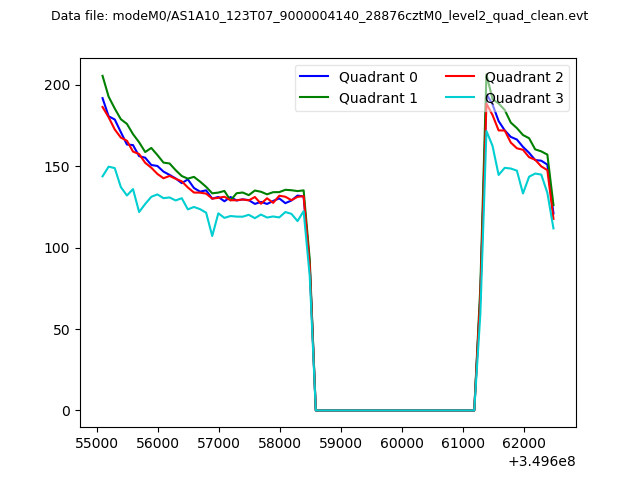

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

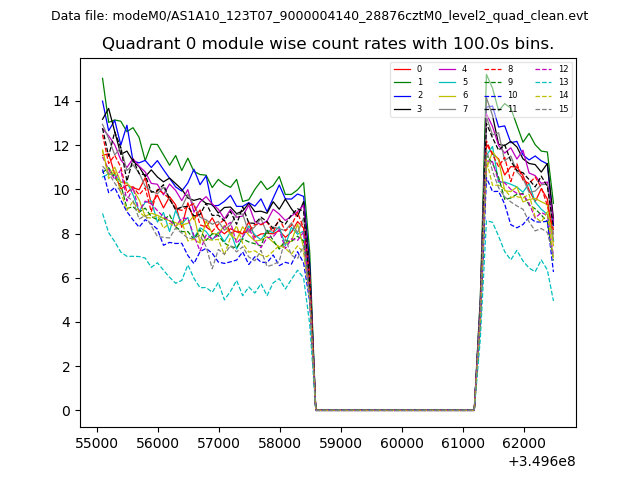

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

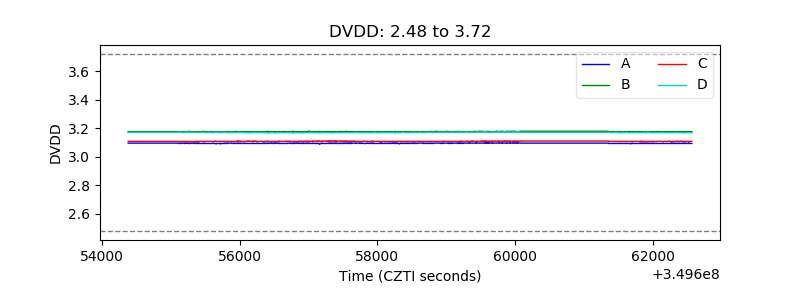

| D_VDD |  |

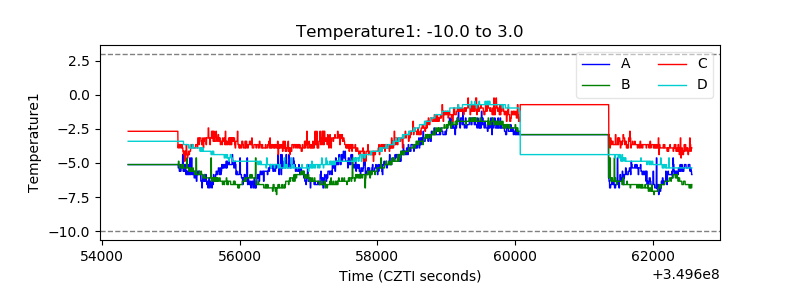

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

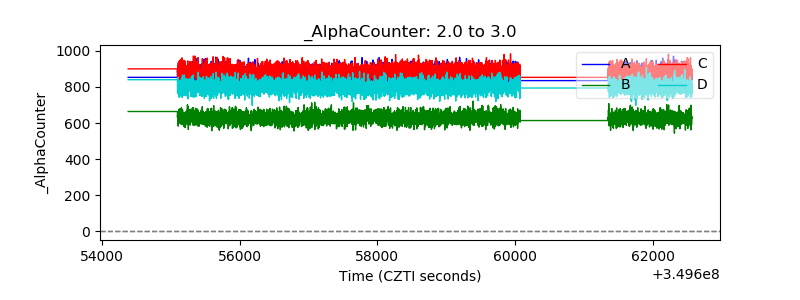

| Alpha Counter |  |

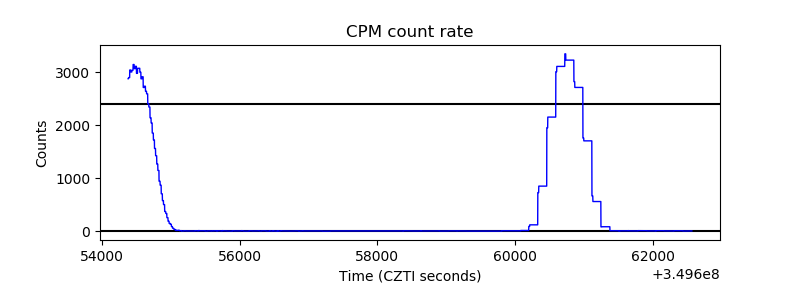

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

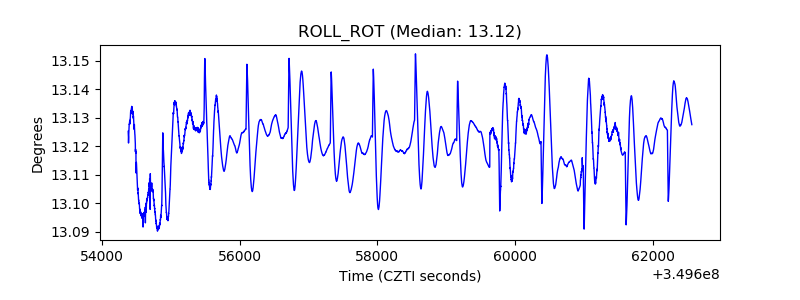

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
