| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T07_9000004140_28877cztM0_level2.evt | modeM0/AS1A10_123T07_9000004140_28877cztM0_level2_quad_clean.evt |
| Size (bytes) | 596,784,960 | 107,150,400 |
| Size | 569.1 MB | 102.2 MB |
| Events in quadrant A | 3,282,099 | 711,870 |
| Events in quadrant B | 3,397,856 | 742,026 |
| Events in quadrant C | 3,374,808 | 700,483 |
| Events in quadrant D | 7,576,229 | 634,503 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13758 | 2 |
| B | 0 | 14043 | 2 |
| C | 0 | 13989 | 2 |
| D | 0 | 27127 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6537 | 25 | 0.382438% |
| B | 6537 | 42 | 0.642497% |
| C | 6537 | 114 | 1.743919% |
| D | 6537 | 890 | 13.614808% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7862 | 6538 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7862 | 6537 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7862 | 6538 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7862 | 6537 | 761 | 761 | 9.68% | 11.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10680 | 58.51 | 847 | 832 | 168.3 |
| A | 3 | 137 | 7647 | 40.49 | 847 | 832 | 168.3 |
| A | 0 | 226 | 7394 | 38.99 | 847 | 832 | 168.3 |
| B | 10 | 245 | 65746 | 411.18 | 850 | 832 | 157.9 |
| B | 12 | 111 | 19016 | 115.18 | 850 | 832 | 157.9 |
| B | 11 | 111 | 16776 | 100.99 | 850 | 832 | 157.9 |
| C | 14 | 238 | 144269 | 766.25 | 814 | 822 | 187.2 |
| C | 3 | 233 | 25263 | 130.56 | 814 | 822 | 187.2 |
| C | 2 | 114 | 15295 | 77.31 | 814 | 822 | 187.2 |
| D | 8 | 195 | 3251120 | 17919.05 | 770 | 749 | 181.4 |
| D | 7 | 80 | 1327948 | 7316.75 | 770 | 749 | 181.4 |
| D | 2 | 250 | 39744 | 214.97 | 770 | 749 | 181.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

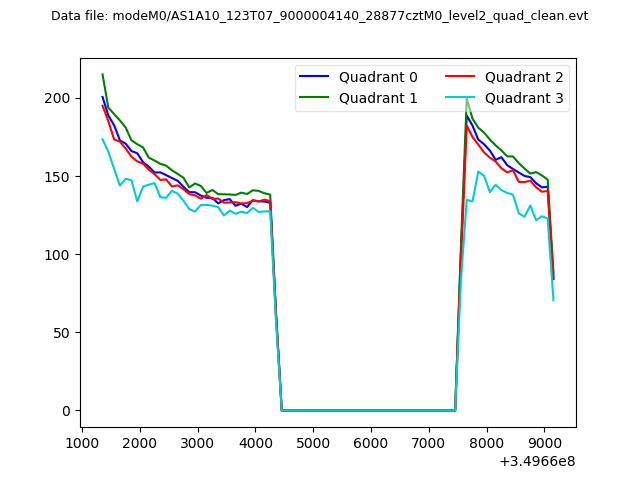

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

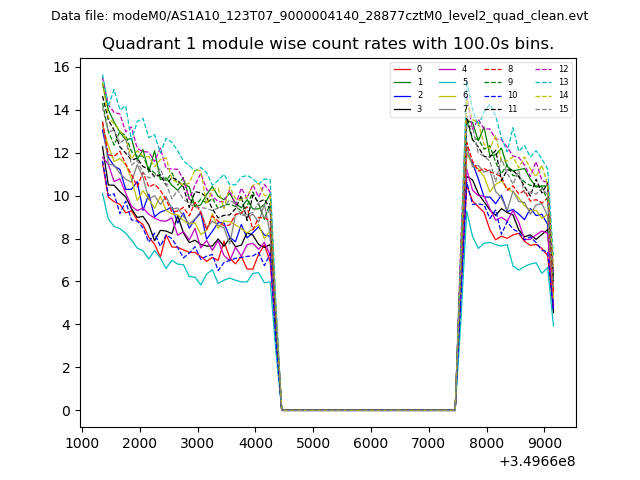

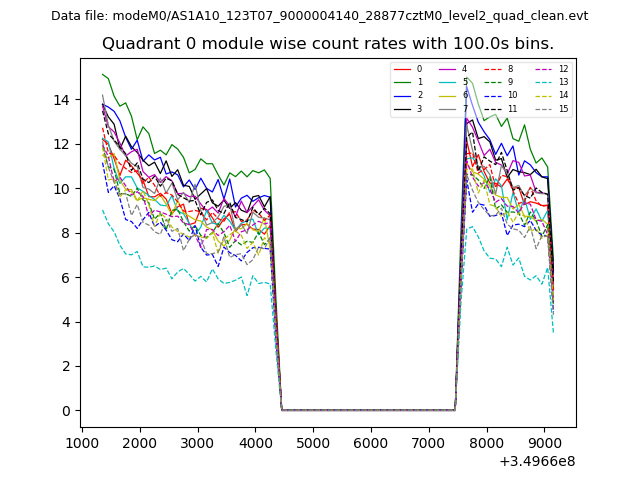

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

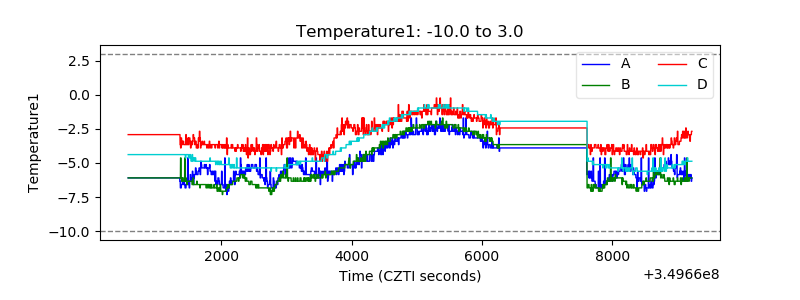

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

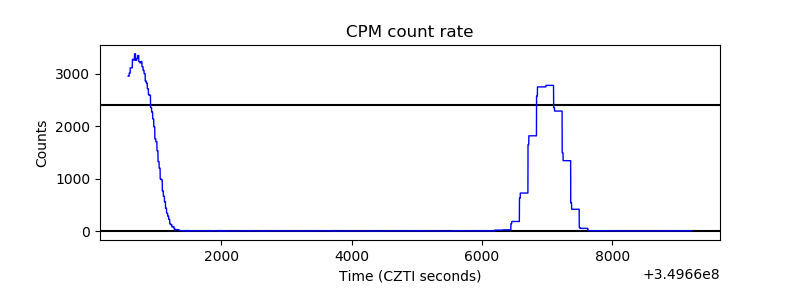

| _CPM_Rate |  |

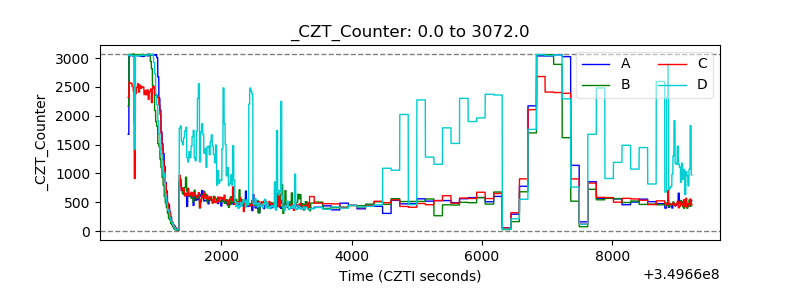

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

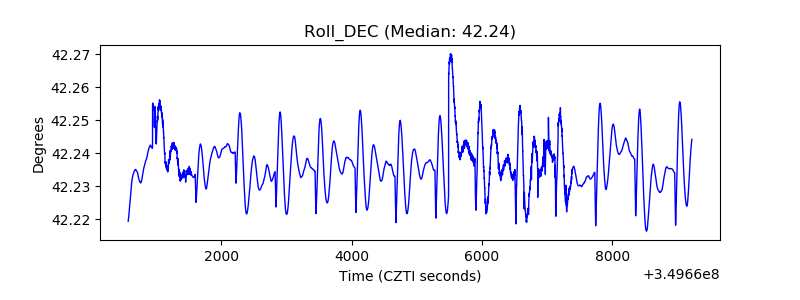

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
