| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T07_9000004140_28878cztM0_level2.evt | modeM0/AS1A10_123T07_9000004140_28878cztM0_level2_quad_clean.evt |
| Size (bytes) | 628,058,880 | 95,241,600 |
| Size | 599.0 MB | 90.8 MB |
| Events in quadrant A | 3,136,998 | 637,891 |
| Events in quadrant B | 3,185,738 | 660,026 |
| Events in quadrant C | 3,315,546 | 620,263 |
| Events in quadrant D | 8,955,319 | 525,348 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13051 | 1 |
| B | 0 | 13167 | 1 |
| C | 0 | 13635 | 1 |
| D | 0 | 31077 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6312 | 22 | 0.348542% |
| B | 6312 | 46 | 0.728771% |
| C | 6312 | 111 | 1.758555% |
| D | 6312 | 1694 | 26.837769% |

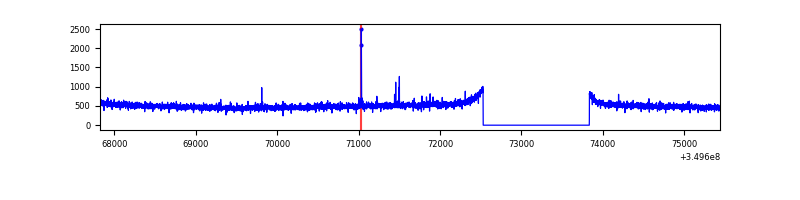

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

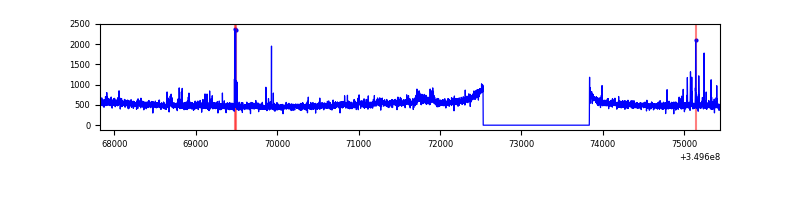

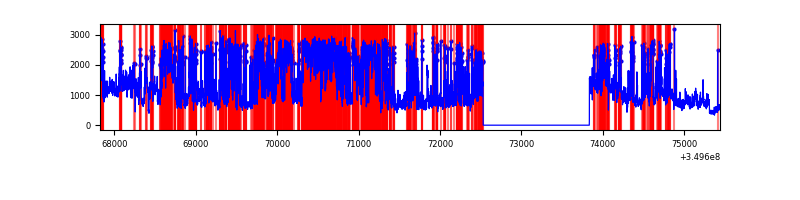

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7617 | 6313 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7617 | 6312 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7617 | 6312 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7617 | 6313 | 1563 | 1563 | 20.52% | 24.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10041 | 57.43 | 813 | 798 | 160.9 |
| A | 3 | 137 | 7401 | 41.03 | 813 | 798 | 160.9 |
| A | 0 | 226 | 6976 | 38.39 | 813 | 798 | 160.9 |
| B | 12 | 111 | 17808 | 111.82 | 810 | 792 | 152.2 |
| B | 11 | 111 | 16213 | 101.34 | 810 | 792 | 152.2 |
| B | 14 | 111 | 15098 | 94.01 | 810 | 792 | 152.2 |
| C | 14 | 238 | 138792 | 774.21 | 771 | 777 | 178.3 |
| C | 3 | 233 | 110949 | 618.02 | 771 | 777 | 178.3 |
| C | 15 | 208 | 32273 | 176.68 | 771 | 777 | 178.3 |
| D | 7 | 80 | 3102148 | 19556.52 | 676 | 658 | 158.6 |
| D | 8 | 195 | 2210075 | 13931.53 | 676 | 658 | 158.6 |
| D | 1 | 52 | 1042116 | 6566.94 | 676 | 658 | 158.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

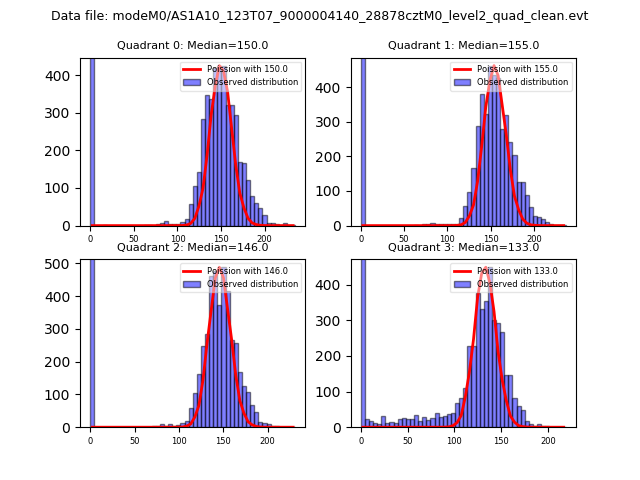

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

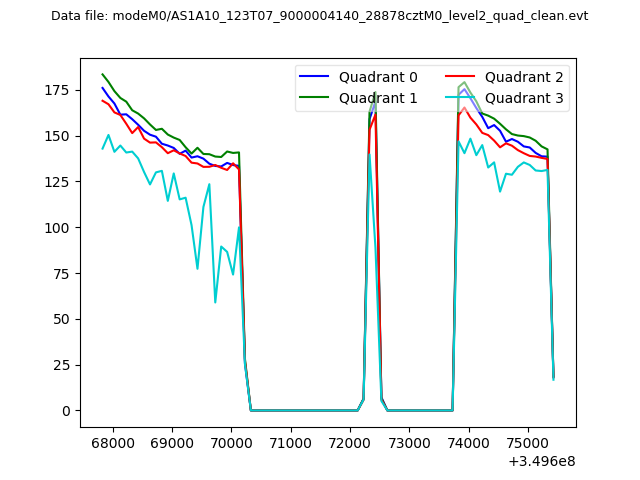

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

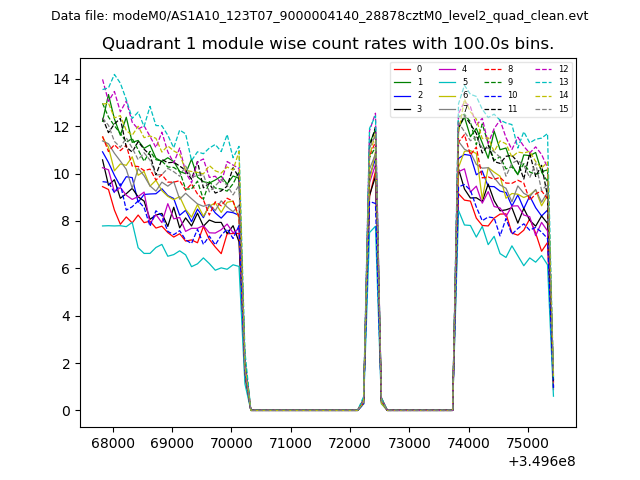

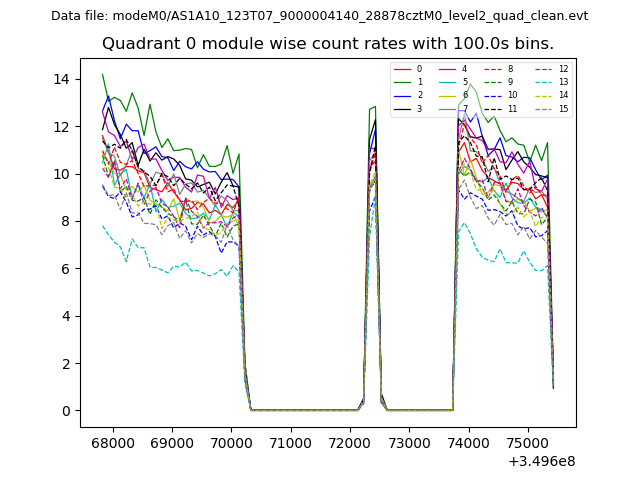

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

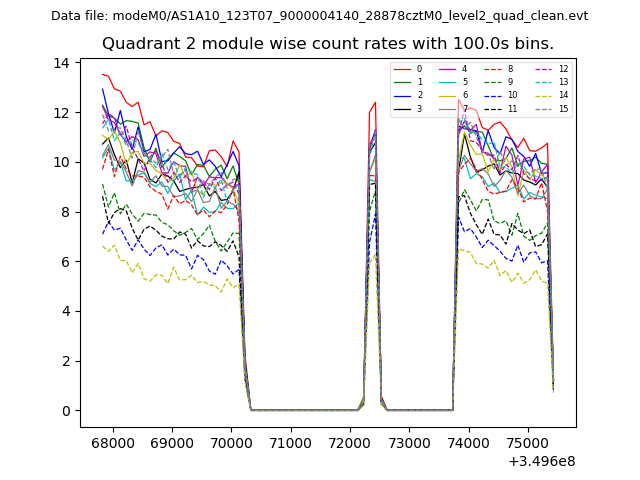

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

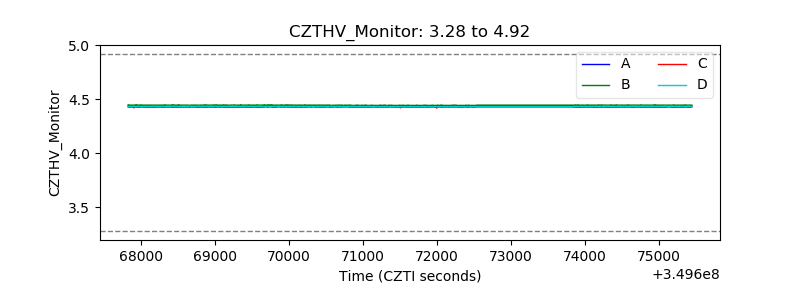

| CZT HV Monitor |  |

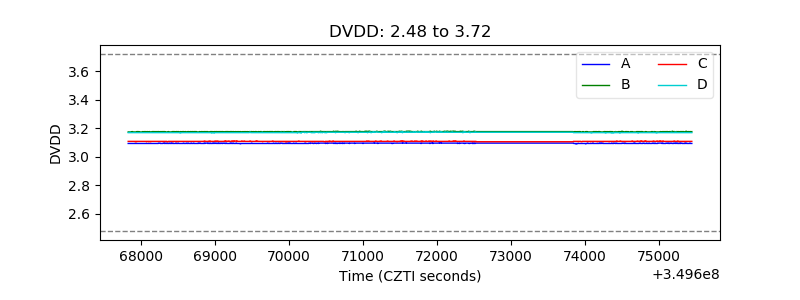

| D_VDD |  |
| Temperature 1 |  |

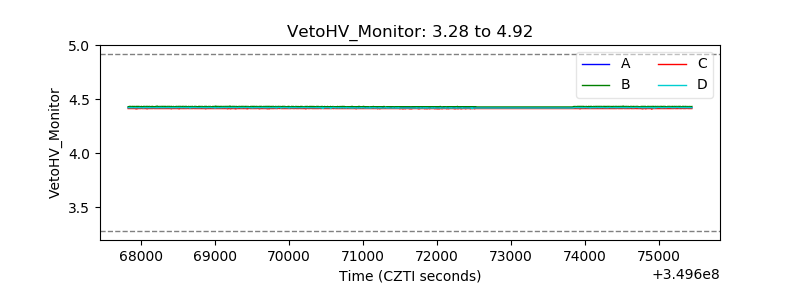

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

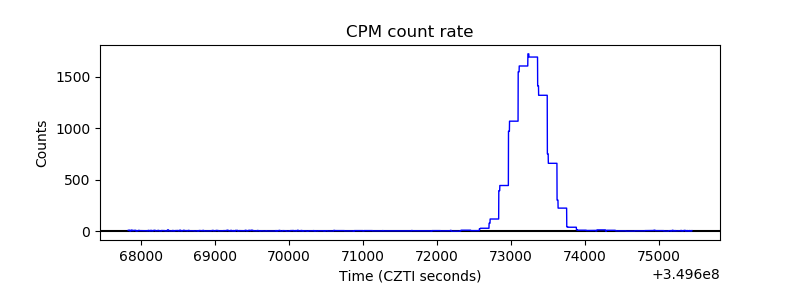

| _CPM_Rate |  |

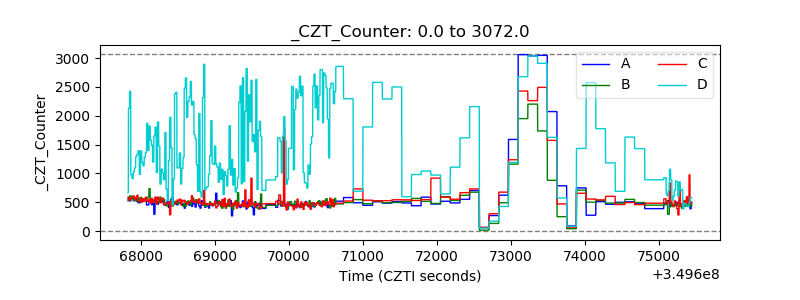

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

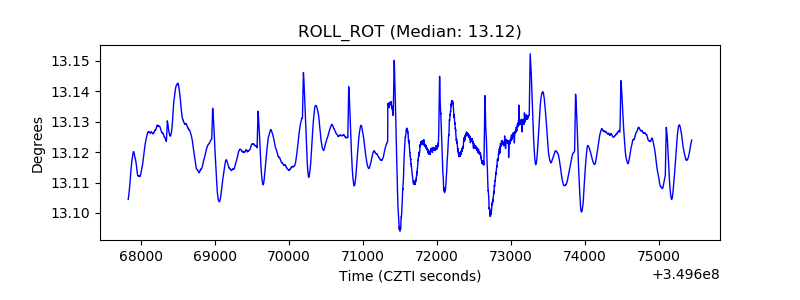

| _ROLL_ROT |  |
| _Roll_DEC |  |

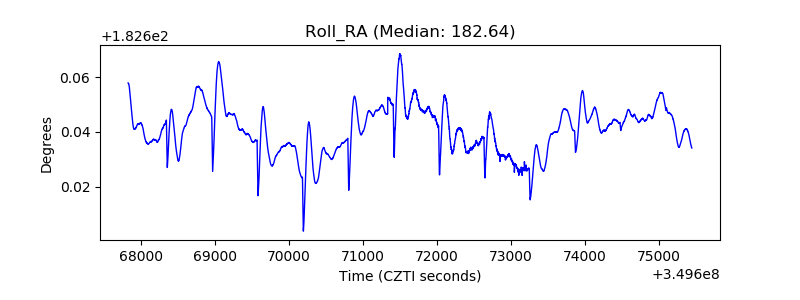

| _Roll_RA |  |

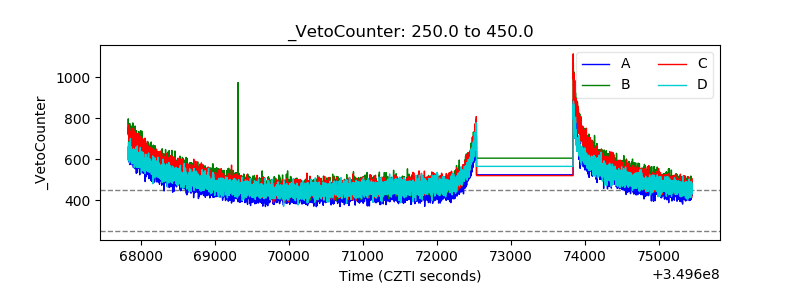

| Veto Counter |  |
