| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_064T01_9000004144_28895cztM0_level2.evt | modeM0/AS1A10_064T01_9000004144_28895cztM0_level2_quad_clean.evt |
| Size (bytes) | 793,370,880 | 87,664,320 |
| Size | 756.6 MB | 83.6 MB |
| Events in quadrant A | 3,335,412 | 579,494 |
| Events in quadrant B | 3,384,935 | 589,722 |
| Events in quadrant C | 10,219,449 | 483,042 |
| Events in quadrant D | 6,616,566 | 515,569 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14277 | 2 |
| B | 0 | 14371 | 3 |
| C | 0 | 35118 | 2 |
| D | 0 | 24344 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6976 | 69 | 0.989106% |
| B | 6975 | 97 | 1.390681% |
| C | 6975 | 2266 | 32.487455% |
| D | 6975 | 985 | 14.121864% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7691 | 6976 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7690 | 6975 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7690 | 6975 | 1529 | 1529 | 19.88% | 21.92% |  |
| D | 7690 | 6975 | 887 | 887 | 11.53% | 12.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11434 | 60.43 | 864 | 843 | 175.3 |
| A | 3 | 137 | 8426 | 43.27 | 864 | 843 | 175.3 |
| A | 0 | 226 | 7289 | 36.78 | 864 | 843 | 175.3 |
| B | 12 | 111 | 20312 | 118.64 | 858 | 835 | 164.2 |
| B | 11 | 111 | 18762 | 109.2 | 858 | 835 | 164.2 |
| B | 14 | 111 | 17022 | 98.6 | 858 | 835 | 164.2 |
| C | 3 | 233 | 7017459 | 39508.09 | 765 | 769 | 177.6 |
| C | 14 | 238 | 140287 | 785.57 | 765 | 769 | 177.6 |
| C | 15 | 208 | 34478 | 189.8 | 765 | 769 | 177.6 |
| D | 8 | 195 | 2436605 | 12924.86 | 797 | 776 | 188.5 |
| D | 1 | 52 | 1134881 | 6017.73 | 797 | 776 | 188.5 |
| D | 2 | 234 | 24180 | 124.19 | 797 | 776 | 188.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

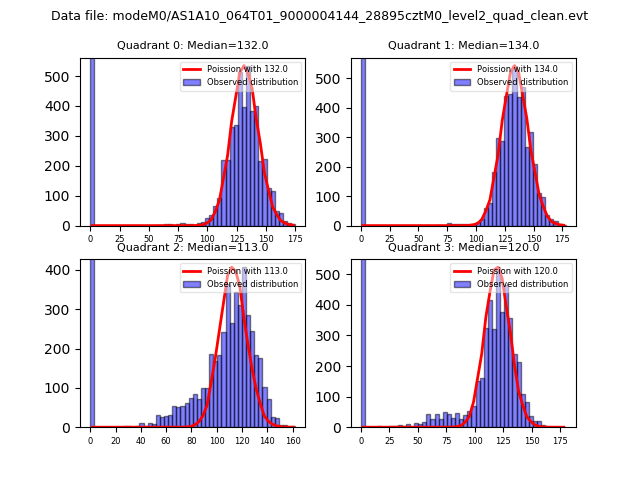

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

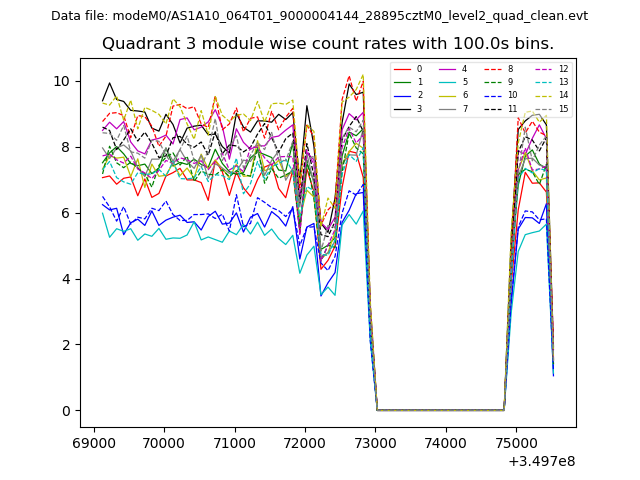

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

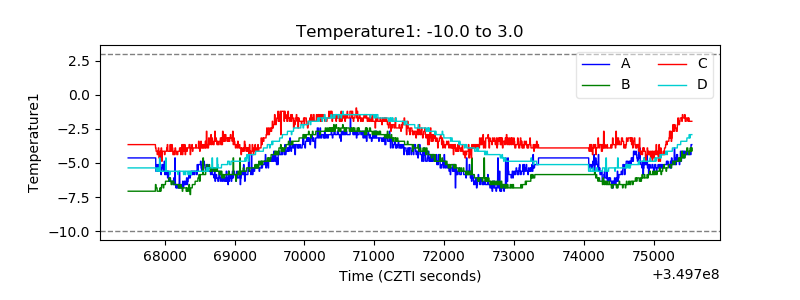

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

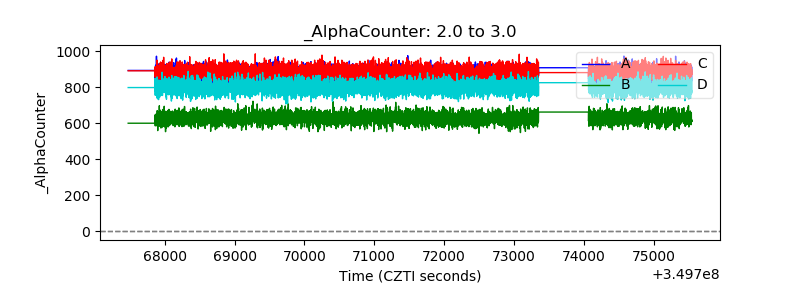

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

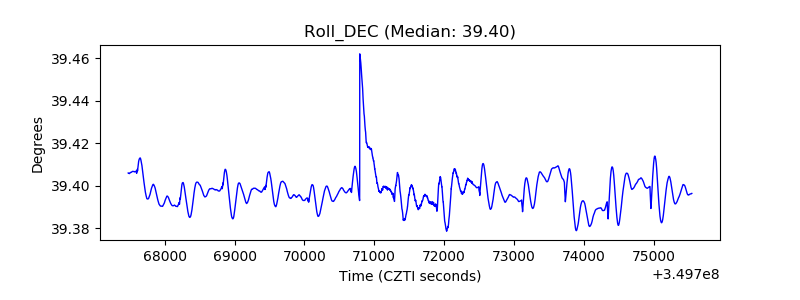

| _Roll_DEC |  |

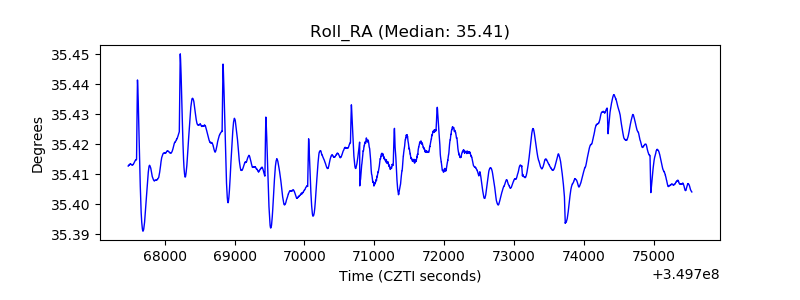

| _Roll_RA |  |
| Veto Counter |  |
