| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_048T07_9000004148_28929cztM0_level2.evt | modeM0/AS1A10_048T07_9000004148_28929cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,932,099,840 | 209,819,520 |
| Size | 1.8 GB | 200.1 MB |
| Events in quadrant A | 8,754,492 | 1,319,355 |
| Events in quadrant B | 9,337,148 | 1,340,965 |
| Events in quadrant C | 20,058,482 | 1,196,177 |
| Events in quadrant D | 19,123,524 | 1,224,828 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37783 | 3 |
| B | 0 | 39398 | 3 |
| C | 0 | 72796 | 4 |
| D | 0 | 69459 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 376 | 0 |
| B | 0 | 376 | 0 |
| C | 0 | 376 | 0 |
| D | 0 | 376 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18462 | 183 | 0.991225% |
| B | 18463 | 229 | 1.240318% |
| C | 18462 | 2000 | 10.833063% |
| D | 18462 | 2434 | 13.183837% |

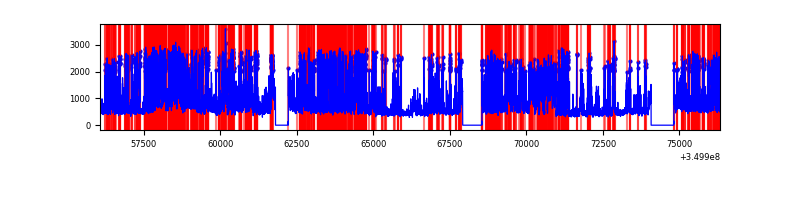

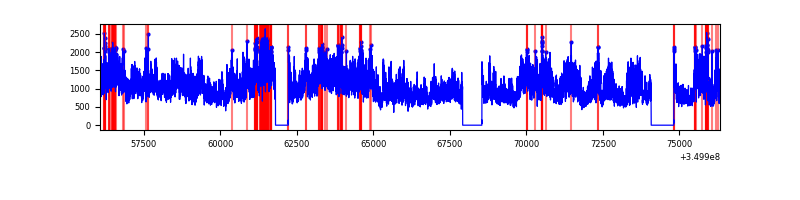

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20256 | 18465 | 0 | 0 | 0.00% | 0.00% |  |
| B | 20257 | 18466 | 8 | 8 | 0.04% | 0.04% |  |
| C | 20256 | 18465 | 198 | 198 | 0.98% | 1.07% |  |
| D | 20256 | 18465 | 2320 | 2320 | 11.45% | 12.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 31232 | 63.18 | 2259 | 2206 | 459.4 |
| A | 3 | 137 | 22641 | 44.48 | 2259 | 2206 | 459.4 |
| A | 0 | 226 | 19151 | 36.88 | 2259 | 2206 | 459.4 |
| B | 5 | 255 | 246952 | 565.31 | 2239 | 2179 | 433.0 |
| B | 15 | 33 | 176826 | 403.35 | 2239 | 2179 | 433.0 |
| B | 12 | 111 | 54201 | 120.15 | 2239 | 2179 | 433.0 |
| C | 3 | 233 | 11156581 | 22789.74 | 2088 | 2100 | 489.5 |
| C | 14 | 238 | 480533 | 977.49 | 2088 | 2100 | 489.5 |
| C | 14 | 254 | 212303 | 429.47 | 2088 | 2100 | 489.5 |
| D | 8 | 195 | 8384956 | 16732.73 | 2097 | 2037 | 501.0 |
| D | 12 | 79 | 2224802 | 4436.75 | 2097 | 2037 | 501.0 |
| D | 1 | 52 | 502350 | 998.65 | 2097 | 2037 | 501.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

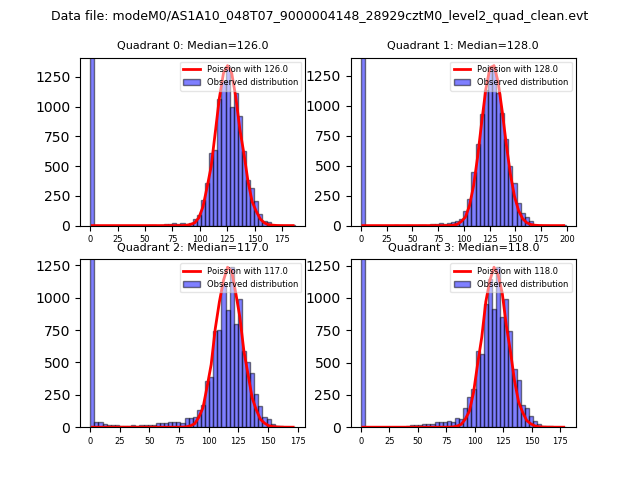

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

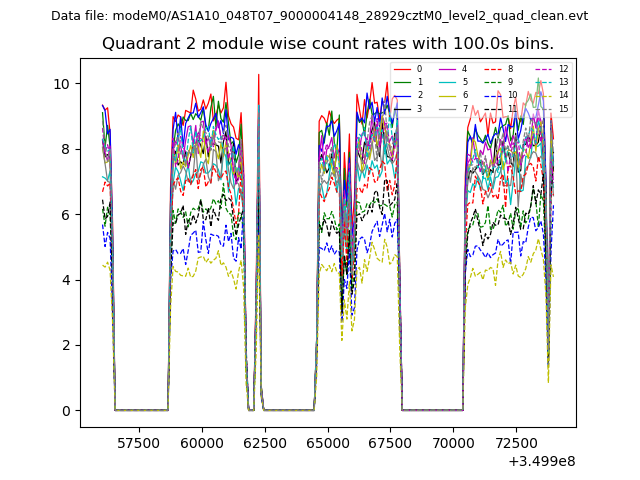

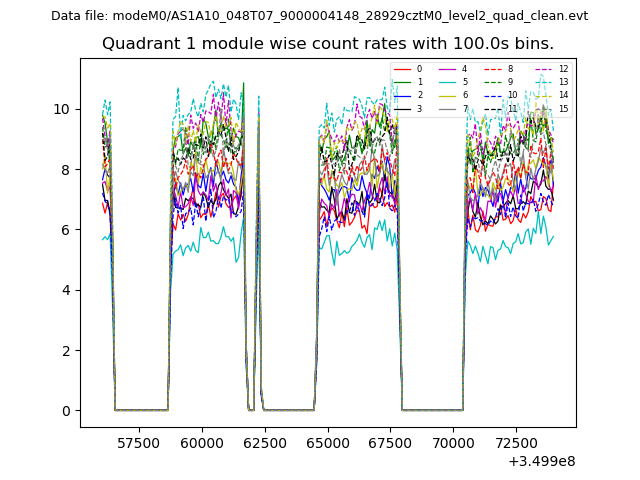

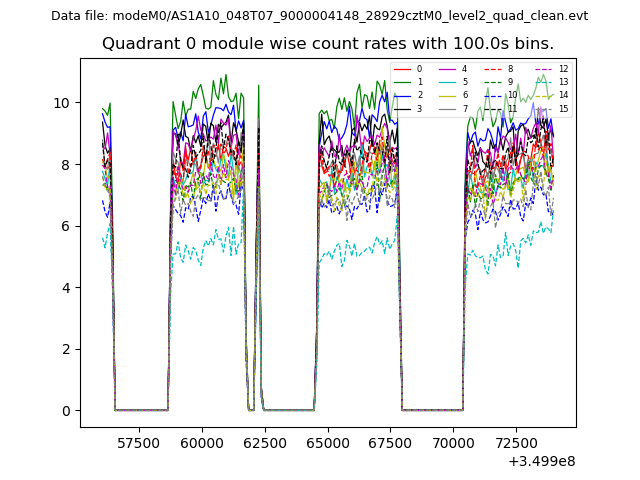

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

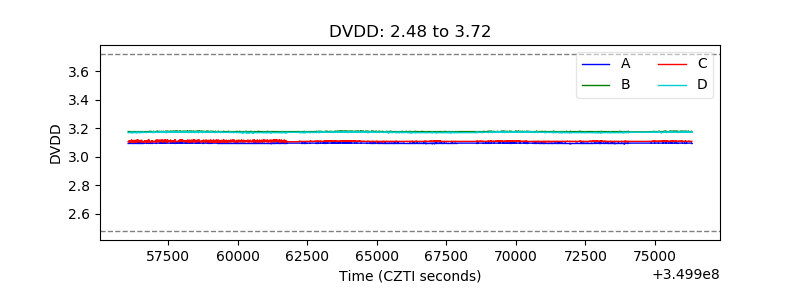

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

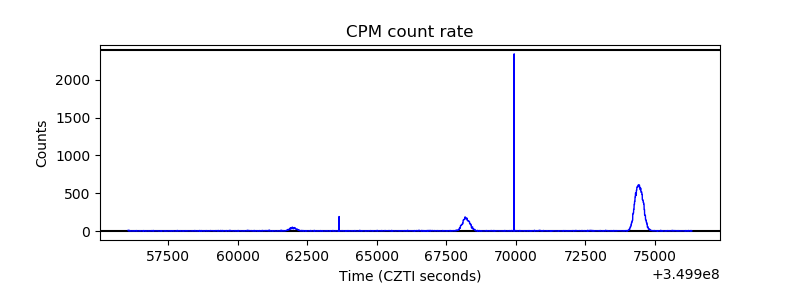

| _CPM_Rate |  |
