| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_064T02_9000004146_28912cztM0_level2.evt | modeM0/AS1A10_064T02_9000004146_28912cztM0_level2_quad_clean.evt |
| Size (bytes) | 904,325,760 | 67,921,920 |
| Size | 862.4 MB | 64.8 MB |
| Events in quadrant A | 3,401,952 | 428,849 |
| Events in quadrant B | 3,352,673 | 438,258 |
| Events in quadrant C | 6,881,561 | 400,433 |
| Events in quadrant D | 13,280,383 | 301,809 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14526 | 1 |
| B | 0 | 14290 | 1 |
| C | 0 | 25402 | 1 |
| D | 0 | 44208 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6981 | 93 | 1.332187% |
| B | 6981 | 110 | 1.575705% |
| C | 6982 | 660 | 9.452879% |
| D | 6981 | 4481 | 64.188512% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

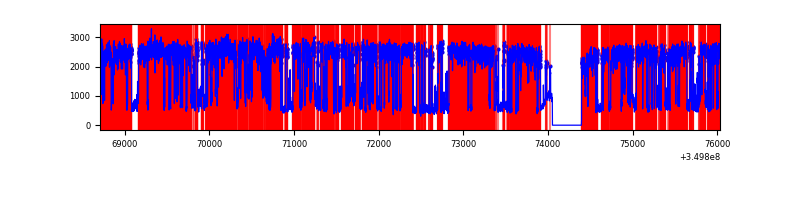

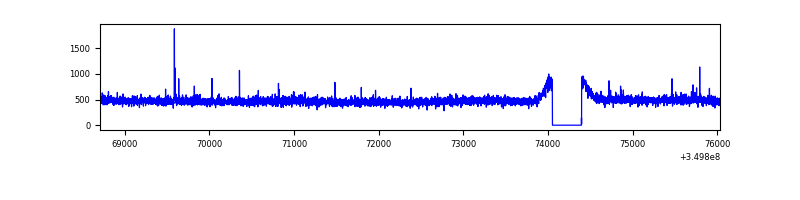

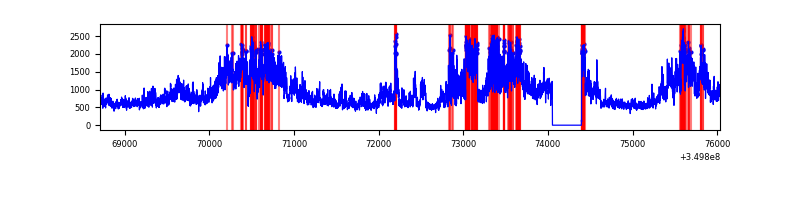

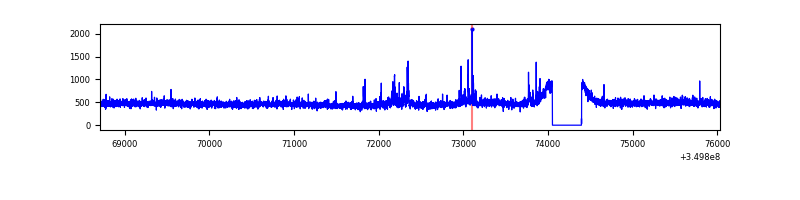

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7326 | 6982 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7326 | 6982 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7327 | 6983 | 252 | 252 | 3.44% | 3.61% |  |
| D | 7326 | 6982 | 4363 | 4363 | 59.56% | 62.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 235 | 105557 | 608.92 | 852 | 835 | 172.0 |
| A | 13 | 254 | 13150 | 71.61 | 852 | 835 | 172.0 |
| A | 3 | 137 | 8586 | 45.07 | 852 | 835 | 172.0 |
| B | 12 | 111 | 20383 | 119.2 | 845 | 823 | 164.1 |
| B | 11 | 111 | 18400 | 107.11 | 845 | 823 | 164.1 |
| B | 14 | 111 | 17092 | 99.14 | 845 | 823 | 164.1 |
| C | 3 | 233 | 3623926 | 19333.31 | 794 | 798 | 187.4 |
| C | 14 | 238 | 126632 | 671.46 | 794 | 798 | 187.4 |
| C | 2 | 114 | 16336 | 82.91 | 794 | 798 | 187.4 |
| D | 8 | 195 | 9196924 | 62167.67 | 613 | 594 | 147.9 |
| D | 1 | 52 | 1619040 | 10940.78 | 613 | 594 | 147.9 |
| D | 12 | 79 | 83335 | 559.33 | 613 | 594 | 147.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

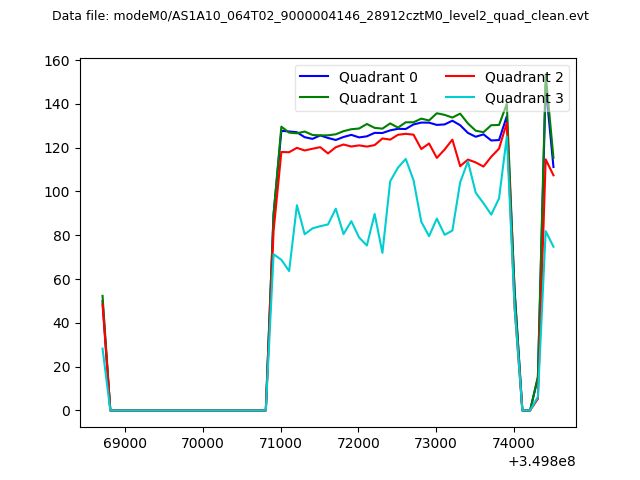

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

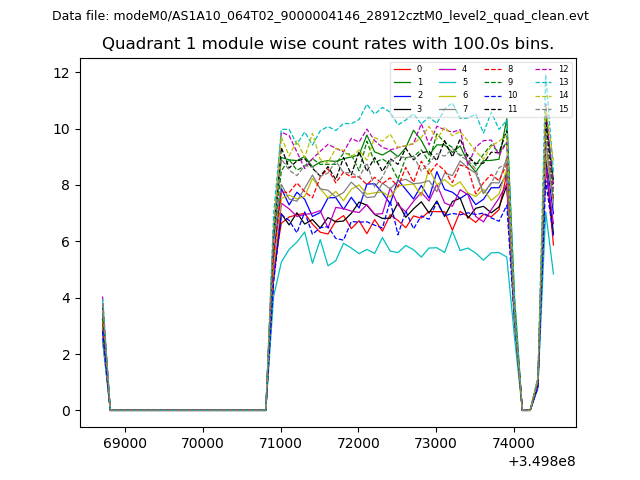

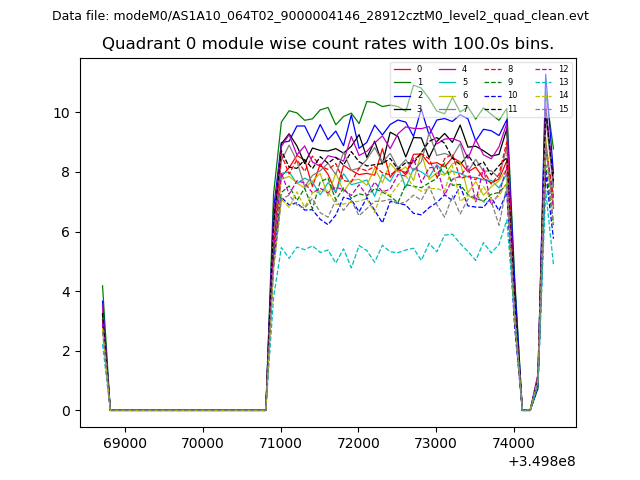

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

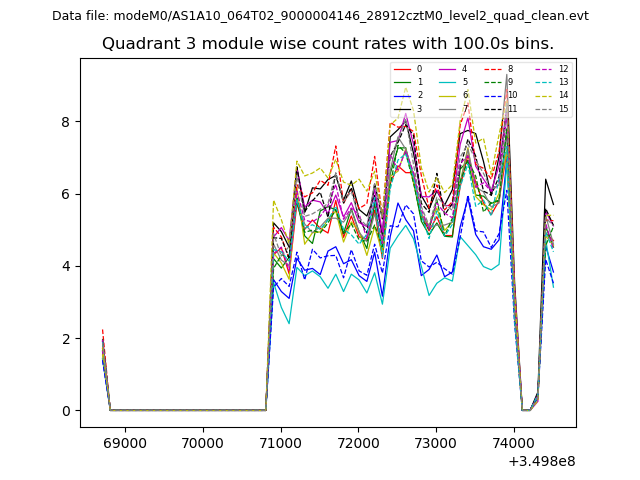

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

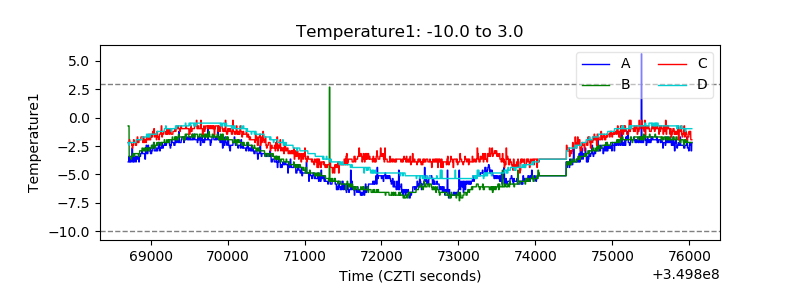

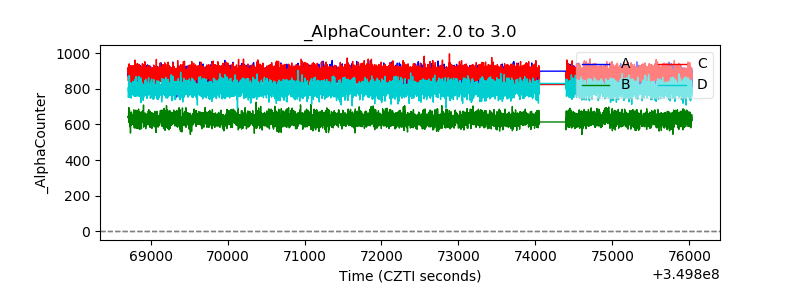

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

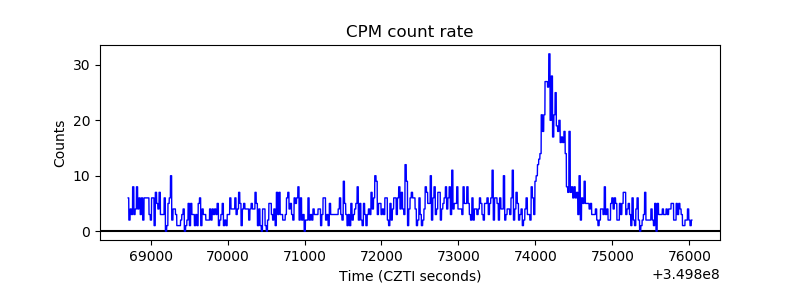

| _CPM_Rate |  |

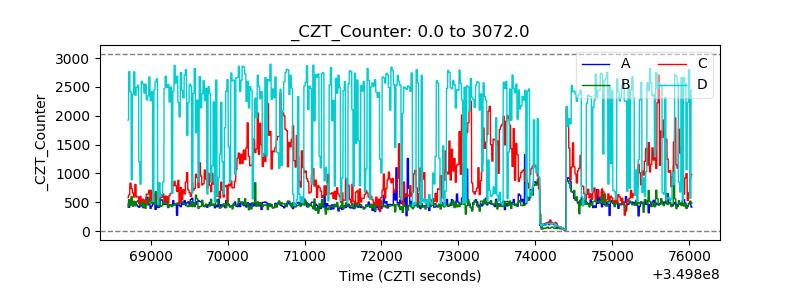

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

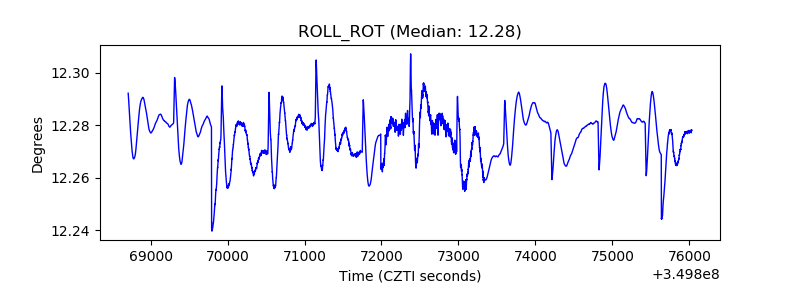

| _ROLL_ROT |  |

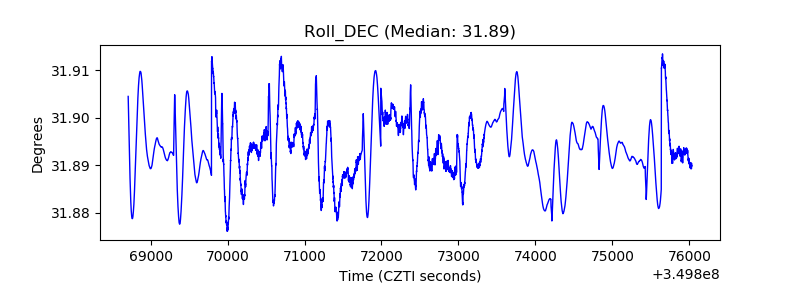

| _Roll_DEC |  |

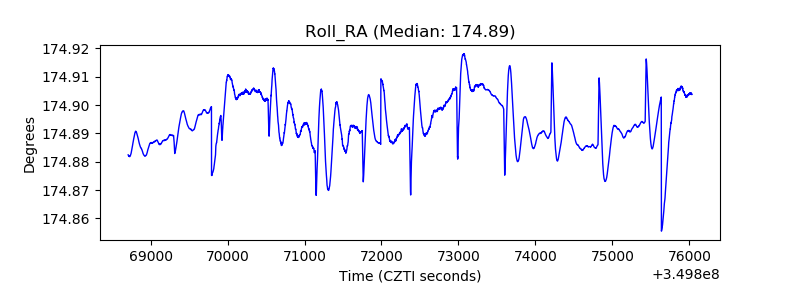

| _Roll_RA |  |
| Veto Counter |  |
