| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_082T04_9000004150_28934cztM0_level2.evt | modeM0/AS1A10_082T04_9000004150_28934cztM0_level2_quad_clean.evt |
| Size (bytes) | 305,395,200 | 59,702,400 |
| Size | 291.2 MB | 56.9 MB |
| Events in quadrant A | 1,910,292 | 392,902 |
| Events in quadrant B | 1,974,631 | 404,791 |
| Events in quadrant C | 1,995,535 | 385,951 |
| Events in quadrant D | 3,116,933 | 363,137 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 76 | 0 |
| B | 0 | 76 | 0 |
| C | 0 | 76 | 0 |
| D | 0 | 76 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8017 | 1 |
| B | 0 | 8210 | 1 |
| C | 0 | 8250 | 1 |
| D | 0 | 11796 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3686 | 40 | 1.085187% |
| B | 3686 | 57 | 1.546392% |
| C | 3686 | 122 | 3.309821% |
| D | 3685 | 292 | 7.924016% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4940 | 3686 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4940 | 3686 | 1 | 1 | 0.02% | 0.03% |  |
| C | 4940 | 3686 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4939 | 3685 | 240 | 240 | 4.86% | 6.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 6086 | 56.33 | 493 | 484 | 99.4 |
| A | 13 | 6 | 6084 | 56.31 | 493 | 484 | 99.4 |
| A | 3 | 137 | 4719 | 42.59 | 493 | 484 | 99.4 |
| B | 10 | 245 | 20570 | 213.43 | 492 | 480 | 94.1 |
| B | 5 | 255 | 15847 | 163.25 | 492 | 480 | 94.1 |
| B | 12 | 111 | 10986 | 111.61 | 492 | 480 | 94.1 |
| C | 14 | 238 | 82851 | 741.38 | 475 | 479 | 111.1 |
| C | 3 | 233 | 40241 | 357.87 | 475 | 479 | 111.1 |
| C | 2 | 114 | 8662 | 73.65 | 475 | 479 | 111.1 |
| D | 8 | 195 | 1310804 | 11773.36 | 467 | 454 | 111.3 |
| D | 1 | 52 | 20703 | 181.94 | 467 | 454 | 111.3 |
| D | 2 | 234 | 14230 | 123.78 | 467 | 454 | 111.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

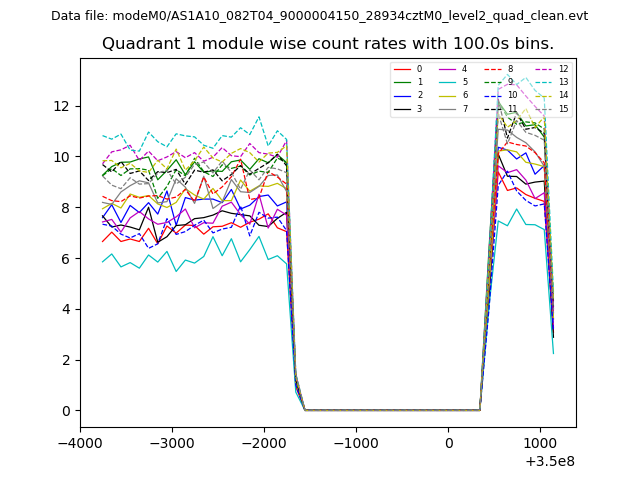

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

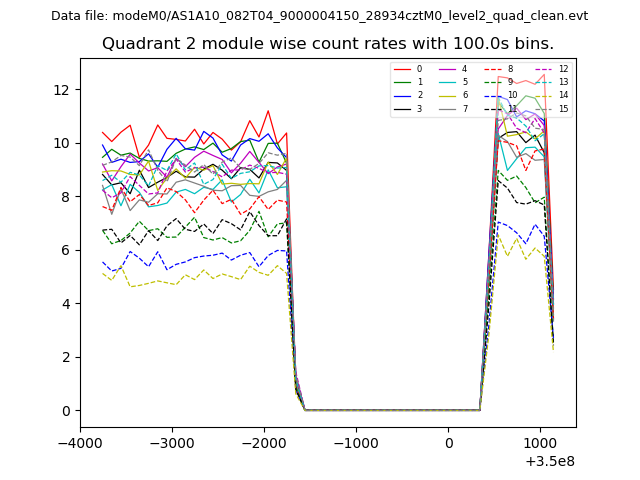

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

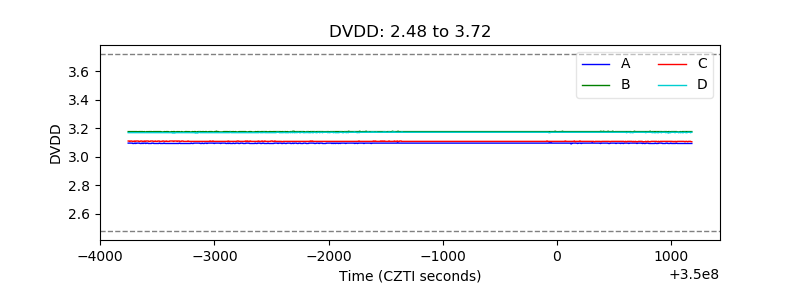

| D_VDD |  |
| Temperature 1 |  |

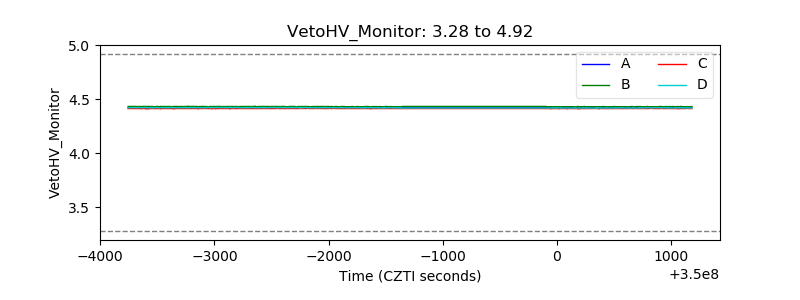

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

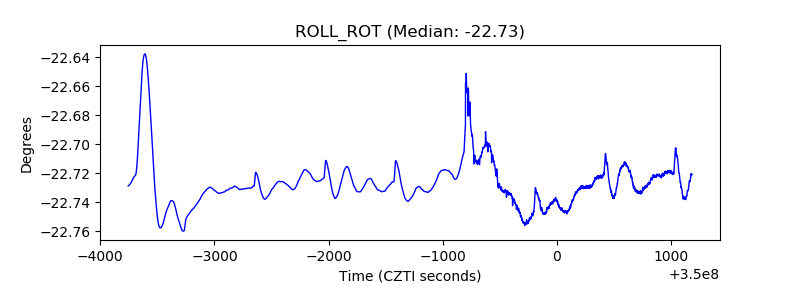

| _ROLL_ROT |  |

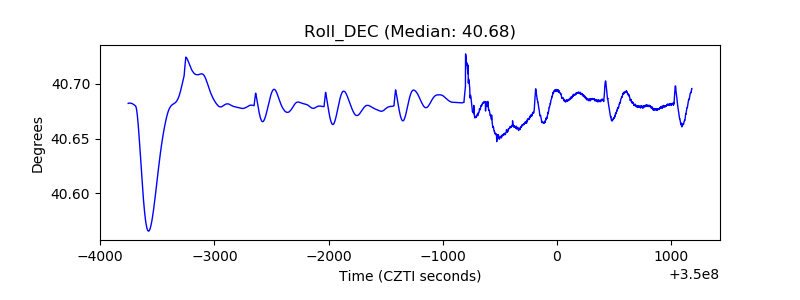

| _Roll_DEC |  |
| _Roll_RA |  |

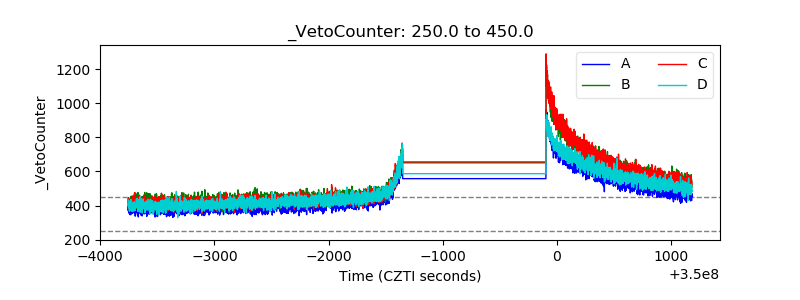

| Veto Counter |  |
