| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T08_9000004152_28949cztM0_level2.evt | modeM0/AS1A10_123T08_9000004152_28949cztM0_level2_quad_clean.evt |
| Size (bytes) | 778,066,560 | 106,401,600 |
| Size | 742.0 MB | 101.5 MB |
| Events in quadrant A | 3,138,929 | 770,432 |
| Events in quadrant B | 3,253,165 | 807,594 |
| Events in quadrant C | 3,330,288 | 772,441 |
| Events in quadrant D | 13,420,310 | 435,926 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13326 | 2 |
| B | 0 | 13608 | 2 |
| C | 0 | 13917 | 2 |
| D | 0 | 44136 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6218 | 35 | 0.562882% |
| B | 6219 | 52 | 0.836147% |
| C | 6219 | 157 | 2.524522% |
| D | 6219 | 4435 | 71.313716% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7543 | 6219 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7544 | 6220 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7544 | 6220 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7544 | 6220 | 4419 | 4419 | 58.58% | 71.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12053 | 70.6 | 812 | 800 | 159.4 |
| A | 3 | 137 | 7487 | 41.95 | 812 | 800 | 159.4 |
| A | 0 | 226 | 6926 | 38.43 | 812 | 800 | 159.4 |
| B | 12 | 111 | 17943 | 111.84 | 823 | 805 | 153.2 |
| B | 11 | 111 | 16312 | 101.2 | 823 | 805 | 153.2 |
| B | 14 | 111 | 14908 | 92.04 | 823 | 805 | 153.2 |
| C | 14 | 238 | 149961 | 813.97 | 796 | 803 | 183.2 |
| C | 3 | 233 | 32579 | 173.4 | 796 | 803 | 183.2 |
| C | 14 | 254 | 28842 | 153.01 | 796 | 803 | 183.2 |
| D | 8 | 195 | 6698787 | 53907.97 | 525 | 511 | 124.3 |
| D | 1 | 52 | 2412209 | 19409.43 | 525 | 511 | 124.3 |
| D | 7 | 80 | 1875940 | 15093.52 | 525 | 511 | 124.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

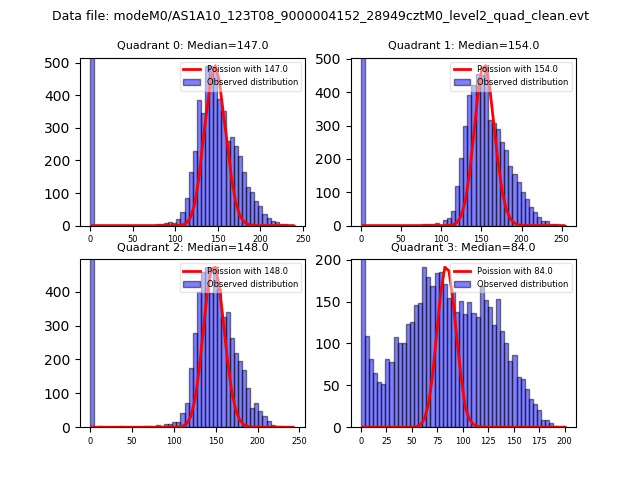

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

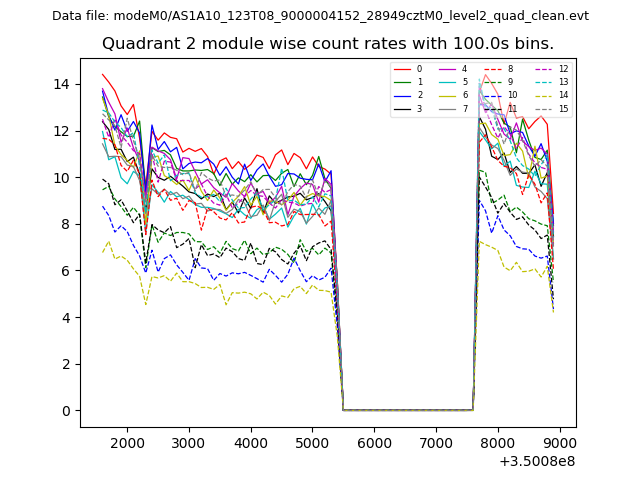

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

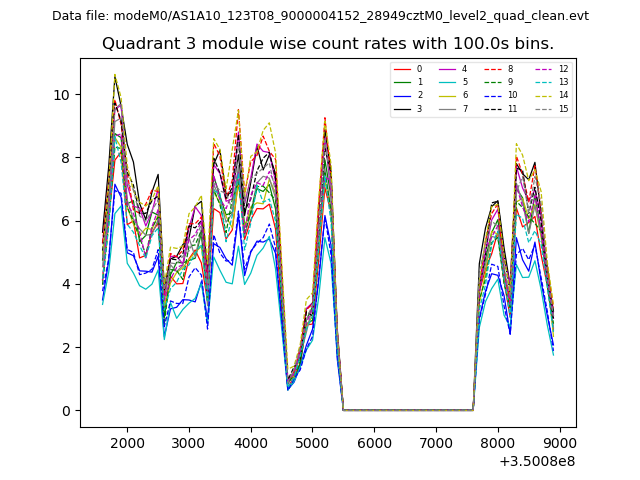

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

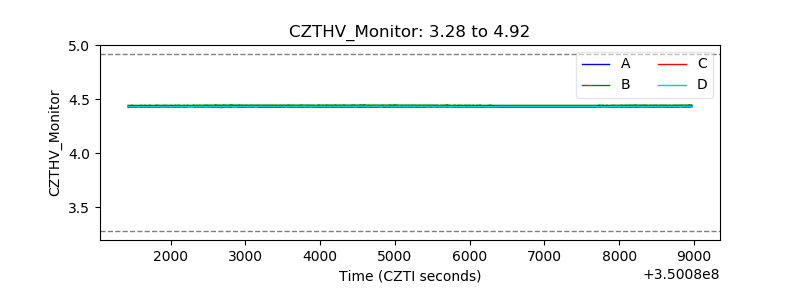

| CZT HV Monitor |  |
| D_VDD |  |

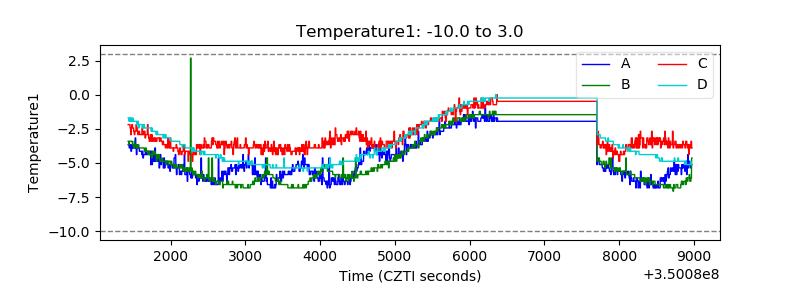

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

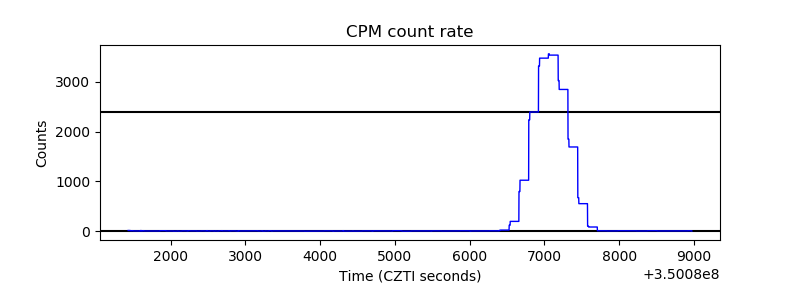

| _CPM_Rate |  |

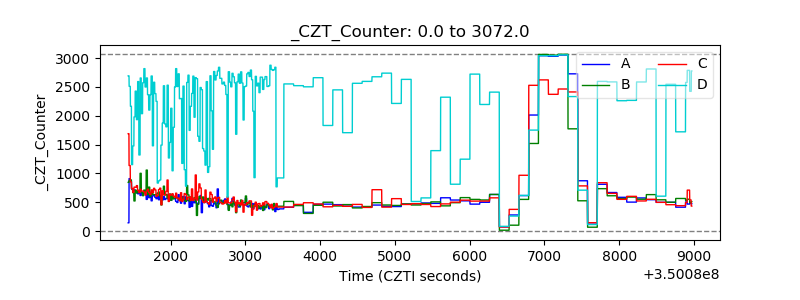

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

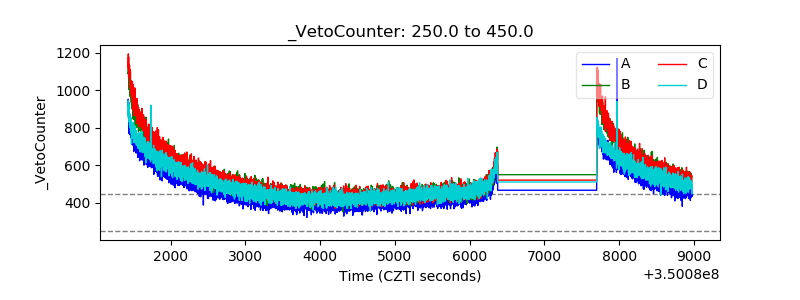

| Veto Counter |  |
