| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_048T03_9000004154_28967cztM0_level2.evt | modeM0/AS1A10_048T03_9000004154_28967cztM0_level2_quad_clean.evt |
| Size (bytes) | 492,563,520 | 89,513,280 |
| Size | 469.7 MB | 85.4 MB |
| Events in quadrant A | 3,141,041 | 569,054 |
| Events in quadrant B | 3,313,666 | 584,185 |
| Events in quadrant C | 3,280,882 | 558,637 |
| Events in quadrant D | 4,733,736 | 538,784 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13521 | 1 |
| B | 0 | 13979 | 1 |
| C | 0 | 13797 | 1 |
| D | 0 | 18592 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6595 | 41 | 0.621683% |
| B | 6595 | 82 | 1.243366% |
| C | 6596 | 118 | 1.788963% |
| D | 6596 | 191 | 2.895694% |

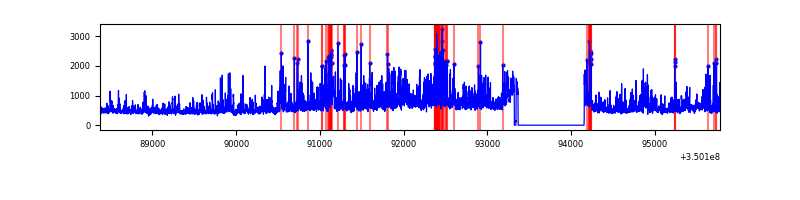

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7405 | 6597 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7405 | 6597 | 11 | 11 | 0.15% | 0.17% |  |
| C | 7405 | 6597 | 10 | 10 | 0.14% | 0.15% |  |
| D | 7405 | 6597 | 85 | 85 | 1.15% | 1.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11362 | 64.64 | 810 | 793 | 163.5 |
| A | 13 | 6 | 10859 | 61.57 | 810 | 793 | 163.5 |
| A | 3 | 137 | 7948 | 43.76 | 810 | 793 | 163.5 |
| B | 5 | 172 | 48099 | 303.8 | 806 | 787 | 155.7 |
| B | 10 | 245 | 37767 | 237.46 | 806 | 787 | 155.7 |
| B | 10 | 246 | 26545 | 165.4 | 806 | 787 | 155.7 |
| C | 14 | 238 | 135690 | 732.51 | 779 | 785 | 184.2 |
| C | 0 | 207 | 47637 | 254.4 | 779 | 785 | 184.2 |
| C | 3 | 233 | 22522 | 118.03 | 779 | 785 | 184.2 |
| D | 8 | 195 | 906670 | 4837.46 | 781 | 762 | 187.3 |
| D | 1 | 52 | 751525 | 4009.0 | 781 | 762 | 187.3 |
| D | 13 | 104 | 64500 | 340.35 | 781 | 762 | 187.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

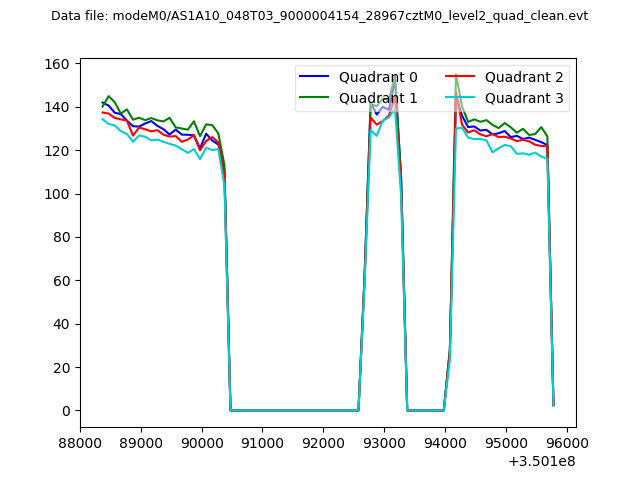

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

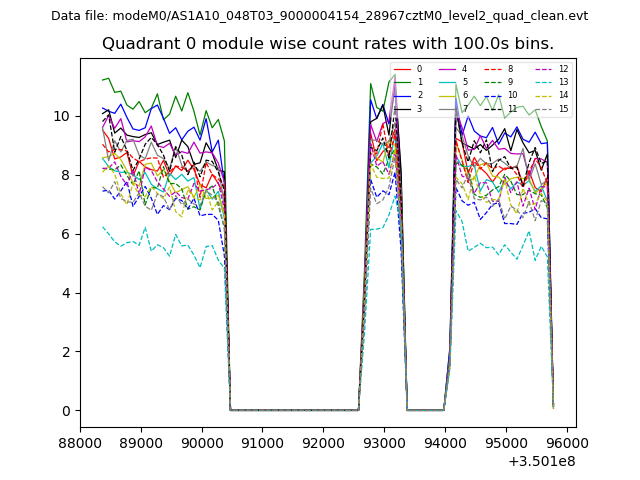

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

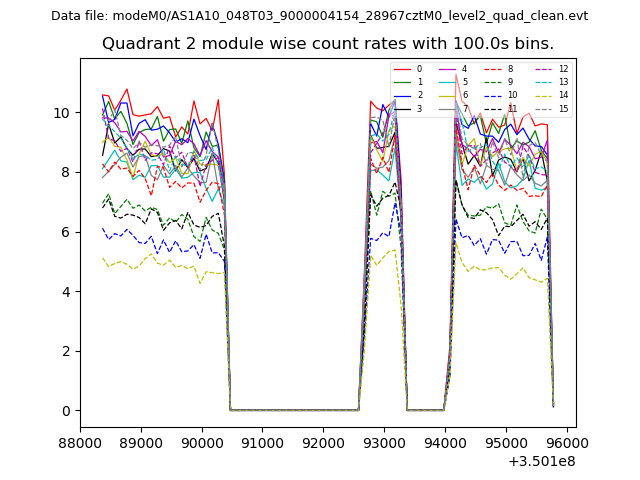

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

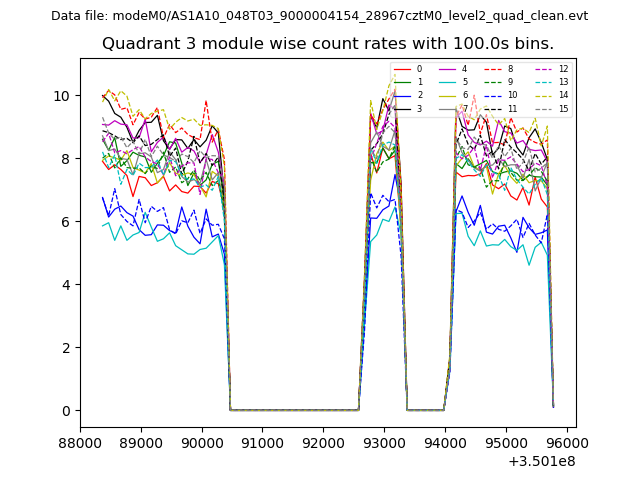

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

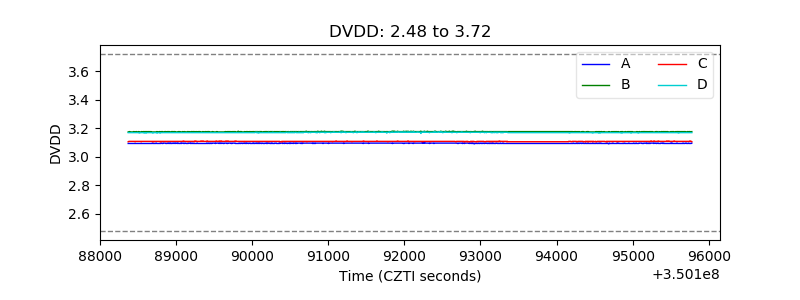

| D_VDD |  |
| Temperature 1 |  |

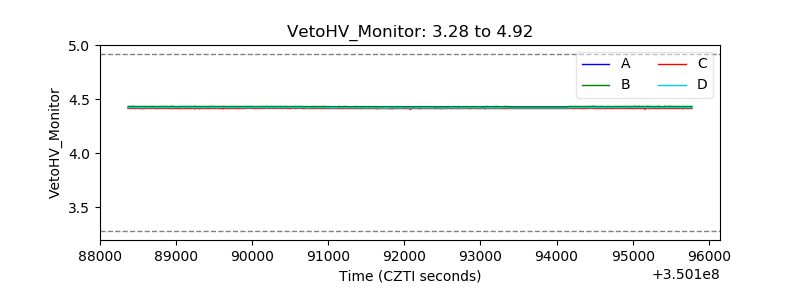

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
