| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_073T06_9000004156_28992cztM0_level2.evt | modeM0/AS1A10_073T06_9000004156_28992cztM0_level2_quad_clean.evt |
| Size (bytes) | 527,616,000 | 98,369,280 |
| Size | 503.2 MB | 93.8 MB |
| Events in quadrant A | 4,405,295 | 649,175 |
| Events in quadrant B | 3,410,067 | 677,769 |
| Events in quadrant C | 3,210,650 | 634,284 |
| Events in quadrant D | 4,535,053 | 587,112 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17227 | 1 |
| B | 0 | 13924 | 1 |
| C | 0 | 13423 | 1 |
| D | 0 | 17552 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6165 | 188 | 3.049473% |
| B | 6166 | 49 | 0.794681% |
| C | 6166 | 58 | 0.940642% |
| D | 6166 | 235 | 3.811223% |

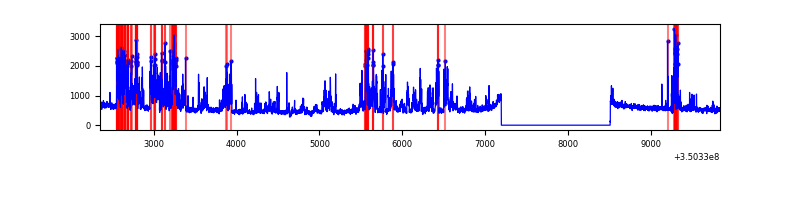

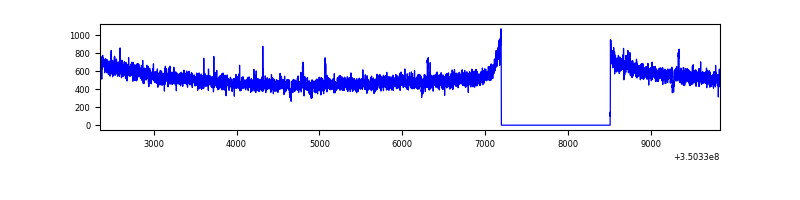

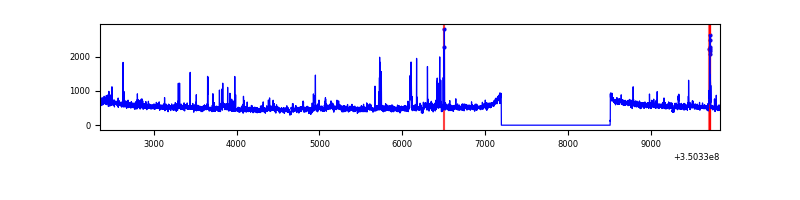

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7480 | 6166 | 132 | 132 | 1.76% | 2.14% |  |
| B | 7481 | 6167 | 9 | 9 | 0.12% | 0.15% |  |
| C | 7481 | 6167 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7481 | 6167 | 191 | 191 | 2.55% | 3.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 192 | 1259790 | 7826.65 | 809 | 797 | 160.9 |
| A | 6 | 16 | 13638 | 79.83 | 809 | 797 | 160.9 |
| A | 13 | 254 | 11462 | 66.3 | 809 | 797 | 160.9 |
| B | 10 | 245 | 173188 | 1134.51 | 810 | 791 | 152.0 |
| B | 10 | 246 | 46717 | 302.23 | 810 | 791 | 152.0 |
| B | 12 | 111 | 17362 | 109.05 | 810 | 791 | 152.0 |
| C | 14 | 238 | 126387 | 690.53 | 784 | 791 | 181.9 |
| C | 2 | 114 | 15022 | 78.24 | 784 | 791 | 181.9 |
| C | 3 | 233 | 12573 | 64.78 | 784 | 791 | 181.9 |
| D | 8 | 195 | 819366 | 4546.27 | 769 | 749 | 180.1 |
| D | 7 | 80 | 381371 | 2113.82 | 769 | 749 | 180.1 |
| D | 1 | 52 | 318188 | 1762.93 | 769 | 749 | 180.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

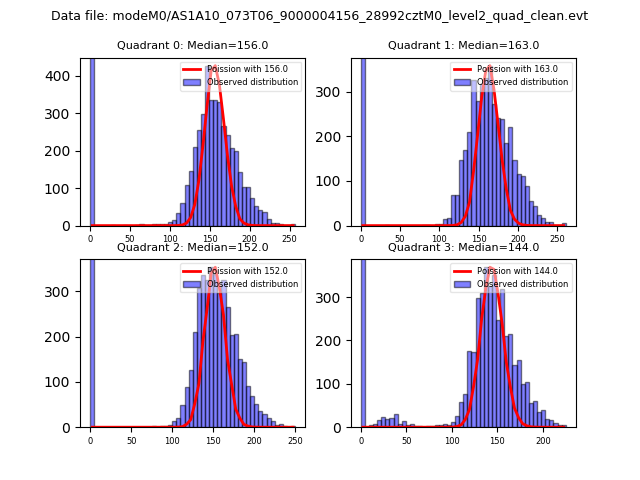

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

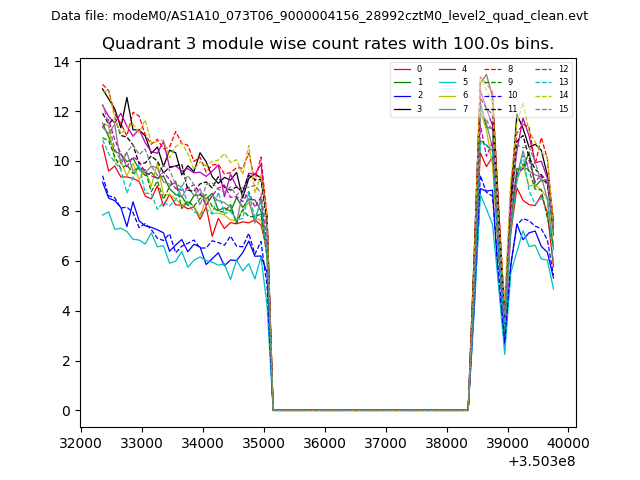

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

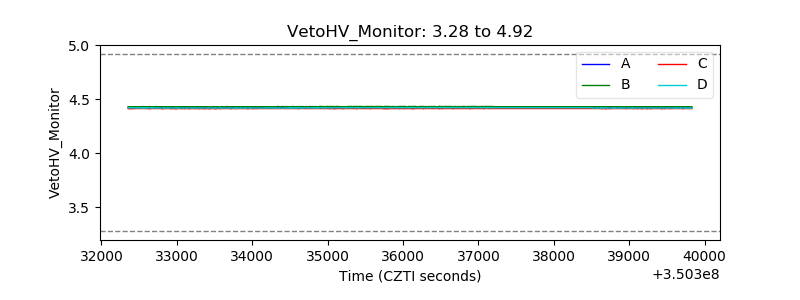

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

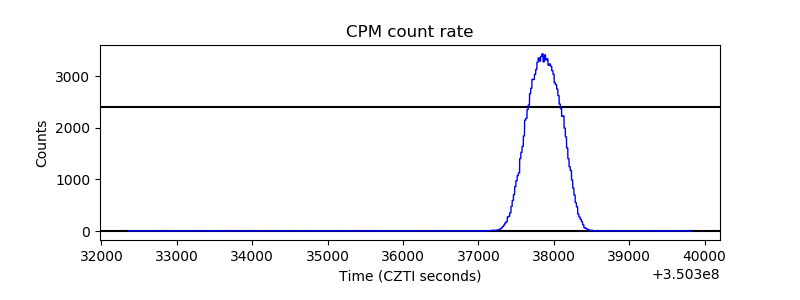

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

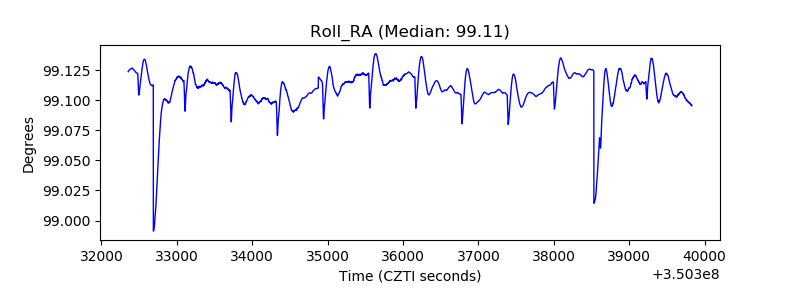

| _Roll_RA |  |
| Veto Counter |  |
