| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_073T06_9000004156_28993cztM0_level2.evt | modeM0/AS1A10_073T06_9000004156_28993cztM0_level2_quad_clean.evt |
| Size (bytes) | 515,240,640 | 101,640,960 |
| Size | 491.4 MB | 96.9 MB |
| Events in quadrant A | 3,366,256 | 680,480 |
| Events in quadrant B | 3,532,191 | 701,930 |
| Events in quadrant C | 3,354,520 | 655,415 |
| Events in quadrant D | 4,924,704 | 601,341 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13956 | 2 |
| B | 0 | 14422 | 2 |
| C | 0 | 13849 | 2 |
| D | 0 | 18951 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6290 | 82 | 1.303657% |
| B | 6290 | 103 | 1.637520% |
| C | 6290 | 116 | 1.844197% |
| D | 6290 | 272 | 4.324324% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7575 | 6291 | 20 | 20 | 0.26% | 0.32% |  |
| B | 7575 | 6291 | 13 | 13 | 0.17% | 0.21% |  |
| C | 7575 | 6291 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7575 | 6291 | 204 | 204 | 2.69% | 3.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 192 | 107531 | 639.65 | 839 | 826 | 166.8 |
| A | 6 | 16 | 12212 | 68.25 | 839 | 826 | 166.8 |
| A | 13 | 254 | 11202 | 62.2 | 839 | 826 | 166.8 |
| B | 10 | 245 | 191950 | 1219.02 | 839 | 821 | 156.8 |
| B | 10 | 246 | 18755 | 114.38 | 839 | 821 | 156.8 |
| B | 12 | 111 | 18468 | 112.55 | 839 | 821 | 156.8 |
| C | 14 | 238 | 132324 | 696.38 | 812 | 819 | 188.8 |
| C | 3 | 233 | 29653 | 152.69 | 812 | 819 | 188.8 |
| C | 2 | 114 | 15395 | 77.19 | 812 | 819 | 188.8 |
| D | 8 | 195 | 977777 | 5225.1 | 793 | 773 | 187.0 |
| D | 1 | 52 | 518414 | 2768.39 | 793 | 773 | 187.0 |
| D | 7 | 80 | 368736 | 1967.9 | 793 | 773 | 187.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

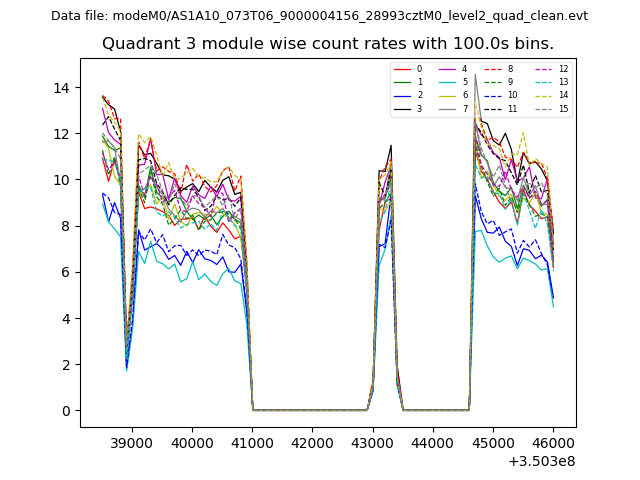

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

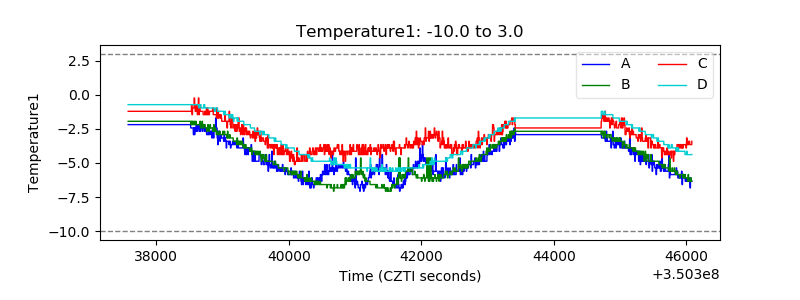

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

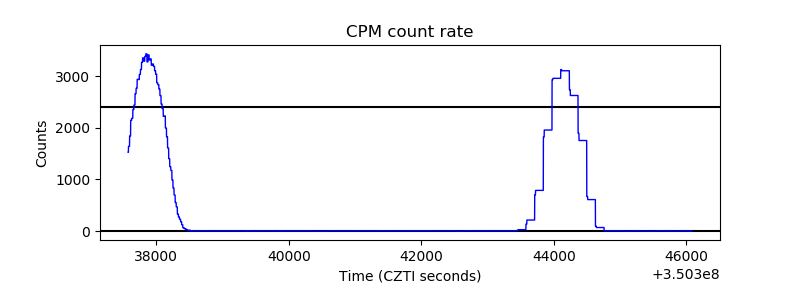

| _CPM_Rate |  |

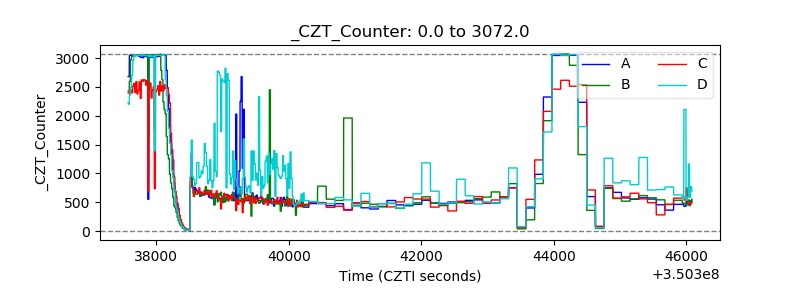

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

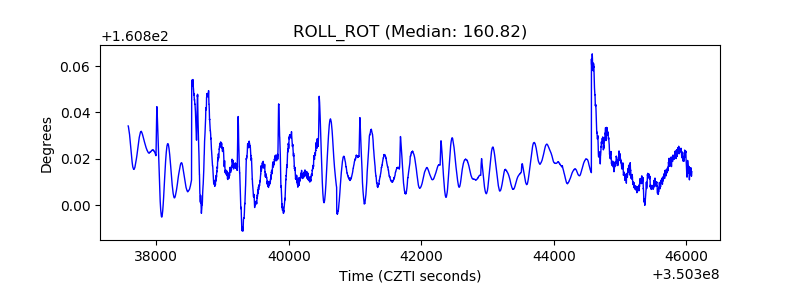

| _ROLL_ROT |  |
| _Roll_DEC |  |

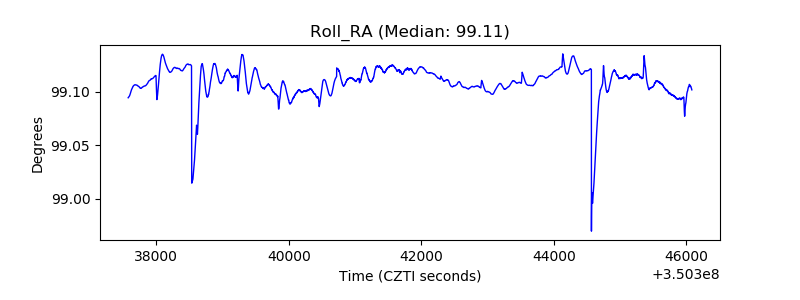

| _Roll_RA |  |
| Veto Counter |  |
