| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_103T04_9000004158_29005cztM0_level2.evt | modeM0/AS1A10_103T04_9000004158_29005cztM0_level2_quad_clean.evt |
| Size (bytes) | 579,726,720 | 107,902,080 |
| Size | 552.9 MB | 102.9 MB |
| Events in quadrant A | 3,146,380 | 749,525 |
| Events in quadrant B | 3,550,411 | 745,448 |
| Events in quadrant C | 4,095,325 | 703,984 |
| Events in quadrant D | 6,342,273 | 632,820 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13567 | 1 |
| B | 0 | 14651 | 1 |
| C | 0 | 16588 | 1 |
| D | 0 | 23176 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6240 | 59 | 0.945513% |
| B | 6240 | 146 | 2.339744% |
| C | 6240 | 131 | 2.099359% |
| D | 6240 | 766 | 12.275641% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7386 | 6247 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7386 | 6247 | 58 | 58 | 0.79% | 0.93% |  |
| C | 7386 | 6247 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7386 | 6247 | 703 | 703 | 9.52% | 11.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 210 | 16570 | 97.82 | 810 | 795 | 161.3 |
| A | 13 | 254 | 10658 | 61.16 | 810 | 795 | 161.3 |
| A | 3 | 137 | 7623 | 42.34 | 810 | 795 | 161.3 |
| B | 10 | 245 | 348296 | 2348.42 | 789 | 771 | 148.0 |
| B | 10 | 246 | 73334 | 490.35 | 789 | 771 | 148.0 |
| B | 12 | 111 | 17970 | 116.22 | 789 | 771 | 148.0 |
| C | 3 | 233 | 953663 | 5335.3 | 770 | 774 | 178.6 |
| C | 14 | 238 | 123811 | 688.89 | 770 | 774 | 178.6 |
| C | 2 | 114 | 14972 | 79.5 | 770 | 774 | 178.6 |
| D | 1 | 52 | 1939519 | 10962.28 | 743 | 725 | 176.9 |
| D | 8 | 195 | 749055 | 4231.19 | 743 | 725 | 176.9 |
| D | 7 | 80 | 616603 | 3482.28 | 743 | 725 | 176.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

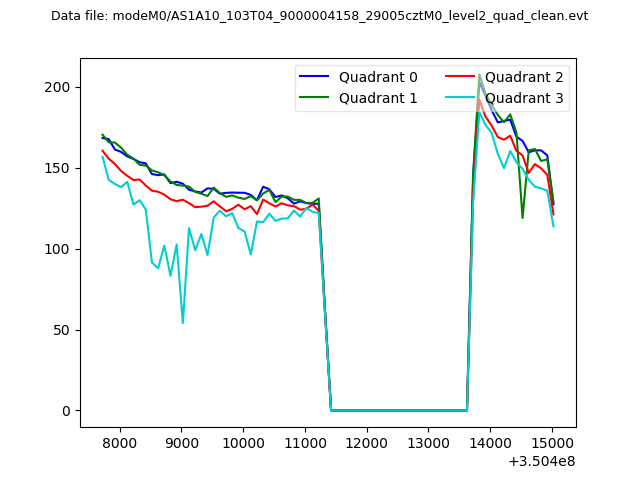

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

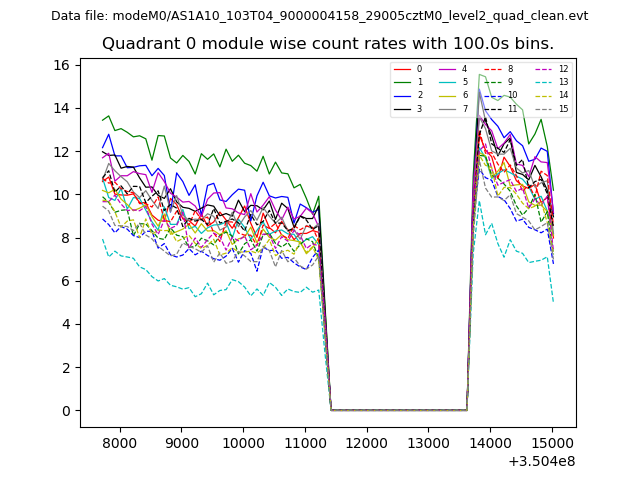

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

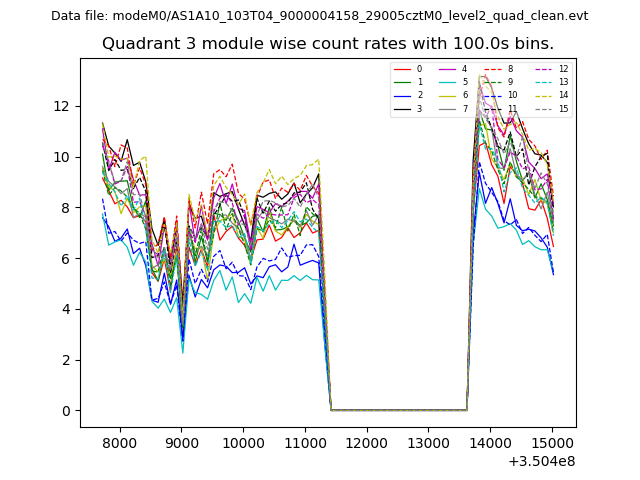

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

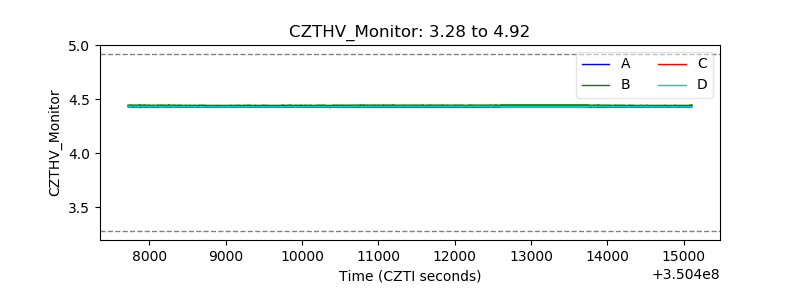

| CZT HV Monitor |  |
| D_VDD |  |

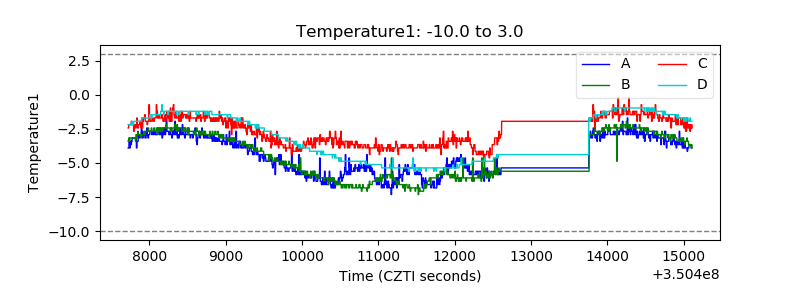

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

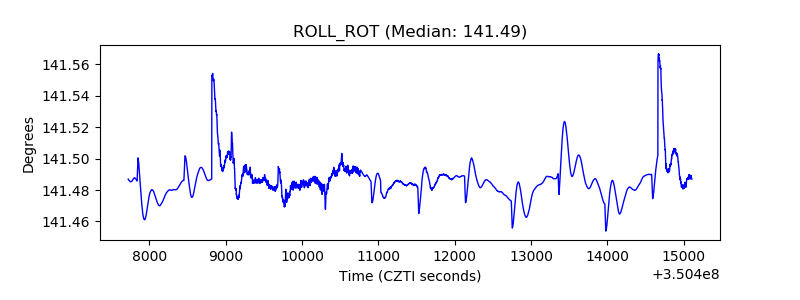

| _ROLL_ROT |  |

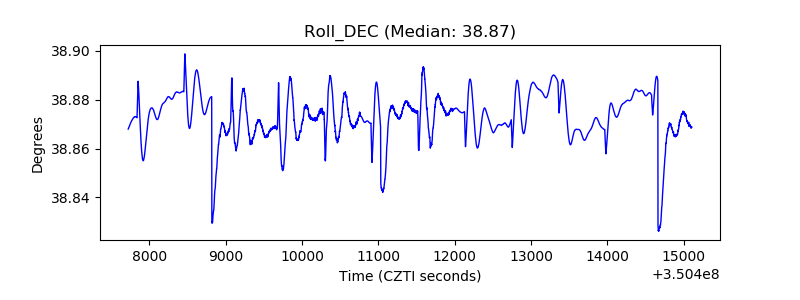

| _Roll_DEC |  |
| _Roll_RA |  |

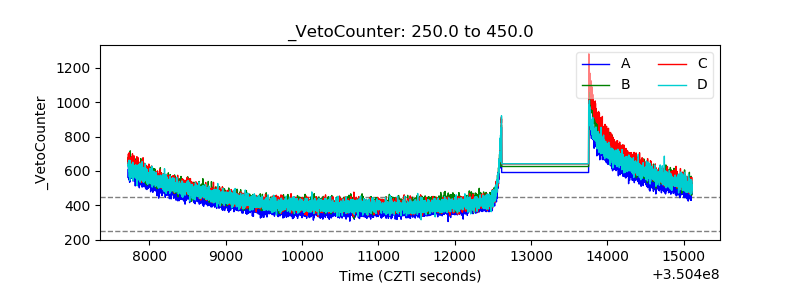

| Veto Counter |  |
