| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_103T04_9000004158_29007cztM0_level2.evt | modeM0/AS1A10_103T04_9000004158_29007cztM0_level2_quad_clean.evt |
| Size (bytes) | 528,157,440 | 106,058,880 |
| Size | 503.7 MB | 101.1 MB |
| Events in quadrant A | 3,334,623 | 716,676 |
| Events in quadrant B | 3,441,546 | 731,675 |
| Events in quadrant C | 3,650,014 | 688,037 |
| Events in quadrant D | 5,150,164 | 644,140 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13816 | 2 |
| B | 0 | 14148 | 2 |
| C | 0 | 14676 | 2 |
| D | 0 | 19589 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6182 | 51 | 0.824976% |
| B | 6182 | 64 | 1.035264% |
| C | 6182 | 137 | 2.216111% |
| D | 6182 | 296 | 4.788094% |

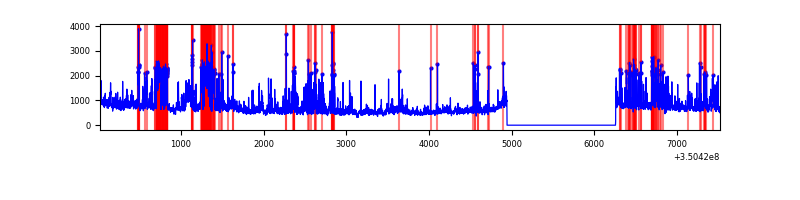

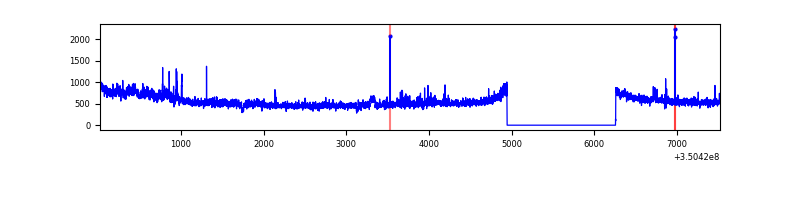

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7503 | 6189 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7503 | 6189 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7503 | 6189 | 8 | 8 | 0.11% | 0.13% |  |
| D | 7503 | 6189 | 226 | 226 | 3.01% | 3.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 113 | 67335 | 403.98 | 839 | 826 | 164.6 |
| A | 15 | 192 | 15690 | 90.28 | 839 | 826 | 164.6 |
| A | 13 | 254 | 11250 | 63.32 | 839 | 826 | 164.6 |
| B | 10 | 245 | 155406 | 998.76 | 835 | 814 | 154.8 |
| B | 12 | 111 | 18144 | 111.96 | 835 | 814 | 154.8 |
| B | 11 | 111 | 16452 | 101.03 | 835 | 814 | 154.8 |
| C | 3 | 233 | 283076 | 1497.22 | 813 | 822 | 188.5 |
| C | 14 | 238 | 131182 | 691.5 | 813 | 822 | 188.5 |
| C | 2 | 16 | 53256 | 278.14 | 813 | 822 | 188.5 |
| D | 1 | 52 | 1067901 | 5612.84 | 805 | 786 | 190.1 |
| D | 8 | 195 | 667761 | 3508.18 | 805 | 786 | 190.1 |
| D | 13 | 104 | 179953 | 942.39 | 805 | 786 | 190.1 |

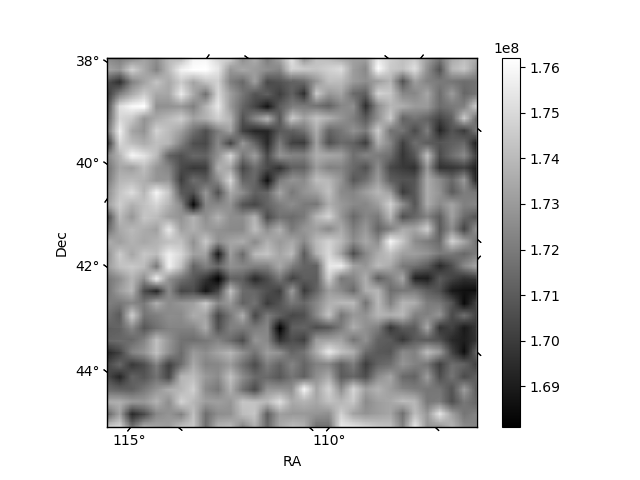

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

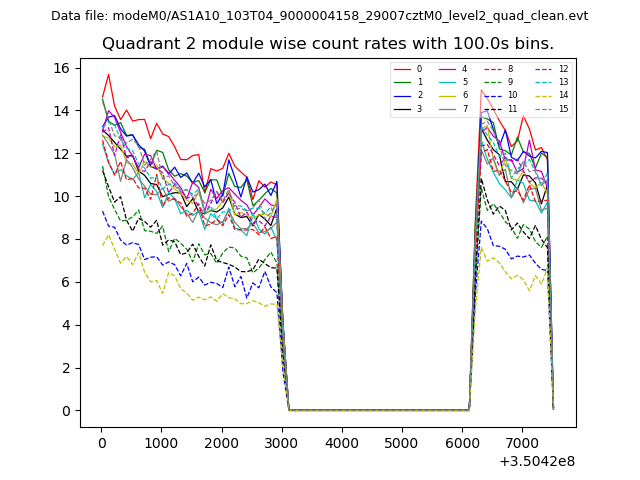

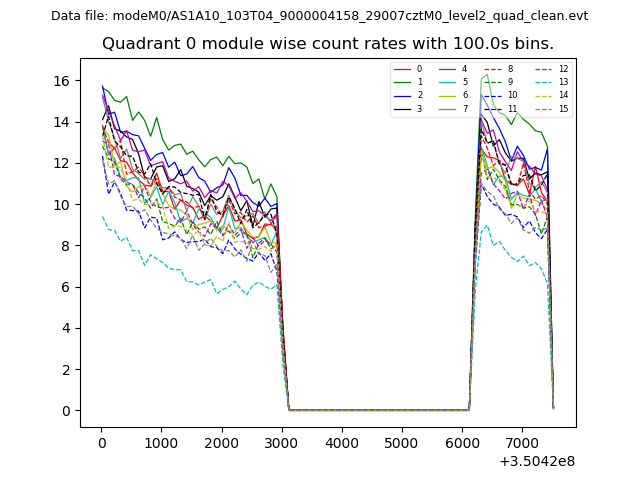

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

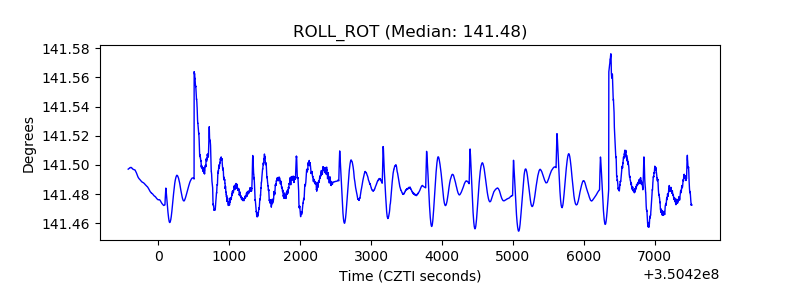

| _ROLL_ROT |  |

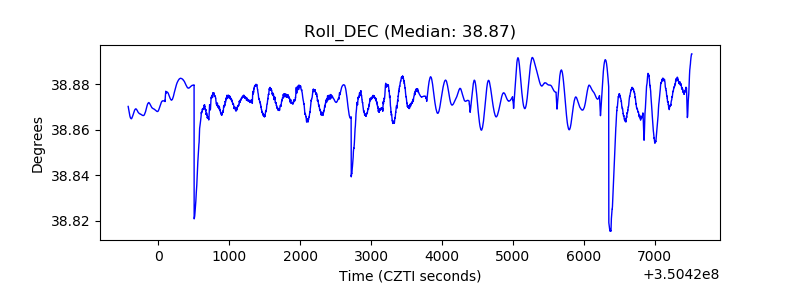

| _Roll_DEC |  |

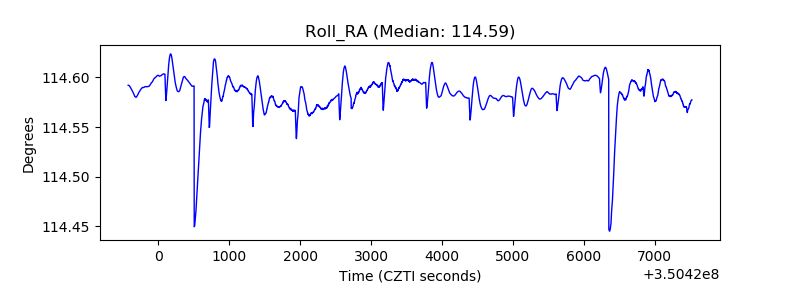

| _Roll_RA |  |
| Veto Counter |  |
