| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_103T04_9000004158_29008cztM0_level2.evt | modeM0/AS1A10_103T04_9000004158_29008cztM0_level2_quad_clean.evt |
| Size (bytes) | 492,301,440 | 100,039,680 |
| Size | 469.5 MB | 95.4 MB |
| Events in quadrant A | 3,187,062 | 666,915 |
| Events in quadrant B | 3,309,147 | 682,220 |
| Events in quadrant C | 3,278,456 | 643,338 |
| Events in quadrant D | 4,713,878 | 604,150 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13333 | 2 |
| B | 0 | 13605 | 2 |
| C | 0 | 13544 | 2 |
| D | 0 | 18218 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6205 | 33 | 0.531829% |
| B | 6205 | 65 | 1.047542% |
| C | 6205 | 114 | 1.837228% |
| D | 6204 | 202 | 3.255964% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

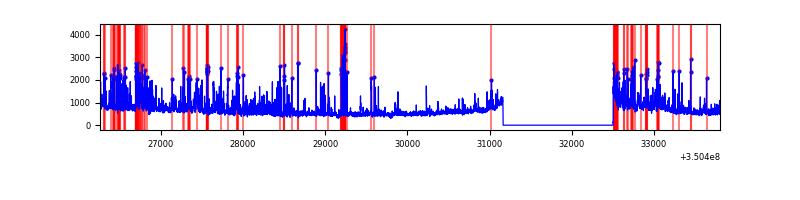

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7545 | 6206 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7545 | 6206 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7545 | 6206 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7544 | 6205 | 142 | 142 | 1.88% | 2.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11086 | 63.31 | 824 | 811 | 162.3 |
| A | 3 | 137 | 7511 | 41.28 | 824 | 811 | 162.3 |
| A | 0 | 226 | 6965 | 37.92 | 824 | 811 | 162.3 |
| B | 0 | 229 | 51237 | 330.52 | 821 | 802 | 152.6 |
| B | 10 | 245 | 18221 | 114.15 | 821 | 802 | 152.6 |
| B | 12 | 111 | 18105 | 113.39 | 821 | 802 | 152.6 |
| C | 14 | 238 | 131767 | 704.91 | 800 | 807 | 185.8 |
| C | 2 | 114 | 14937 | 76.06 | 800 | 807 | 185.8 |
| C | 2 | 16 | 9360 | 46.04 | 800 | 807 | 185.8 |
| D | 1 | 52 | 759024 | 4084.21 | 790 | 770 | 185.7 |
| D | 8 | 195 | 674872 | 3630.94 | 790 | 770 | 185.7 |
| D | 7 | 80 | 186981 | 1002.99 | 790 | 770 | 185.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

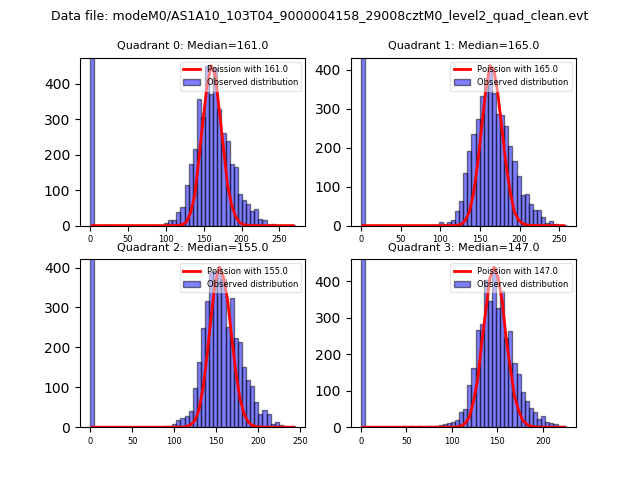

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

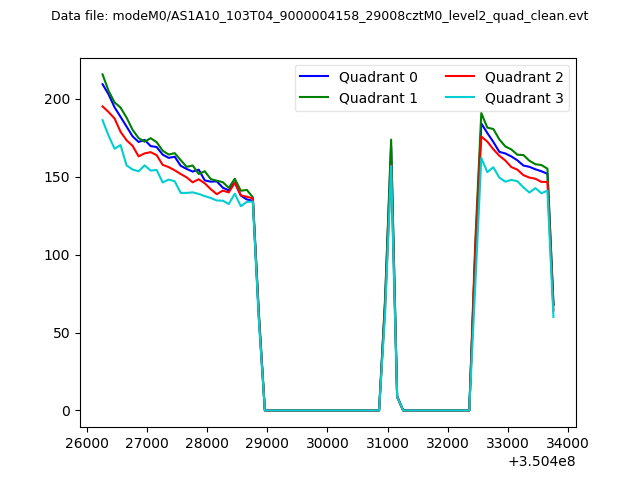

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

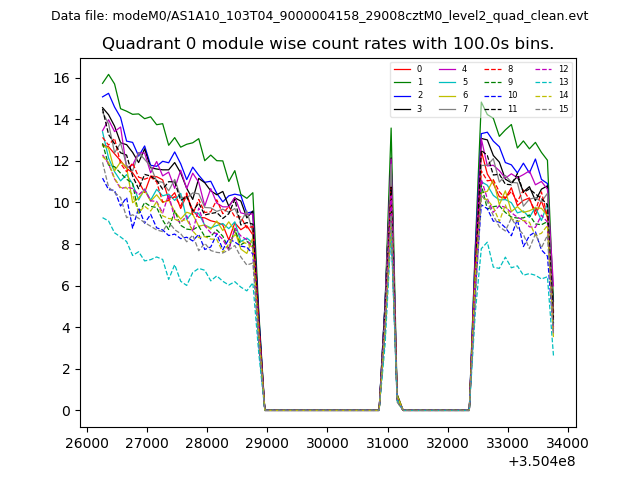

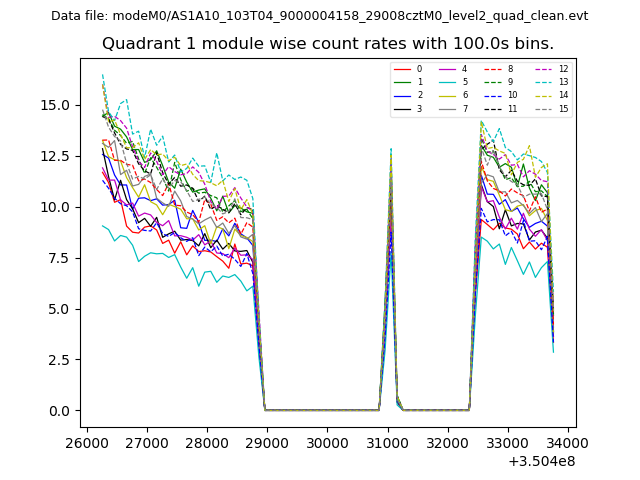

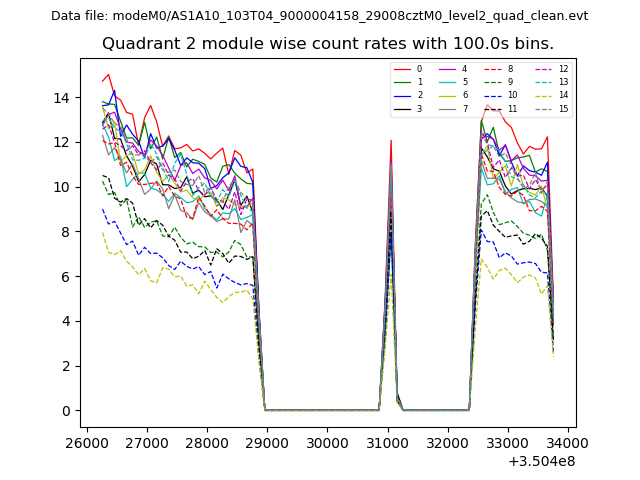

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

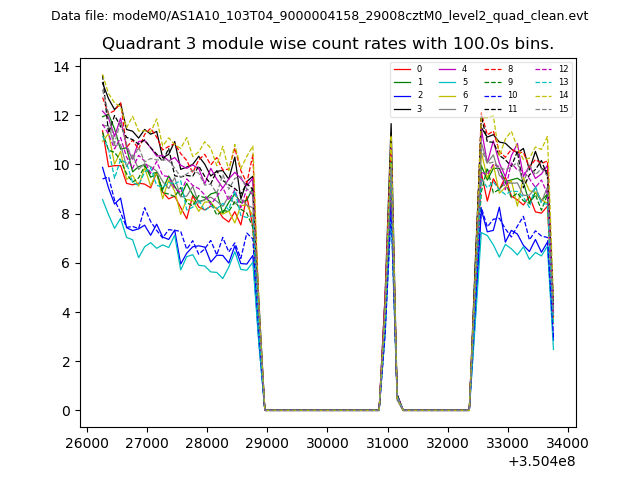

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

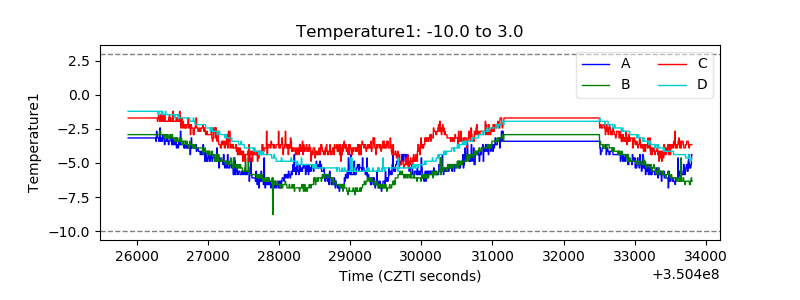

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

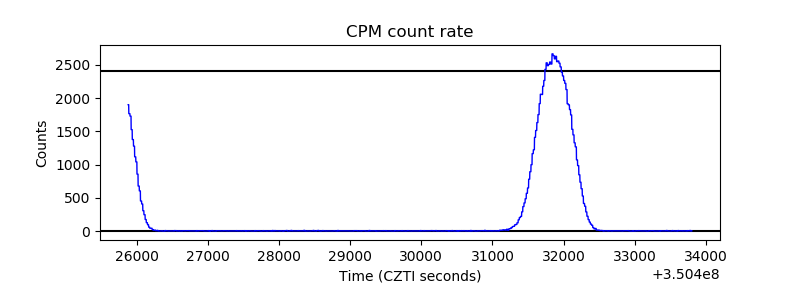

| _CPM_Rate |  |

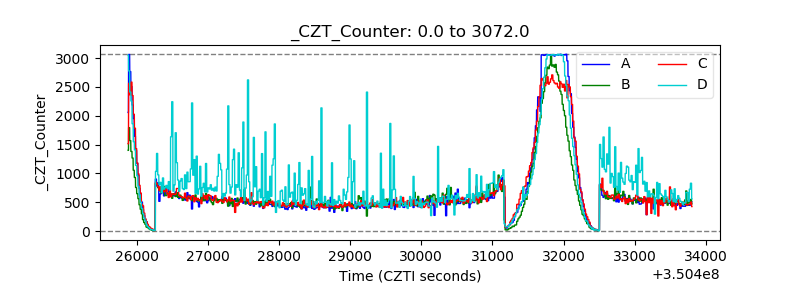

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

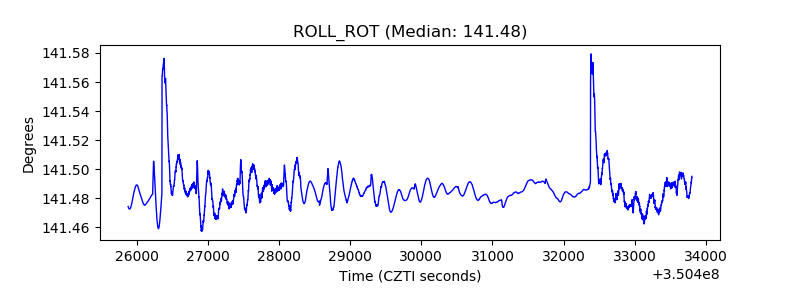

| _ROLL_ROT |  |
| _Roll_DEC |  |

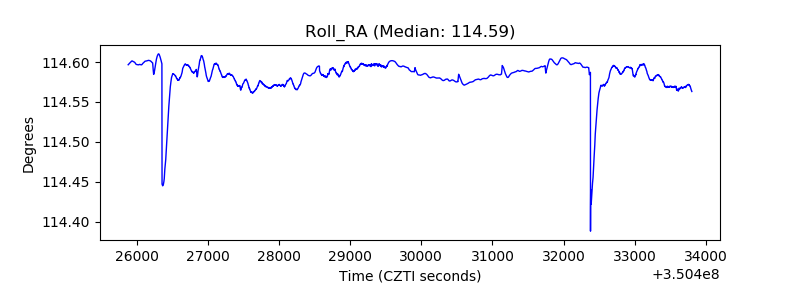

| _Roll_RA |  |

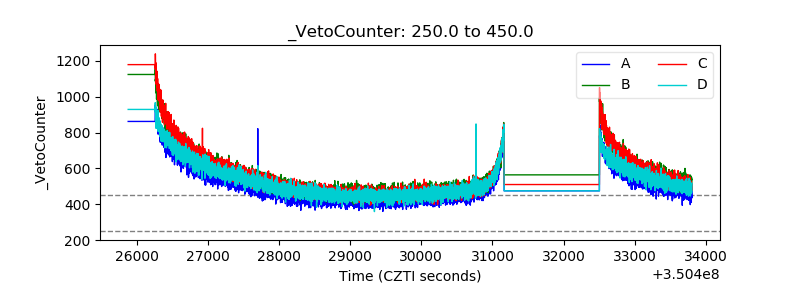

| Veto Counter |  |
