| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T02_9000004160_29020cztM0_level2.evt | modeM0/AS1A10_123T02_9000004160_29020cztM0_level2_quad_clean.evt |
| Size (bytes) | 565,274,880 | 114,284,160 |
| Size | 539.1 MB | 109.0 MB |
| Events in quadrant A | 3,445,004 | 767,644 |
| Events in quadrant B | 3,504,860 | 794,880 |
| Events in quadrant C | 3,529,025 | 749,441 |
| Events in quadrant D | 6,191,467 | 687,200 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14700 | 2 |
| B | 0 | 14785 | 2 |
| C | 0 | 14876 | 2 |
| D | 0 | 23029 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6620 | 97 | 1.465257% |
| B | 6620 | 92 | 1.389728% |
| C | 6621 | 157 | 2.371243% |
| D | 6621 | 825 | 12.460353% |

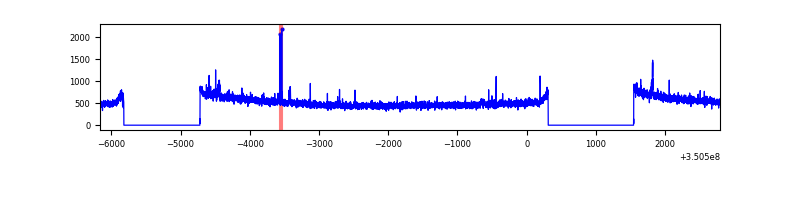

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8955 | 6622 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8955 | 6622 | 2 | 2 | 0.02% | 0.03% |  |
| C | 8956 | 6623 | 3 | 3 | 0.03% | 0.05% |  |
| D | 8956 | 6623 | 638 | 638 | 7.12% | 9.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 113 | 12972 | 69.1 | 886 | 870 | 175.1 |
| A | 13 | 6 | 11218 | 59.09 | 886 | 870 | 175.1 |
| A | 13 | 254 | 11181 | 58.88 | 886 | 870 | 175.1 |
| B | 0 | 190 | 29503 | 173.37 | 881 | 859 | 165.2 |
| B | 12 | 111 | 19665 | 113.82 | 881 | 859 | 165.2 |
| B | 11 | 111 | 18073 | 104.19 | 881 | 859 | 165.2 |
| C | 14 | 238 | 139646 | 695.63 | 859 | 867 | 199.5 |
| C | 2 | 16 | 17490 | 83.32 | 859 | 867 | 199.5 |
| C | 2 | 114 | 15829 | 75.0 | 859 | 867 | 199.5 |
| D | 1 | 52 | 1846054 | 9368.96 | 836 | 816 | 197.0 |
| D | 7 | 80 | 731405 | 3709.47 | 836 | 816 | 197.0 |
| D | 8 | 195 | 429617 | 2177.18 | 836 | 816 | 197.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

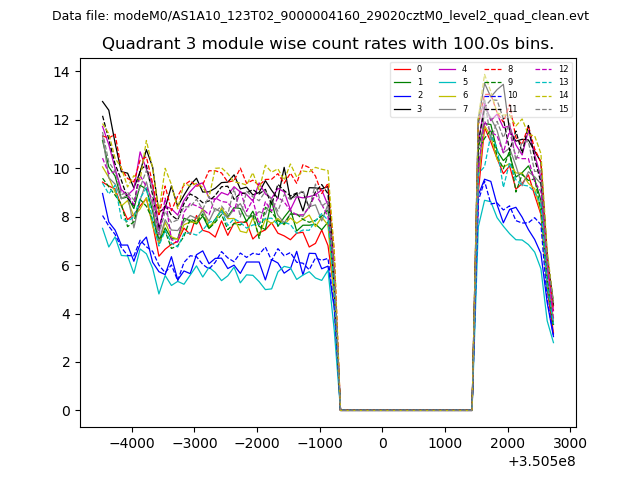

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

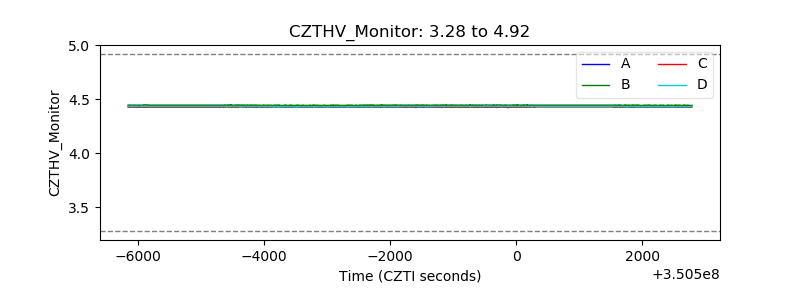

| CZT HV Monitor |  |
| D_VDD |  |

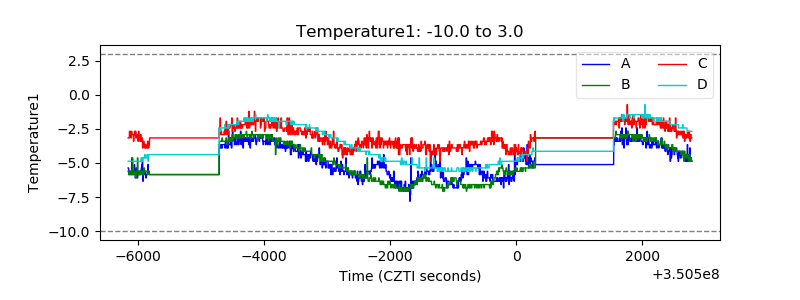

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

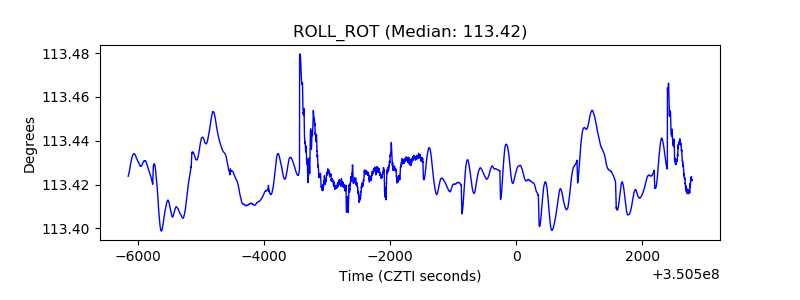

| _ROLL_ROT |  |

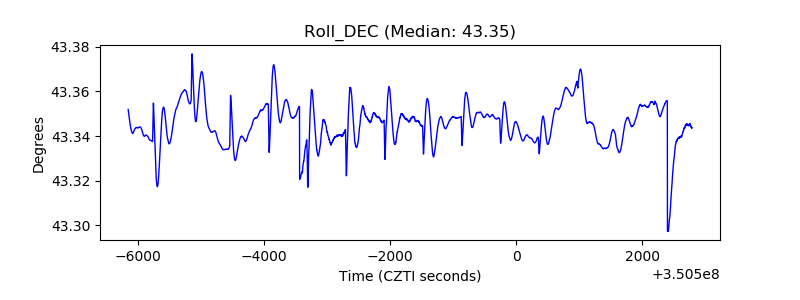

| _Roll_DEC |  |

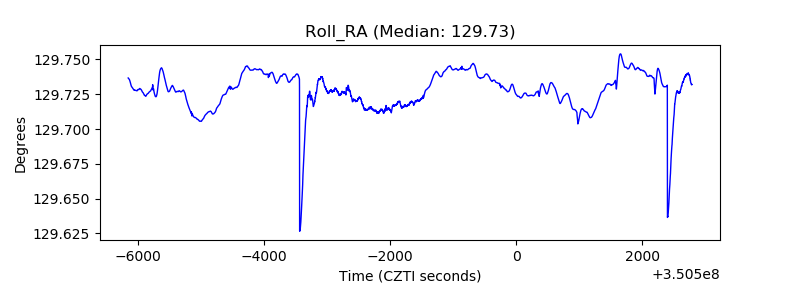

| _Roll_RA |  |

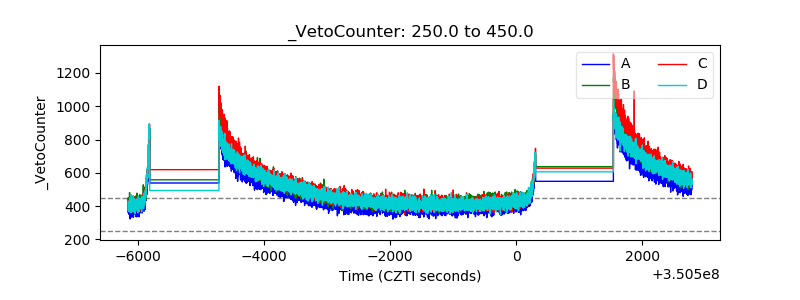

| Veto Counter |  |
