| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T02_9000004160_29027cztM0_level2.evt | modeM0/AS1A10_123T02_9000004160_29027cztM0_level2_quad_clean.evt |
| Size (bytes) | 567,506,880 | 104,149,440 |
| Size | 541.2 MB | 99.3 MB |
| Events in quadrant A | 3,679,265 | 663,512 |
| Events in quadrant B | 3,870,585 | 683,752 |
| Events in quadrant C | 3,820,021 | 648,368 |
| Events in quadrant D | 5,289,752 | 618,000 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 1 | 139631239768872 | 46 |
| B | 1 | -1 | -1 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16142 | 1 |
| B | 0 | 16334 | 1 |
| C | 0 | 16308 | 1 |
| D | 0 | 21095 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7769 | 271 | 3.488222% |
| B | 7769 | 334 | 4.299138% |
| C | 7769 | 285 | 3.668426% |
| D | 7769 | 499 | 6.422963% |

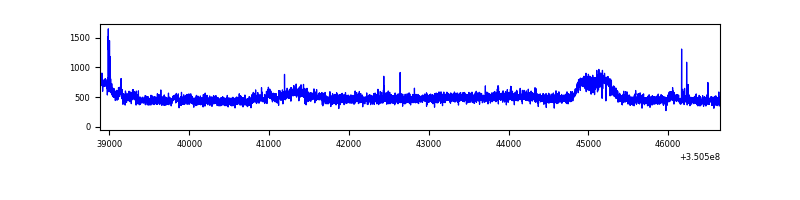

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

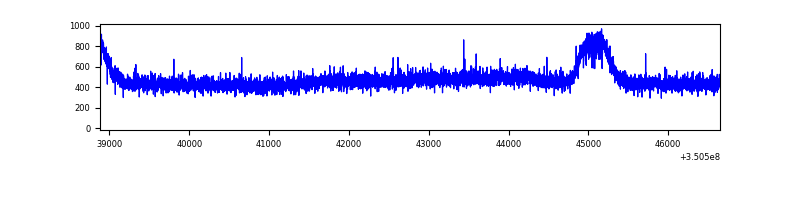

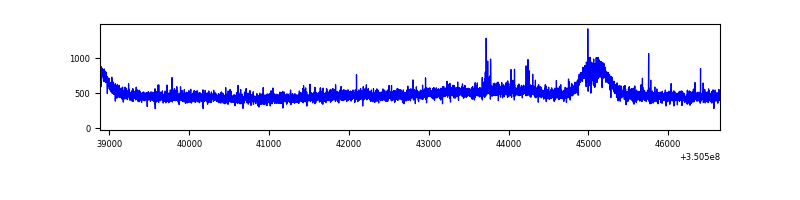

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7769 | 7769 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7769 | 7769 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7769 | 7769 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7769 | 7769 | 293 | 293 | 3.77% | 3.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 13767 | 66.68 | 952 | 929 | 192.5 |
| A | 3 | 137 | 9944 | 46.82 | 952 | 929 | 192.5 |
| A | 0 | 226 | 7997 | 36.71 | 952 | 929 | 192.5 |
| B | 0 | 229 | 122880 | 658.7 | 948 | 919 | 185.2 |
| B | 12 | 111 | 23139 | 120.01 | 948 | 919 | 185.2 |
| B | 11 | 111 | 21696 | 112.22 | 948 | 919 | 185.2 |
| C | 14 | 238 | 146872 | 671.26 | 921 | 923 | 217.4 |
| C | 3 | 233 | 28766 | 128.06 | 921 | 923 | 217.4 |
| C | 2 | 16 | 19694 | 86.33 | 921 | 923 | 217.4 |
| D | 7 | 80 | 1010401 | 4661.48 | 913 | 889 | 216.6 |
| D | 1 | 52 | 312895 | 1440.7 | 913 | 889 | 216.6 |
| D | 8 | 195 | 275088 | 1266.13 | 913 | 889 | 216.6 |

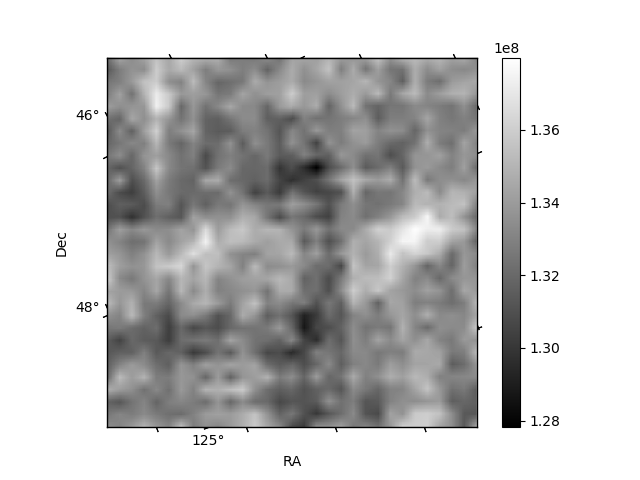

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

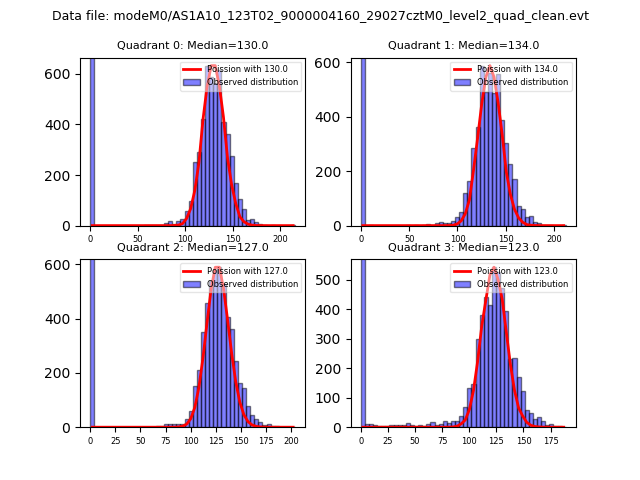

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

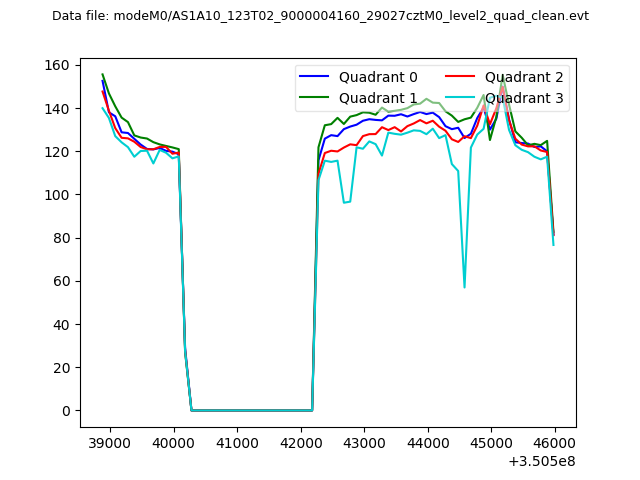

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

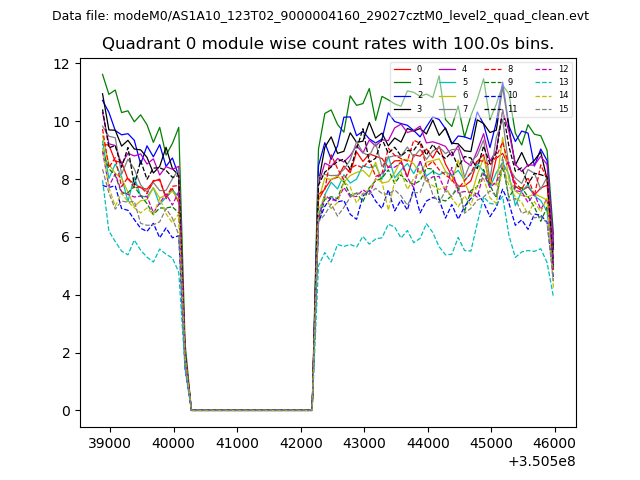

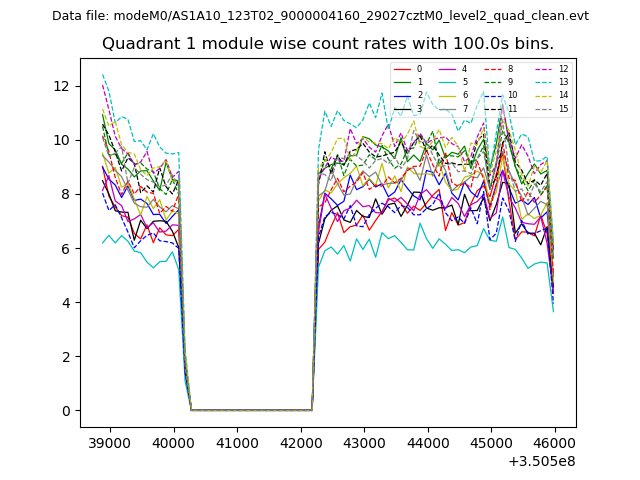

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

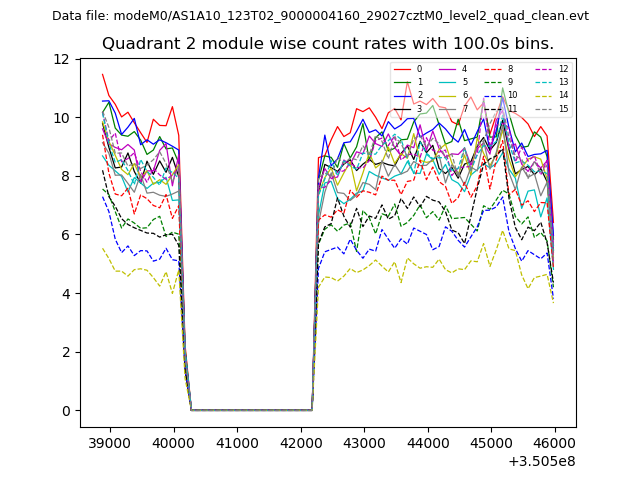

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

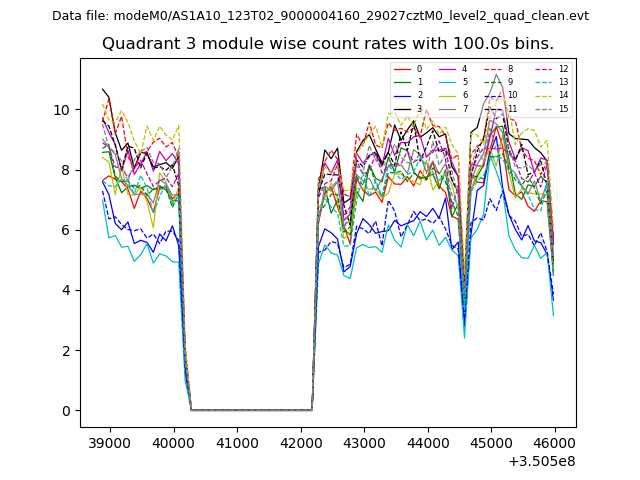

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

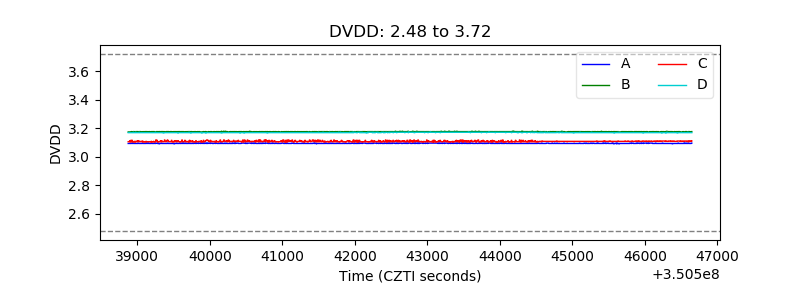

| D_VDD |  |

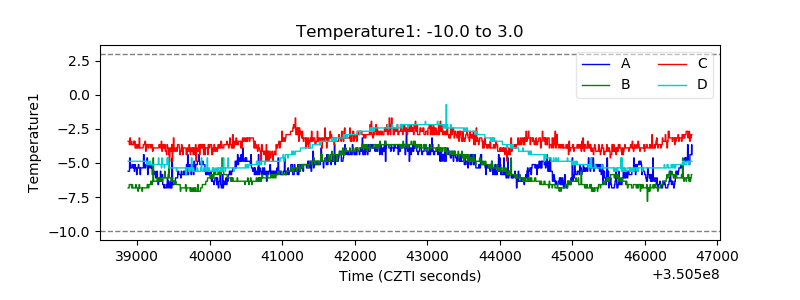

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

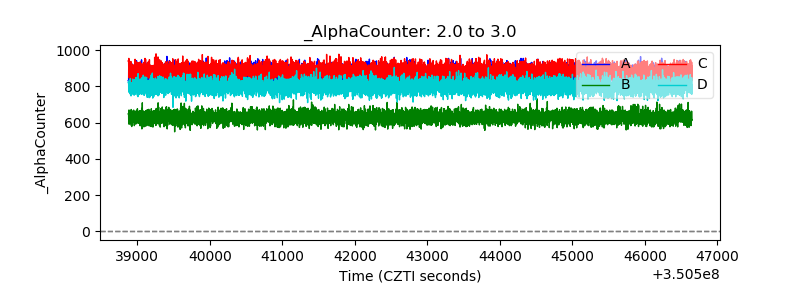

| Alpha Counter |  |

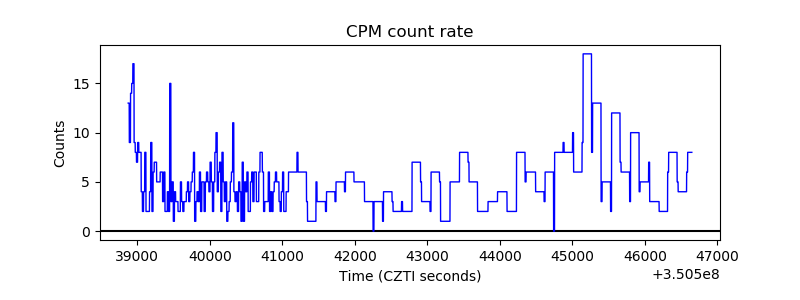

| _CPM_Rate |  |

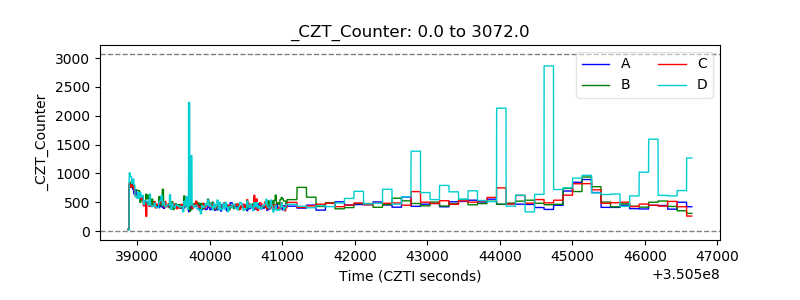

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

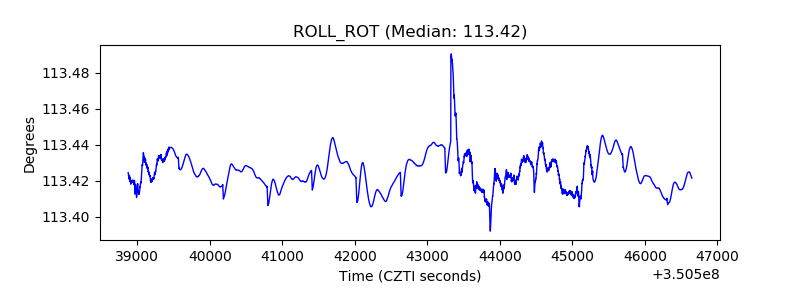

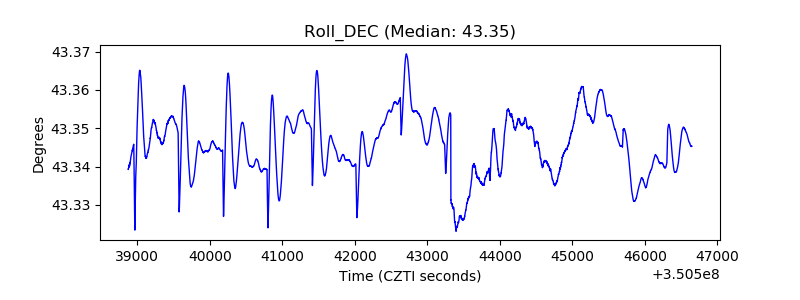

| _ROLL_ROT |  |
| _Roll_DEC |  |

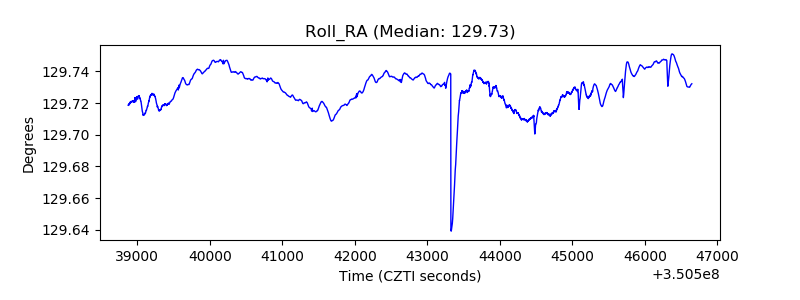

| _Roll_RA |  |

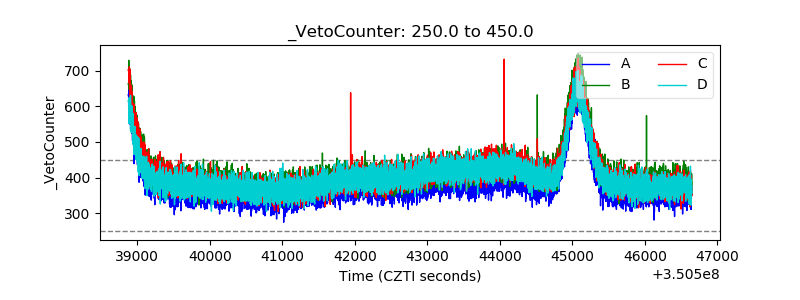

| Veto Counter |  |
