| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T02_9000004160_29038cztM0_level2.evt | modeM0/AS1A10_123T02_9000004160_29038cztM0_level2_quad_clean.evt |
| Size (bytes) | 575,588,160 | 95,273,280 |
| Size | 548.9 MB | 90.9 MB |
| Events in quadrant A | 3,099,713 | 633,047 |
| Events in quadrant B | 3,200,577 | 659,840 |
| Events in quadrant C | 4,672,349 | 613,169 |
| Events in quadrant D | 6,033,763 | 540,450 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13205 | 2 |
| B | 0 | 13452 | 2 |
| C | 0 | 18472 | 2 |
| D | 0 | 22166 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6289 | 21 | 0.333916% |
| B | 6288 | 56 | 0.890585% |
| C | 6288 | 204 | 3.244275% |
| D | 6288 | 781 | 12.420483% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7559 | 6290 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7558 | 6288 | 10 | 10 | 0.13% | 0.16% |  |
| C | 7557 | 6287 | 7 | 7 | 0.09% | 0.11% |  |
| D | 7558 | 6289 | 745 | 745 | 9.86% | 11.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10084 | 58.16 | 802 | 785 | 159.9 |
| A | 3 | 137 | 7761 | 43.63 | 802 | 785 | 159.9 |
| A | 13 | 6 | 7155 | 39.84 | 802 | 785 | 159.9 |
| B | 5 | 172 | 37302 | 244.31 | 803 | 784 | 149.5 |
| B | 12 | 111 | 18203 | 116.53 | 803 | 784 | 149.5 |
| B | 11 | 111 | 16585 | 105.71 | 803 | 784 | 149.5 |
| C | 3 | 233 | 1445161 | 8009.85 | 779 | 787 | 180.3 |
| C | 14 | 238 | 125617 | 692.25 | 779 | 787 | 180.3 |
| C | 2 | 16 | 45829 | 249.78 | 779 | 787 | 180.3 |
| D | 1 | 52 | 2977988 | 17139.5 | 739 | 720 | 173.7 |
| D | 8 | 195 | 259528 | 1489.9 | 739 | 720 | 173.7 |
| D | 2 | 234 | 20919 | 116.28 | 739 | 720 | 173.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

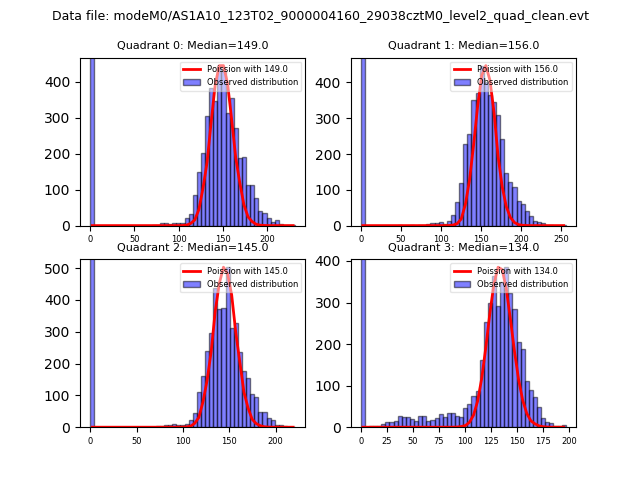

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

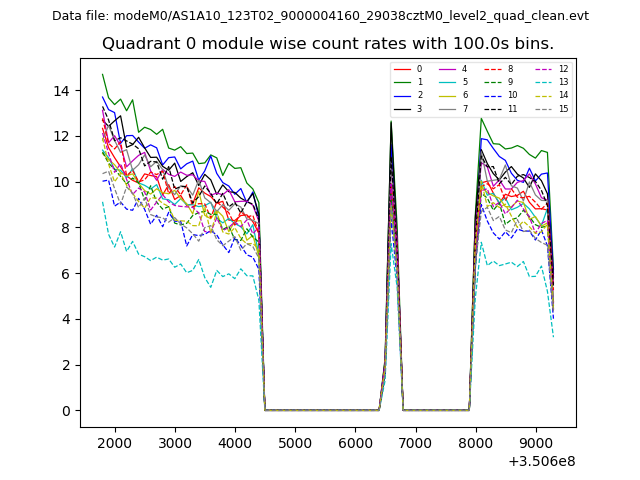

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

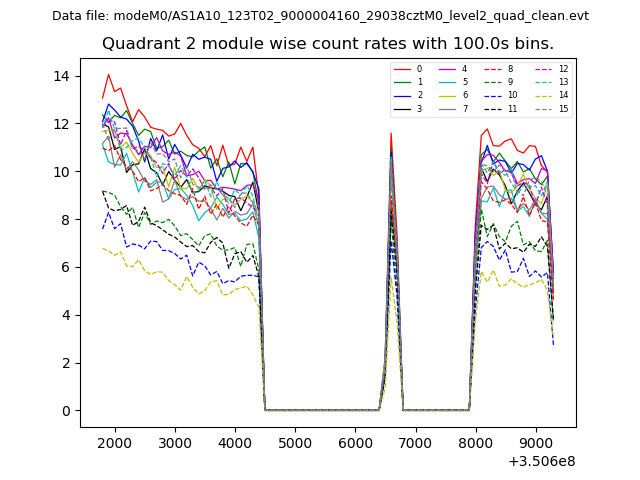

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

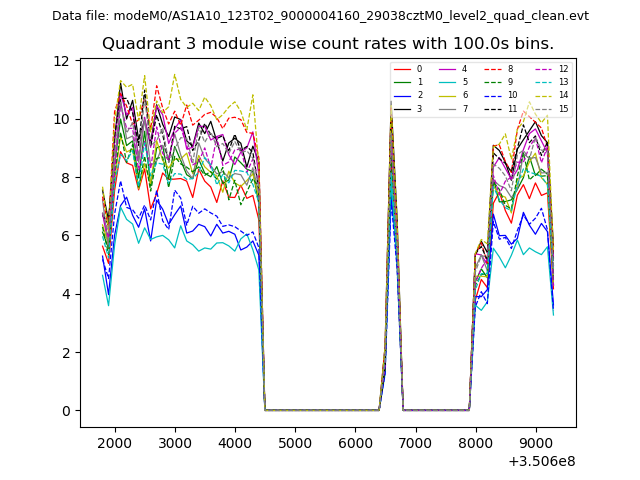

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

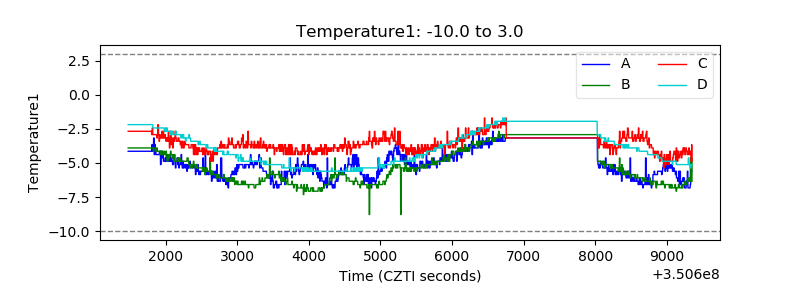

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

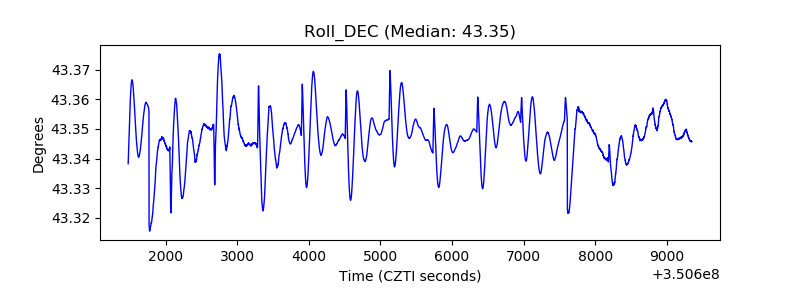

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
