| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_019T04_9000004162_29040cztM0_level2.evt | modeM0/AS1C05_019T04_9000004162_29040cztM0_level2_quad_clean.evt |
| Size (bytes) | 416,263,680 | 90,408,960 |
| Size | 397.0 MB | 86.2 MB |
| Events in quadrant A | 2,654,539 | 587,668 |
| Events in quadrant B | 2,718,858 | 601,430 |
| Events in quadrant C | 3,230,552 | 579,397 |
| Events in quadrant D | 3,607,358 | 563,223 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11928 | 1 |
| B | 0 | 12059 | 1 |
| C | 0 | 13417 | 1 |
| D | 0 | 14844 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5821 | 40 | 0.687167% |
| B | 5821 | 67 | 1.151005% |
| C | 5821 | 130 | 2.233293% |
| D | 5821 | 107 | 1.838172% |

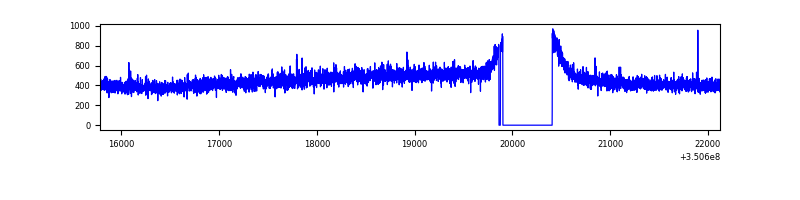

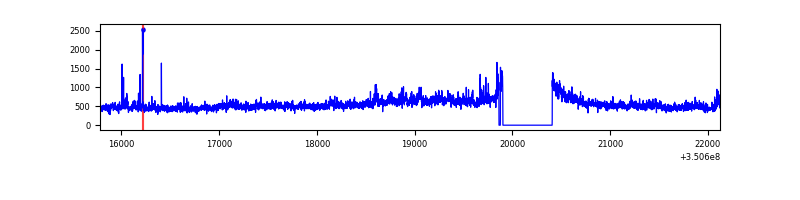

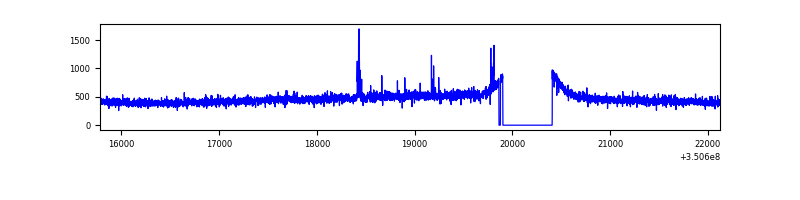

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

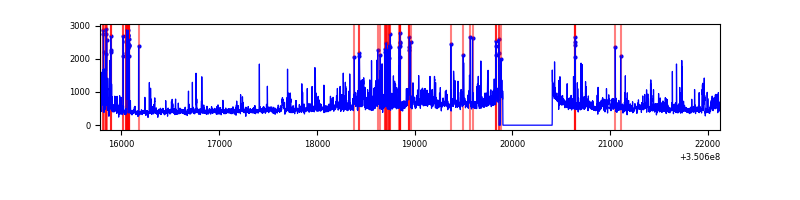

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6341 | 5823 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6341 | 5822 | 0 | 0 | 0.00% | 0.00% |  |
| C | 6341 | 5821 | 2 | 2 | 0.03% | 0.03% |  |
| D | 6341 | 5821 | 75 | 75 | 1.18% | 1.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9342 | 62.46 | 687 | 672 | 138.8 |
| A | 3 | 137 | 6836 | 44.4 | 687 | 672 | 138.8 |
| A | 0 | 226 | 5743 | 36.53 | 687 | 672 | 138.8 |
| B | 0 | 190 | 18001 | 130.79 | 685 | 666 | 132.5 |
| B | 12 | 111 | 16177 | 117.03 | 685 | 666 | 132.5 |
| B | 11 | 111 | 14527 | 104.58 | 685 | 666 | 132.5 |
| C | 3 | 233 | 509189 | 3309.03 | 660 | 663 | 153.7 |
| C | 14 | 238 | 106611 | 689.41 | 660 | 663 | 153.7 |
| C | 2 | 16 | 32167 | 205.0 | 660 | 663 | 153.7 |
| D | 1 | 52 | 677243 | 4303.7 | 661 | 642 | 157.2 |
| D | 8 | 195 | 350938 | 2228.15 | 661 | 642 | 157.2 |
| D | 2 | 250 | 53423 | 335.73 | 661 | 642 | 157.2 |

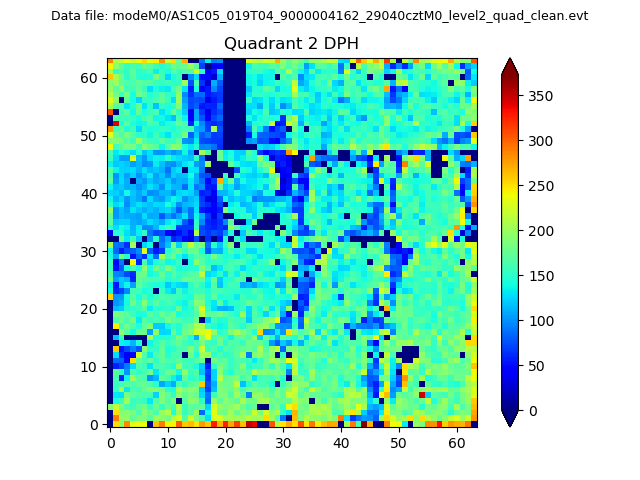

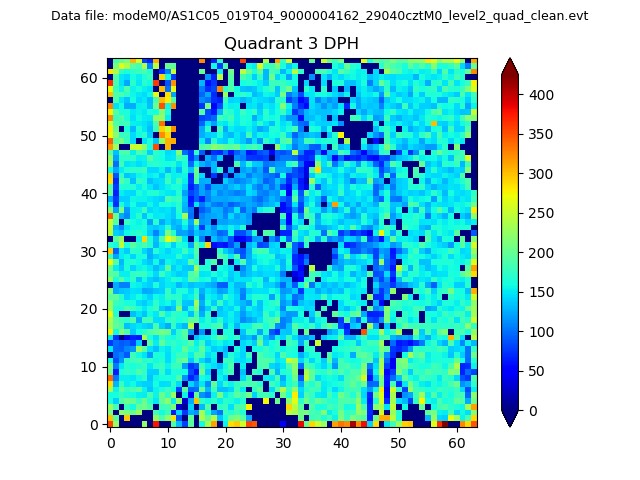

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

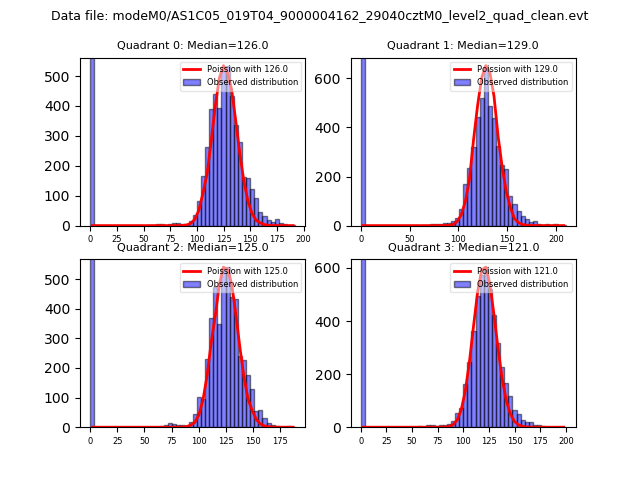

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

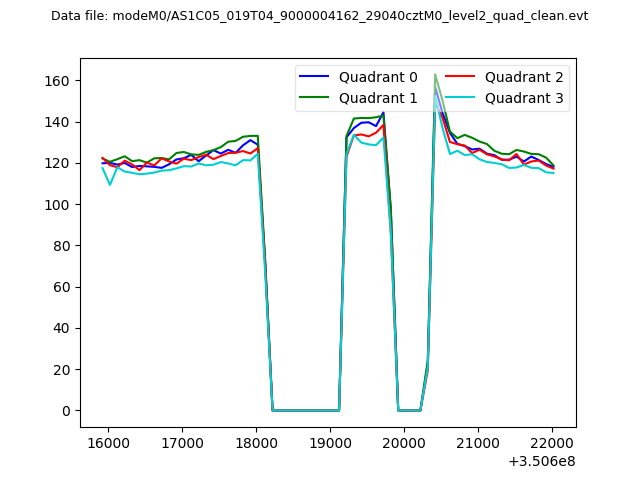

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

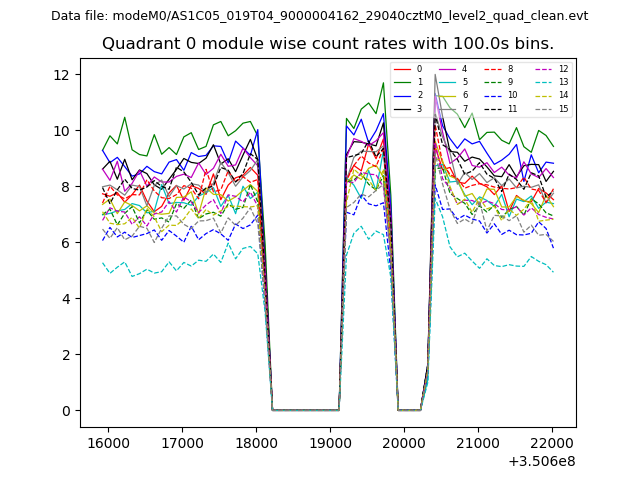

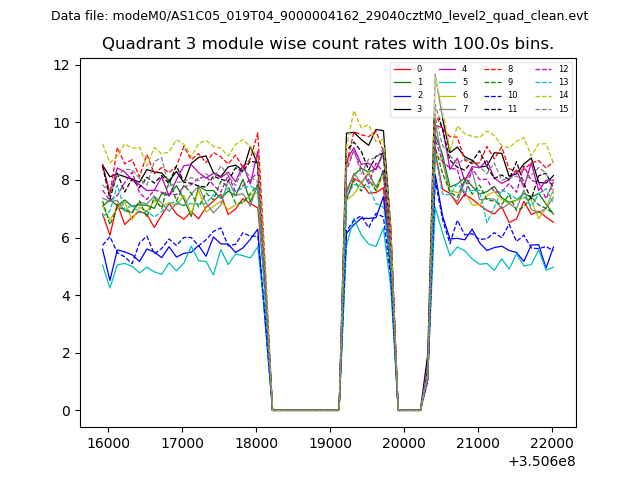

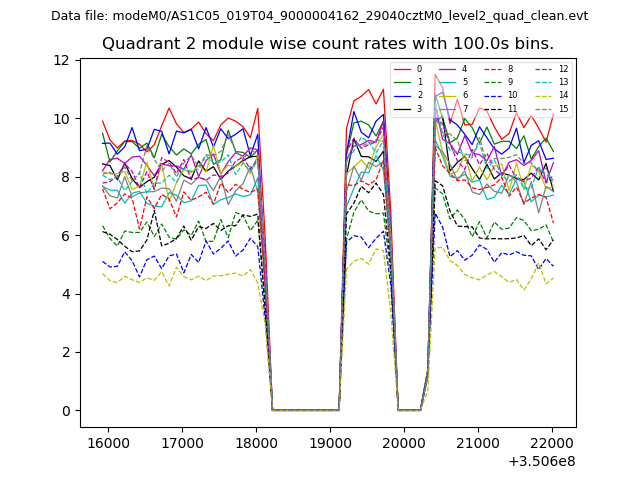

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

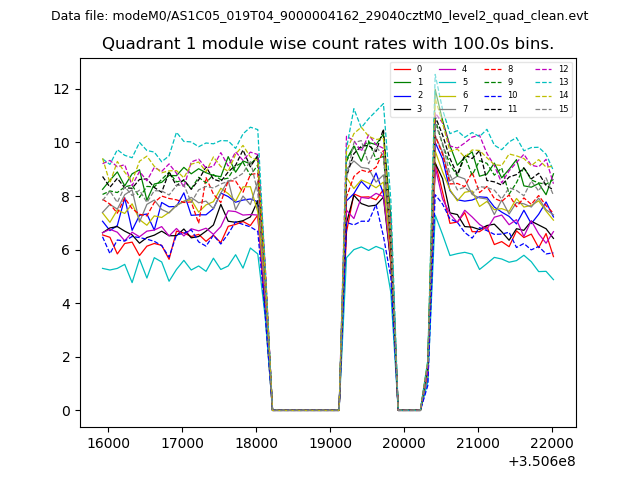

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

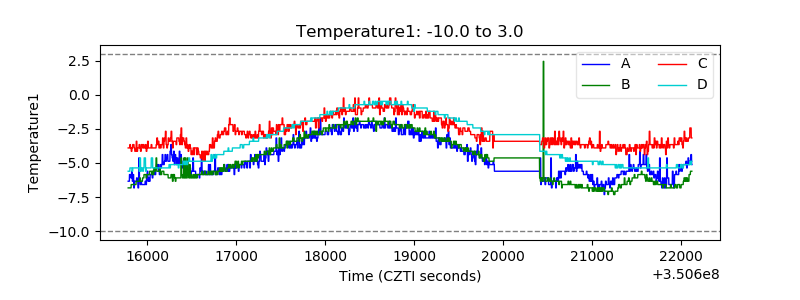

| Temperature 1 |  |

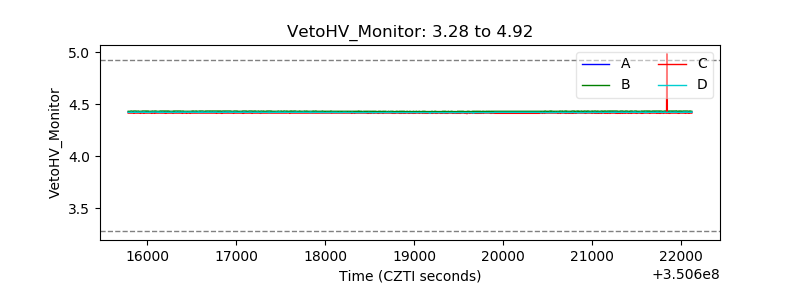

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

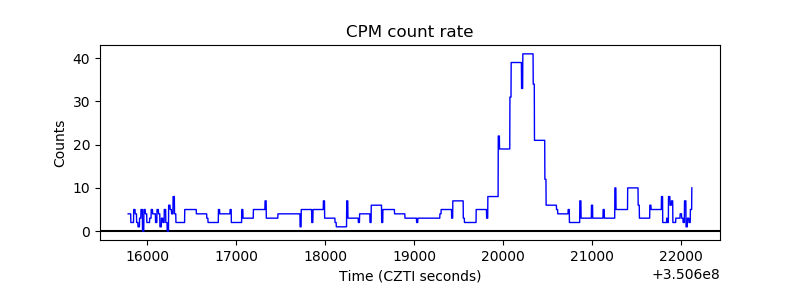

| _CPM_Rate |  |

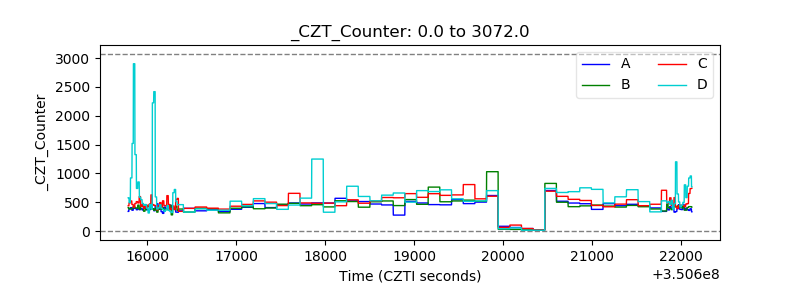

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

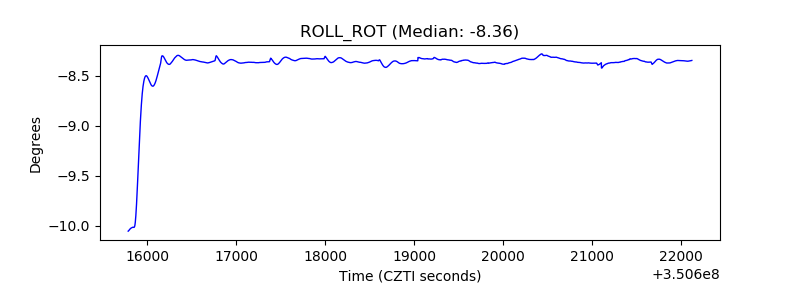

| _ROLL_ROT |  |

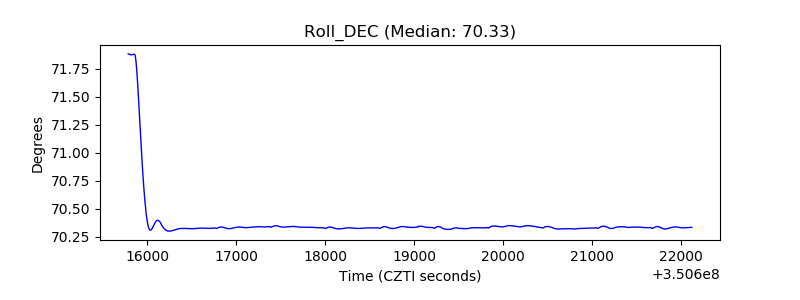

| _Roll_DEC |  |

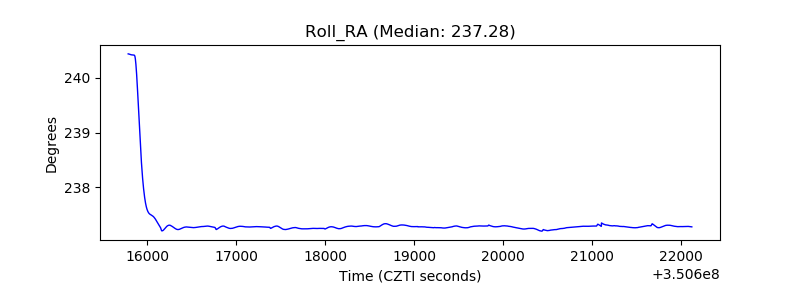

| _Roll_RA |  |

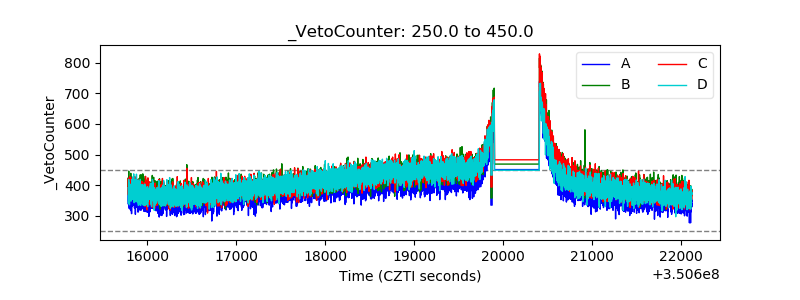

| Veto Counter |  |
