| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_019T04_9000004162_29051cztM0_level2.evt | modeM0/AS1C05_019T04_9000004162_29051cztM0_level2_quad_clean.evt |
| Size (bytes) | 512,801,280 | 125,602,560 |
| Size | 489.0 MB | 119.8 MB |
| Events in quadrant A | 3,351,156 | 845,446 |
| Events in quadrant B | 3,421,170 | 873,839 |
| Events in quadrant C | 3,465,438 | 850,428 |
| Events in quadrant D | 4,871,024 | 800,708 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14150 | 2 |
| B | 0 | 14162 | 2 |
| C | 0 | 14402 | 2 |
| D | 0 | 18770 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6219 | 60 | 0.964785% |
| B | 6218 | 79 | 1.270505% |
| C | 6218 | 151 | 2.428434% |
| D | 6218 | 329 | 5.291090% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

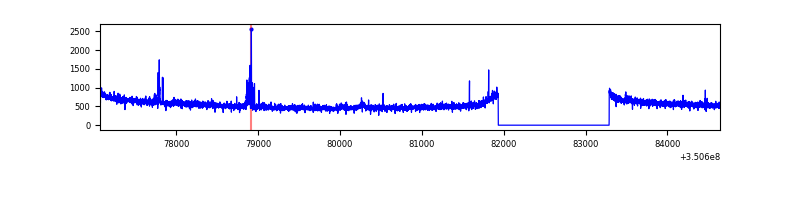

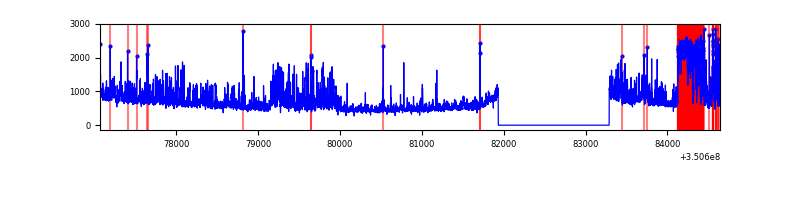

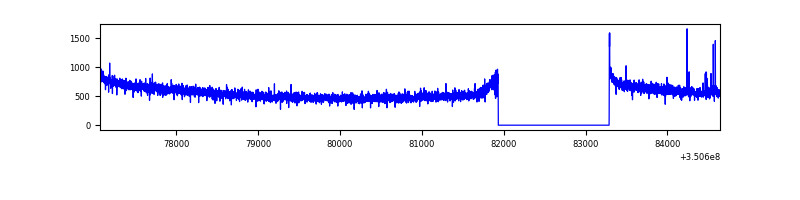

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7574 | 6219 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7573 | 6218 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7573 | 6218 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7573 | 6218 | 238 | 238 | 3.14% | 3.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 76946 | 454.09 | 848 | 833 | 167.6 |
| A | 13 | 254 | 11435 | 63.25 | 848 | 833 | 167.6 |
| A | 3 | 137 | 7375 | 39.03 | 848 | 833 | 167.6 |
| B | 10 | 246 | 54319 | 344.29 | 854 | 835 | 155.3 |
| B | 5 | 172 | 17832 | 109.41 | 854 | 835 | 155.3 |
| B | 12 | 111 | 17772 | 109.03 | 854 | 835 | 155.3 |
| C | 14 | 238 | 138368 | 719.11 | 840 | 849 | 191.2 |
| C | 3 | 233 | 19959 | 99.93 | 840 | 849 | 191.2 |
| C | 2 | 114 | 15424 | 76.21 | 840 | 849 | 191.2 |
| D | 8 | 195 | 874276 | 4506.8 | 826 | 808 | 193.8 |
| D | 1 | 52 | 727232 | 3748.11 | 826 | 808 | 193.8 |
| D | 2 | 250 | 69284 | 353.31 | 826 | 808 | 193.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

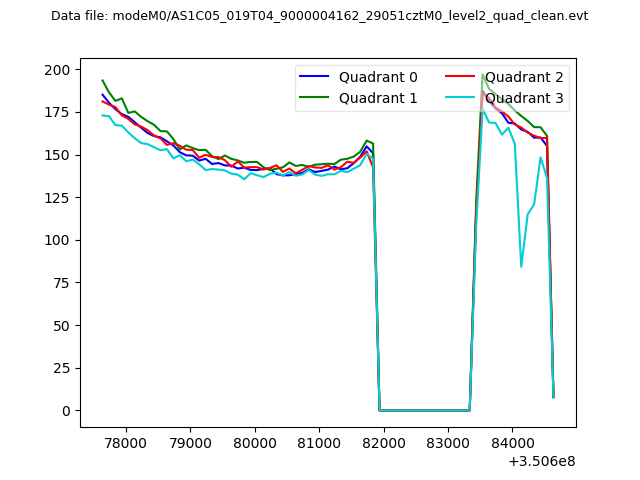

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

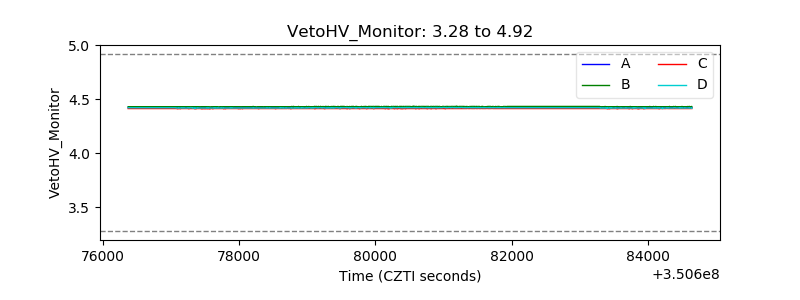

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

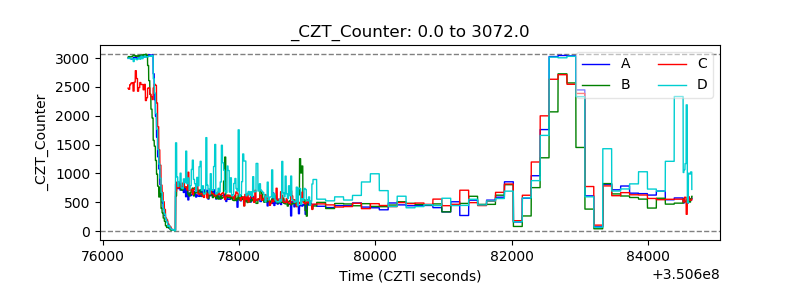

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

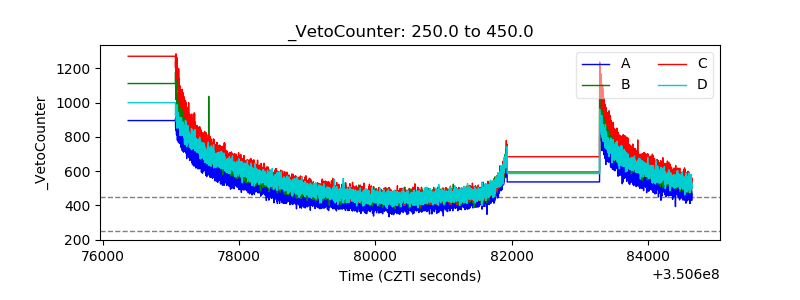

| Veto Counter |  |
