| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_019T04_9000004162_29052cztM0_level2.evt | modeM0/AS1C05_019T04_9000004162_29052cztM0_level2_quad_clean.evt |
| Size (bytes) | 530,939,520 | 130,815,360 |
| Size | 506.3 MB | 124.8 MB |
| Events in quadrant A | 3,172,215 | 894,533 |
| Events in quadrant B | 3,237,177 | 927,297 |
| Events in quadrant C | 3,301,490 | 899,578 |
| Events in quadrant D | 5,953,767 | 813,311 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13489 | 2 |
| B | 0 | 13533 | 2 |
| C | 0 | 13742 | 2 |
| D | 0 | 21992 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6122 | 40 | 0.653381% |
| B | 6122 | 66 | 1.078079% |
| C | 6122 | 129 | 2.107155% |
| D | 6122 | 710 | 11.597517% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

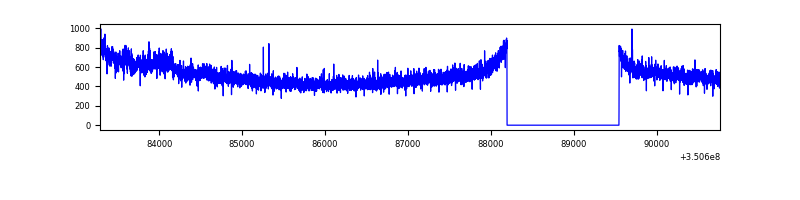

| A | 7472 | 6122 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7472 | 6122 | 14 | 14 | 0.19% | 0.23% |  |
| C | 7472 | 6122 | 0 | 0 | 0.00% | 0.00% |  |

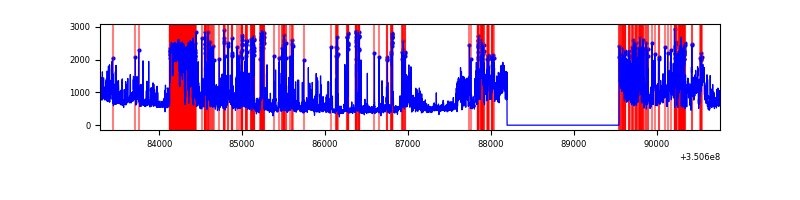

| D | 7472 | 6122 | 527 | 527 | 7.05% | 8.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 87858 | 546.75 | 798 | 782 | 159.3 |
| A | 13 | 254 | 11053 | 64.49 | 798 | 782 | 159.3 |
| A | 3 | 137 | 7163 | 40.07 | 798 | 782 | 159.3 |
| B | 4 | 80 | 49915 | 332.03 | 803 | 784 | 148.0 |
| B | 10 | 245 | 23207 | 151.54 | 803 | 784 | 148.0 |
| B | 12 | 111 | 17218 | 111.06 | 803 | 784 | 148.0 |
| C | 14 | 238 | 128693 | 707.26 | 791 | 800 | 180.8 |
| C | 3 | 233 | 51702 | 281.49 | 791 | 800 | 180.8 |
| C | 2 | 16 | 22430 | 119.62 | 791 | 800 | 180.8 |
| D | 1 | 52 | 2481687 | 13973.46 | 752 | 732 | 177.5 |
| D | 8 | 195 | 539458 | 3034.26 | 752 | 732 | 177.5 |
| D | 2 | 250 | 46116 | 255.61 | 752 | 732 | 177.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

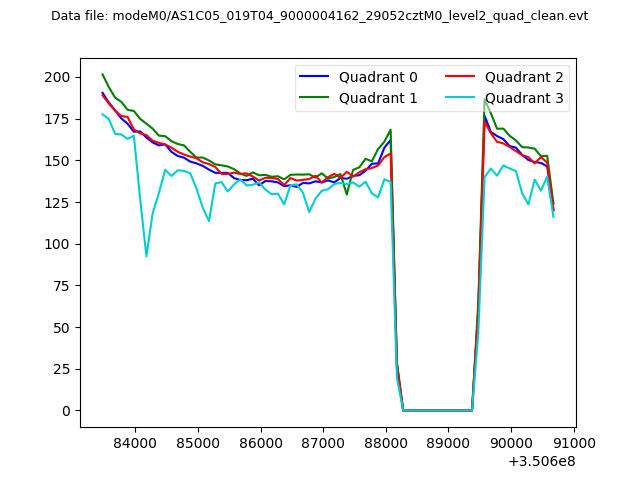

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

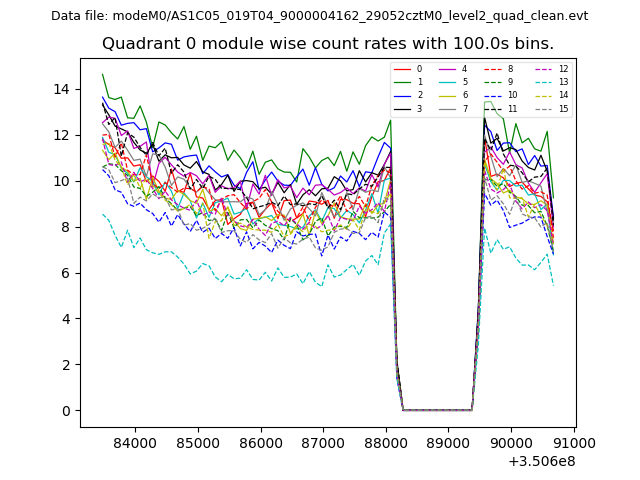

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

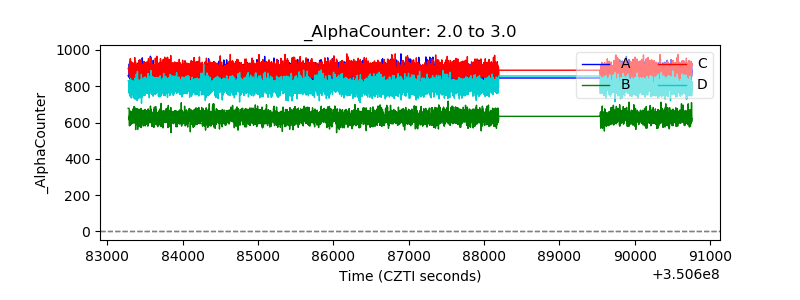

| Alpha Counter |  |
| _CPM_Rate |  |

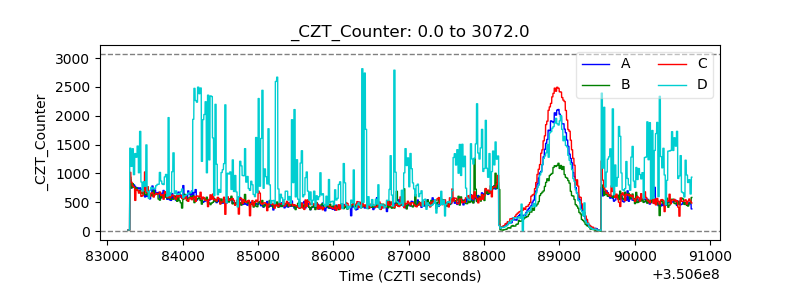

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

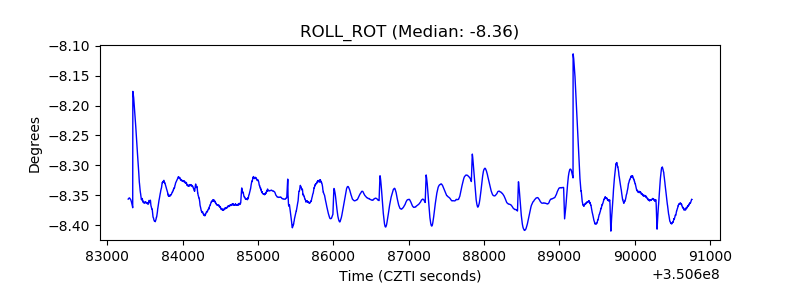

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

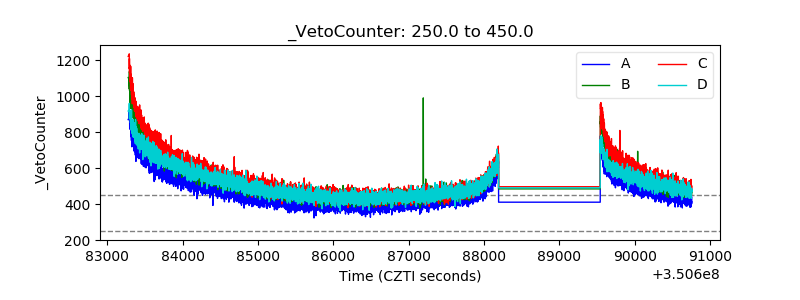

| Veto Counter |  |
