| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_094T20_9000004164_29061cztM0_level2.evt | modeM0/AS1A10_094T20_9000004164_29061cztM0_level2_quad_clean.evt |
| Size (bytes) | 252,074,880 | 58,213,440 |
| Size | 240.4 MB | 55.5 MB |
| Events in quadrant A | 1,486,507 | 394,984 |
| Events in quadrant B | 1,610,417 | 394,769 |
| Events in quadrant C | 1,481,085 | 376,903 |
| Events in quadrant D | 2,826,910 | 358,420 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 70 | 0 |
| B | 0 | 70 | 0 |
| C | 0 | 70 | 0 |
| D | 0 | 70 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6779 | 0 |
| B | 0 | 7056 | 0 |
| C | 0 | 6786 | 0 |
| D | 0 | 10724 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3346 | 38 | 1.135684% |
| B | 3346 | 51 | 1.524208% |
| C | 3346 | 62 | 1.852959% |
| D | 3346 | 193 | 5.768081% |

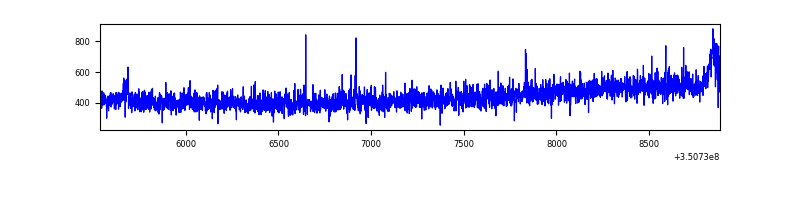

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

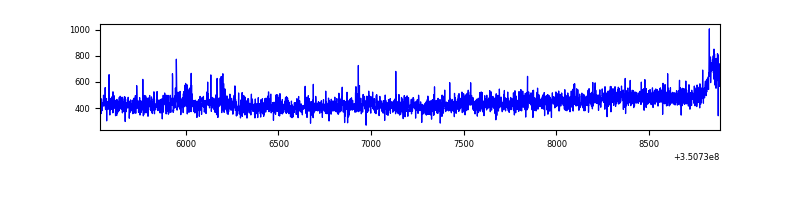

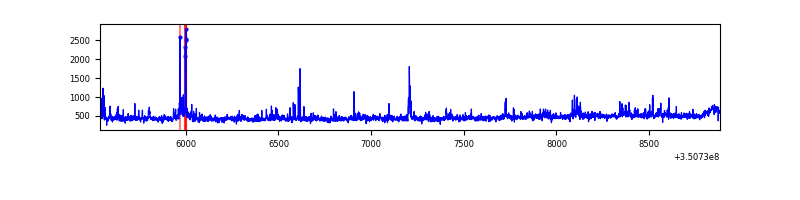

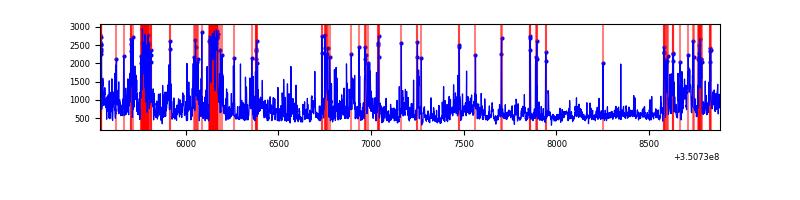

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3345 | 3345 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3345 | 3345 | 6 | 6 | 0.18% | 0.18% |  |
| C | 3345 | 3345 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3345 | 3345 | 169 | 169 | 5.05% | 5.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 18255 | 230.08 | 378 | 371 | 77.7 |
| A | 13 | 254 | 6205 | 75.06 | 378 | 371 | 77.7 |
| A | 13 | 6 | 4314 | 50.73 | 378 | 371 | 77.7 |
| B | 14 | 167 | 54095 | 721.92 | 378 | 369 | 74.4 |
| B | 5 | 255 | 32611 | 433.24 | 378 | 369 | 74.4 |
| B | 10 | 246 | 23378 | 309.17 | 378 | 369 | 74.4 |
| C | 14 | 238 | 58985 | 688.08 | 360 | 362 | 85.2 |
| C | 2 | 114 | 8020 | 89.88 | 360 | 362 | 85.2 |
| C | 2 | 16 | 7701 | 86.14 | 360 | 362 | 85.2 |
| D | 1 | 52 | 857037 | 9903.02 | 354 | 342 | 86.5 |
| D | 8 | 195 | 497076 | 5742.03 | 354 | 342 | 86.5 |
| D | 2 | 250 | 76409 | 879.3 | 354 | 342 | 86.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

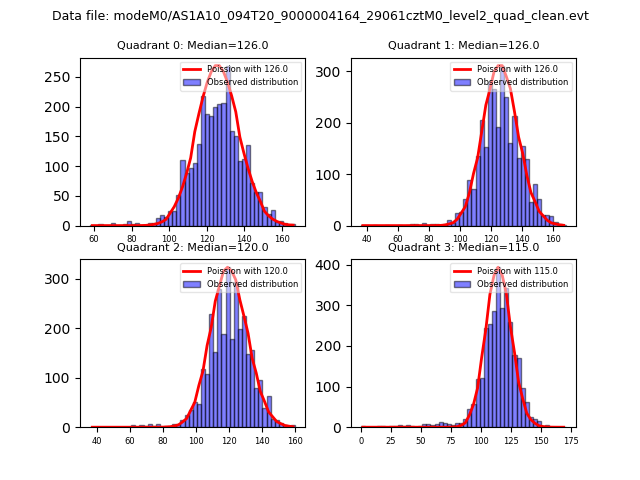

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

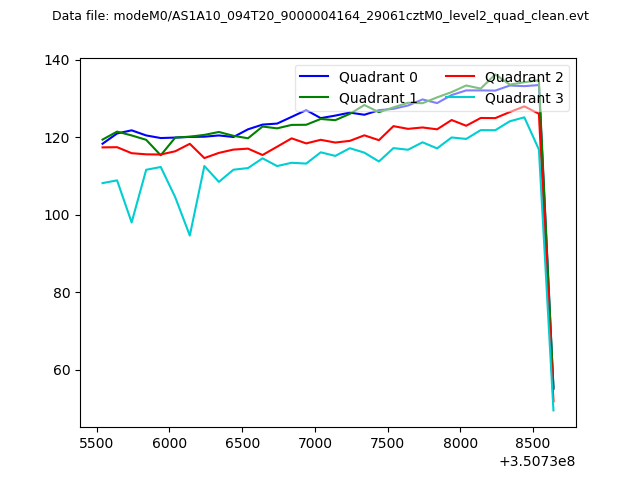

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

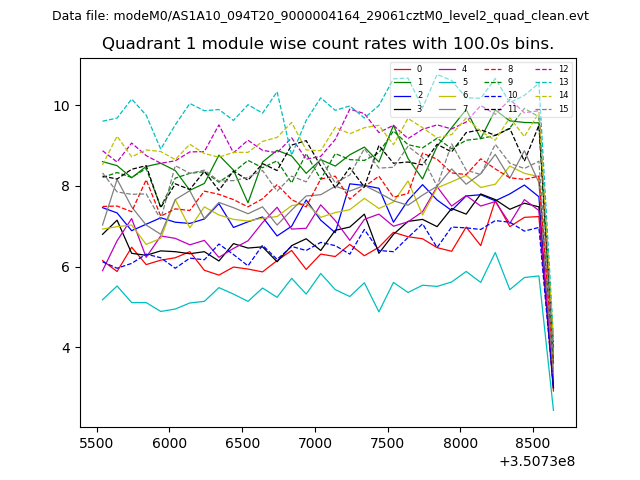

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

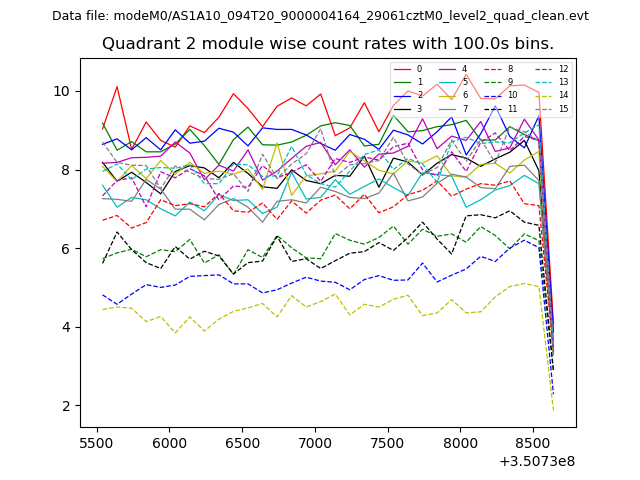

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

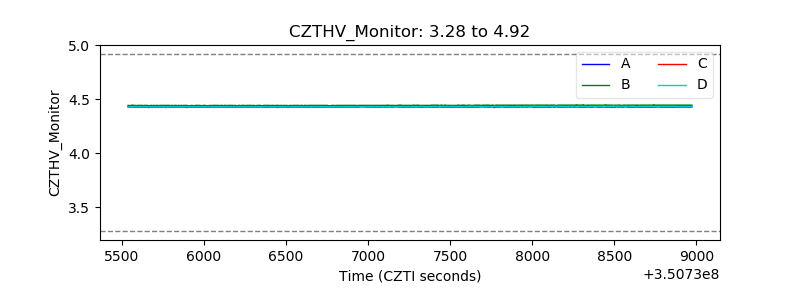

| CZT HV Monitor |  |

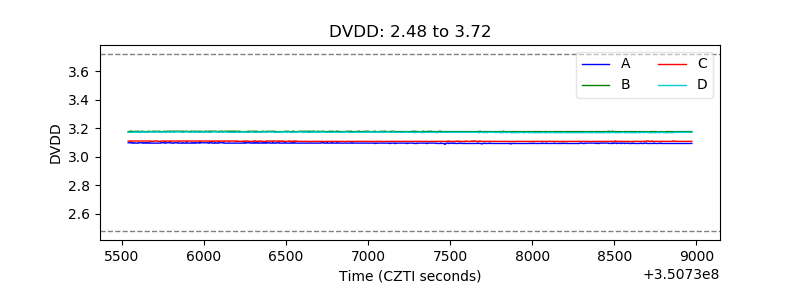

| D_VDD |  |

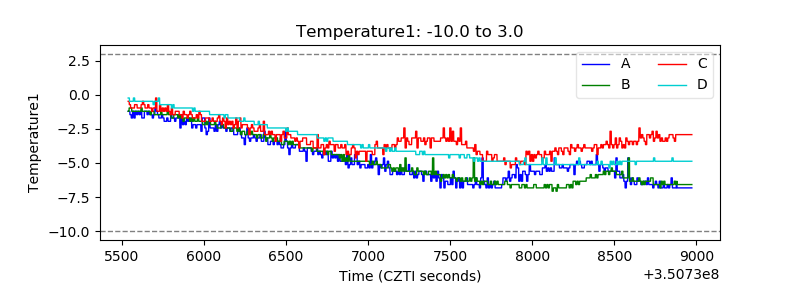

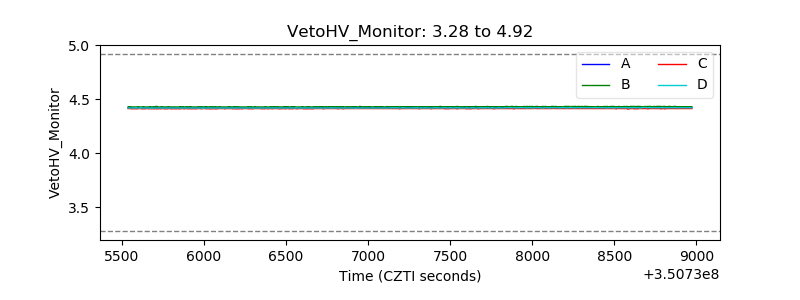

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

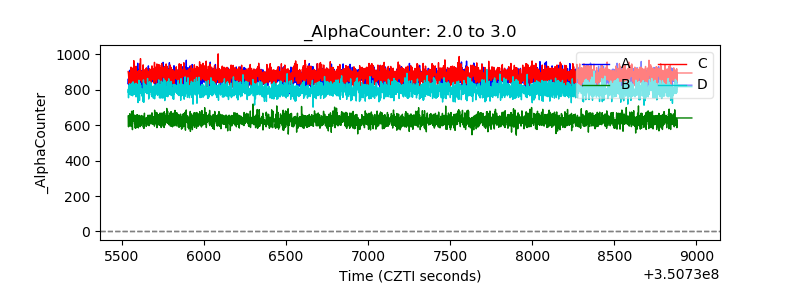

| Alpha Counter |  |

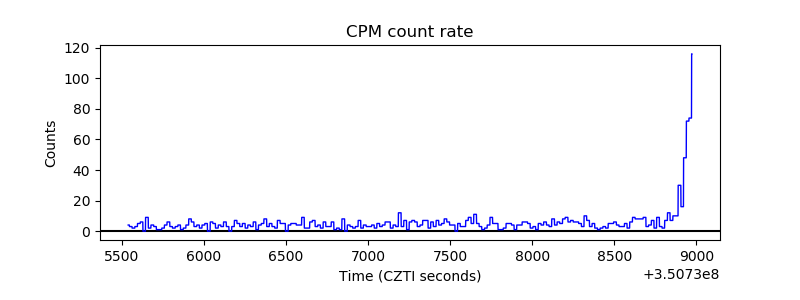

| _CPM_Rate |  |

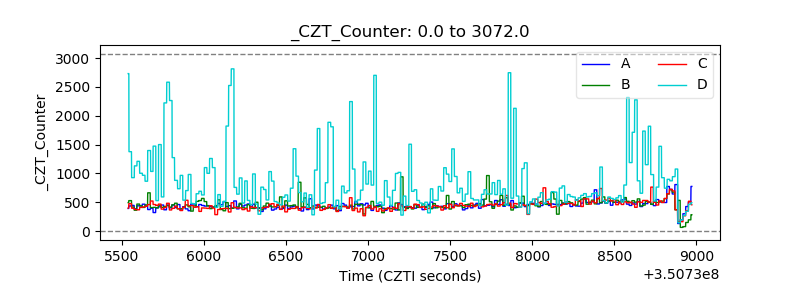

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

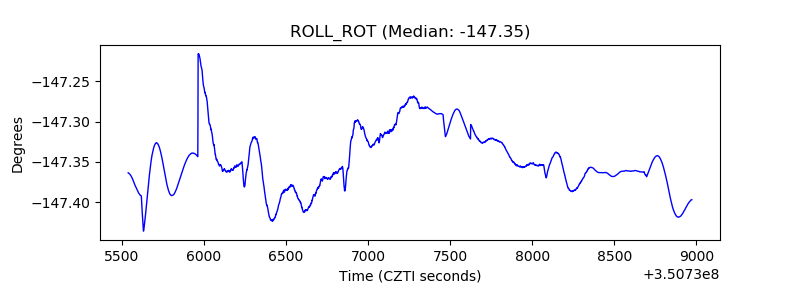

| _ROLL_ROT |  |

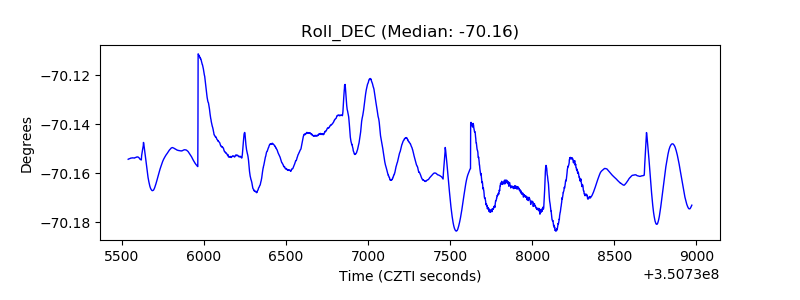

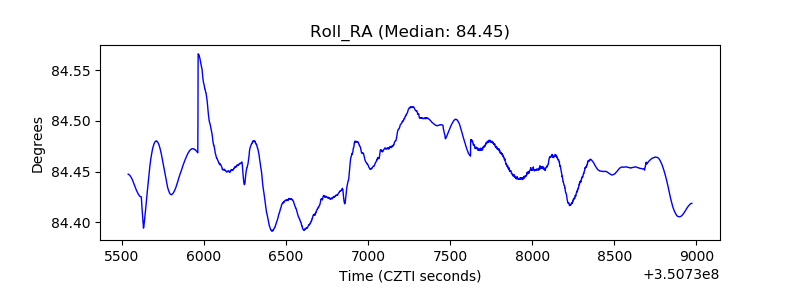

| _Roll_DEC |  |
| _Roll_RA |  |

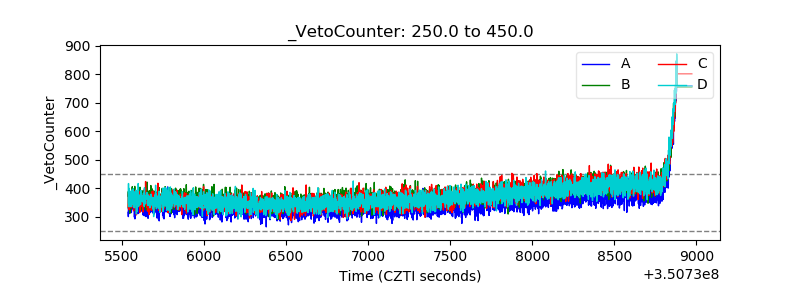

| Veto Counter |  |
