| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_094T21_9000004166_29061cztM0_level2.evt | modeM0/AS1A10_094T21_9000004166_29061cztM0_level2_quad_clean.evt |
| Size (bytes) | 376,349,760 | 87,482,880 |
| Size | 358.9 MB | 83.4 MB |
| Events in quadrant A | 2,865,505 | 593,737 |
| Events in quadrant B | 2,131,612 | 606,416 |
| Events in quadrant C | 2,086,469 | 576,841 |
| Events in quadrant D | 4,006,233 | 553,839 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11454 | 1 |
| B | 0 | 9362 | 1 |
| C | 0 | 9308 | 1 |
| D | 0 | 15145 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 92 | 0 |
| B | 0 | 92 | 0 |
| C | 0 | 92 | 0 |
| D | 0 | 92 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4525 | 68 | 1.502762% |
| B | 4525 | 15 | 0.331492% |
| C | 4525 | 26 | 0.574586% |
| D | 4525 | 159 | 3.513812% |

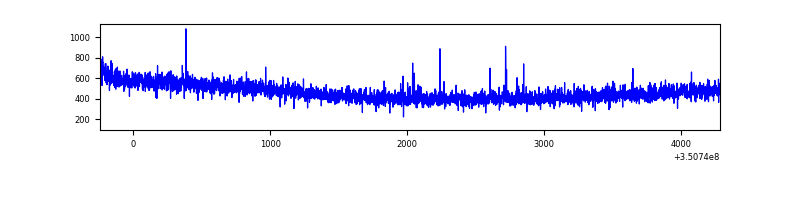

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4524 | 4524 | 77 | 77 | 1.70% | 1.70% |  |
| B | 4525 | 4525 | 0 | 0 | 0.00% | 0.00% |  |
| C | 4525 | 4525 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4525 | 4525 | 171 | 171 | 3.78% | 3.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 113 | 781711 | 7125.25 | 538 | 527 | 109.6 |
| A | 13 | 254 | 8998 | 77.26 | 538 | 527 | 109.6 |
| A | 6 | 16 | 6231 | 52.03 | 538 | 527 | 109.6 |
| B | 3 | 209 | 15301 | 144.4 | 533 | 521 | 102.4 |
| B | 12 | 111 | 12065 | 112.78 | 533 | 521 | 102.4 |
| B | 11 | 111 | 10799 | 100.42 | 533 | 521 | 102.4 |
| C | 14 | 238 | 84782 | 708.66 | 508 | 510 | 118.9 |
| C | 2 | 114 | 10381 | 83.01 | 508 | 510 | 118.9 |
| C | 2 | 16 | 6372 | 49.3 | 508 | 510 | 118.9 |
| D | 1 | 52 | 1015826 | 8352.0 | 509 | 494 | 121.6 |
| D | 8 | 195 | 973212 | 8001.46 | 509 | 494 | 121.6 |
| D | 2 | 250 | 51263 | 417.62 | 509 | 494 | 121.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

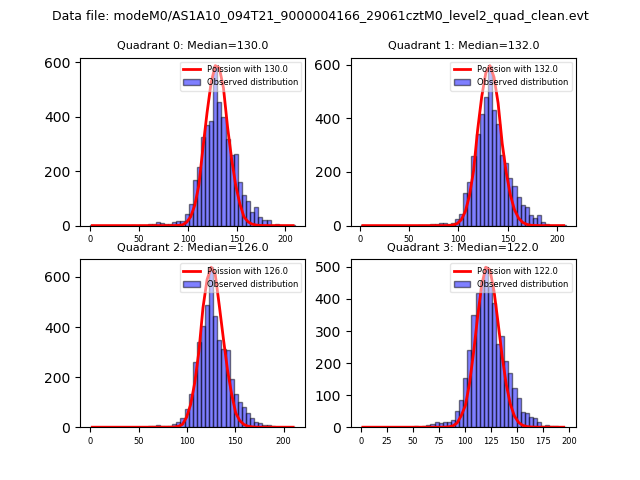

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

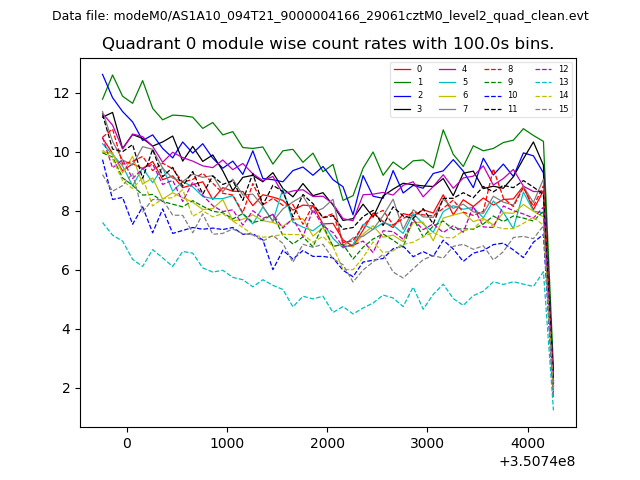

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

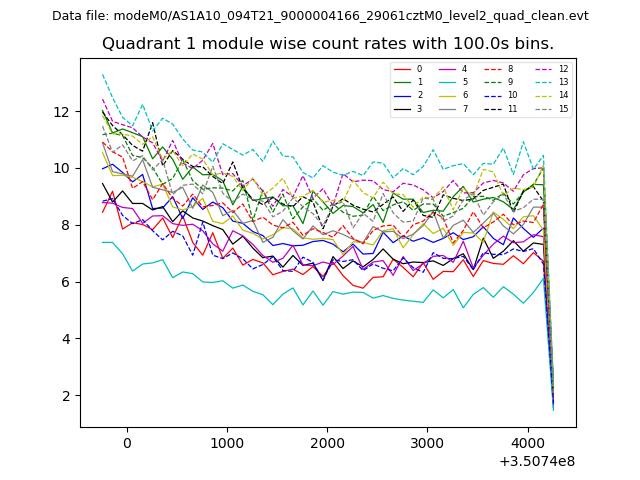

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

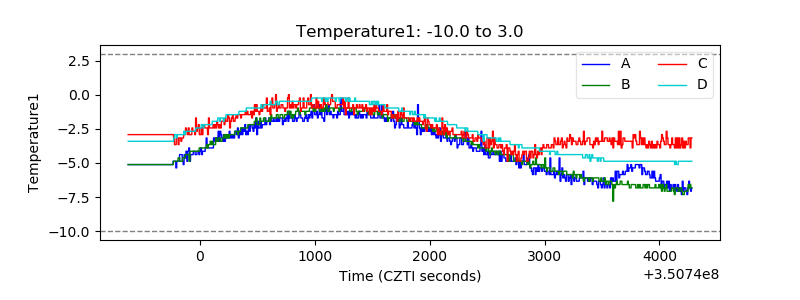

| Temperature 1 |  |
| Veto HV Monitor |  |

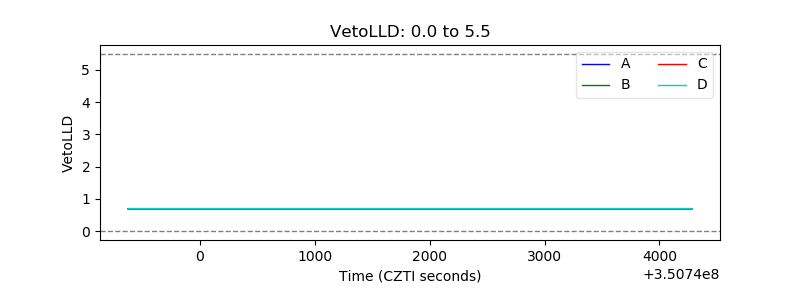

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

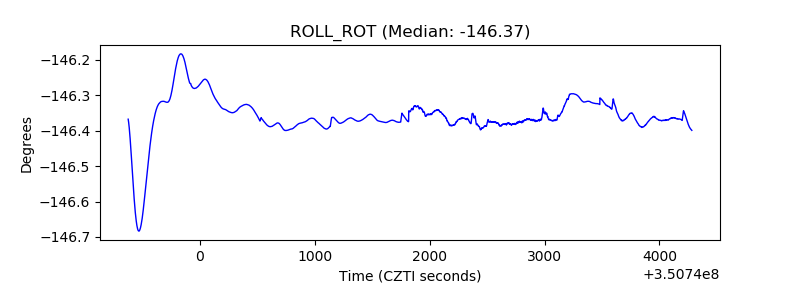

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
