| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_097T04_9000004170_29067cztM0_level2.evt | modeM0/AS1A10_097T04_9000004170_29067cztM0_level2_quad_clean.evt |
| Size (bytes) | 513,633,600 | 108,961,920 |
| Size | 489.8 MB | 103.9 MB |
| Events in quadrant A | 4,648,216 | 718,312 |
| Events in quadrant B | 3,396,443 | 751,703 |
| Events in quadrant C | 3,335,647 | 701,397 |
| Events in quadrant D | 3,729,622 | 670,931 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 27 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17925 | 2 |
| B | 0 | 14175 | 2 |
| C | 0 | 13930 | 2 |
| D | 0 | 15384 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6569 | 562 | 8.555336% |
| B | 6569 | 61 | 0.928604% |
| C | 6569 | 68 | 1.035165% |
| D | 6569 | 64 | 0.974273% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7848 | 6568 | 513 | 513 | 6.54% | 7.81% |  |
| B | 7848 | 6568 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7848 | 6569 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7848 | 6568 | 38 | 38 | 0.48% | 0.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 113 | 1500784 | 9196.2 | 815 | 802 | 163.1 |
| A | 13 | 254 | 10455 | 59.18 | 815 | 802 | 163.1 |
| A | 3 | 137 | 7871 | 43.34 | 815 | 802 | 163.1 |
| B | 0 | 183 | 55702 | 344.73 | 847 | 828 | 159.2 |
| B | 12 | 111 | 19420 | 116.8 | 847 | 828 | 159.2 |
| B | 11 | 111 | 17797 | 106.6 | 847 | 828 | 159.2 |
| C | 14 | 238 | 133717 | 700.79 | 811 | 819 | 189.6 |
| C | 2 | 16 | 22994 | 116.93 | 811 | 819 | 189.6 |
| C | 2 | 114 | 15335 | 76.54 | 811 | 819 | 189.6 |
| D | 8 | 195 | 380036 | 2016.11 | 797 | 778 | 188.1 |
| D | 1 | 52 | 307685 | 1631.5 | 797 | 778 | 188.1 |
| D | 2 | 234 | 24366 | 125.39 | 797 | 778 | 188.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

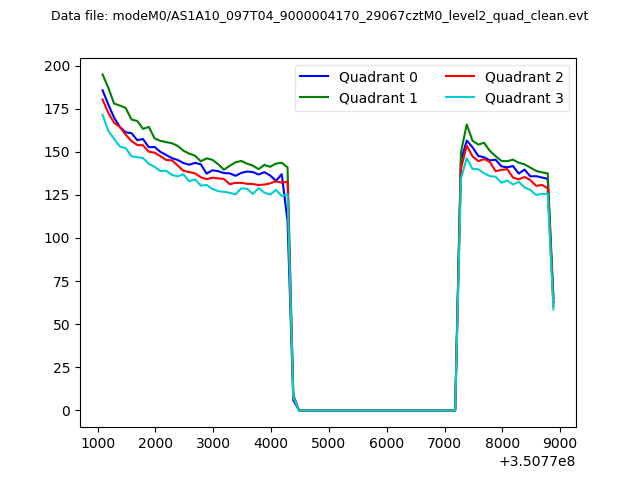

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

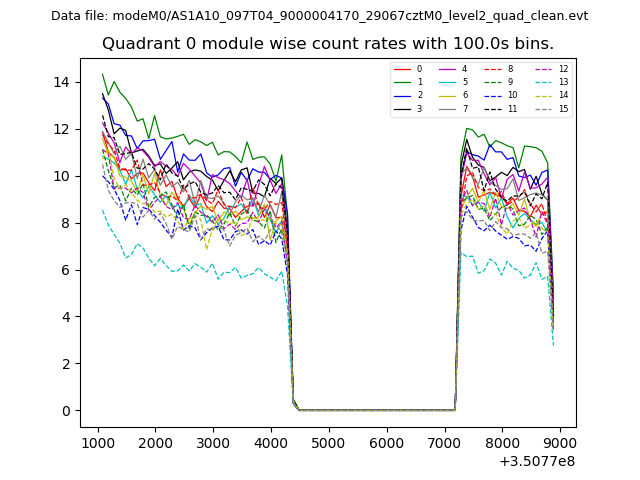

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

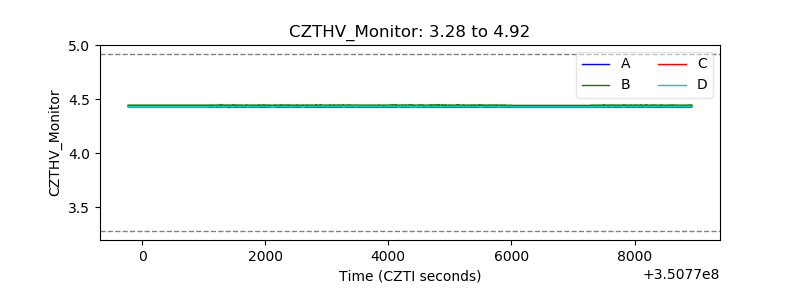

| CZT HV Monitor |  |

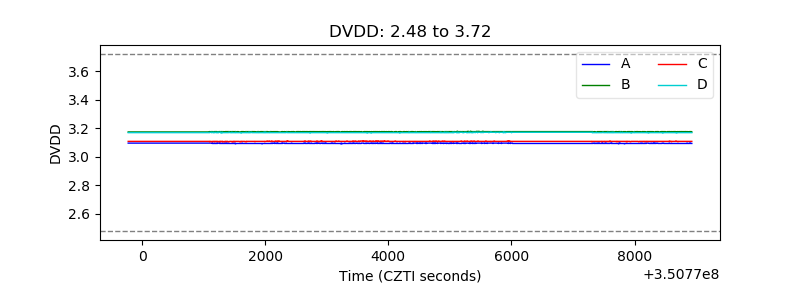

| D_VDD |  |

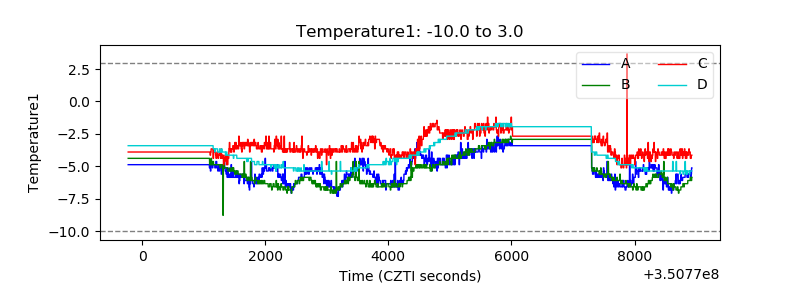

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

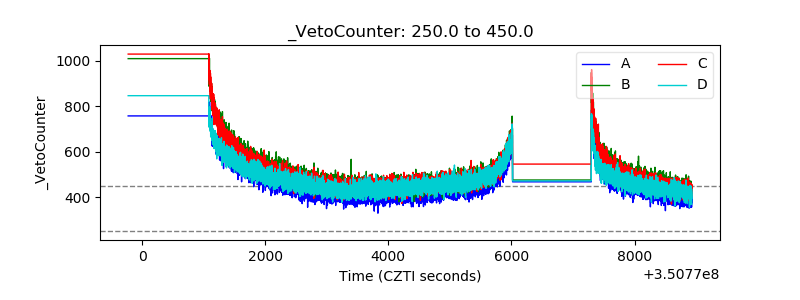

| Veto Counter |  |
