| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_097T04_9000004170_29069cztM0_level2.evt | modeM0/AS1A10_097T04_9000004170_29069cztM0_level2_quad_clean.evt |
| Size (bytes) | 526,466,880 | 103,561,920 |
| Size | 502.1 MB | 98.8 MB |
| Events in quadrant A | 3,430,106 | 671,719 |
| Events in quadrant B | 3,703,223 | 684,492 |
| Events in quadrant C | 3,545,953 | 648,395 |
| Events in quadrant D | 4,770,961 | 625,171 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14962 | 2 |
| B | 0 | 15581 | 2 |
| C | 0 | 15092 | 2 |
| D | 0 | 19112 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7280 | 46 | 0.631868% |
| B | 7280 | 119 | 1.634615% |
| C | 7280 | 148 | 2.032967% |
| D | 7280 | 272 | 3.736264% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7734 | 7279 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7734 | 7279 | 25 | 25 | 0.32% | 0.34% |  |
| C | 7734 | 7279 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7735 | 7281 | 198 | 198 | 2.56% | 2.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11025 | 56.88 | 887 | 868 | 178.6 |
| A | 3 | 137 | 8905 | 45.0 | 887 | 868 | 178.6 |
| A | 0 | 226 | 7401 | 36.58 | 887 | 868 | 178.6 |
| B | 10 | 246 | 173071 | 1004.48 | 886 | 864 | 171.4 |
| B | 12 | 111 | 22037 | 123.5 | 886 | 864 | 171.4 |
| B | 11 | 111 | 19740 | 110.1 | 886 | 864 | 171.4 |
| C | 14 | 238 | 139760 | 686.05 | 860 | 869 | 202.4 |
| C | 2 | 16 | 22064 | 104.69 | 860 | 869 | 202.4 |
| C | 2 | 114 | 17202 | 80.68 | 860 | 869 | 202.4 |
| D | 1 | 52 | 1009650 | 4964.73 | 849 | 824 | 203.2 |
| D | 8 | 195 | 466861 | 2293.5 | 849 | 824 | 203.2 |
| D | 7 | 80 | 56025 | 271.66 | 849 | 824 | 203.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

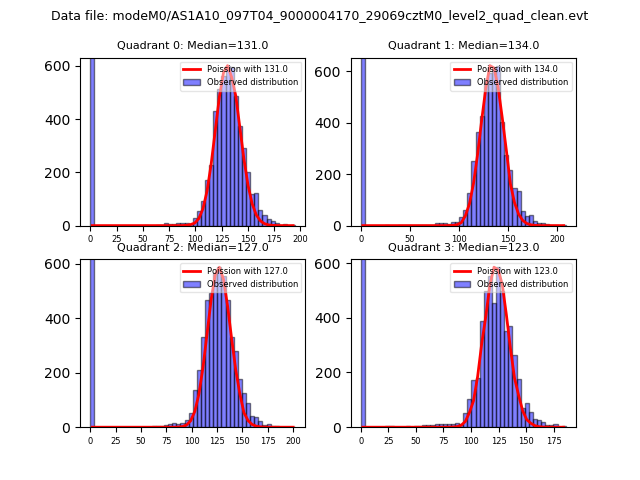

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

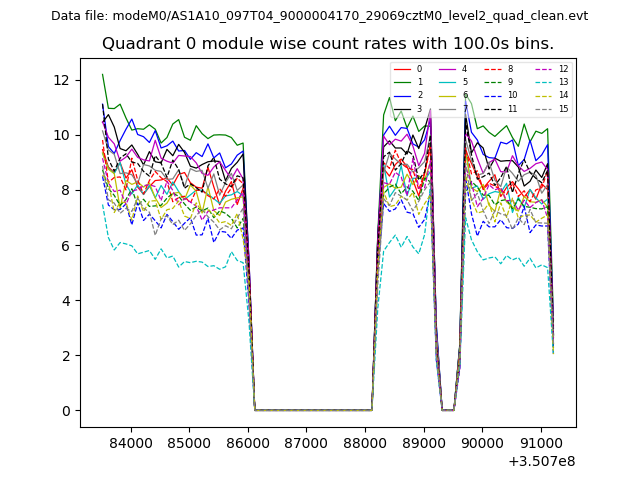

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

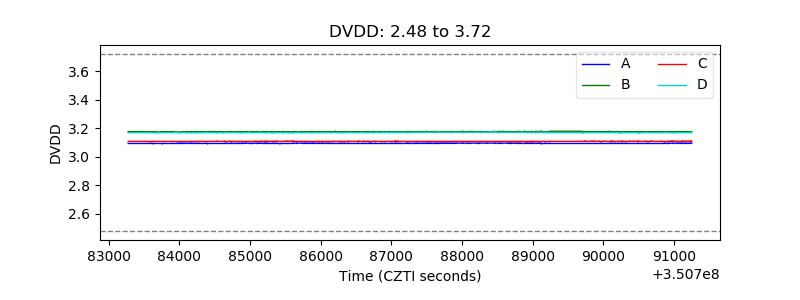

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

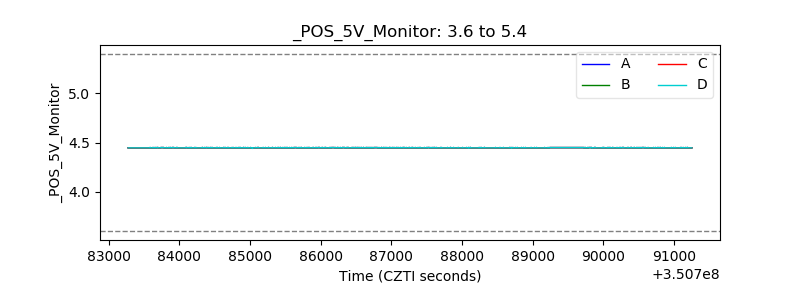

| +5 Volts monitor |  |

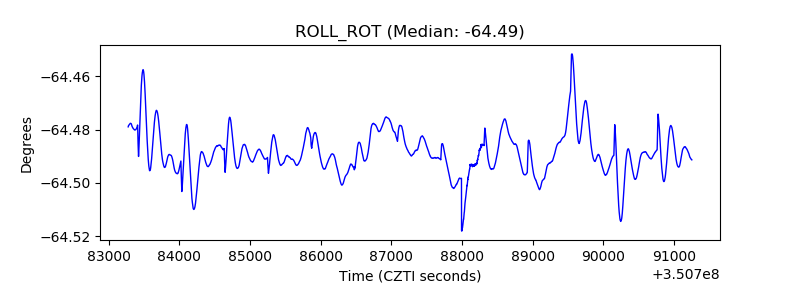

| _ROLL_ROT |  |

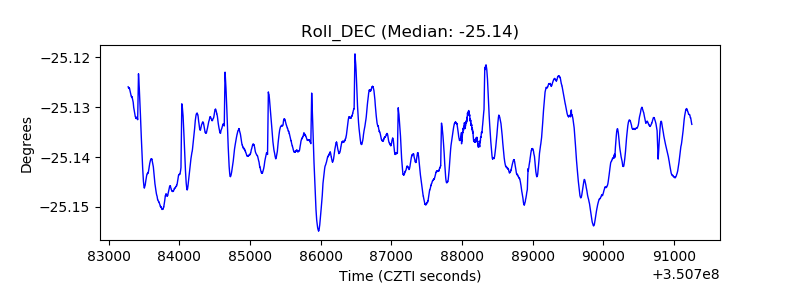

| _Roll_DEC |  |

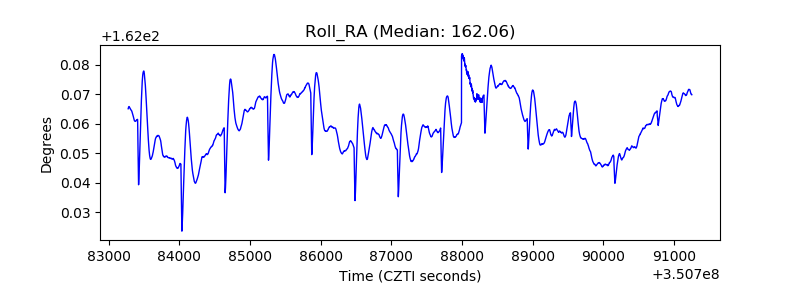

| _Roll_RA |  |
| Veto Counter |  |
