| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_094T17_9000004176_29078cztM0_level2.evt | modeM0/AS1A10_094T17_9000004176_29078cztM0_level2_quad_clean.evt |
| Size (bytes) | 211,916,160 | 44,372,160 |
| Size | 202.1 MB | 42.3 MB |
| Events in quadrant A | 1,115,103 | 321,173 |
| Events in quadrant B | 1,186,860 | 326,632 |
| Events in quadrant C | 1,082,299 | 299,326 |
| Events in quadrant D | 2,900,223 | 255,141 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 42 | 0 |
| B | 0 | 42 | 0 |
| C | 0 | 42 | 0 |
| D | 0 | 42 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4549 | 1 |
| B | 0 | 4810 | 1 |
| C | 0 | 4426 | 1 |
| D | 0 | 9981 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1930 | 65 | 3.367876% |
| B | 1930 | 87 | 4.507772% |
| C | 1930 | 75 | 3.886010% |
| D | 1930 | 637 | 33.005181% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3119 | 1929 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3120 | 1930 | 4 | 4 | 0.13% | 0.21% |  |
| C | 3120 | 1930 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3119 | 1929 | 590 | 590 | 18.92% | 30.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 3824 | 59.99 | 287 | 282 | 59.0 |
| A | 13 | 254 | 3542 | 55.21 | 287 | 282 | 59.0 |
| A | 3 | 137 | 2552 | 38.44 | 287 | 282 | 59.0 |
| B | 5 | 172 | 47188 | 871.35 | 282 | 277 | 53.8 |
| B | 10 | 246 | 15050 | 274.4 | 282 | 277 | 53.8 |
| B | 3 | 209 | 6565 | 116.8 | 282 | 277 | 53.8 |
| C | 14 | 238 | 43147 | 686.59 | 264 | 265 | 62.5 |
| C | 2 | 114 | 5062 | 76.81 | 264 | 265 | 62.5 |
| C | 2 | 16 | 2533 | 36.31 | 264 | 265 | 62.5 |
| D | 1 | 52 | 1500306 | 25206.22 | 247 | 240 | 59.5 |
| D | 8 | 195 | 285800 | 4798.38 | 247 | 240 | 59.5 |
| D | 7 | 69 | 107100 | 1795.61 | 247 | 240 | 59.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

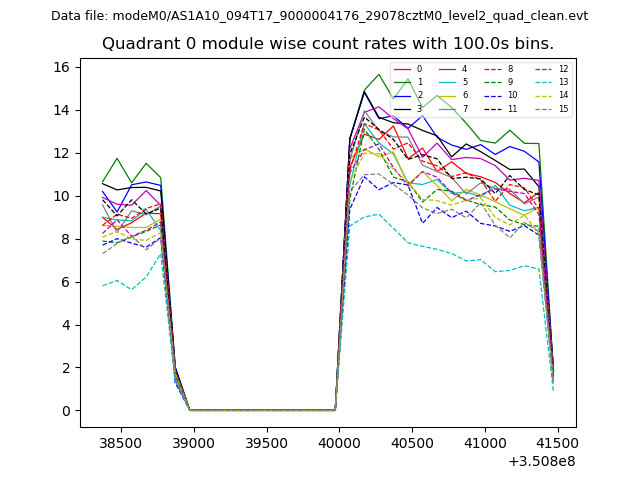

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

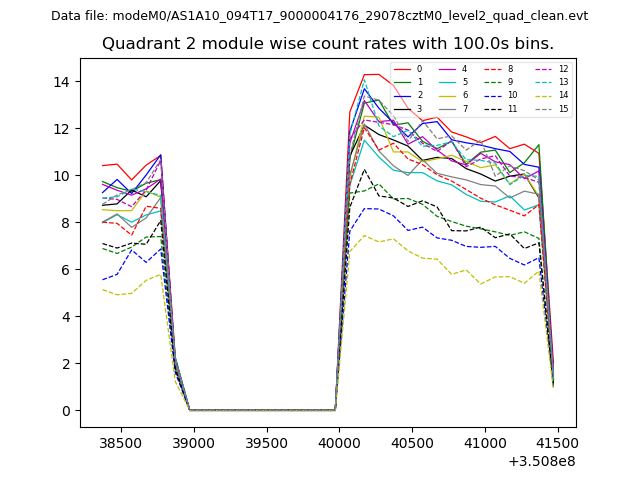

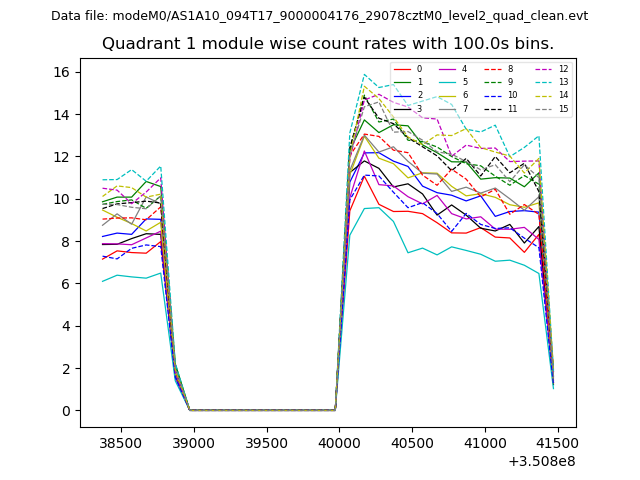

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

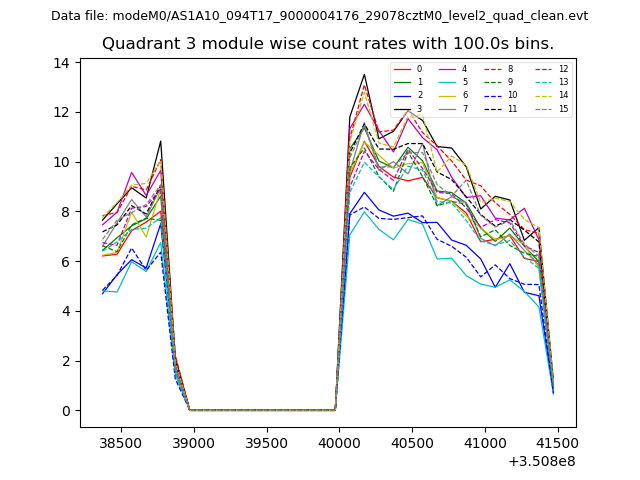

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

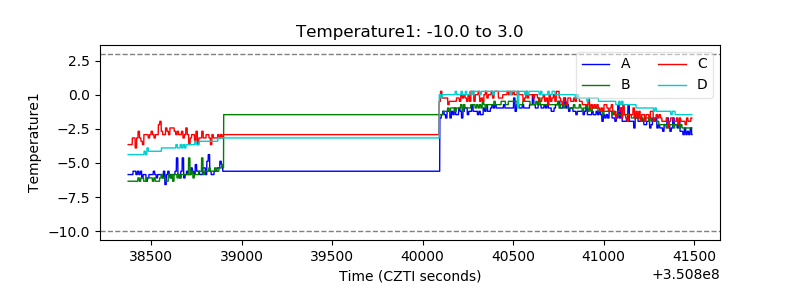

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
