| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_094T19_9000004172_29075cztM0_level2.evt | modeM0/AS1A10_094T19_9000004172_29075cztM0_level2_quad_clean.evt |
| Size (bytes) | 238,694,400 | 60,338,880 |
| Size | 227.6 MB | 57.5 MB |
| Events in quadrant A | 1,493,206 | 417,237 |
| Events in quadrant B | 1,597,867 | 425,428 |
| Events in quadrant C | 1,520,359 | 397,379 |
| Events in quadrant D | 2,416,525 | 377,807 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6280 | 1 |
| B | 0 | 6590 | 1 |
| C | 0 | 6342 | 1 |
| D | 0 | 9233 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 60 | 0 |
| B | 0 | 60 | 0 |
| C | 0 | 60 | 0 |
| D | 0 | 60 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2936 | 18 | 0.613079% |
| B | 2936 | 33 | 1.123978% |
| C | 2936 | 53 | 1.805177% |
| D | 2935 | 170 | 5.792164% |

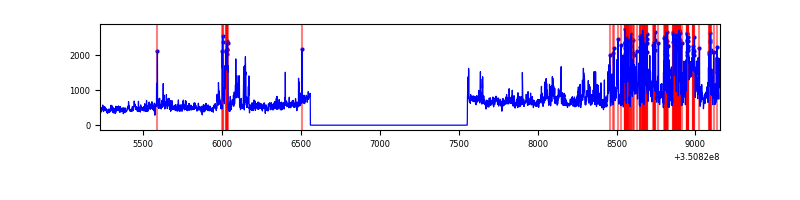

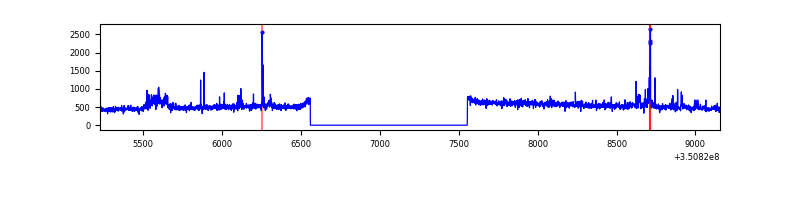

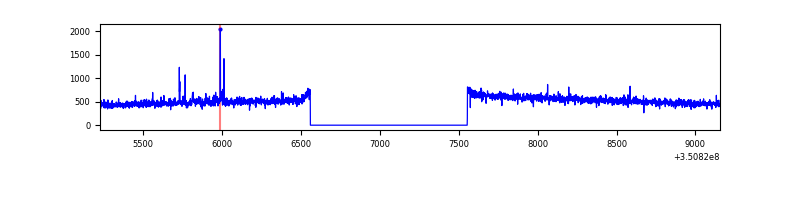

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3931 | 2936 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3930 | 2935 | 4 | 4 | 0.10% | 0.14% |  |
| C | 3930 | 2935 | 1 | 1 | 0.03% | 0.03% |  |
| D | 3930 | 2936 | 158 | 158 | 4.02% | 5.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 4937 | 57.21 | 386 | 380 | 79.7 |
| A | 3 | 137 | 3801 | 42.95 | 386 | 380 | 79.7 |
| A | 0 | 226 | 3197 | 35.36 | 386 | 380 | 79.7 |
| B | 0 | 183 | 38536 | 518.14 | 383 | 373 | 73.7 |
| B | 5 | 255 | 26556 | 355.49 | 383 | 373 | 73.7 |
| B | 10 | 246 | 15005 | 198.66 | 383 | 373 | 73.7 |
| C | 14 | 238 | 59938 | 680.48 | 368 | 370 | 87.5 |
| C | 2 | 16 | 18117 | 202.73 | 368 | 370 | 87.5 |
| C | 2 | 114 | 6985 | 75.57 | 368 | 370 | 87.5 |
| D | 1 | 52 | 498036 | 5642.07 | 366 | 355 | 88.2 |
| D | 8 | 195 | 247737 | 2804.5 | 366 | 355 | 88.2 |
| D | 7 | 80 | 185530 | 2099.27 | 366 | 355 | 88.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

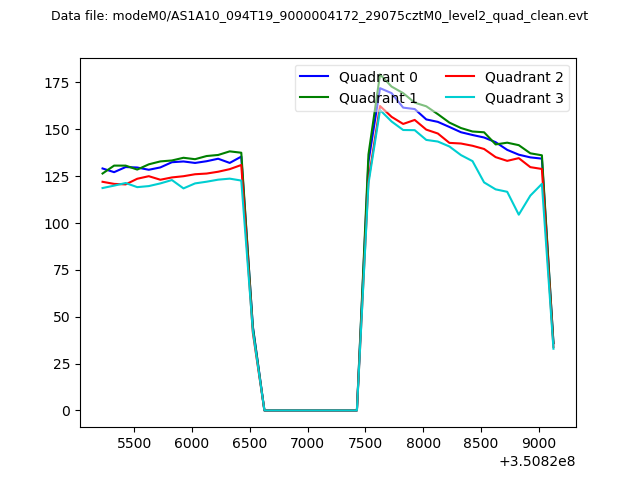

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

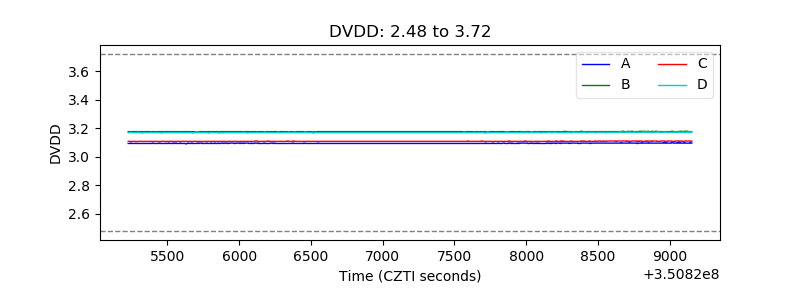

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

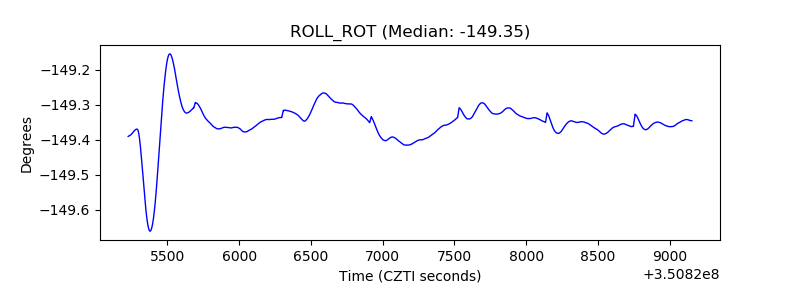

| _ROLL_ROT |  |

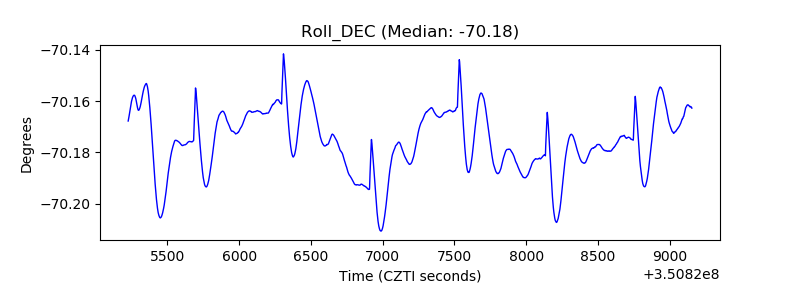

| _Roll_DEC |  |

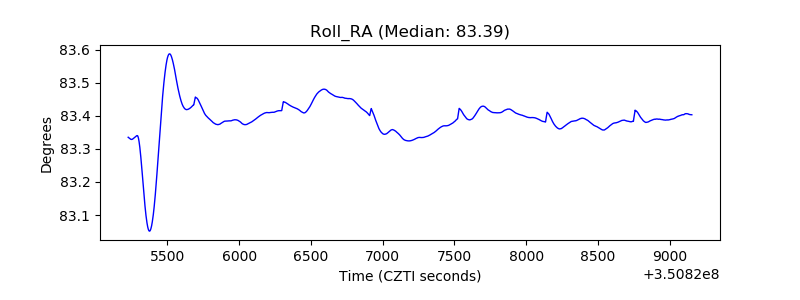

| _Roll_RA |  |
| Veto Counter |  |
