| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_063T01_9000004182_29106cztM0_level2.evt | modeM0/AS1A10_063T01_9000004182_29106cztM0_level2_quad_clean.evt |
| Size (bytes) | 567,351,360 | 67,403,520 |
| Size | 541.1 MB | 64.3 MB |
| Events in quadrant A | 3,441,019 | 400,853 |
| Events in quadrant B | 3,543,407 | 406,366 |
| Events in quadrant C | 3,991,673 | 390,693 |
| Events in quadrant D | 5,755,361 | 378,814 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14457 | 2 |
| B | 0 | 14697 | 2 |
| C | 0 | 16392 | 2 |
| D | 0 | 21742 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6652 | 60 | 0.901984% |
| B | 6652 | 65 | 0.977150% |
| C | 6652 | 133 | 1.999399% |
| D | 6652 | 596 | 8.959711% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7787 | 6653 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7787 | 6653 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7787 | 6653 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7787 | 6653 | 489 | 489 | 6.28% | 7.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10870 | 56.17 | 888 | 872 | 178.0 |
| A | 13 | 6 | 10598 | 54.64 | 888 | 872 | 178.0 |
| A | 3 | 137 | 8343 | 41.97 | 888 | 872 | 178.0 |
| B | 10 | 245 | 70479 | 419.95 | 873 | 852 | 165.8 |
| B | 0 | 190 | 31963 | 187.64 | 873 | 852 | 165.8 |
| B | 12 | 111 | 20082 | 115.98 | 873 | 852 | 165.8 |
| C | 3 | 233 | 515662 | 2638.05 | 848 | 857 | 195.1 |
| C | 14 | 238 | 137196 | 698.65 | 848 | 857 | 195.1 |
| C | 10 | 9 | 16540 | 80.37 | 848 | 857 | 195.1 |
| D | 1 | 52 | 1674619 | 8590.29 | 828 | 808 | 194.8 |
| D | 8 | 195 | 709846 | 3638.91 | 828 | 808 | 194.8 |
| D | 13 | 104 | 167873 | 857.41 | 828 | 808 | 194.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

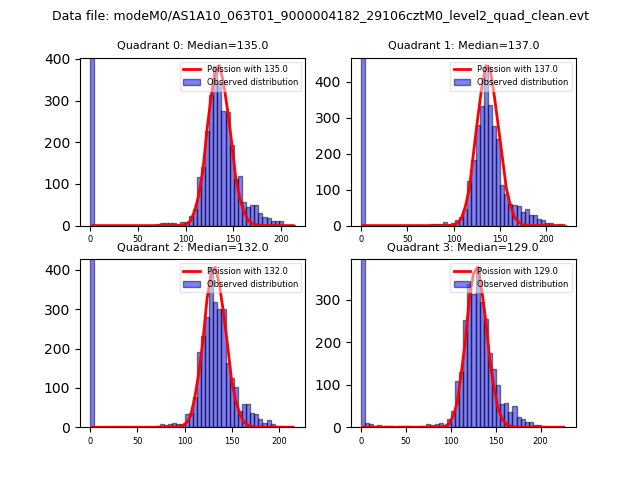

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

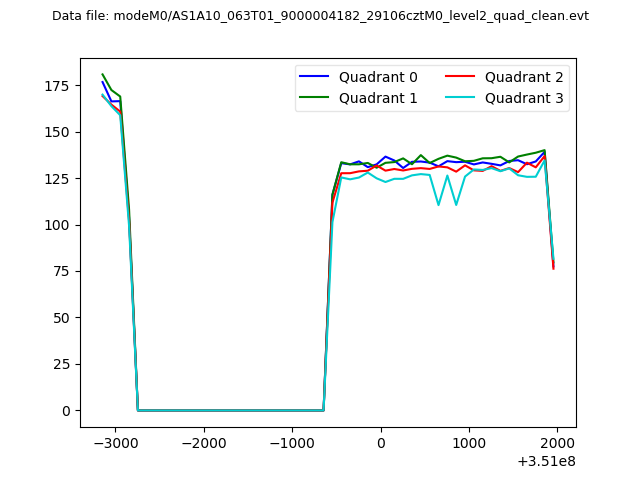

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

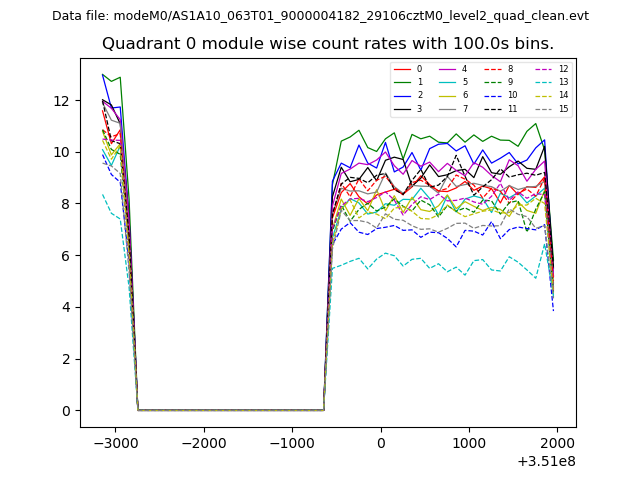

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

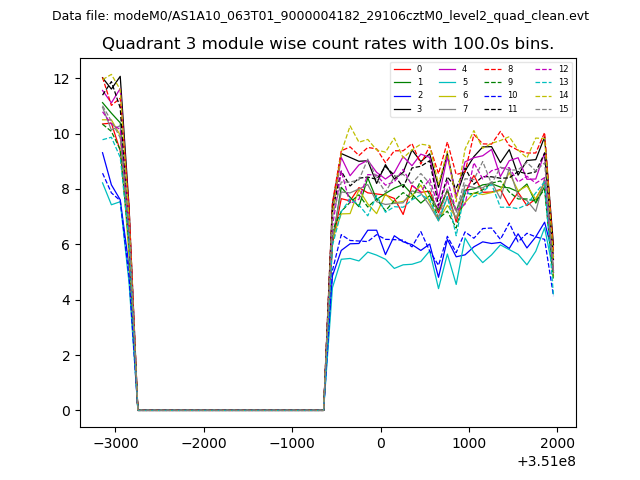

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

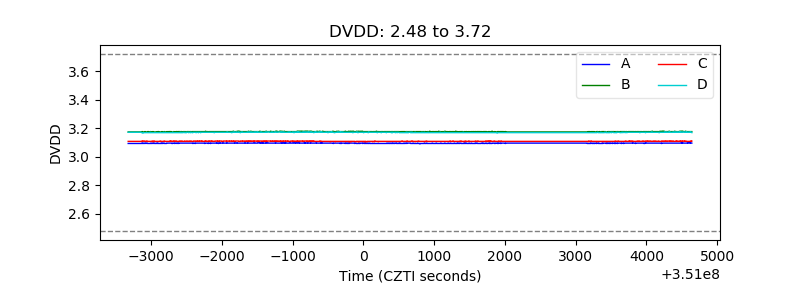

| D_VDD |  |

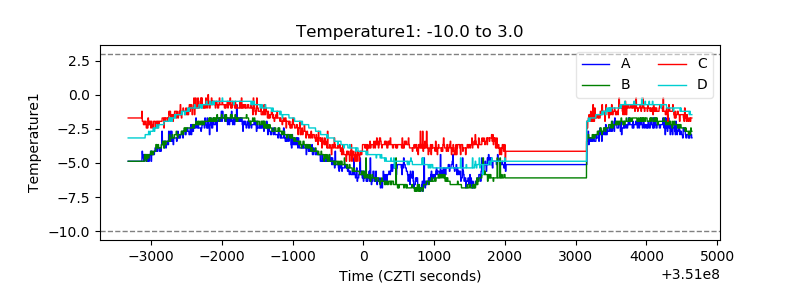

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

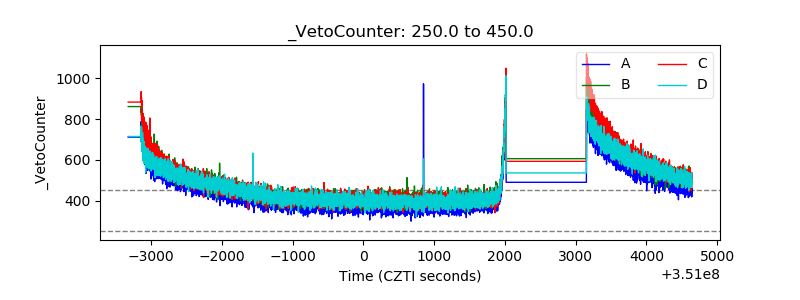

| Veto Counter |  |
