| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_063T01_9000004182_29113cztM0_level2.evt | modeM0/AS1A10_063T01_9000004182_29113cztM0_level2_quad_clean.evt |
| Size (bytes) | 644,932,800 | 109,601,280 |
| Size | 615.1 MB | 104.5 MB |
| Events in quadrant A | 4,064,790 | 699,547 |
| Events in quadrant B | 4,466,958 | 710,715 |
| Events in quadrant C | 5,104,675 | 685,764 |
| Events in quadrant D | 5,351,619 | 664,878 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17389 | 3 |
| B | 0 | 18537 | 4 |
| C | 0 | 20535 | 3 |
| D | 0 | 21502 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8021 | 272 | 3.391098% |
| B | 8021 | 439 | 5.473133% |
| C | 8021 | 431 | 5.373395% |
| D | 8021 | 327 | 4.076798% |

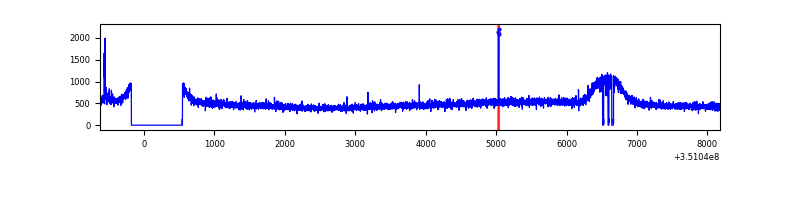

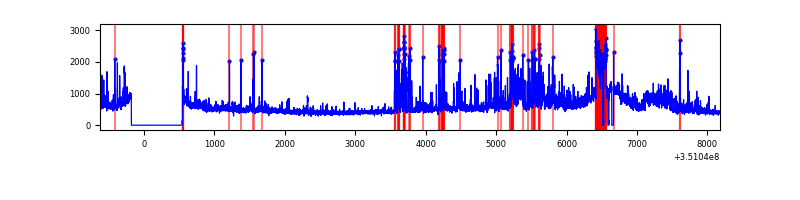

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8801 | 8025 | 3 | 3 | 0.03% | 0.04% |  |
| B | 8801 | 8025 | 62 | 62 | 0.70% | 0.77% |  |
| C | 8801 | 8025 | 5 | 5 | 0.06% | 0.06% |  |
| D | 8801 | 8025 | 153 | 153 | 1.74% | 1.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 20745 | 92.39 | 1045 | 1021 | 213.5 |
| A | 13 | 254 | 13533 | 58.61 | 1045 | 1021 | 213.5 |
| A | 3 | 137 | 10940 | 46.46 | 1045 | 1021 | 213.5 |
| B | 10 | 245 | 266581 | 1305.73 | 1035 | 1006 | 203.4 |
| B | 0 | 183 | 60996 | 294.95 | 1035 | 1006 | 203.4 |
| B | 0 | 190 | 48095 | 231.52 | 1035 | 1006 | 203.4 |
| C | 3 | 233 | 1025536 | 4301.77 | 1000 | 1006 | 238.2 |
| C | 14 | 238 | 157120 | 655.49 | 1000 | 1006 | 238.2 |
| C | 2 | 114 | 19755 | 78.72 | 1000 | 1006 | 238.2 |
| D | 1 | 52 | 1007998 | 4209.25 | 995 | 968 | 239.2 |
| D | 8 | 195 | 490255 | 2045.15 | 995 | 968 | 239.2 |
| D | 13 | 104 | 36104 | 146.86 | 995 | 968 | 239.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

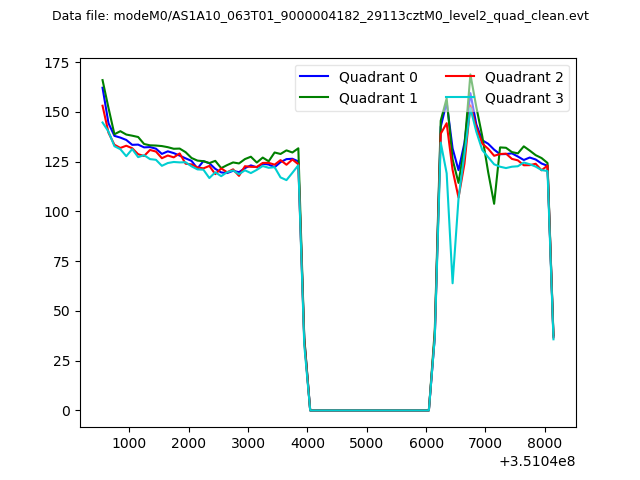

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

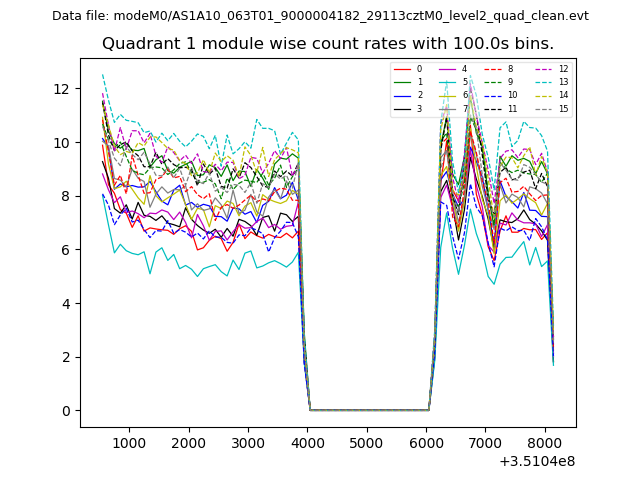

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

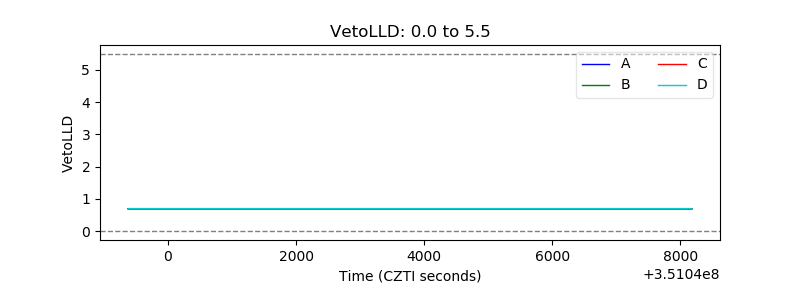

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

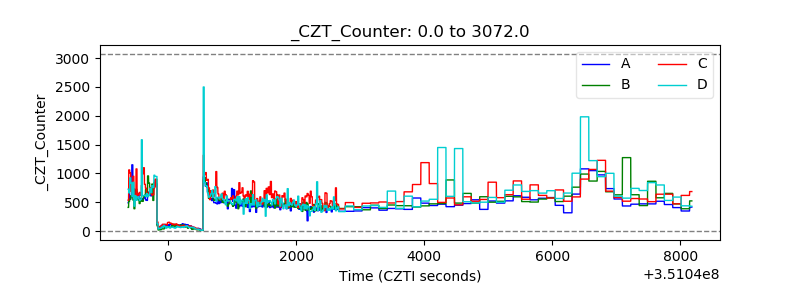

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

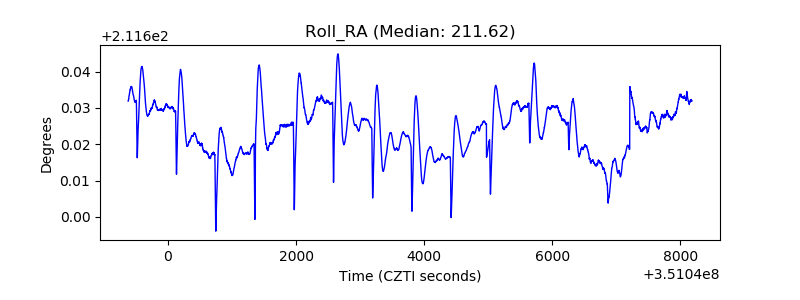

| _ROLL_ROT |  |

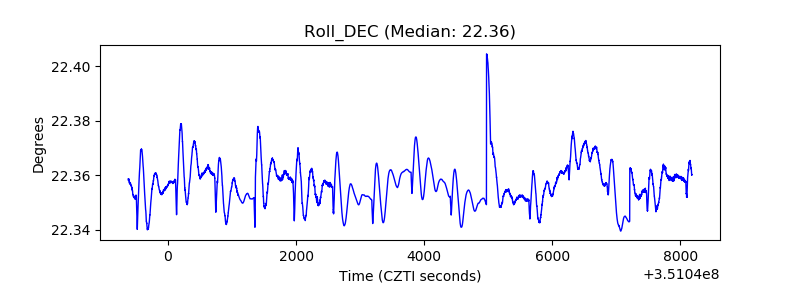

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
