| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_063T01_9000004182_29119cztM0_level2.evt | modeM0/AS1A10_063T01_9000004182_29119cztM0_level2_quad_clean.evt |
| Size (bytes) | 509,215,680 | 74,226,240 |
| Size | 485.6 MB | 70.8 MB |
| Events in quadrant A | 3,453,684 | 448,026 |
| Events in quadrant B | 3,620,231 | 458,493 |
| Events in quadrant C | 3,583,316 | 441,445 |
| Events in quadrant D | 4,307,791 | 430,328 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14383 | 2 |
| B | 0 | 14855 | 2 |
| C | 0 | 14726 | 3 |
| D | 0 | 17205 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6734 | 50 | 0.742501% |
| B | 6734 | 73 | 1.084051% |
| C | 6733 | 93 | 1.381256% |
| D | 6733 | 134 | 1.990198% |

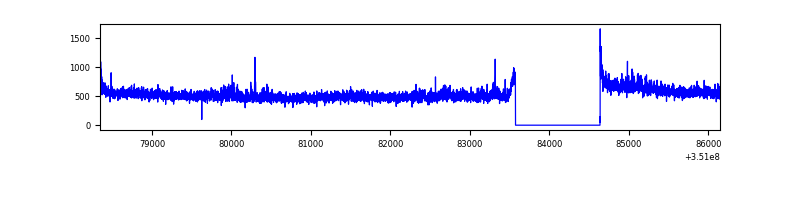

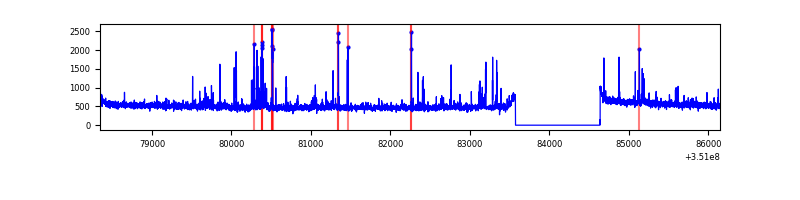

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7799 | 6735 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7799 | 6735 | 14 | 14 | 0.18% | 0.21% |  |
| C | 7798 | 6734 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7798 | 6734 | 88 | 88 | 1.13% | 1.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 67376 | 379.19 | 874 | 856 | 175.4 |
| A | 13 | 254 | 11157 | 58.72 | 874 | 856 | 175.4 |
| A | 8 | 192 | 11141 | 58.63 | 874 | 856 | 175.4 |
| B | 15 | 201 | 58978 | 358.89 | 858 | 838 | 162.0 |
| B | 10 | 246 | 51955 | 315.54 | 858 | 838 | 162.0 |
| B | 10 | 245 | 50262 | 305.09 | 858 | 838 | 162.0 |
| C | 3 | 233 | 177675 | 909.3 | 834 | 843 | 194.5 |
| C | 14 | 238 | 135519 | 692.52 | 834 | 843 | 194.5 |
| C | 2 | 114 | 16323 | 79.6 | 834 | 843 | 194.5 |
| D | 1 | 52 | 730060 | 3666.19 | 843 | 821 | 198.9 |
| D | 8 | 195 | 284918 | 1428.28 | 843 | 821 | 198.9 |
| D | 2 | 120 | 37473 | 184.27 | 843 | 821 | 198.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

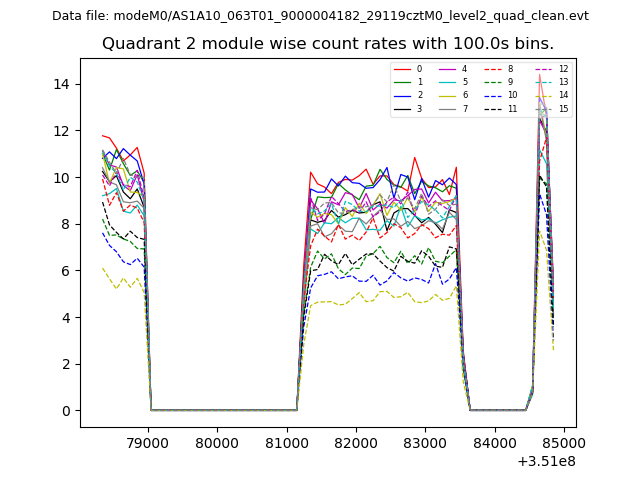

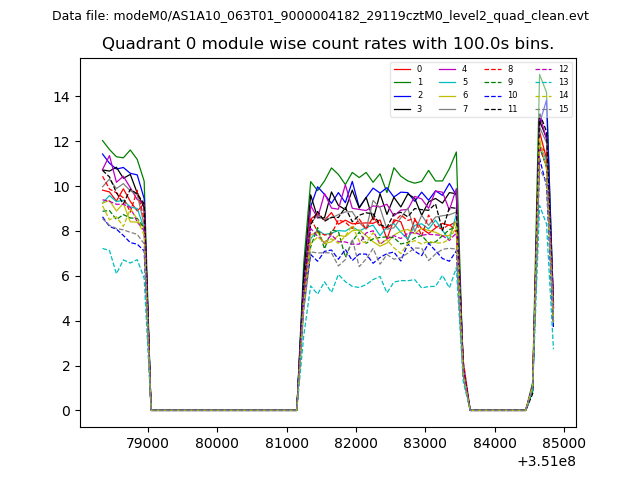

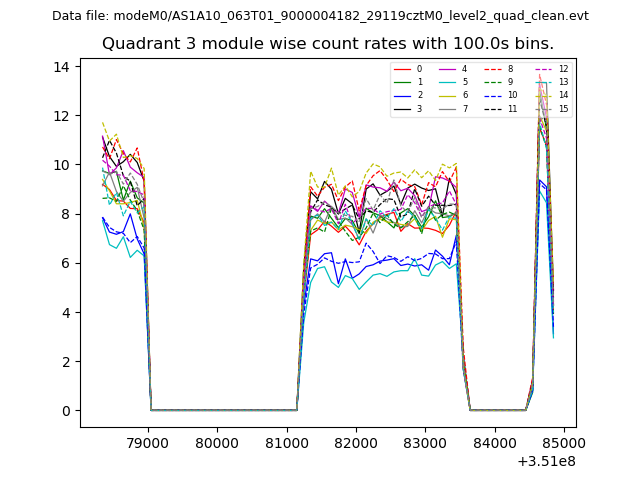

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

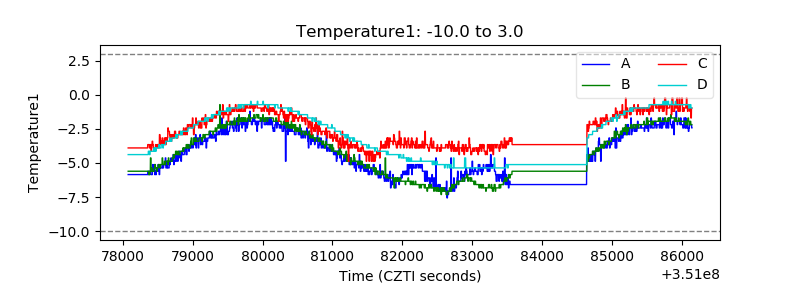

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

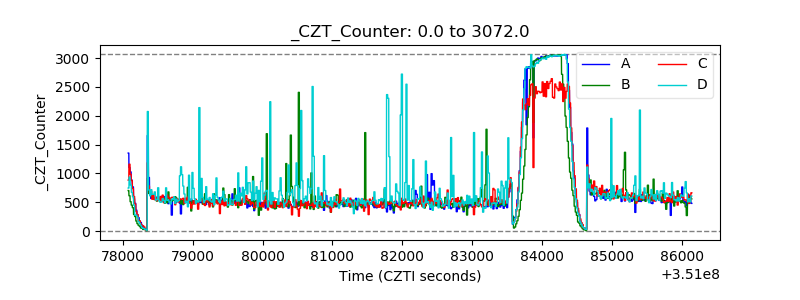

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

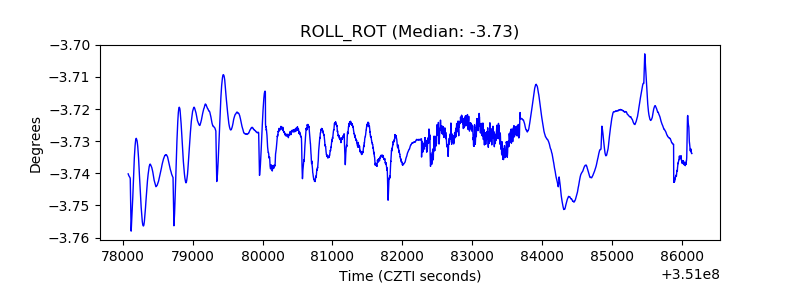

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
