| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_063T01_9000004182_29121cztM0_level2.evt | modeM0/AS1A10_063T01_9000004182_29121cztM0_level2_quad_clean.evt |
| Size (bytes) | 270,993,600 | 29,954,880 |
| Size | 258.4 MB | 28.6 MB |
| Events in quadrant A | 1,769,390 | 169,065 |
| Events in quadrant B | 1,818,647 | 171,820 |
| Events in quadrant C | 1,955,550 | 164,439 |
| Events in quadrant D | 2,431,879 | 160,506 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7337 | 1 |
| B | 0 | 7487 | 1 |
| C | 0 | 7996 | 1 |
| D | 0 | 9593 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 68 | 0 |
| B | 0 | 68 | 0 |
| C | 0 | 68 | 0 |
| D | 0 | 68 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3390 | 13 | 0.383481% |
| B | 3390 | 11 | 0.324484% |
| C | 3390 | 50 | 1.474926% |
| D | 3390 | 28 | 0.825959% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3390 | 3390 | 2 | 2 | 0.06% | 0.06% |  |
| B | 3390 | 3390 | 1 | 1 | 0.03% | 0.03% |  |
| C | 3390 | 3390 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3390 | 3390 | 16 | 16 | 0.47% | 0.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 5575 | 55.6 | 455 | 446 | 92.3 |
| A | 13 | 254 | 5460 | 54.35 | 455 | 446 | 92.3 |
| A | 8 | 192 | 4878 | 48.04 | 455 | 446 | 92.3 |
| B | 0 | 190 | 21057 | 244.33 | 447 | 437 | 84.4 |
| B | 10 | 246 | 15899 | 183.21 | 447 | 437 | 84.4 |
| B | 12 | 111 | 10024 | 113.6 | 447 | 437 | 84.4 |
| C | 3 | 233 | 176879 | 1740.12 | 434 | 438 | 101.4 |
| C | 14 | 238 | 71255 | 698.42 | 434 | 438 | 101.4 |
| C | 2 | 114 | 8195 | 76.5 | 434 | 438 | 101.4 |
| D | 1 | 52 | 479967 | 4637.56 | 443 | 432 | 103.4 |
| D | 8 | 195 | 210931 | 2035.73 | 443 | 432 | 103.4 |
| D | 12 | 233 | 18709 | 176.76 | 443 | 432 | 103.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

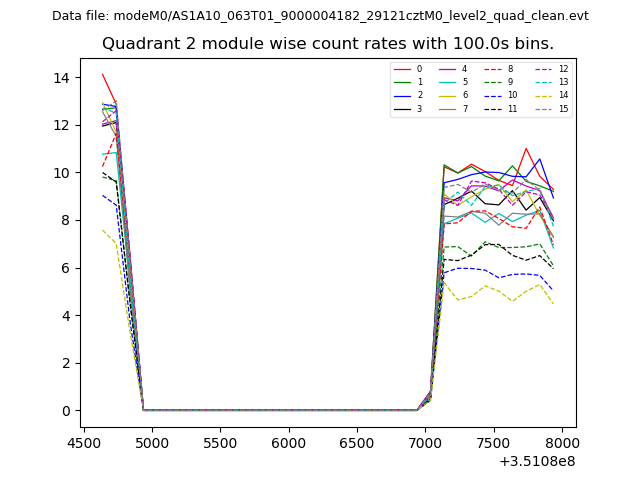

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

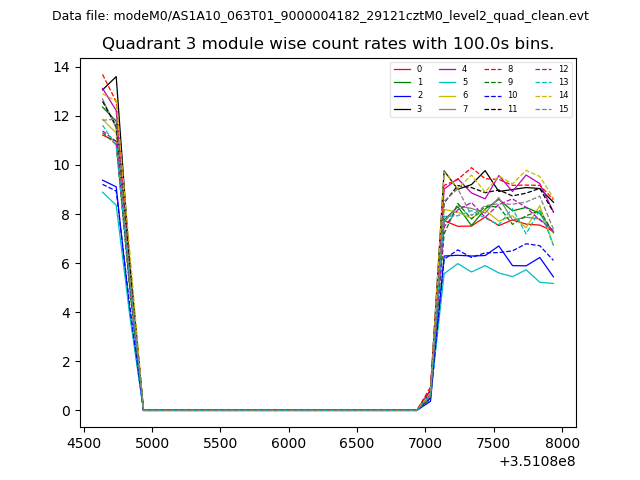

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
