| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_099T01_9000004184_29121cztM0_level2.evt | modeM0/AS1A10_099T01_9000004184_29121cztM0_level2_quad_clean.evt |
| Size (bytes) | 227,407,680 | 25,030,080 |
| Size | 216.9 MB | 23.9 MB |
| Events in quadrant A | 1,514,688 | 142,352 |
| Events in quadrant B | 1,543,492 | 144,972 |
| Events in quadrant C | 1,650,763 | 141,259 |
| Events in quadrant D | 1,996,393 | 138,624 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 54 | 0 |
| B | 0 | 54 | 0 |
| C | 0 | 54 | 0 |
| D | 0 | 54 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6302 | 1 |
| B | 0 | 6335 | 1 |
| C | 0 | 6840 | 1 |
| D | 0 | 7823 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2656 | 73 | 2.748494% |
| B | 2656 | 86 | 3.237952% |
| C | 2655 | 103 | 3.879473% |
| D | 2655 | 120 | 4.519774% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3826 | 2657 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3826 | 2657 | 9 | 9 | 0.24% | 0.34% |  |
| C | 3825 | 2656 | 1 | 1 | 0.03% | 0.04% |  |
| D | 3825 | 2656 | 48 | 48 | 1.25% | 1.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 4311 | 49.74 | 392 | 384 | 78.9 |
| A | 3 | 137 | 3465 | 39.03 | 392 | 384 | 78.9 |
| A | 0 | 226 | 3443 | 38.75 | 392 | 384 | 78.9 |
| B | 10 | 245 | 37732 | 509.03 | 384 | 374 | 73.4 |
| B | 12 | 111 | 8557 | 111.5 | 384 | 374 | 73.4 |
| B | 11 | 111 | 7857 | 101.96 | 384 | 374 | 73.4 |
| C | 3 | 233 | 129175 | 1487.12 | 372 | 376 | 86.6 |
| C | 14 | 238 | 61098 | 701.1 | 372 | 376 | 86.6 |
| C | 2 | 114 | 6496 | 70.66 | 372 | 376 | 86.6 |
| D | 1 | 52 | 418981 | 4662.33 | 377 | 368 | 89.8 |
| D | 8 | 195 | 111655 | 1239.47 | 377 | 368 | 89.8 |
| D | 13 | 104 | 22446 | 245.9 | 377 | 368 | 89.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

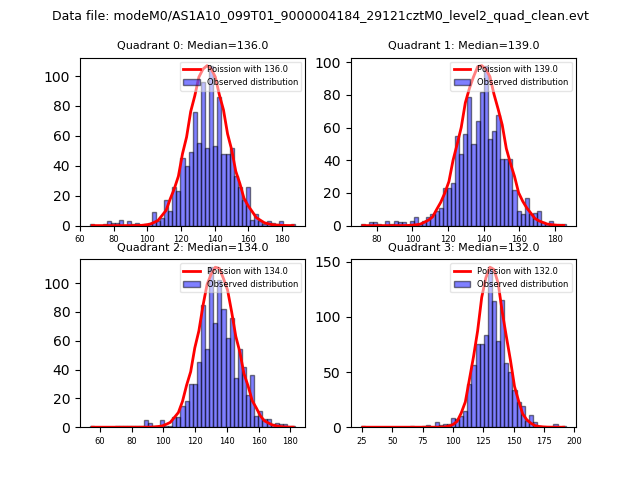

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

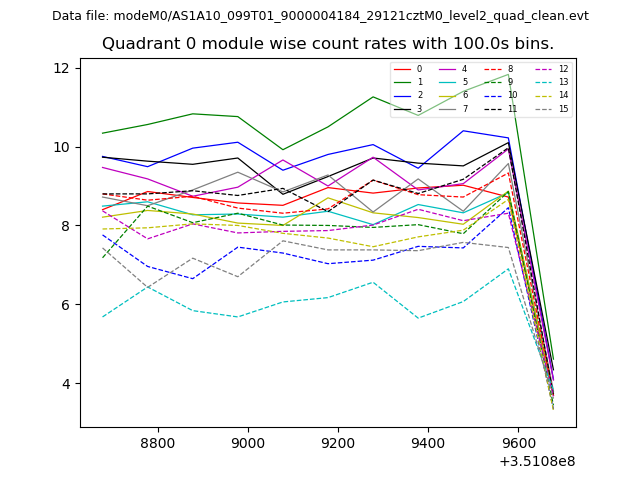

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

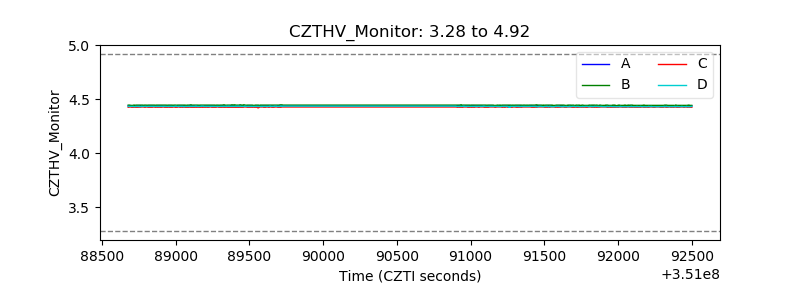

| CZT HV Monitor |  |

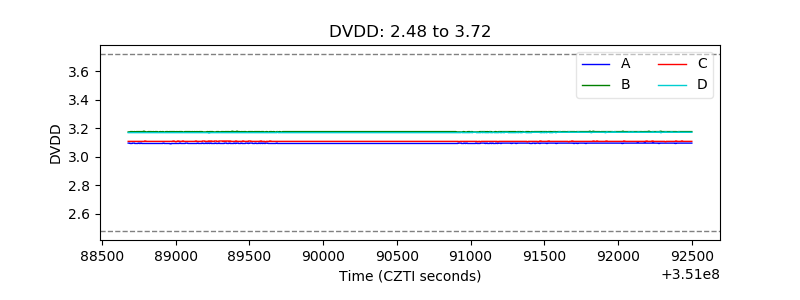

| D_VDD |  |

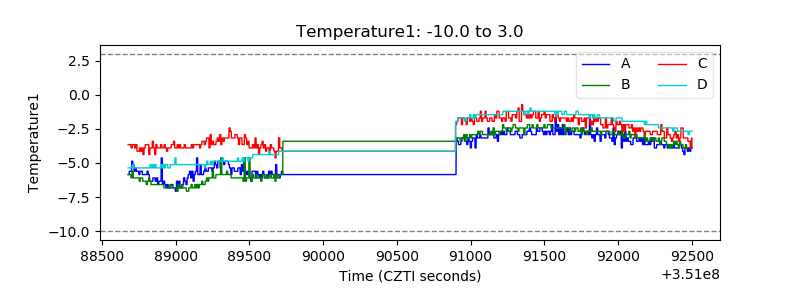

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

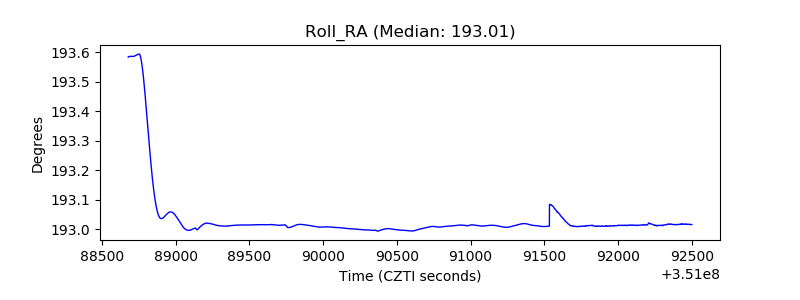

| _Roll_RA |  |

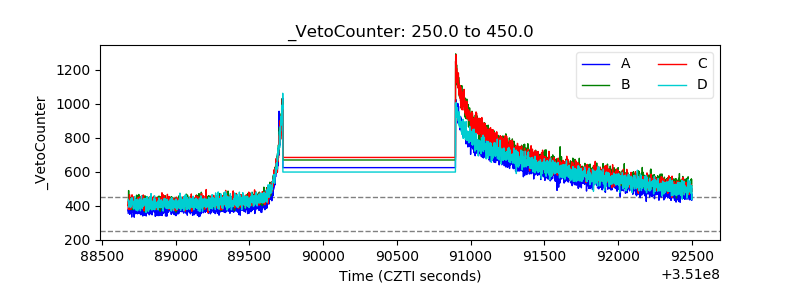

| Veto Counter |  |
