| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_099T01_9000004184_29125cztM0_level2.evt | modeM0/AS1A10_099T01_9000004184_29125cztM0_level2_quad_clean.evt |
| Size (bytes) | 539,009,280 | 102,991,680 |
| Size | 514.0 MB | 98.2 MB |
| Events in quadrant A | 3,321,015 | 689,596 |
| Events in quadrant B | 3,453,366 | 708,096 |
| Events in quadrant C | 3,548,151 | 662,767 |
| Events in quadrant D | 5,573,525 | 618,206 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13782 | 2 |
| B | 0 | 14222 | 2 |
| C | 0 | 14488 | 2 |
| D | 0 | 20718 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6312 | 133 | 2.107098% |
| B | 6312 | 160 | 2.534854% |
| C | 6312 | 179 | 2.835868% |
| D | 6312 | 517 | 8.190748% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

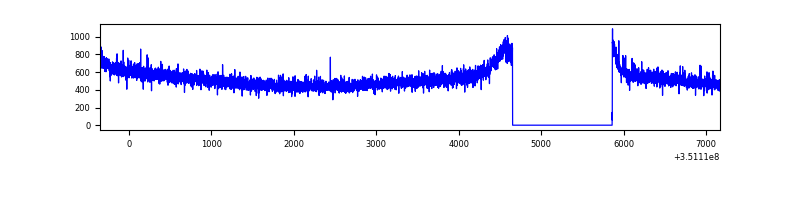

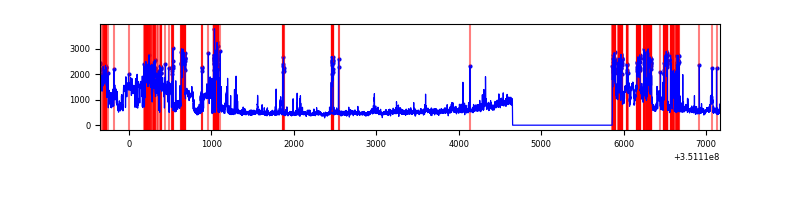

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7522 | 6313 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7522 | 6313 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7522 | 6313 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7522 | 6313 | 406 | 406 | 5.40% | 6.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9965 | 53.12 | 859 | 843 | 171.7 |
| A | 13 | 6 | 9058 | 47.83 | 859 | 843 | 171.7 |
| A | 3 | 137 | 8217 | 42.94 | 859 | 843 | 171.7 |
| B | 10 | 245 | 76241 | 466.34 | 856 | 837 | 161.7 |
| B | 12 | 111 | 19536 | 115.64 | 856 | 837 | 161.7 |
| B | 11 | 111 | 17499 | 103.04 | 856 | 837 | 161.7 |
| C | 3 | 233 | 206547 | 1078.23 | 816 | 826 | 190.8 |
| C | 14 | 238 | 132331 | 689.25 | 816 | 826 | 190.8 |
| C | 2 | 114 | 14961 | 74.08 | 816 | 826 | 190.8 |
| D | 1 | 52 | 1758917 | 9408.79 | 792 | 772 | 186.9 |
| D | 8 | 195 | 700910 | 3746.82 | 792 | 772 | 186.9 |
| D | 13 | 104 | 37753 | 197.91 | 792 | 772 | 186.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

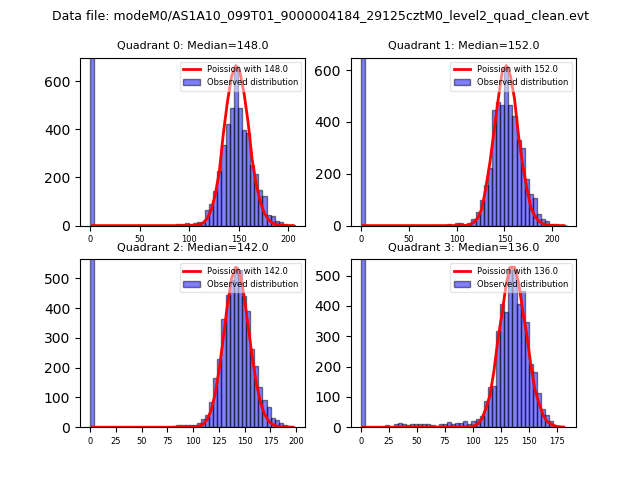

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

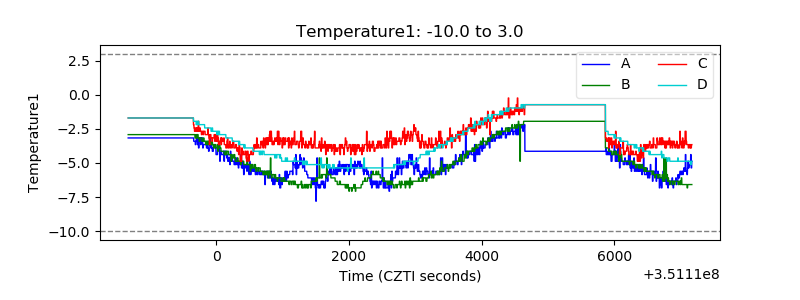

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

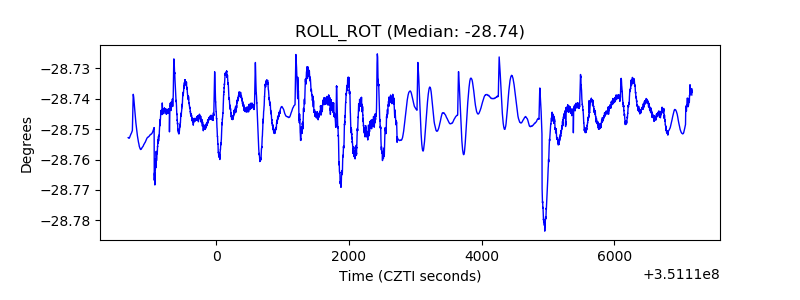

| _ROLL_ROT |  |

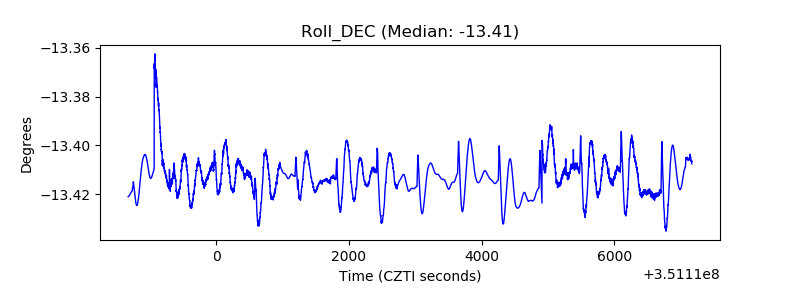

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
