| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_099T01_9000004184_29132cztM0_level2.evt | modeM0/AS1A10_099T01_9000004184_29132cztM0_level2_quad_clean.evt |
| Size (bytes) | 758,937,600 | 125,455,680 |
| Size | 723.8 MB | 119.6 MB |
| Events in quadrant A | 4,988,082 | 776,259 |
| Events in quadrant B | 5,339,548 | 793,029 |
| Events in quadrant C | 5,168,427 | 758,487 |
| Events in quadrant D | 6,770,982 | 738,124 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 216 | 0 |
| B | 0 | 216 | 0 |
| C | 0 | 216 | 0 |
| D | 0 | 216 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21747 | 2 |
| B | 0 | 22641 | 2 |
| C | 0 | 21895 | 2 |
| D | 0 | 27136 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10588 | 189 | 1.785040% |
| B | 10587 | 280 | 2.644753% |
| C | 10587 | 302 | 2.852555% |
| D | 10587 | 422 | 3.986021% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 11103 | 10590 | 1 | 1 | 0.01% | 0.01% |  |
| B | 11102 | 10589 | 6 | 6 | 0.05% | 0.06% |  |
| C | 11102 | 10589 | 0 | 0 | 0.00% | 0.00% |  |
| D | 11102 | 10589 | 236 | 236 | 2.13% | 2.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 18118 | 64.65 | 1291 | 1262 | 260.7 |
| A | 3 | 137 | 13058 | 45.25 | 1291 | 1262 | 260.7 |
| A | 0 | 226 | 10902 | 36.98 | 1291 | 1262 | 260.7 |
| B | 10 | 246 | 187438 | 747.36 | 1277 | 1244 | 249.1 |
| B | 10 | 245 | 80772 | 319.21 | 1277 | 1244 | 249.1 |
| B | 12 | 111 | 31161 | 120.08 | 1277 | 1244 | 249.1 |
| C | 14 | 238 | 198303 | 672.08 | 1244 | 1252 | 293.2 |
| C | 3 | 233 | 86905 | 292.13 | 1244 | 1252 | 293.2 |
| C | 2 | 114 | 25311 | 82.06 | 1244 | 1252 | 293.2 |
| D | 1 | 52 | 1280657 | 4293.57 | 1251 | 1217 | 298.0 |
| D | 8 | 195 | 609608 | 2041.65 | 1251 | 1217 | 298.0 |
| D | 2 | 120 | 49969 | 163.6 | 1251 | 1217 | 298.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

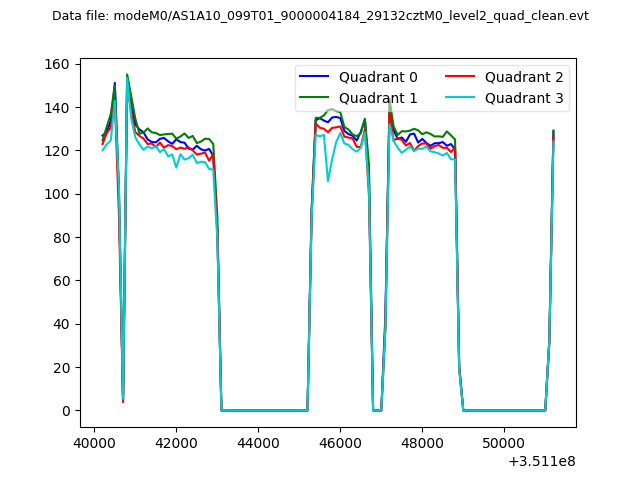

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

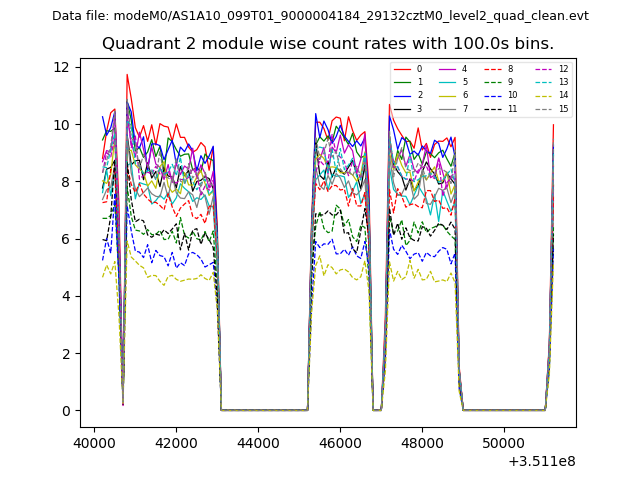

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

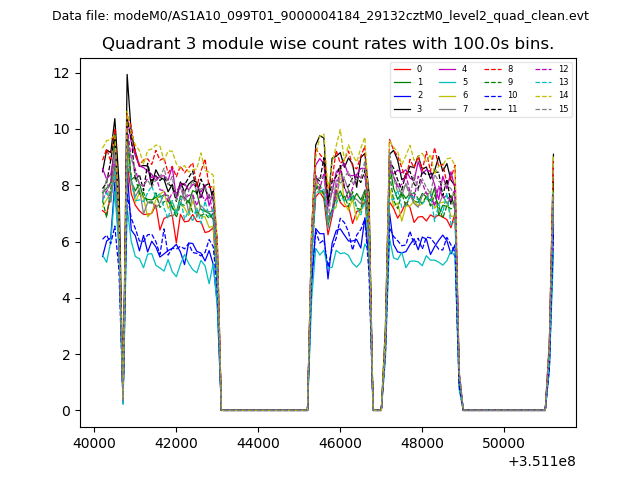

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

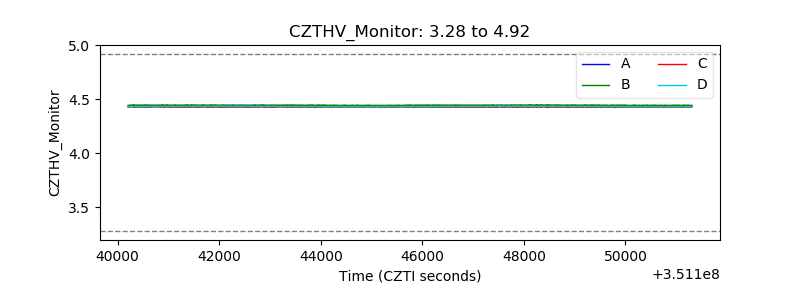

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

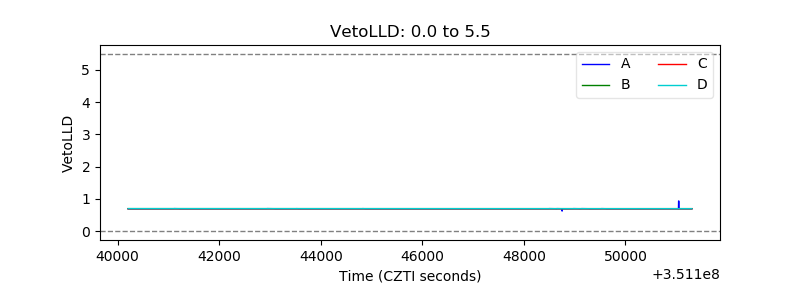

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

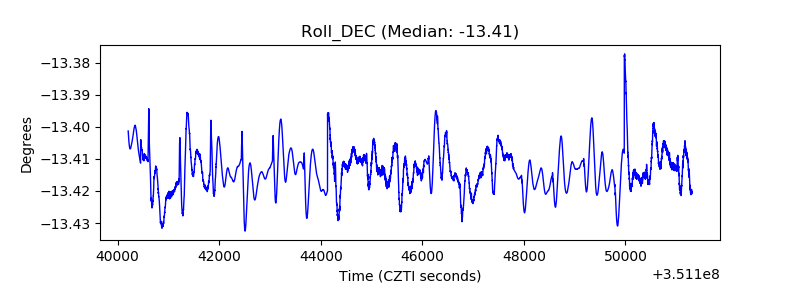

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
