| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_099T01_9000004184_29133cztM0_level2.evt | modeM0/AS1A10_099T01_9000004184_29133cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,036,497,600 | 178,833,600 |
| Size | 988.5 MB | 170.5 MB |
| Events in quadrant A | 7,193,403 | 1,111,111 |
| Events in quadrant B | 7,466,295 | 1,131,173 |
| Events in quadrant C | 7,403,122 | 1,084,130 |
| Events in quadrant D | 8,317,108 | 1,058,479 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 304 | 0 |
| B | 0 | 304 | 0 |
| C | 0 | 304 | 0 |
| D | 0 | 304 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30690 | 3 |
| B | 0 | 31220 | 3 |
| C | 0 | 30995 | 3 |
| D | 0 | 34091 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 14941 | 123 | 0.823238% |
| B | 14942 | 131 | 0.876723% |
| C | 14942 | 206 | 1.378664% |
| D | 14942 | 159 | 1.064115% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 17296 | 14944 | 2 | 2 | 0.01% | 0.01% |  |
| B | 17297 | 14945 | 0 | 0 | 0.00% | 0.00% |  |
| C | 17297 | 14945 | 0 | 0 | 0.00% | 0.00% |  |
| D | 17297 | 14945 | 57 | 57 | 0.33% | 0.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 63705 | 167.31 | 1847 | 1805 | 370.0 |
| A | 13 | 254 | 23915 | 59.76 | 1847 | 1805 | 370.0 |
| A | 3 | 137 | 18395 | 44.84 | 1847 | 1805 | 370.0 |
| B | 10 | 246 | 107081 | 299.68 | 1831 | 1787 | 351.4 |
| B | 0 | 190 | 61847 | 170.94 | 1831 | 1787 | 351.4 |
| B | 0 | 229 | 49321 | 135.29 | 1831 | 1787 | 351.4 |
| C | 14 | 238 | 288339 | 687.52 | 1781 | 1795 | 416.8 |
| C | 3 | 233 | 126264 | 298.64 | 1781 | 1795 | 416.8 |
| C | 2 | 114 | 34929 | 79.5 | 1781 | 1795 | 416.8 |
| D | 8 | 195 | 724261 | 1696.83 | 1795 | 1751 | 425.8 |
| D | 1 | 52 | 598232 | 1400.85 | 1795 | 1751 | 425.8 |
| D | 7 | 80 | 67189 | 153.68 | 1795 | 1751 | 425.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

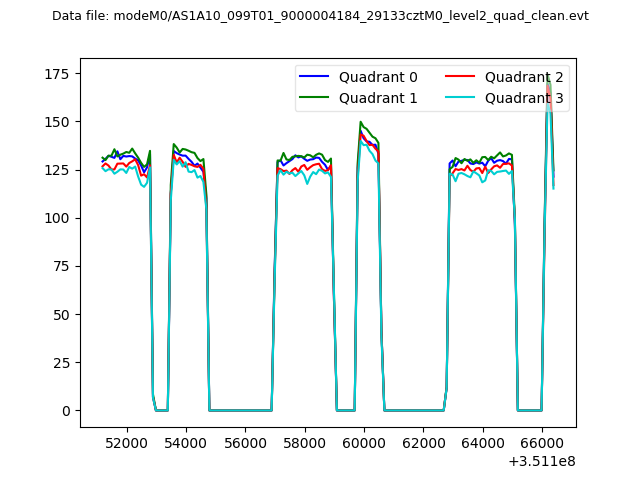

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

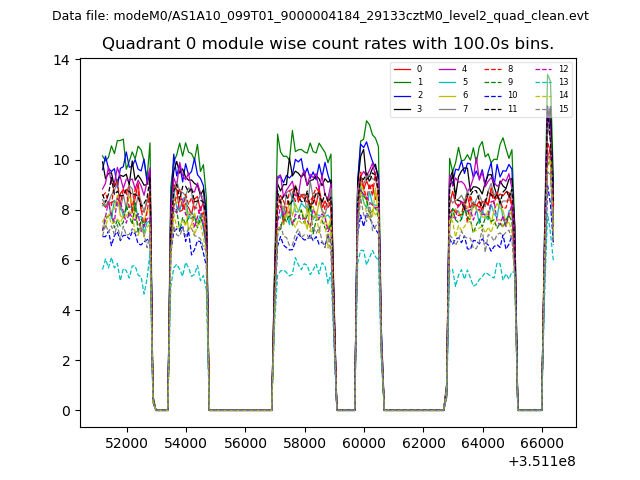

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

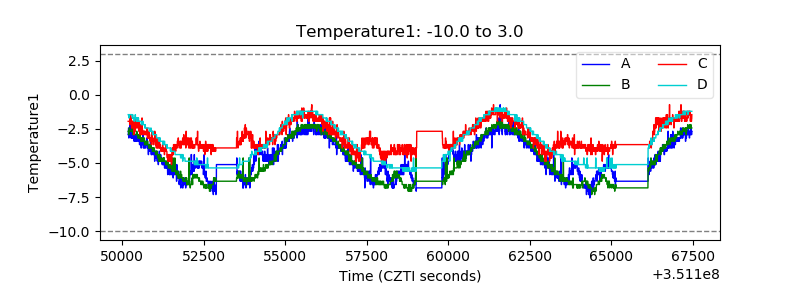

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

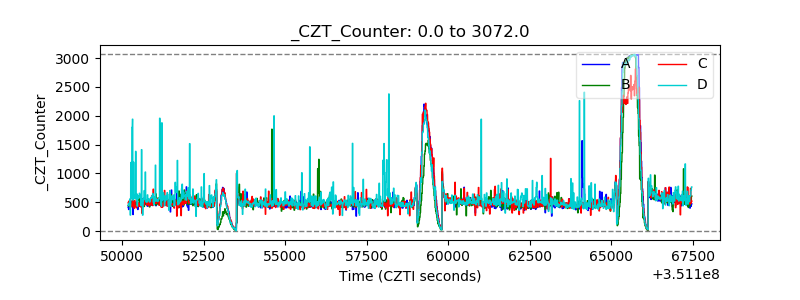

| CZT Counter |  |

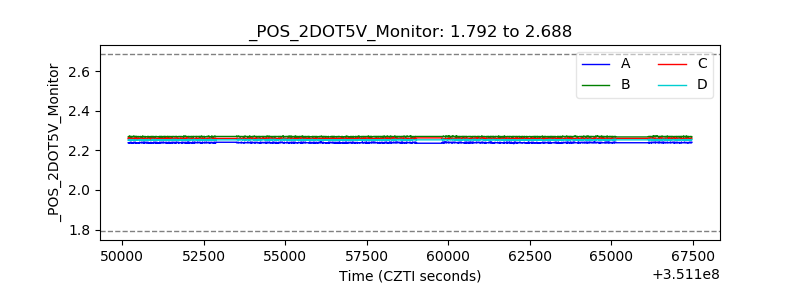

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

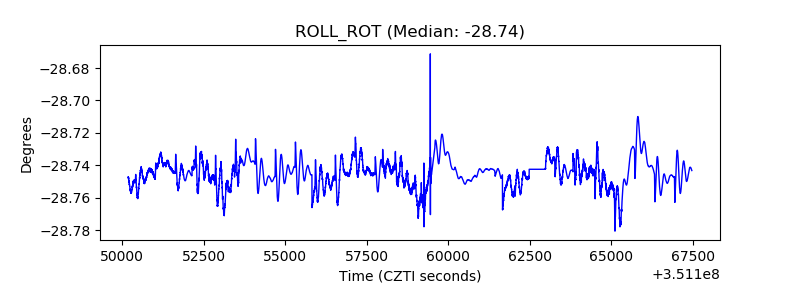

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
