| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_099T01_9000004184_29142cztM0_level2.evt | modeM0/AS1A10_099T01_9000004184_29142cztM0_level2_quad_clean.evt |
| Size (bytes) | 635,382,720 | 110,845,440 |
| Size | 605.9 MB | 105.7 MB |
| Events in quadrant A | 3,955,965 | 712,963 |
| Events in quadrant B | 4,084,644 | 726,919 |
| Events in quadrant C | 4,075,741 | 693,466 |
| Events in quadrant D | 6,576,350 | 659,537 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17066 | 2 |
| B | 0 | 17376 | 2 |
| C | 0 | 17175 | 2 |
| D | 0 | 25122 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8108 | 84 | 1.036014% |
| B | 8108 | 136 | 1.677356% |
| C | 8108 | 162 | 1.998027% |
| D | 8108 | 520 | 6.413419% |

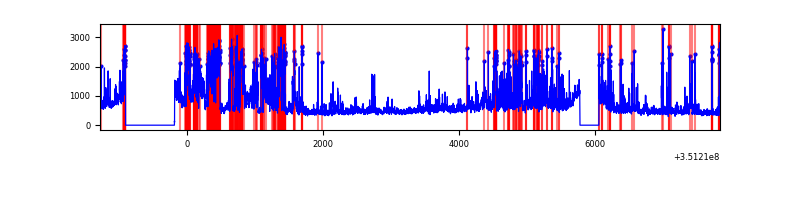

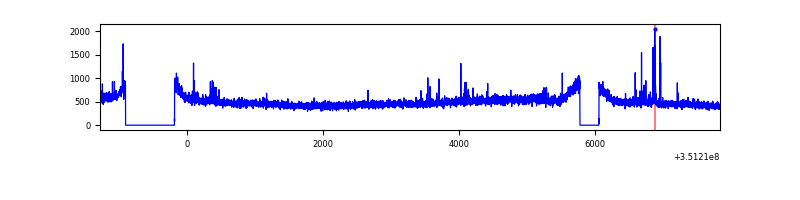

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9108 | 8110 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9108 | 8110 | 1 | 1 | 0.01% | 0.01% |  |
| C | 9108 | 8110 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9108 | 8110 | 494 | 494 | 5.42% | 6.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 14122 | 63.33 | 1021 | 999 | 207.2 |
| A | 11 | 29 | 12661 | 56.28 | 1021 | 999 | 207.2 |
| A | 3 | 137 | 10654 | 46.59 | 1021 | 999 | 207.2 |
| B | 0 | 183 | 39930 | 197.71 | 1015 | 988 | 197.0 |
| B | 10 | 246 | 32247 | 158.71 | 1015 | 988 | 197.0 |
| B | 12 | 111 | 25008 | 121.95 | 1015 | 988 | 197.0 |
| C | 14 | 238 | 159101 | 681.65 | 980 | 987 | 232.0 |
| C | 3 | 233 | 73840 | 314.08 | 980 | 987 | 232.0 |
| C | 2 | 114 | 19326 | 79.06 | 980 | 987 | 232.0 |
| D | 1 | 52 | 2151492 | 9277.29 | 969 | 944 | 231.8 |
| D | 8 | 195 | 684292 | 2947.91 | 969 | 944 | 231.8 |
| D | 2 | 234 | 34356 | 144.14 | 969 | 944 | 231.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

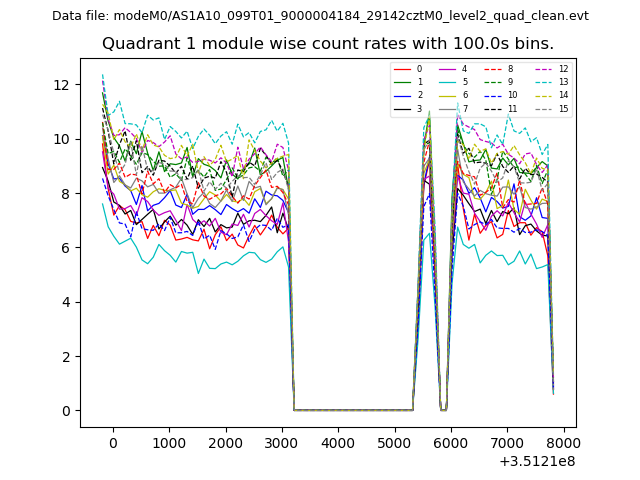

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

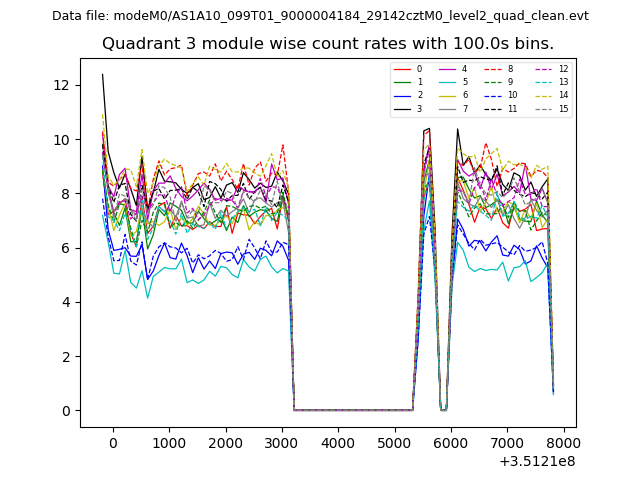

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

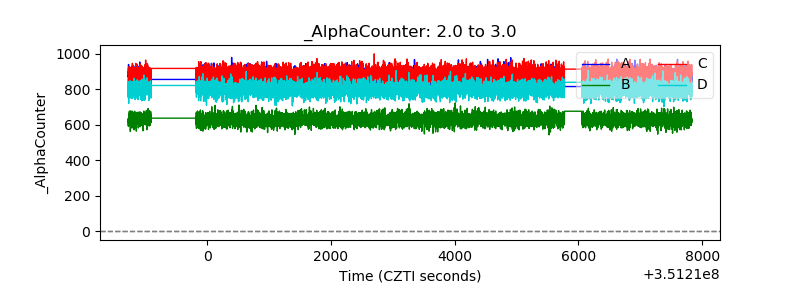

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

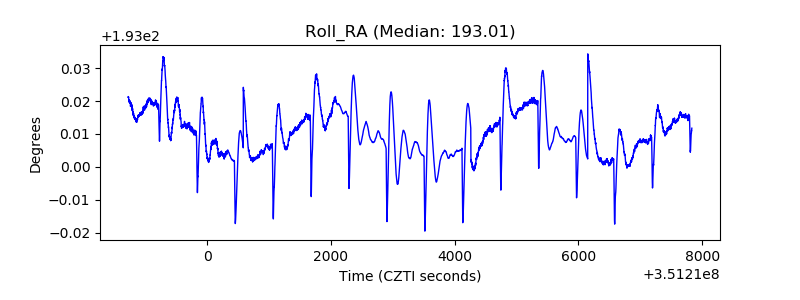

| _ROLL_ROT |  |

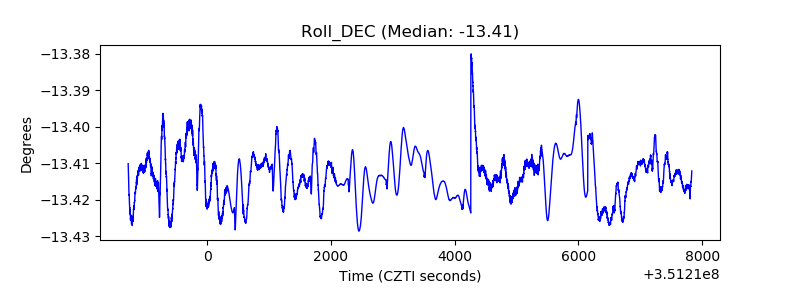

| _Roll_DEC |  |
| _Roll_RA |  |

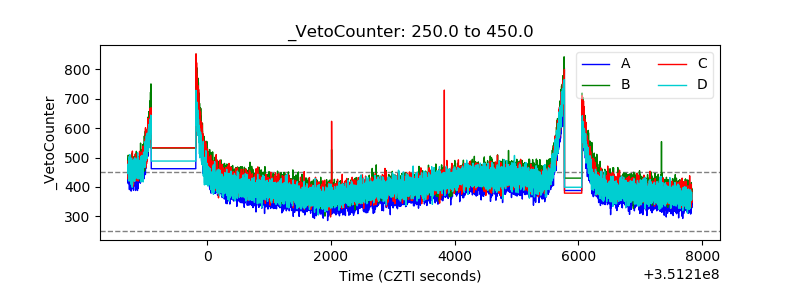

| Veto Counter |  |
