| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_099T01_9000004184_29150cztM0_level2.evt | modeM0/AS1A10_099T01_9000004184_29150cztM0_level2_quad_clean.evt |
| Size (bytes) | 492,120,000 | 66,579,840 |
| Size | 469.3 MB | 63.5 MB |
| Events in quadrant A | 3,365,903 | 400,070 |
| Events in quadrant B | 3,537,665 | 404,018 |
| Events in quadrant C | 3,429,429 | 388,359 |
| Events in quadrant D | 4,140,461 | 380,771 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14146 | 2 |
| B | 0 | 14627 | 2 |
| C | 0 | 14285 | 2 |
| D | 0 | 16698 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6338 | 103 | 1.625118% |
| B | 6338 | 123 | 1.940675% |
| C | 6338 | 208 | 3.281792% |
| D | 6338 | 165 | 2.603345% |

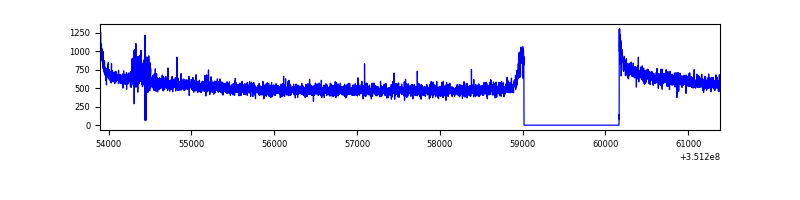

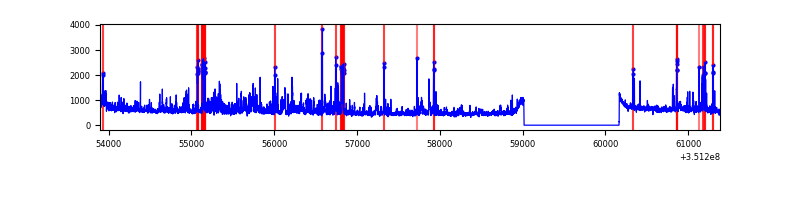

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7488 | 6339 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7488 | 6339 | 8 | 8 | 0.11% | 0.13% |  |
| C | 7488 | 6339 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7488 | 6339 | 80 | 80 | 1.07% | 1.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12043 | 64.74 | 870 | 856 | 172.8 |
| A | 3 | 137 | 7977 | 41.21 | 870 | 856 | 172.8 |
| A | 0 | 226 | 7443 | 38.12 | 870 | 856 | 172.8 |
| B | 0 | 189 | 70452 | 429.66 | 859 | 839 | 162.0 |
| B | 10 | 246 | 29263 | 175.44 | 859 | 839 | 162.0 |
| B | 10 | 245 | 28092 | 168.21 | 859 | 839 | 162.0 |
| C | 14 | 238 | 151541 | 785.21 | 829 | 837 | 191.9 |
| C | 14 | 254 | 24197 | 121.71 | 829 | 837 | 191.9 |
| C | 2 | 114 | 14907 | 73.31 | 829 | 837 | 191.9 |
| D | 1 | 52 | 550163 | 2791.19 | 841 | 822 | 196.8 |
| D | 8 | 195 | 334769 | 1696.78 | 841 | 822 | 196.8 |
| D | 2 | 120 | 32895 | 162.96 | 841 | 822 | 196.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

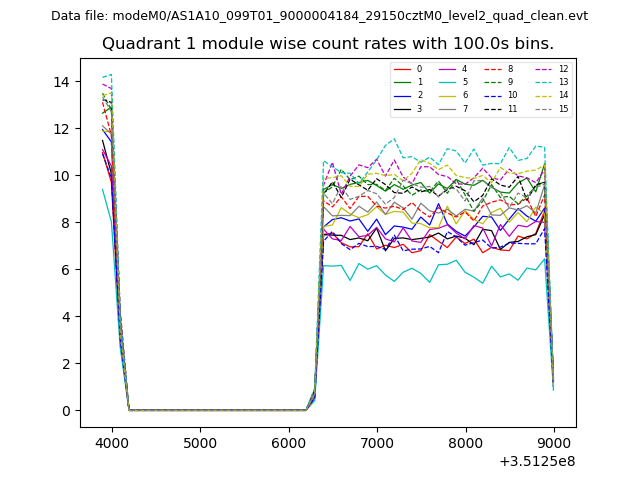

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

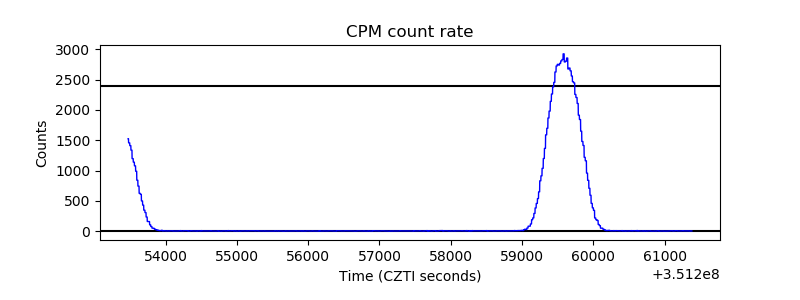

| _CPM_Rate |  |

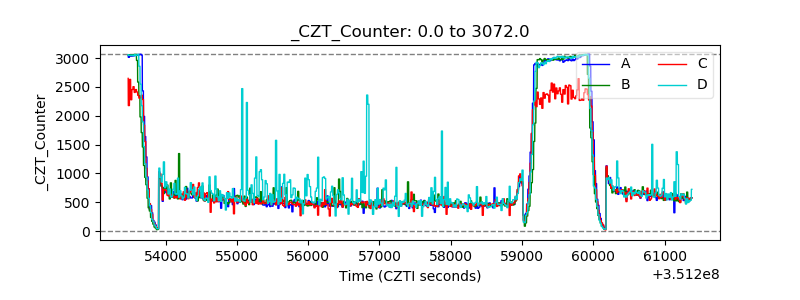

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

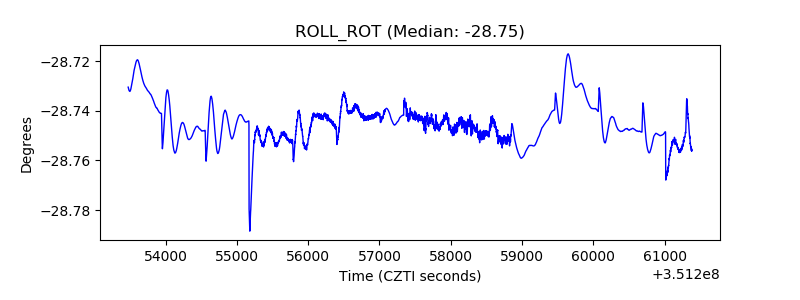

| _ROLL_ROT |  |

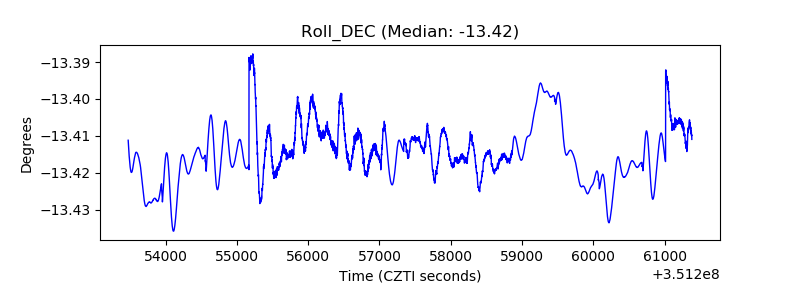

| _Roll_DEC |  |
| _Roll_RA |  |

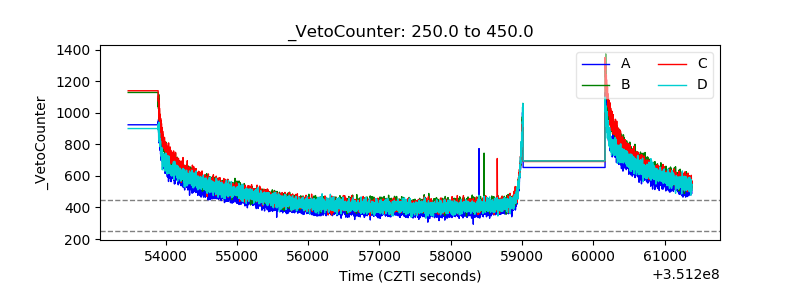

| Veto Counter |  |
