| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_099T01_9000004184_29152cztM0_level2.evt | modeM0/AS1A10_099T01_9000004184_29152cztM0_level2_quad_clean.evt |
| Size (bytes) | 472,599,360 | 77,889,600 |
| Size | 450.7 MB | 74.3 MB |
| Events in quadrant A | 3,252,945 | 498,884 |
| Events in quadrant B | 3,414,691 | 506,171 |
| Events in quadrant C | 3,286,648 | 479,018 |
| Events in quadrant D | 3,962,433 | 466,542 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13553 | 1 |
| B | 0 | 13980 | 1 |
| C | 0 | 13548 | 1 |
| D | 0 | 15744 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5841 | 57 | 0.975860% |
| B | 5841 | 83 | 1.420990% |
| C | 5841 | 93 | 1.592193% |
| D | 5841 | 138 | 2.362609% |

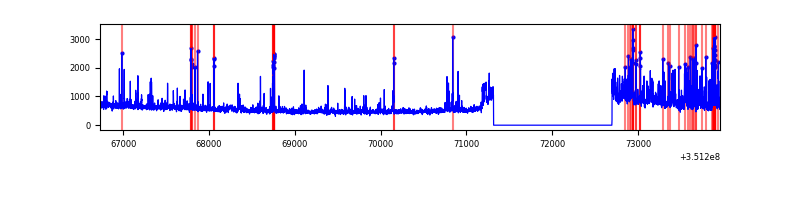

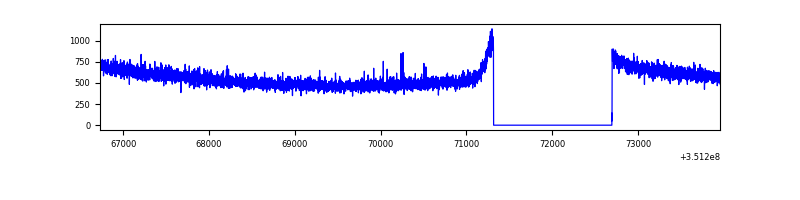

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7221 | 5842 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7221 | 5842 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7221 | 5842 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7221 | 5842 | 70 | 70 | 0.97% | 1.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11198 | 62.45 | 842 | 831 | 166.0 |
| A | 3 | 137 | 7574 | 40.62 | 842 | 831 | 166.0 |
| A | 0 | 226 | 7209 | 38.42 | 842 | 831 | 166.0 |
| B | 0 | 190 | 60885 | 385.34 | 835 | 818 | 155.9 |
| B | 0 | 189 | 60145 | 380.6 | 835 | 818 | 155.9 |
| B | 5 | 172 | 19118 | 117.4 | 835 | 818 | 155.9 |
| C | 14 | 238 | 135372 | 736.27 | 797 | 805 | 182.8 |
| C | 3 | 233 | 20130 | 105.73 | 797 | 805 | 182.8 |
| C | 2 | 114 | 13804 | 71.12 | 797 | 805 | 182.8 |
| D | 1 | 52 | 574981 | 3064.89 | 796 | 779 | 187.3 |
| D | 8 | 195 | 340949 | 1815.71 | 796 | 779 | 187.3 |
| D | 12 | 233 | 28177 | 146.24 | 796 | 779 | 187.3 |

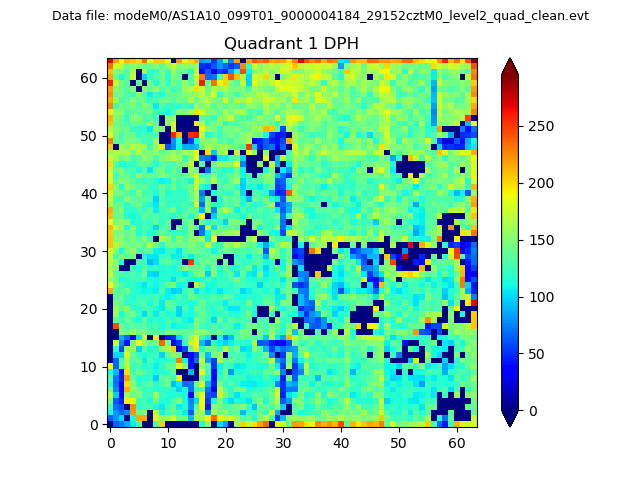

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

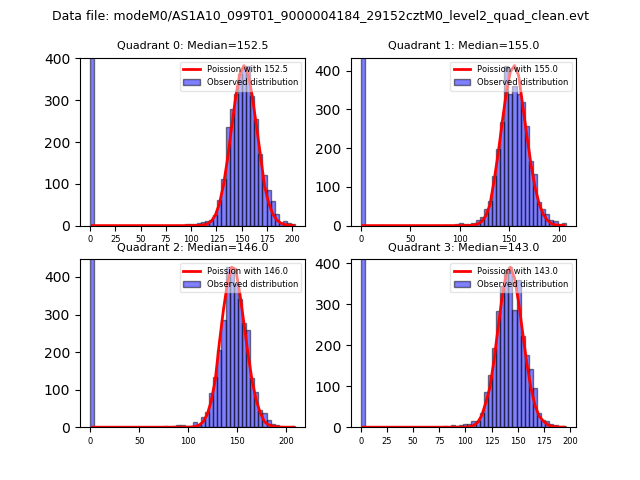

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

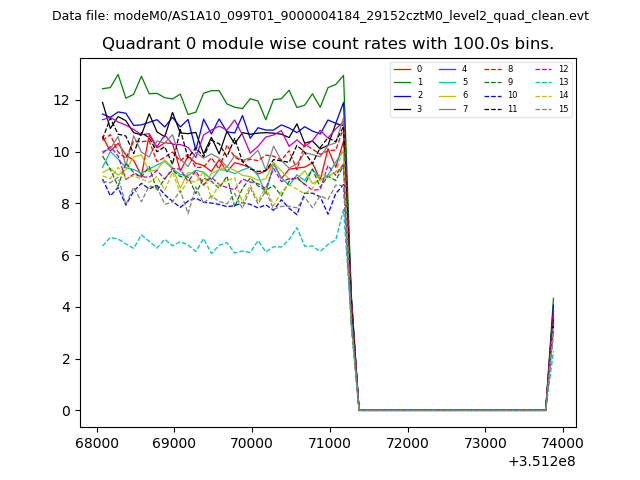

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

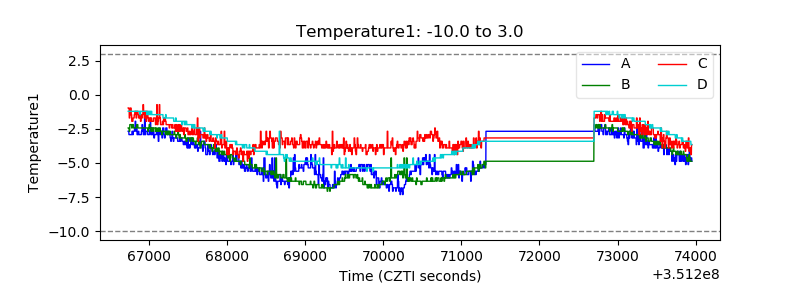

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

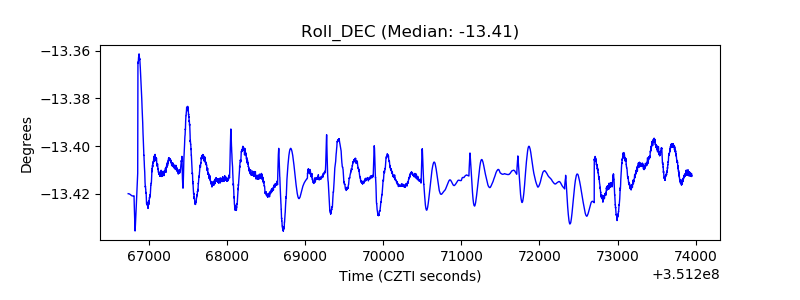

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
