| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_099T01_9000004184_29161cztM0_level2.evt | modeM0/AS1A10_099T01_9000004184_29161cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,337,276,160 | 223,257,600 |
| Size | 1.2 GB | 212.9 MB |
| Events in quadrant A | 8,498,546 | 1,395,359 |
| Events in quadrant B | 8,933,137 | 1,425,772 |
| Events in quadrant C | 8,718,230 | 1,367,676 |
| Events in quadrant D | 13,123,066 | 1,321,334 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 370 | 0 |
| B | 0 | 370 | 0 |
| C | 0 | 370 | 0 |
| D | 0 | 370 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36793 | 3 |
| B | 0 | 37738 | 3 |
| C | 0 | 36917 | 3 |
| D | 0 | 51145 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18158 | 105 | 0.578258% |
| B | 18159 | 156 | 0.859078% |
| C | 18159 | 178 | 0.980230% |
| D | 18159 | 648 | 3.568478% |

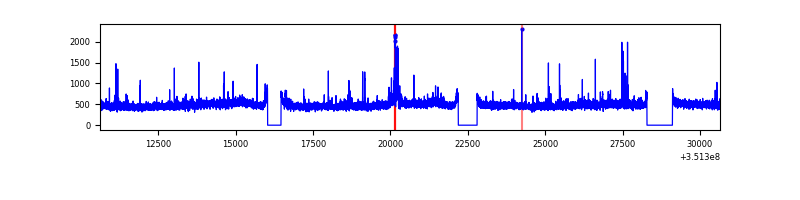

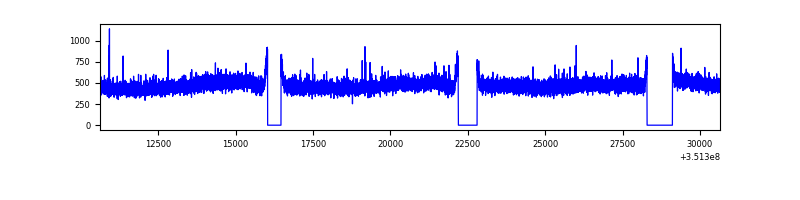

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20028 | 18161 | 0 | 0 | 0.00% | 0.00% |  |
| B | 20029 | 18162 | 5 | 5 | 0.02% | 0.03% |  |
| C | 20029 | 18162 | 0 | 0 | 0.00% | 0.00% |  |
| D | 20029 | 18162 | 454 | 454 | 2.27% | 2.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 31213 | 65.69 | 2201 | 2158 | 442.3 |
| A | 3 | 137 | 22207 | 45.33 | 2201 | 2158 | 442.3 |
| A | 0 | 226 | 18551 | 37.06 | 2201 | 2158 | 442.3 |
| B | 10 | 246 | 139712 | 328.07 | 2183 | 2124 | 419.4 |
| B | 0 | 183 | 107795 | 251.97 | 2183 | 2124 | 419.4 |
| B | 12 | 111 | 53317 | 122.07 | 2183 | 2124 | 419.4 |
| C | 14 | 238 | 339121 | 673.25 | 2123 | 2135 | 500.5 |
| C | 3 | 233 | 54067 | 103.75 | 2123 | 2135 | 500.5 |
| C | 2 | 114 | 42471 | 80.58 | 2123 | 2135 | 500.5 |
| D | 1 | 52 | 3045981 | 6057.08 | 2115 | 2059 | 502.5 |
| D | 8 | 195 | 1942748 | 3861.77 | 2115 | 2059 | 502.5 |
| D | 2 | 234 | 78931 | 152.97 | 2115 | 2059 | 502.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

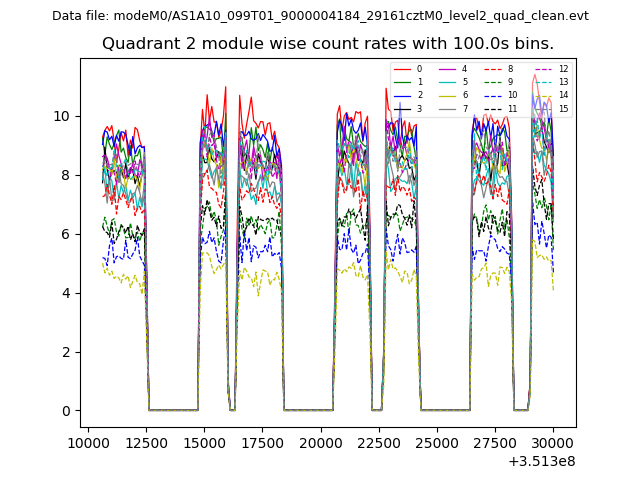

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

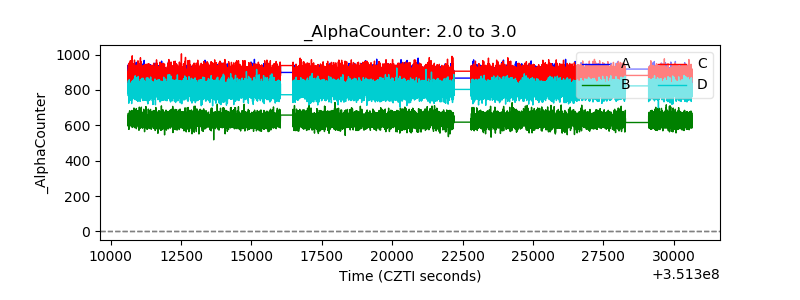

| Alpha Counter |  |

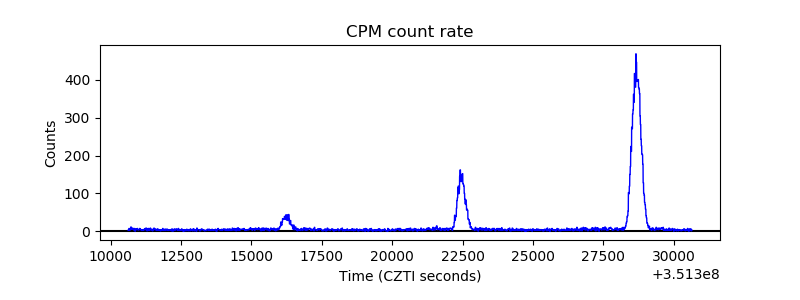

| _CPM_Rate |  |

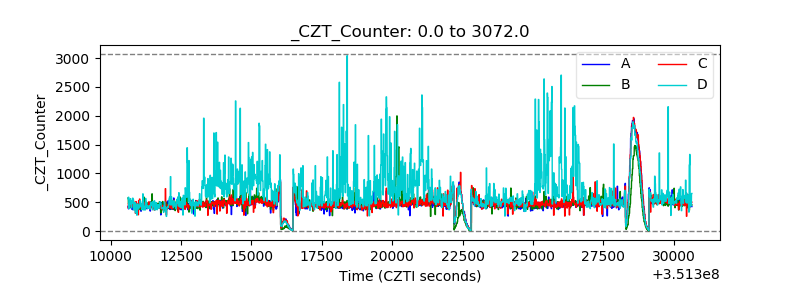

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

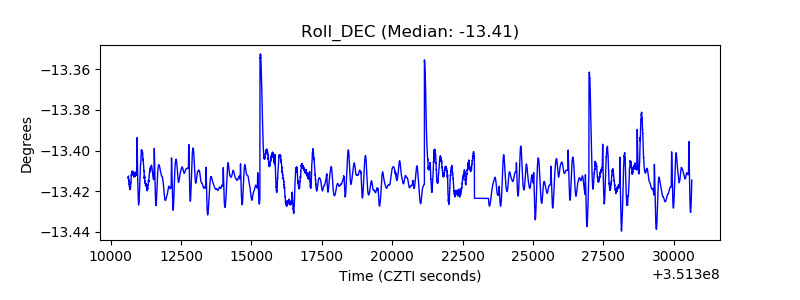

| _Roll_DEC |  |

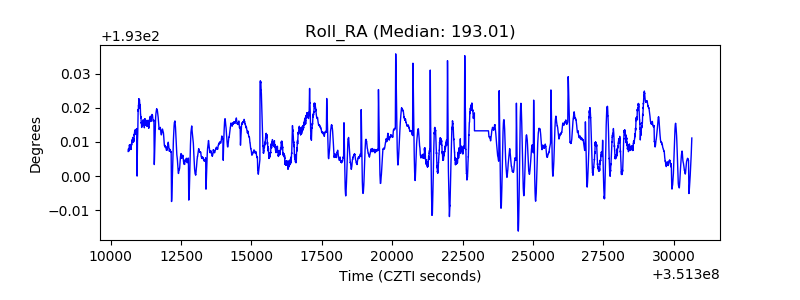

| _Roll_RA |  |
| Veto Counter |  |
