| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_099T01_9000004184_29164cztM0_level2.evt | modeM0/AS1A10_099T01_9000004184_29164cztM0_level2_quad_clean.evt |
| Size (bytes) | 530,231,040 | 71,550,720 |
| Size | 505.7 MB | 68.2 MB |
| Events in quadrant A | 3,492,891 | 430,711 |
| Events in quadrant B | 3,582,848 | 437,126 |
| Events in quadrant C | 3,581,265 | 419,699 |
| Events in quadrant D | 4,943,776 | 408,715 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14618 | 2 |
| B | 0 | 14772 | 2 |
| C | 0 | 14903 | 3 |
| D | 0 | 19368 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6748 | 94 | 1.393005% |
| B | 6748 | 94 | 1.393005% |
| C | 6747 | 132 | 1.956425% |
| D | 6747 | 266 | 3.942493% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7833 | 6749 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7833 | 6749 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7832 | 6748 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7832 | 6748 | 140 | 140 | 1.79% | 2.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11747 | 59.9 | 903 | 885 | 181.3 |
| A | 3 | 137 | 8653 | 42.84 | 903 | 885 | 181.3 |
| A | 0 | 13 | 8445 | 41.69 | 903 | 885 | 181.3 |
| B | 0 | 183 | 62082 | 360.88 | 888 | 866 | 169.6 |
| B | 12 | 111 | 20520 | 115.87 | 888 | 866 | 169.6 |
| B | 11 | 111 | 19070 | 107.32 | 888 | 866 | 169.6 |
| C | 14 | 238 | 139793 | 686.12 | 867 | 875 | 202.5 |
| C | 3 | 233 | 35847 | 172.73 | 867 | 875 | 202.5 |
| C | 2 | 114 | 15846 | 73.94 | 867 | 875 | 202.5 |
| D | 1 | 52 | 1294743 | 6316.51 | 870 | 848 | 204.8 |
| D | 8 | 195 | 298470 | 1452.92 | 870 | 848 | 204.8 |
| D | 13 | 104 | 36195 | 172.56 | 870 | 848 | 204.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

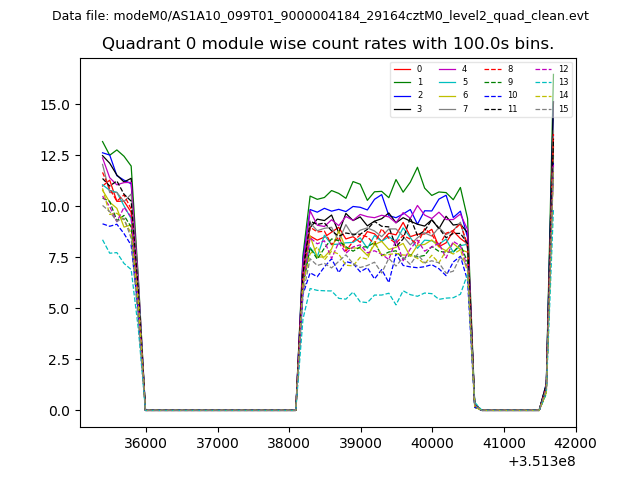

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

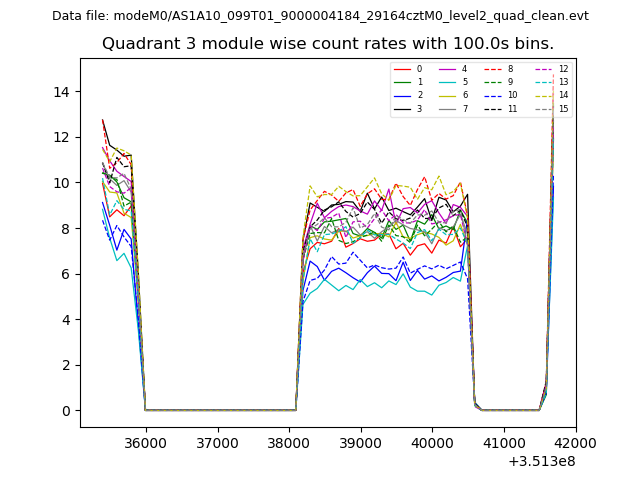

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

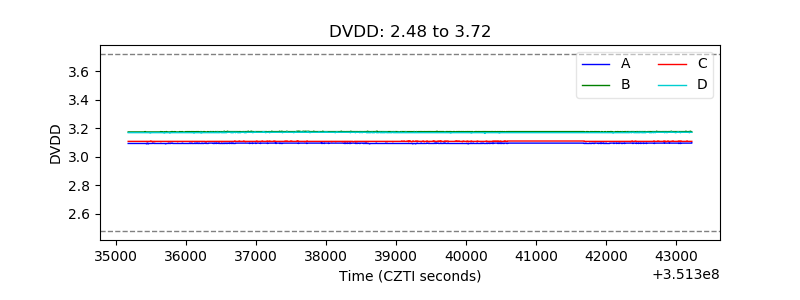

| D_VDD |  |

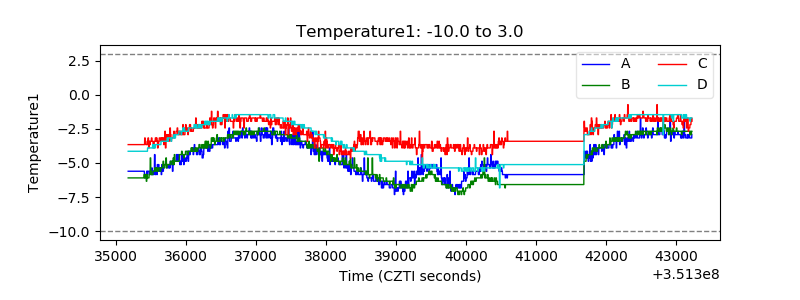

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

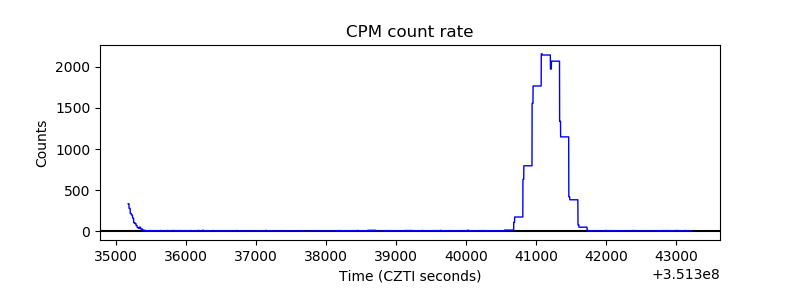

| _CPM_Rate |  |

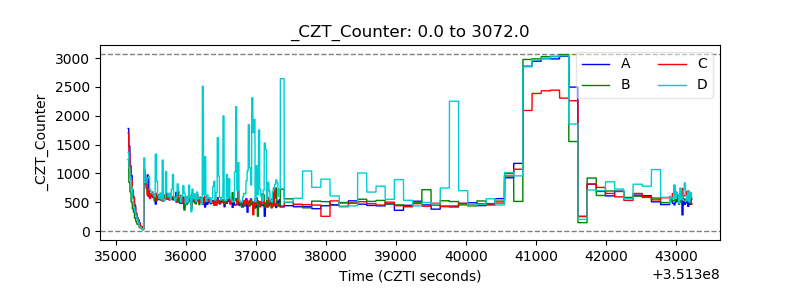

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

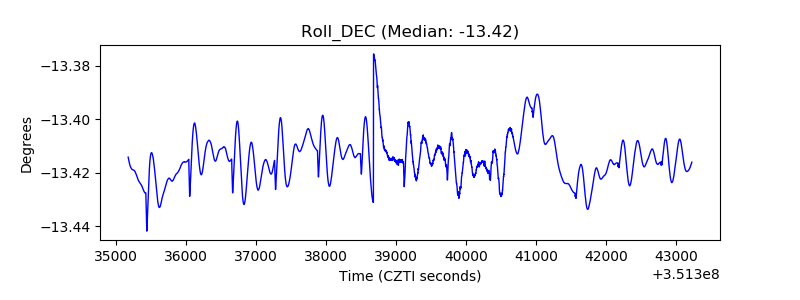

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
