| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_099T01_9000004184_29171cztM0_level2.evt | modeM0/AS1A10_099T01_9000004184_29171cztM0_level2_quad_clean.evt |
| Size (bytes) | 588,600,000 | 107,352,000 |
| Size | 561.3 MB | 102.4 MB |
| Events in quadrant A | 3,692,665 | 692,071 |
| Events in quadrant B | 3,951,742 | 704,603 |
| Events in quadrant C | 3,734,181 | 673,536 |
| Events in quadrant D | 5,929,945 | 650,392 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15998 | 4 |
| B | 0 | 16697 | 3 |
| C | 0 | 15890 | 3 |
| D | 0 | 22844 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7622 | 49 | 0.642876% |
| B | 7623 | 119 | 1.561065% |
| C | 7623 | 123 | 1.613538% |
| D | 7623 | 602 | 7.897153% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8717 | 7625 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8718 | 7626 | 8 | 8 | 0.09% | 0.10% |  |
| C | 8718 | 7626 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8718 | 7626 | 389 | 389 | 4.46% | 5.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 16 | 29378 | 147.72 | 949 | 931 | 192.6 |
| A | 13 | 254 | 13730 | 66.46 | 949 | 931 | 192.6 |
| A | 12 | 194 | 11048 | 52.53 | 949 | 931 | 192.6 |
| B | 10 | 246 | 102124 | 554.92 | 946 | 920 | 182.4 |
| B | 0 | 183 | 97011 | 526.89 | 946 | 920 | 182.4 |
| B | 12 | 111 | 23065 | 121.42 | 946 | 920 | 182.4 |
| C | 14 | 238 | 144817 | 673.84 | 910 | 915 | 213.6 |
| C | 3 | 233 | 26276 | 118.76 | 910 | 915 | 213.6 |
| C | 2 | 114 | 17887 | 79.47 | 910 | 915 | 213.6 |
| D | 1 | 52 | 2108769 | 9904.16 | 889 | 866 | 212.8 |
| D | 8 | 195 | 316634 | 1483.66 | 889 | 866 | 212.8 |
| D | 13 | 104 | 64863 | 300.7 | 889 | 866 | 212.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

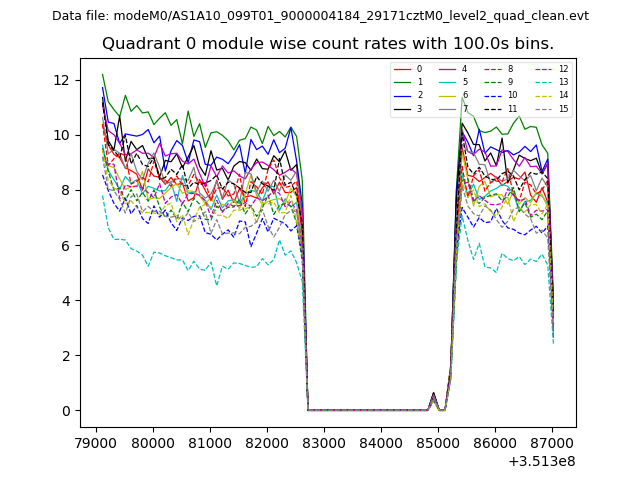

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

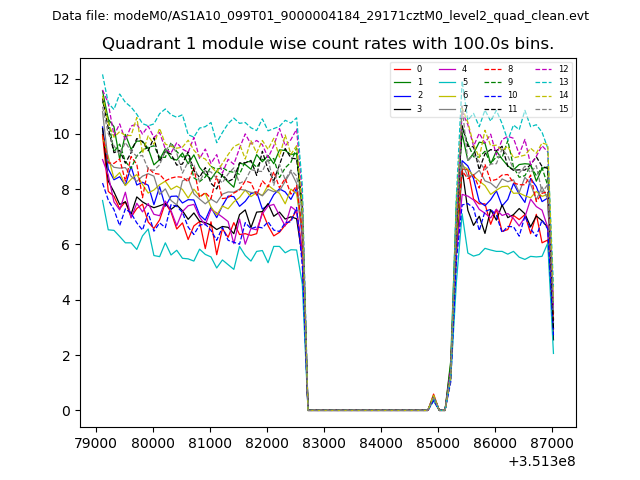

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

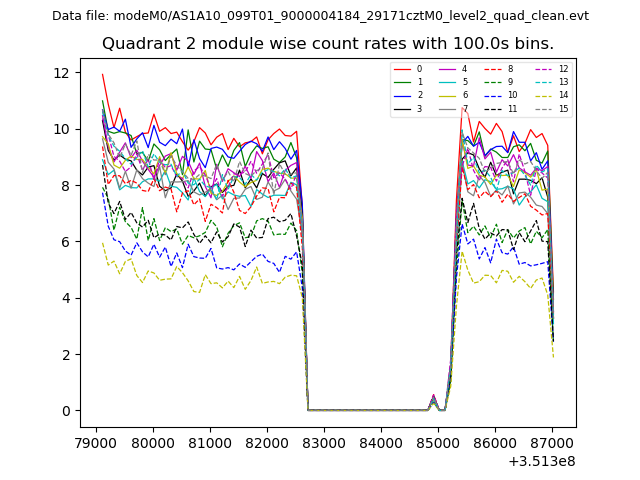

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

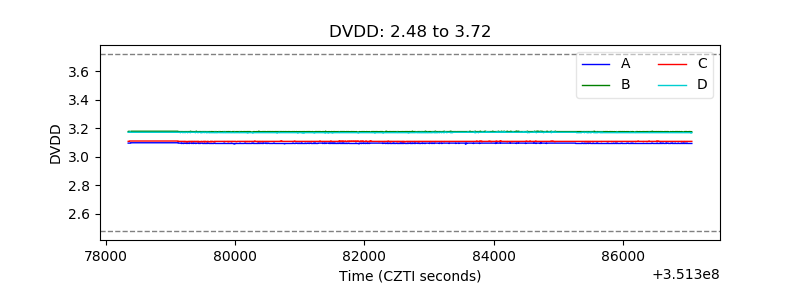

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

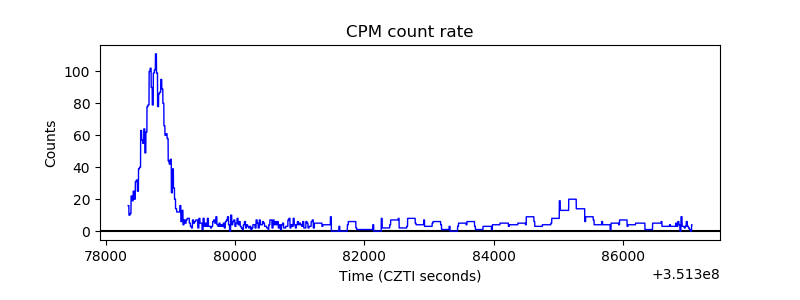

| _CPM_Rate |  |

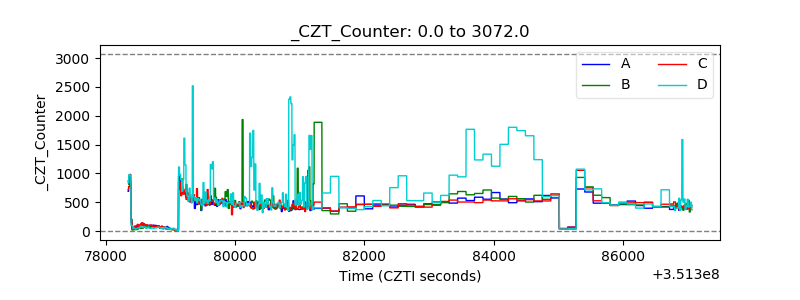

| CZT Counter |  |
| +2.5 Volts monitor |  |

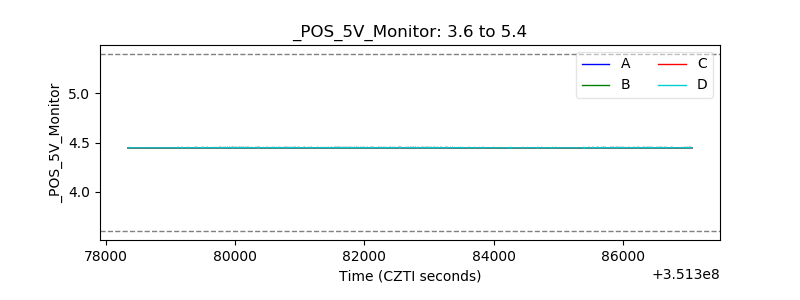

| +5 Volts monitor |  |

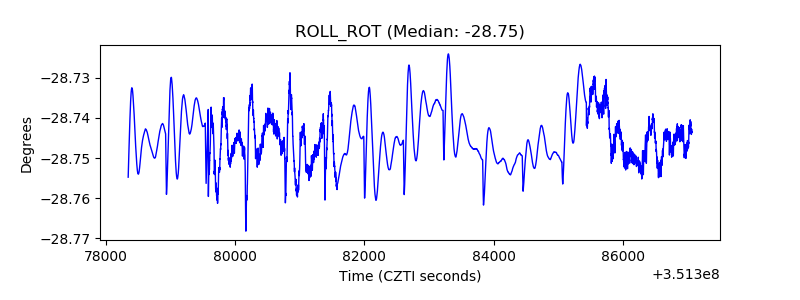

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
