| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_099T01_9000004184_29172cztM0_level2.evt | modeM0/AS1A10_099T01_9000004184_29172cztM0_level2_quad_clean.evt |
| Size (bytes) | 610,672,320 | 113,362,560 |
| Size | 582.4 MB | 108.1 MB |
| Events in quadrant A | 4,009,868 | 724,770 |
| Events in quadrant B | 4,228,742 | 737,717 |
| Events in quadrant C | 4,105,405 | 705,760 |
| Events in quadrant D | 5,584,434 | 685,450 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 174 | 0 |
| B | 0 | 174 | 0 |
| C | 0 | 174 | 0 |
| D | 0 | 174 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17379 | 3 |
| B | 0 | 18076 | 3 |
| C | 0 | 17426 | 3 |
| D | 0 | 22361 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8339 | 74 | 0.887397% |
| B | 8339 | 126 | 1.510973% |
| C | 8339 | 150 | 1.798777% |
| D | 8339 | 420 | 5.036575% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8909 | 8343 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8909 | 8343 | 2 | 2 | 0.02% | 0.02% |  |
| C | 8909 | 8343 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8909 | 8343 | 235 | 235 | 2.64% | 2.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 14807 | 65.74 | 1039 | 1015 | 209.8 |
| A | 3 | 137 | 10698 | 46.15 | 1039 | 1015 | 209.8 |
| A | 0 | 226 | 8661 | 36.45 | 1039 | 1015 | 209.8 |
| B | 0 | 183 | 137091 | 672.3 | 1034 | 1004 | 202.4 |
| B | 12 | 111 | 25613 | 121.57 | 1034 | 1004 | 202.4 |
| B | 11 | 111 | 23264 | 109.97 | 1034 | 1004 | 202.4 |
| C | 14 | 238 | 159262 | 673.51 | 997 | 1004 | 235.0 |
| C | 3 | 233 | 30483 | 125.46 | 997 | 1004 | 235.0 |
| C | 2 | 114 | 19780 | 79.91 | 997 | 1004 | 235.0 |
| D | 1 | 52 | 1361883 | 5797.06 | 986 | 963 | 234.8 |
| D | 8 | 195 | 341640 | 1451.17 | 986 | 963 | 234.8 |
| D | 13 | 104 | 72038 | 302.76 | 986 | 963 | 234.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

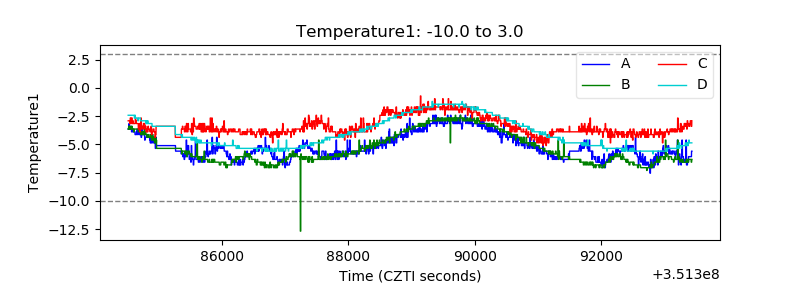

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

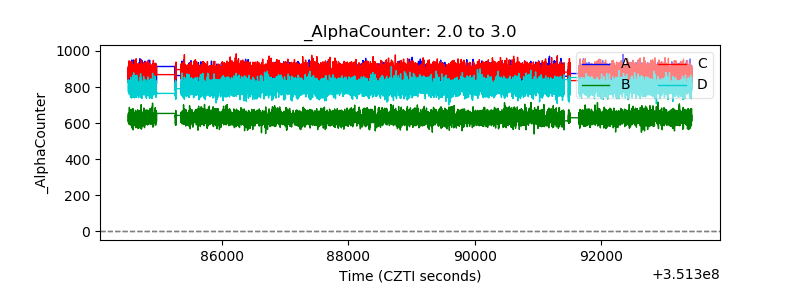

| Alpha Counter |  |
| _CPM_Rate |  |

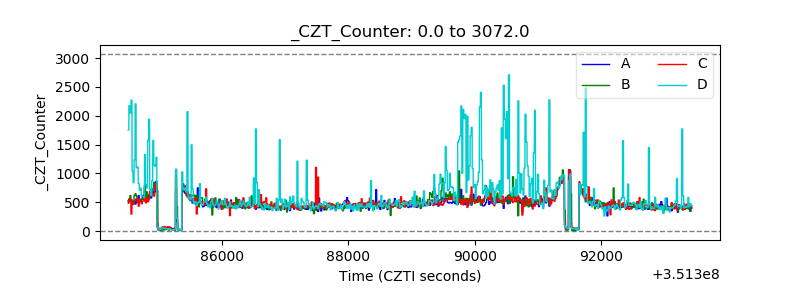

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

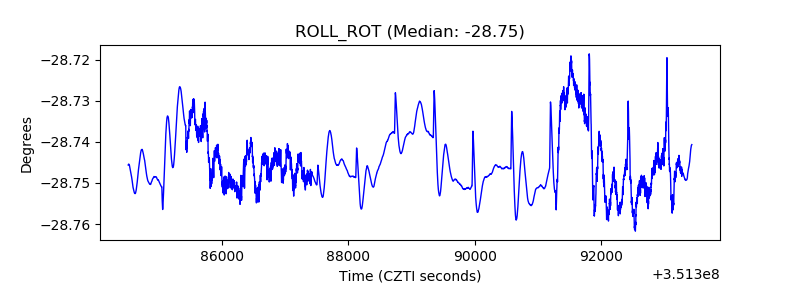

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

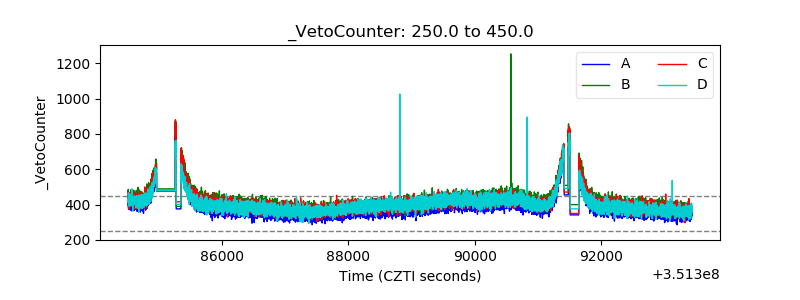

| Veto Counter |  |
