| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_099T01_9000004184_29176cztM0_level2.evt | modeM0/AS1A10_099T01_9000004184_29176cztM0_level2_quad_clean.evt |
| Size (bytes) | 459,057,600 | 73,618,560 |
| Size | 437.8 MB | 70.2 MB |
| Events in quadrant A | 2,937,711 | 455,973 |
| Events in quadrant B | 3,049,988 | 465,296 |
| Events in quadrant C | 3,024,638 | 445,310 |
| Events in quadrant D | 4,471,961 | 432,775 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12529 | 1 |
| B | 0 | 12723 | 1 |
| C | 0 | 12602 | 1 |
| D | 0 | 17222 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6154 | 40 | 0.649984% |
| B | 6154 | 46 | 0.747481% |
| C | 6154 | 75 | 1.218720% |
| D | 6154 | 332 | 5.394865% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7044 | 6155 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7044 | 6155 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7044 | 6155 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7044 | 6155 | 275 | 275 | 3.90% | 4.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10899 | 66.21 | 761 | 746 | 153.3 |
| A | 3 | 137 | 7605 | 44.73 | 761 | 746 | 153.3 |
| A | 0 | 226 | 6414 | 36.96 | 761 | 746 | 153.3 |
| B | 0 | 183 | 64685 | 435.87 | 751 | 732 | 146.7 |
| B | 12 | 111 | 18206 | 119.09 | 751 | 732 | 146.7 |
| B | 11 | 111 | 16787 | 109.42 | 751 | 732 | 146.7 |
| C | 14 | 238 | 118200 | 682.86 | 734 | 737 | 172.0 |
| C | 3 | 233 | 22191 | 124.72 | 734 | 737 | 172.0 |
| C | 2 | 114 | 14198 | 78.25 | 734 | 737 | 172.0 |
| D | 1 | 52 | 1151659 | 6654.1 | 723 | 703 | 173.0 |
| D | 8 | 195 | 470684 | 2717.13 | 723 | 703 | 173.0 |
| D | 13 | 153 | 50749 | 289.33 | 723 | 703 | 173.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

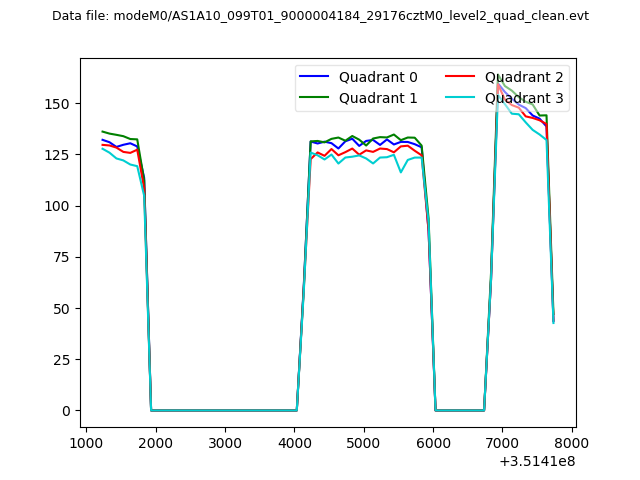

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

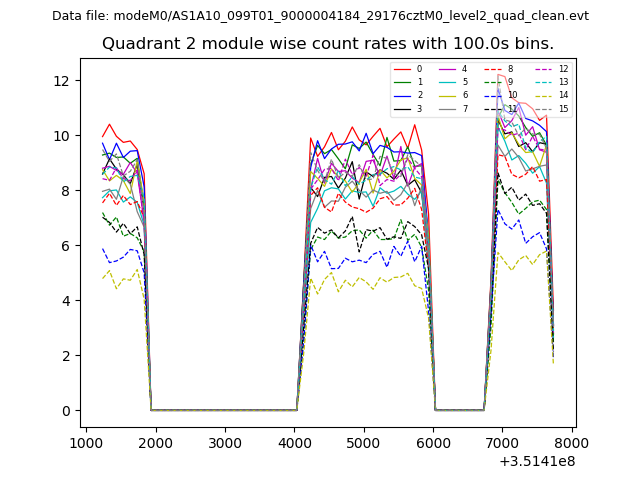

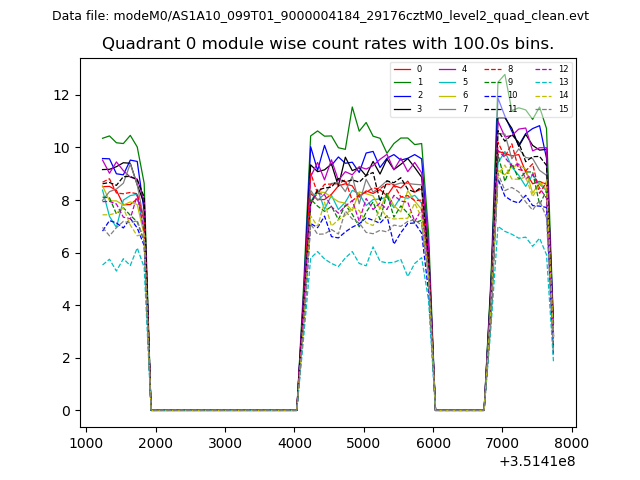

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

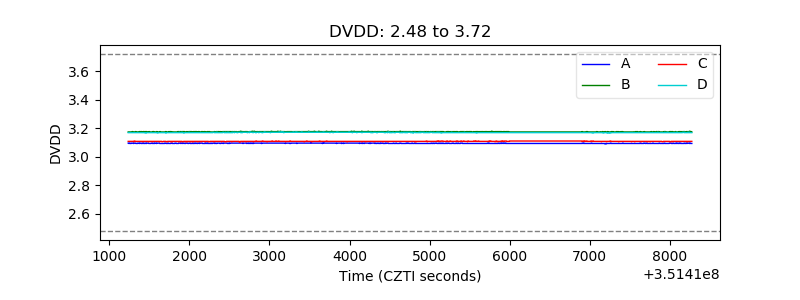

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

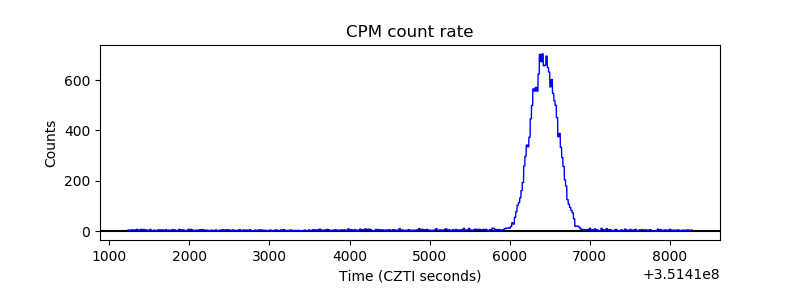

| _CPM_Rate |  |

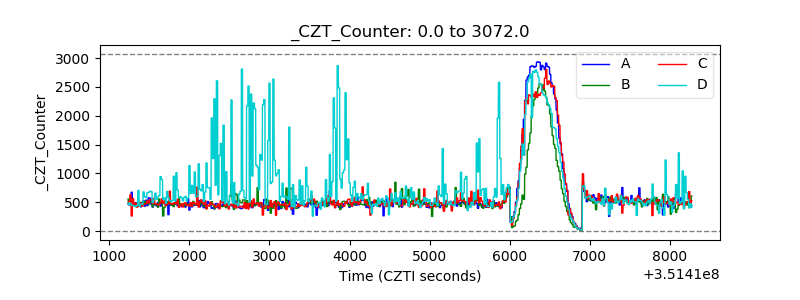

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
