| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_021T08_9000004186_29183cztM0_level2.evt | modeM0/AS1A10_021T08_9000004186_29183cztM0_level2_quad_clean.evt |
| Size (bytes) | 171,766,080 | 22,489,920 |
| Size | 163.8 MB | 21.4 MB |
| Events in quadrant A | 1,103,386 | 137,543 |
| Events in quadrant B | 1,194,783 | 141,195 |
| Events in quadrant C | 1,221,292 | 134,681 |
| Events in quadrant D | 1,555,519 | 132,602 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38 | 0 |
| B | 0 | 38 | 0 |
| C | 0 | 38 | 0 |
| D | 0 | 38 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4458 | 1 |
| B | 0 | 4824 | 1 |
| C | 0 | 5074 | 1 |
| D | 0 | 6008 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1840 | 61 | 3.315217% |
| B | 1841 | 89 | 4.834329% |
| C | 1841 | 116 | 6.300923% |
| D | 1841 | 100 | 5.431831% |

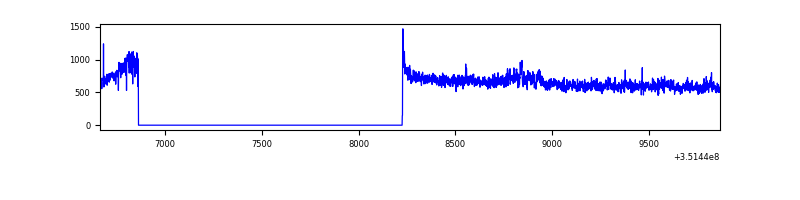

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3205 | 1841 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3206 | 1842 | 5 | 5 | 0.16% | 0.27% |  |
| C | 3206 | 1842 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3206 | 1842 | 40 | 40 | 1.25% | 2.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 3784 | 59.36 | 286 | 281 | 59.0 |
| A | 3 | 137 | 2705 | 41.08 | 286 | 281 | 59.0 |
| A | 0 | 226 | 2392 | 35.77 | 286 | 281 | 59.0 |
| B | 5 | 255 | 37229 | 664.41 | 285 | 277 | 55.6 |
| B | 0 | 183 | 35147 | 626.98 | 285 | 277 | 55.6 |
| B | 12 | 111 | 6652 | 114.63 | 285 | 277 | 55.6 |
| C | 3 | 233 | 90395 | 1362.82 | 277 | 279 | 66.1 |
| C | 14 | 238 | 45046 | 677.01 | 277 | 279 | 66.1 |
| C | 2 | 114 | 4792 | 68.25 | 277 | 279 | 66.1 |
| D | 1 | 52 | 231681 | 3370.03 | 280 | 273 | 68.7 |
| D | 8 | 195 | 170658 | 2481.34 | 280 | 273 | 68.7 |
| D | 2 | 153 | 55359 | 802.23 | 280 | 273 | 68.7 |

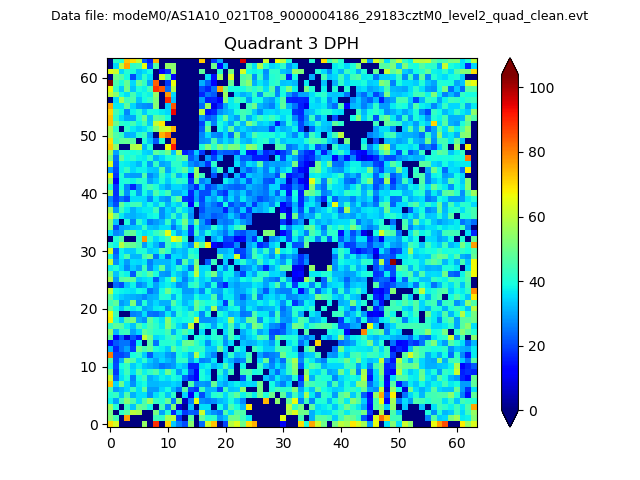

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

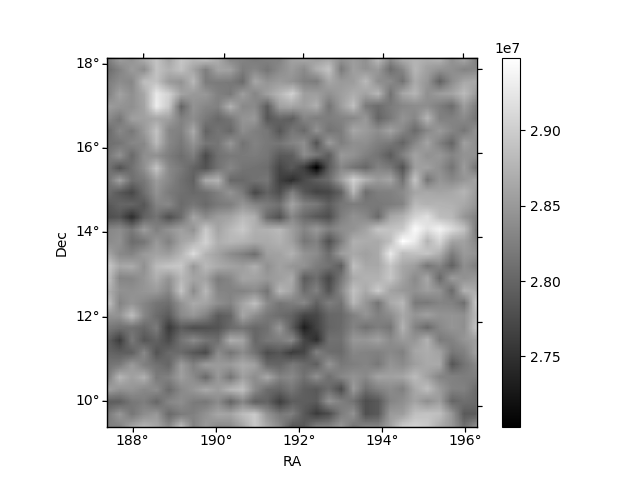

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

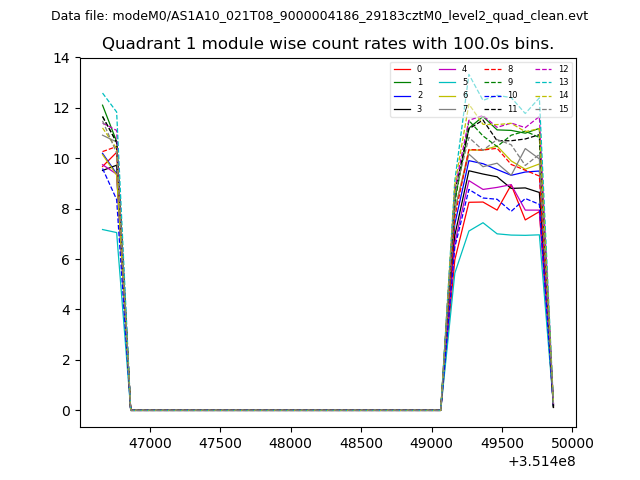

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

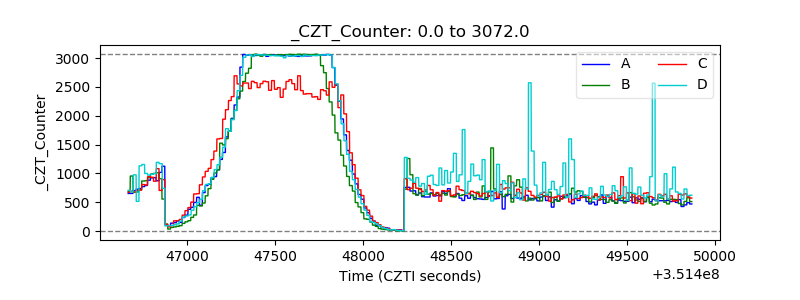

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

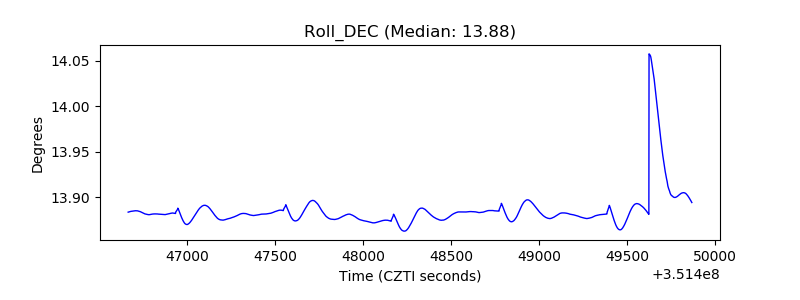

| _Roll_DEC |  |

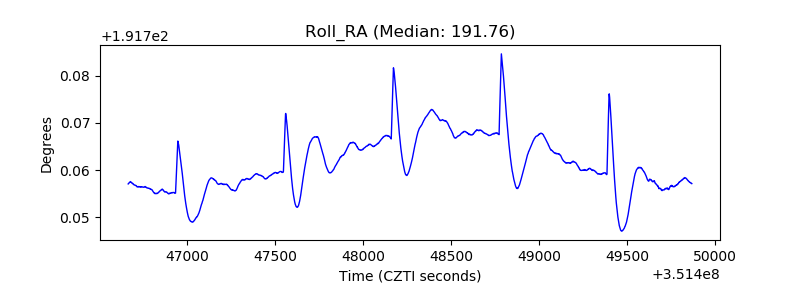

| _Roll_RA |  |

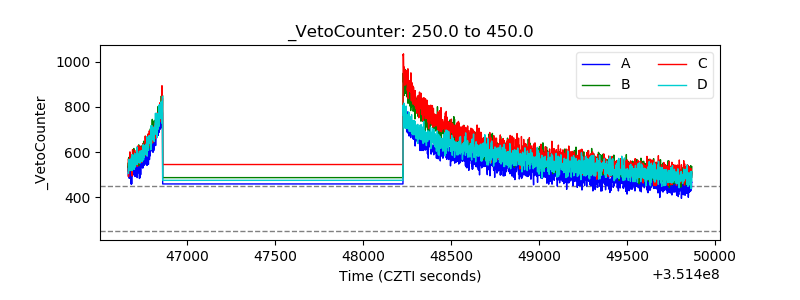

| Veto Counter |  |
